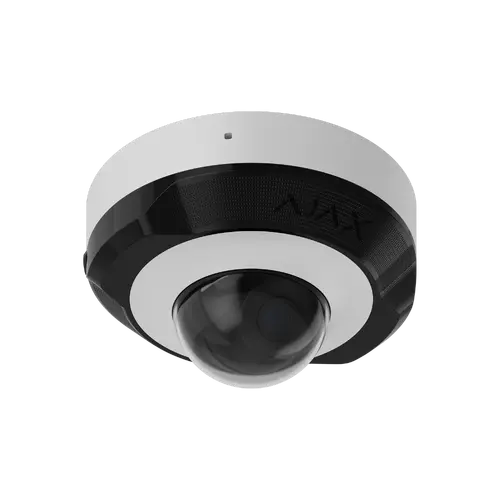

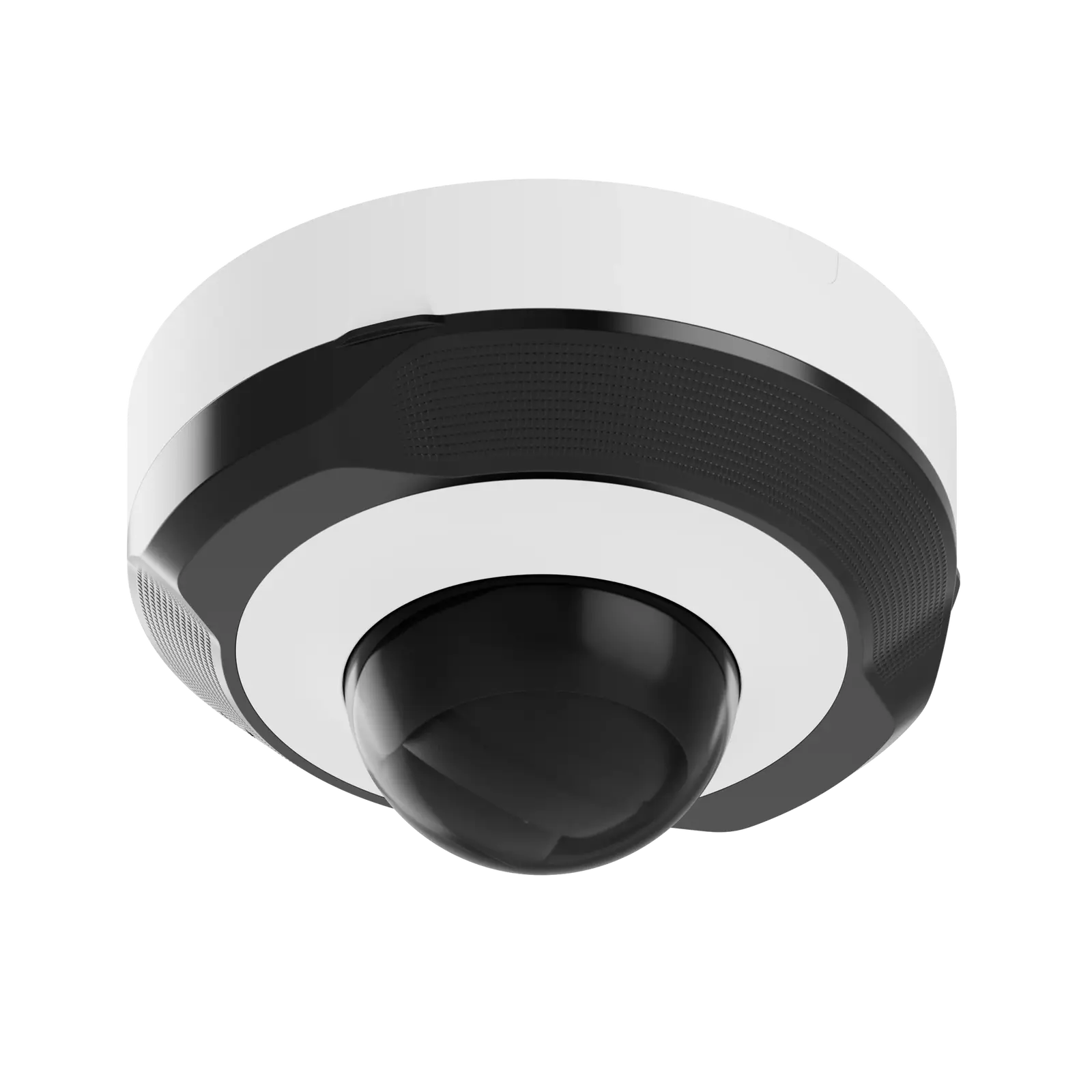

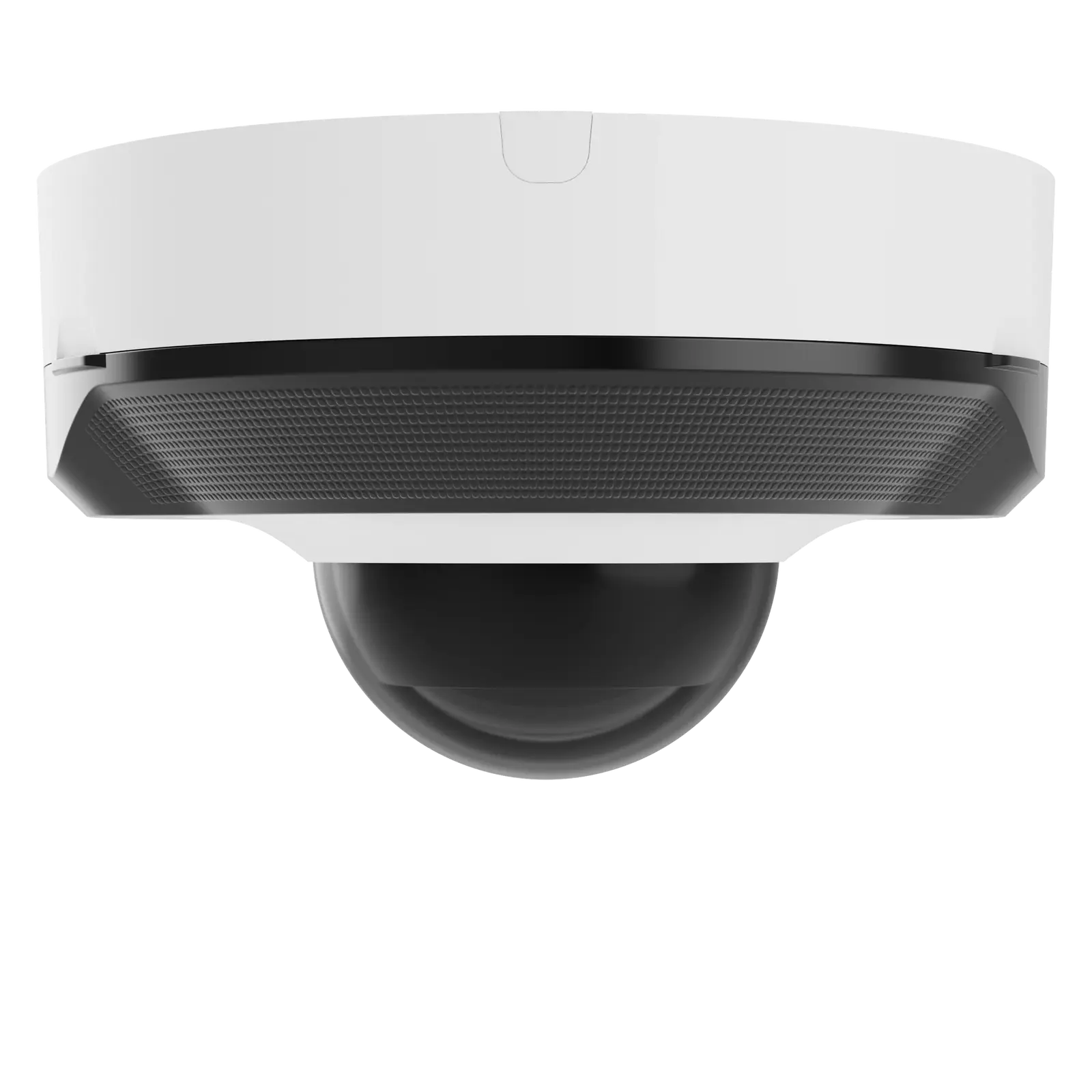

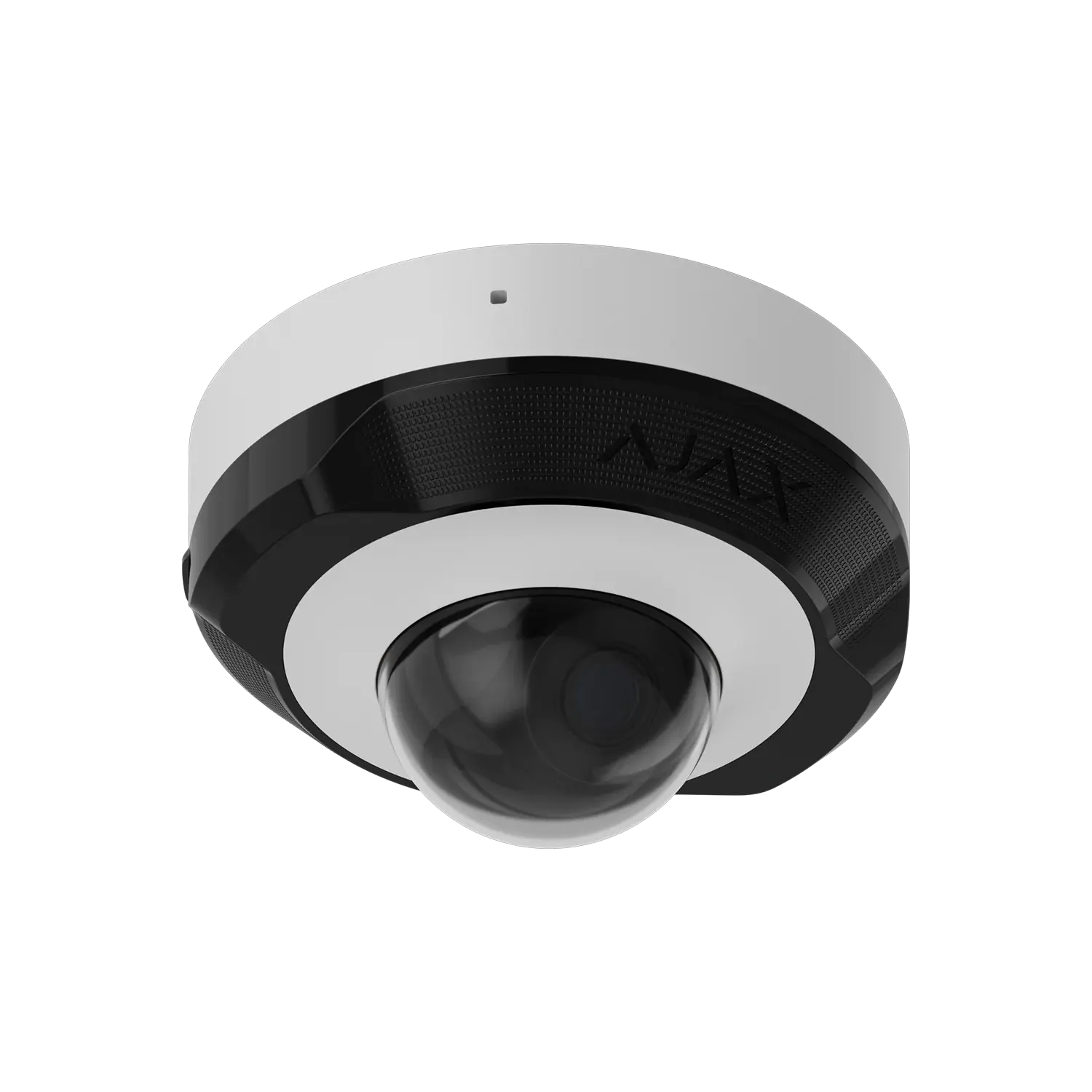

Ajax DomeCam Mini 5MP 2.8mm White Wired AI IP Dome Camera

Ajax DomeCam Mini 5MP 2.8mm White Wired AI IP Dome Camera

The Ajax DomeCam Mini is a compact wired IP dome camera built for reliable day-and-night surveillance in homes, offices, and small commercial sites. Fitted with a 5MP CMOS sensor and a 2.8mm fixed lens, it captures sharp footage across a wide 100-110 degree field of view, while onboard AI helps the camera tell people, vehicles, and pets apart so you only review footage that matters.

Key Features

• 5MP resolution: Records at up to 2880 x 1620px for crisp, detailed video.
• 2.8mm wide-angle lens: Covers a broad 100-110 degree viewing angle, ideal for entrances and general room coverage.
• AI object recognition: Automatically distinguishes humans, vehicles, and animals to cut down on irrelevant recordings.
• Smart infrared night vision: Illuminates scenes up to roughly 35m in complete darkness for reliable night monitoring.
• HDR/WDR imaging: Balances bright and shadowed areas in the same frame for clearer footage in challenging lighting.
• JetSparrow video protocol: Ajax's proprietary encrypted peer-to-peer streaming technology, supporting high frame rates with minimal lag.
• Flexible storage: Records locally to a microSD card (up to 256GB) or to an Ajax NVR with hard drive support.
• PoE or 12V DC power: Powered via Power over Ethernet (802.3af/at) or a 12V/1A adapter for flexible installation.
• IP65 weatherproof housing: Metal enclosure rated for outdoor use, with built-in tamper detection via accelerometer.

Reliable Surveillance for Homes and Businesses

Thanks to its weatherproof metal housing and long-range infrared, the DomeCam Mini suits both indoor hallways and covered outdoor areas such as porches, driveways, and shopfronts. Because it integrates directly with the Ajax security ecosystem, the camera can be triggered by Ajax motion detectors to start recording automatically, giving installers a straightforward way to add visual verification to an existing Ajax alarm system, or to run as a standalone wired IP camera on its own network.

What's in the Box

• Ajax DomeCam Mini (5MP/2.8mm) camera, white
• Installation template for accurate mounting hole placement
• Mounting/installation hardware kit and hex key
• Quick start guide

Frequently Asked Questions

Does this camera need a separate power supply?
No, it can be powered either through a PoE-enabled network switch/injector or via a standard 12V/1A DC adapter, whichever suits the installation.

Can it record without an NVR?
Yes, the camera supports a microSD card up to 256GB for standalone local recording, or it can be connected to an Ajax NVR for extended hard-drive storage.

Is this camera suitable for outdoor use?
Yes, its IP65-rated metal housing protects against dust and moisture, making it suitable for covered outdoor locations as well as indoor areas.
