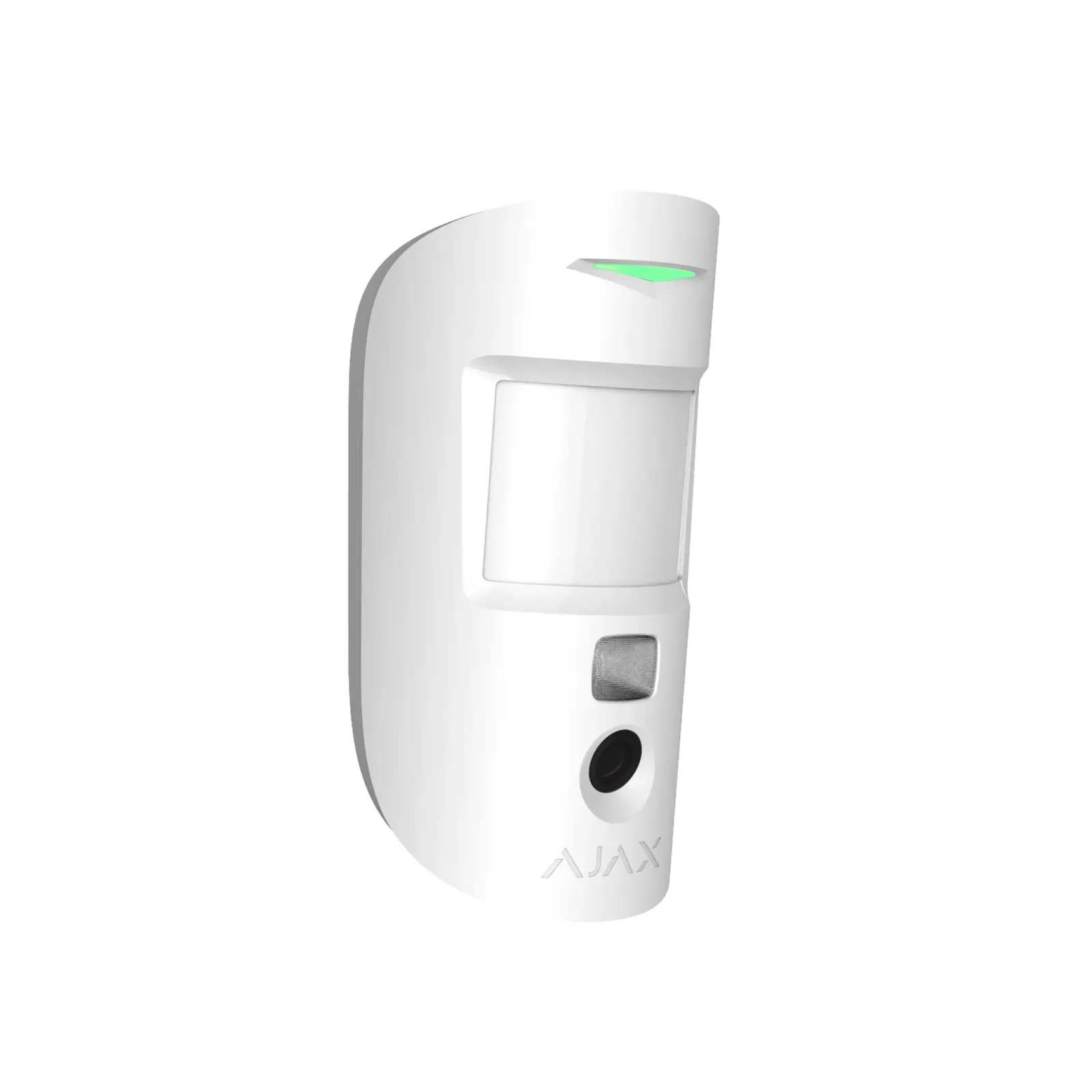

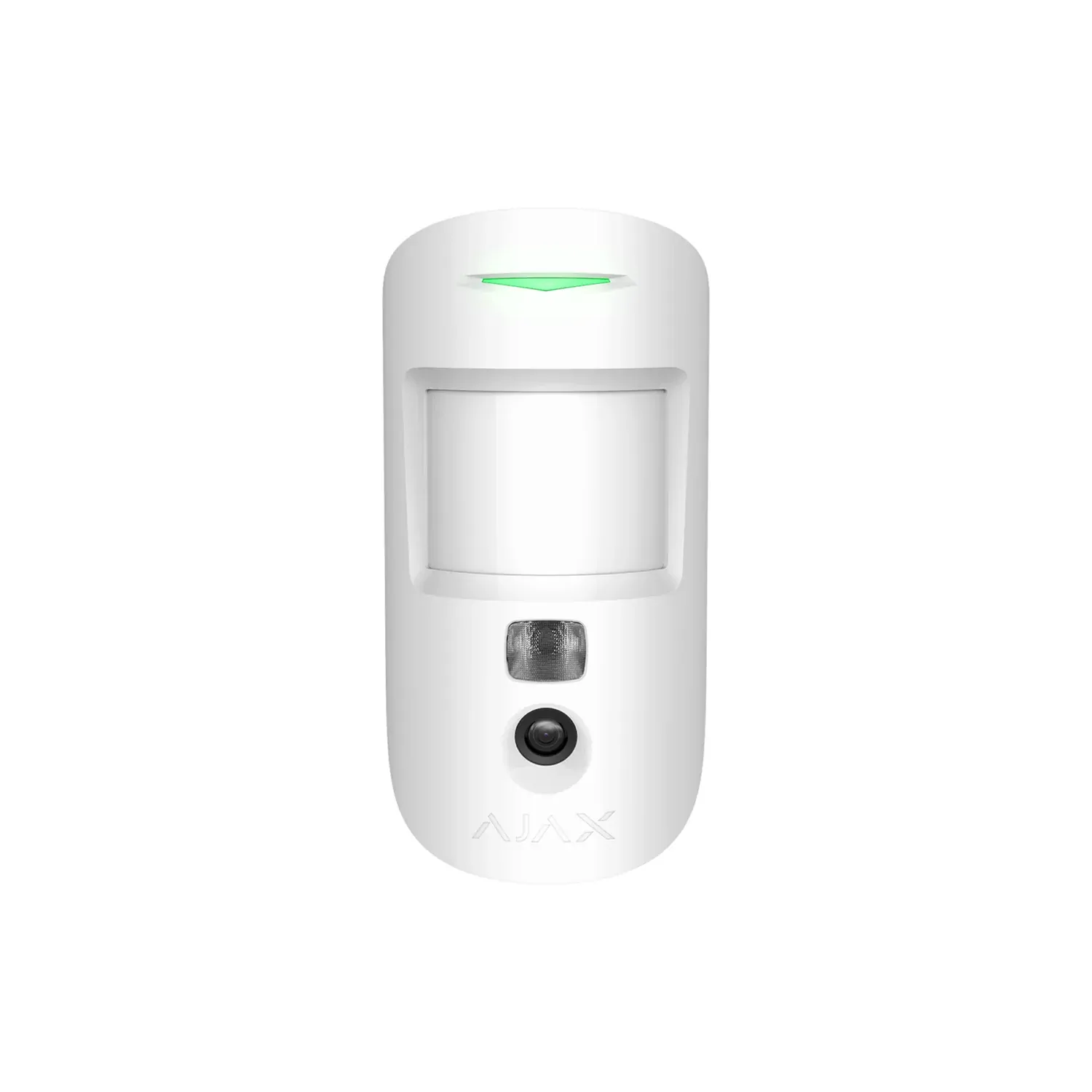

AJAX MotionCam HDR (PhOD)

The Ajax MotionCam (PhOD) Jeweller is a wireless motion detector with a built-in camera for photo verification of alarms. When it detects an intruder, it takes a series of photos and sends them to the Ajax app and your monitoring station within seconds. With Photo on Demand, users and installers can also request a photo at any time to check what is happening on site. This white model (AJAX119293) suits homes, offices, retail stores and vacant properties across Australia.

Photo verification motion detector for fewer false call-outs

A PIR alarm on its own can't tell you whether someone is really inside. The MotionCam PhOD attaches photos to every alarm, so monitoring centres and property owners can confirm a genuine intrusion before sending a response. The result is faster decisions, fewer wasted patrols, and better evidence when it matters.

Five ways to take photos

• Photo by alarm: captures up to 5 images when motion is detected while the system is armed.
• Photo on Demand: take a photo from the Ajax app at any time. It is disabled by default to protect privacy.
• Photo by schedule: automatic photos at set times. This needs hub firmware OS Malevich 2.19 or later.
• Photo on arming/disarming: records who was on site when the security mode changed.
• Photo by scenario: triggers a photo when an Ajax fire detector goes into alarm.

Day and night image quality

An infrared backlight provides clear photos in complete darkness. HDR processing balances bright windows and dark corners in the same frame. You can choose between 160×120, 320×240 and 640×480 resolution to trade image detail against delivery speed.

Reliable, pet-immune motion detection

The detector covers up to 12 metres with an 88.5° horizontal field of view. Pet immunity ignores animals up to 20 kg and 50 cm tall. The SmartDetect algorithm and temperature compensation help prevent false alarms. Installers can set one of three sensitivity levels remotely in the Ajax PRO app.

Secure Jeweller and Wings wireless technology

Alarms and events travel over Ajax's Jeweller radio protocol, and photos travel over a dedicated Wings channel. Both channels are encrypted and use frequency hopping to resist interception and jamming. They reach up to 1,700 metres from the hub in open space, and a ReX range extender can take coverage further. Tamper protection, device authentication and communication-loss detection guard against sabotage.

Up to 4 years on the supplied batteries

Two pre-installed CR123A batteries give up to 4 years of operation, or up to 3 years with Photo on Demand enabled. The SmartBracket mounting panel allows quick installation without opening the detector enclosure.

Ajax MotionCam PhOD specifications

Model / SKU	MotionCam (PhOD) Jeweller, White / AJAX119293
Detector type	Wireless PIR motion detector with photo verification
Detection distance	Up to 12 m (at 2.4 m mounting height)
Detection angle	88.5° horizontal
Pet immunity	Up to 20 kg / 50 cm
Photo resolution	160×120, 320×240 (default), 640×480
Photos per alarm	1–5 (1–3 at 640×480)
Photo delivery	7–20 seconds depending on resolution
Night photos	IR backlight
Wireless protocols	Jeweller (events), Wings (photos)
Frequency (Australia)	915.85–926.5 MHz
Radio range	Up to 1,700 m in open space
Power	2 × CR123A (pre-installed)
Battery life	Up to 4 years (3 years with Photo on Demand enabled)
Operating temperature	−10 °C to +40 °C
Humidity	Up to 75%
Protection class	IP50 (indoor use)
Dimensions	135 × 70 × 60 mm
Weight	167 g
Security grade	Grade 2 (EN 50131)
Colour	White
Warranty	24 months

What's in the box

• Ajax MotionCam (PhOD) Jeweller detector, white
• SmartBracket mounting panel
• Installation kit
• 2 × CR123A batteries (pre-installed)
• Quick start guide

Installation tips

Mount the detector indoors at 2.4 m. Aim the lens across the most likely intrusion path rather than straight down it, because PIR sensors detect sideways movement best. Avoid pointing it at windows, heaters or air-conditioning vents.

Frequently asked questions

What is the difference between MotionCam and MotionCam PhOD?

The standard MotionCam takes photos when an alarm is triggered. The PhOD version adds Photo on Demand, scheduled photos and photos on arming or disarming, so you can check the site visually at any time, not only during an alarm.

Which Ajax hubs support the MotionCam PhOD?

It needs an Ajax hub that supports photo verification, such as the Hub 2 family. Check the Ajax device compatibility tool for your specific hub and firmware before ordering.

Can the MotionCam PhOD be installed outdoors?

No. It is rated IP50 and is designed for indoor use only.

Does Photo on Demand invade privacy?

Photo on Demand is off by default and has to be enabled by an admin in the Ajax app. Access can be limited to specific users, and every photo request is logged in the event history.

How long do the batteries last?

Up to 4 years with Photo on Demand disabled, or up to 3 years with it enabled. It uses two standard CR123A lithium batteries.
