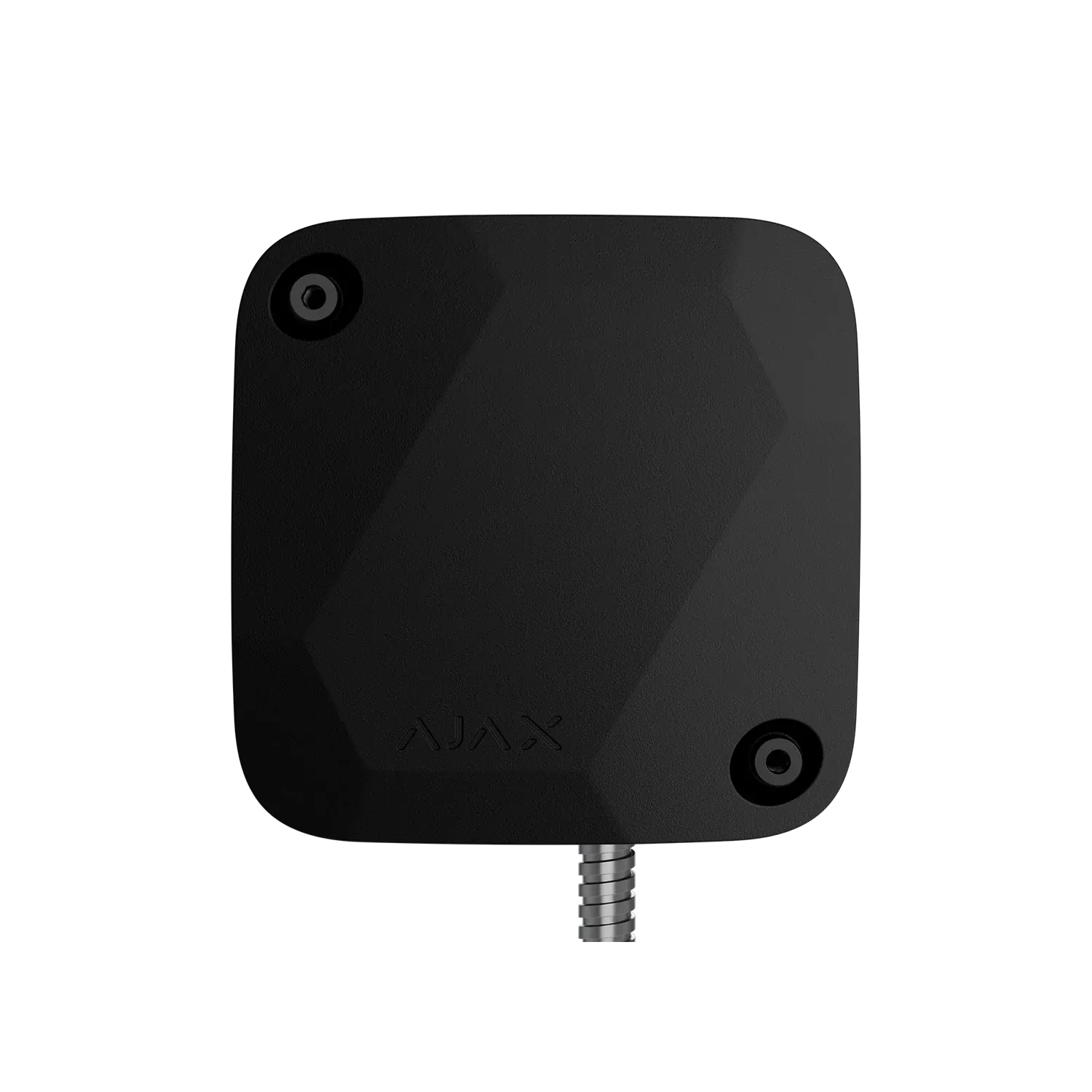

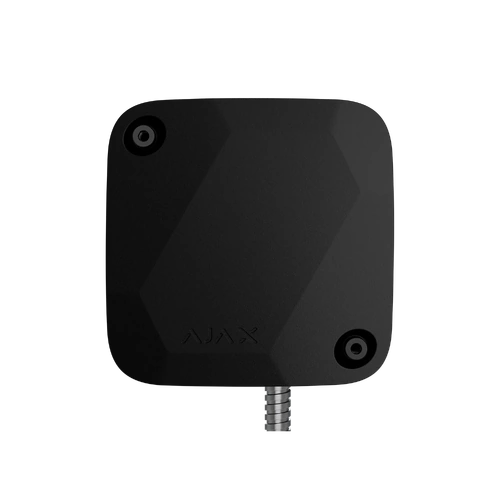

Ajax Superior SeismoProtect G3 Fibra Black Wired Seismic Detector

Ajax Superior SeismoProtect G3 Fibra Black Wired Seismic Detector

The Ajax Superior SeismoProtect G3 Fibra is a professional-grade, hardwired seismic detector purpose-built to protect safes, ATMs, vaults, and other high-value enclosures. Combining a piezoelectric vibration sensor with a supplementary shock/tilt sensor and digital temperature monitoring, it identifies drilling, cutting, breaking, and explosive attack attempts on walls, floors, ceilings, or metal enclosures. Connected via Ajax's proprietary Fibra wired technology, it delivers encrypted two-way communication with the hub for fast, tamper-resistant alarm reporting, making it a core component of the Superior line intended for high-security commercial and financial installations.

Key Features

• Dual detection technology: Combines a piezoelectric sensor for vibration analysis with an accelerometer to detect shocks and tilting of the protected object.
• Comprehensive threat coverage: Recognises drilling, sawing, cutting, welding, blasting, bending, pushing, and rapid temperature changes associated with forced entry.
• Smart false alarm filtering: Onboard software analyses vibration patterns to distinguish genuine attack attempts from swinging doors, nearby traffic, or routine maintenance work.
• Encrypted Fibra communication: Two-way wired link with block encryption and a dynamic key protects against spoofing, sabotage, and data interception.
• Dual operating modes: Switchable Seismic and Shock modes let installers tailor detection behaviour to the specific enclosure being protected.
• Adjustable sensitivity: Detection parameters can be fine-tuned in the Ajax apps to suit the environment and reduce nuisance alerts.
• Automatic self-testing: A built-in self-test device periodically verifies that the piezoelectric sensor is functioning correctly.
• Tamper and sabotage protection: Case-opening tamper alarms and compatibility with the Superior LineProtect module guard against overvoltage, short circuits, and stun-gun attacks on the wiring.
• Long cable runs: Supports Fibra line lengths of up to 2,000 metres using standard U/UTP cat.5 cabling, with Beam, Ring, and Tree topology options.

Reliable Protection for High-Value Assets

Because it is hardwired rather than wireless, the SeismoProtect G3 Fibra suits environments where cable runs are already in place or preferred for added security, such as bank branches, jewellery stores, cash-in-transit depots, server rooms, and secure storage areas. It is typically fixed directly to the surface of a safe, vault door, or protected wall, where it continuously monitors for physical attack while filtering out everyday vibration sources, and reports any confirmed threat to the connected Ajax hub in seconds.

What's in the Box

• Superior SeismoProtect G3 Fibra detector (Black)
• Mounting plate
• Self-test device
• Armored 4-core signal cable
• Installation kit
• Quick start guide

Frequently Asked Questions

Does this detector require a wireless hub? No. It connects to a compatible Ajax hub or Fibra-enabled module using a wired 4-core cable rather than a wireless connection.

Can it be used outdoors? It carries an IP43 rating, making it suitable primarily for indoor installation on safes, vaults, and internal structural surfaces.

What distinguishes the Superior range from standard Ajax detectors? Superior line products, including this seismic detector, are engineered for Grade 3 security applications and are distributed only through accredited Ajax partners for professional installation.
