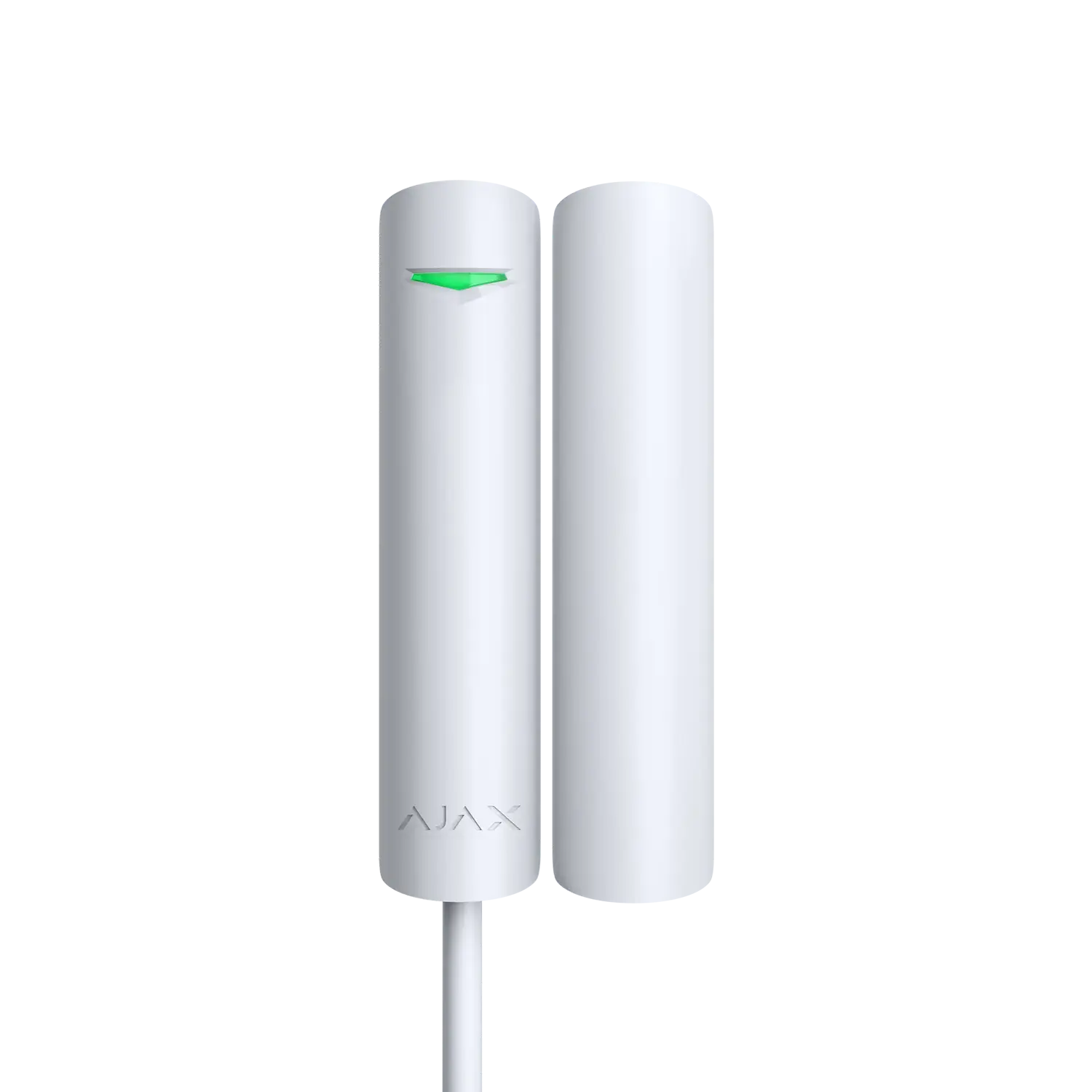

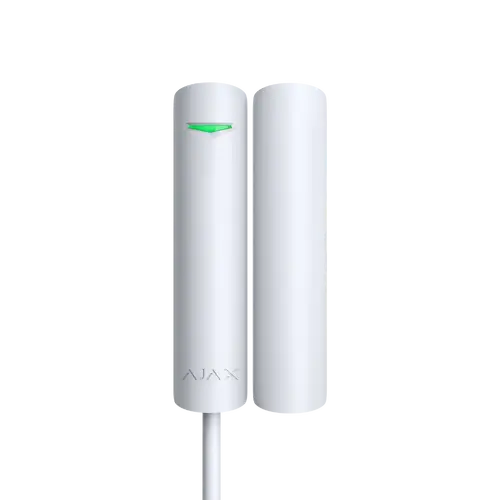

Ajax DoorProtect Plus Fibra White Wired Opening, Shock & Tilt Detector

Ajax DoorProtect Plus Fibra White Wired Opening, Shock & Tilt Detector

The Ajax DoorProtect Plus Fibra is a wired magnetic contact detector built for professional intrusion protection on doors, windows, skylights, cabinets, and vaults. Part of the Ajax Fibra wired product line, it combines a dual reed switch opening sensor with a built-in accelerometer that detects shock, vibration, and tilt, giving installers a single compact device that covers multiple threat types on one opening point. Finished in white, it blends into most interior door and window frames.

Key Features

• Dual reed switch design lets the magnet be fitted on either the left or right side of the detector for flexible installation.
• Two magnet sizes included (small and large) so installers can choose the best fit depending on frame gap and mounting surface.
• Built-in accelerometer detects shock and vibration from attempted forced entry, such as prying or drilling near a lock.
• Adjustable tilt detection allows the sensor to arm a window in ventilation mode while still catching abnormal tilt angles.
• Fibra wired protocol provides fast, reliable two-way communication with the hub over a standard 4-wire cable, with lines supporting up to 2,000 metres.
• Anti-chatter protection on the reed switches reduces false alarms caused by vibration or loose-fitting doors.
• Third-party detector input lets installers connect an external wired NC sensor to extend protection from the same device.
• Durable, tamper-resistant construction designed for long-term reliability in indoor security installations.

Reliable Wired Protection for Demanding Installations

This detector suits homes, offices, retail stores, and commercial premises where a hardwired sensor is preferred over battery-powered alternatives, such as sites with existing cabling infrastructure or where installers want to avoid periodic battery replacement. It is commonly fitted on entry doors, ground-floor windows, roller shutters, and skylights as part of a larger Ajax Fibra wired security system, working alongside hubs and other Fibra line devices for centralised monitoring and control through the Ajax app.

What's in the Box

• DoorProtect Plus Fibra detector unit (white)
• Small magnet
• Large magnet
• Mounting screws and fixings
• Quick start guide

Frequently Asked Questions

Does this detector work with a magnet on either side of the door?
Yes, thanks to its two reed switches, the magnet can be positioned on either the left or right side of the frame, though only one side should be used at a time.

Can it protect a window left open for ventilation?
Yes, the built-in tilt sensor can be configured to arm the window in a slightly open position while disabling the main magnetic contact.

Is this detector suitable for outdoor installation?
No, DoorProtect Plus Fibra is designed for indoor use only.
