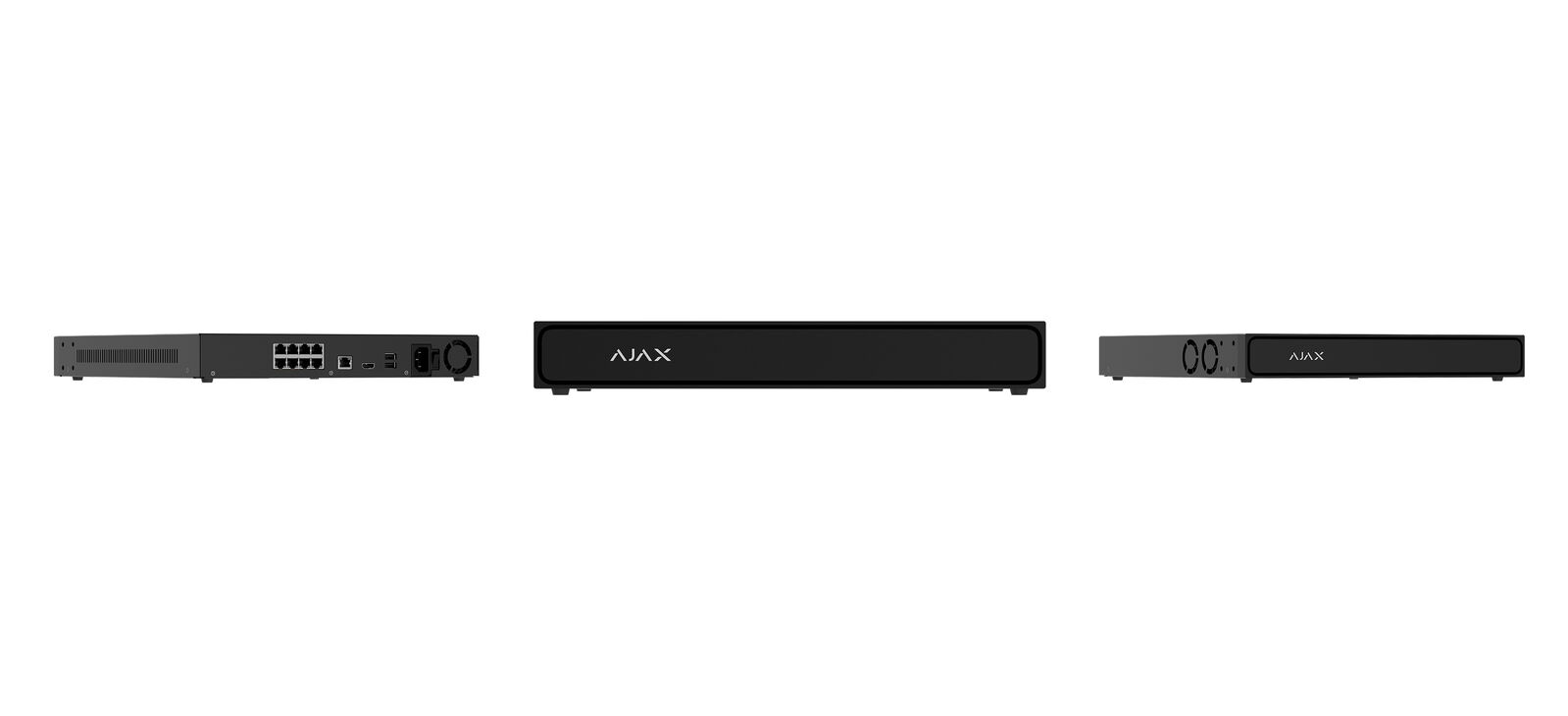

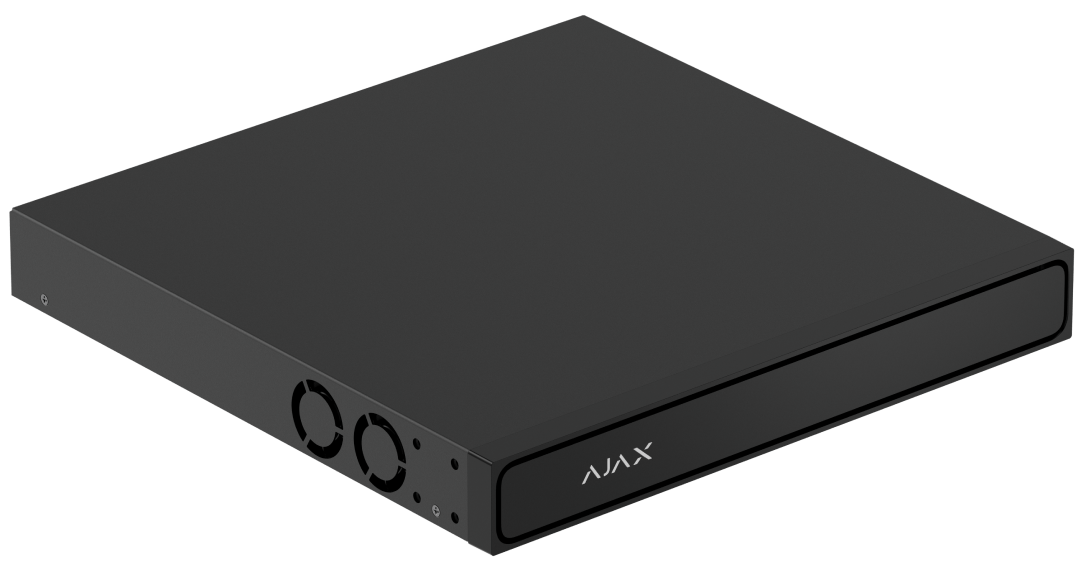

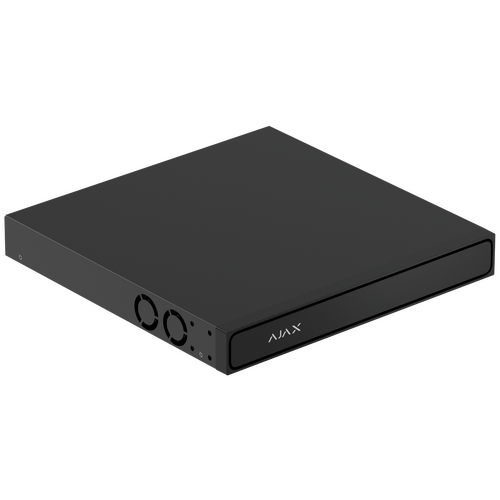

Ajax Superior NVR H2DAI8PAC 8-Channel Black

Ajax Superior NVR H2DAI8PAC 8-Channel Black

Ajax Superior NVR H2DAI8PAC is the 8-channel AI recorder with eight PoE ports (200 W budget) and onboard analytics for people, pets, vehicles and line-crossing. Two hot-swap bays support up to 24 TB per drive — a step up from the standard H2D8PAC 16 TB limit.

Key Features

• 8 IP channels with 4K HDMI (3840 × 2160) local output
• 8 × IEEE 802.3af/at PoE ports, up to 25 W per port, 200 W total budget
• 2 × SATA III hot-swap bays, up to 24 TB each (drives not included), redundancy or split recording
• 1 × Gigabit RJ45 plus 8 × PoE Fast Ethernet
• Codecs: H.265, H.264, JetSparrow; bandwidth 384 Mbps incoming / 384 Mbps outgoing
• 1 × USB 3.0 front, 2 × USB 2.0 rear; ONVIF Profile S and RTSP for third-party cameras
• Onboard AI: people, pets, vehicles and line crossing; third-party AI on up to 8 channels
• Built-in VMS, video wall, Ajax alarm-to-camera highlight, accelerometer tamper
• Indoor IP20, 100–240 V AC, up to 280 W; 24-month manufacturer warranty

Where it fits

Eight-camera Ajax or mixed ONVIF jobs that want AI search without a separate analytics box. Higher PoE budget (200 W vs 160 W on the non-AI H2D8PAC). Indoor rack, 4K HDMI local view.

What's in the Box

• Ajax Superior NVR H2DAI8PAC (8-ch)
• 2 × rack-mount brackets
• Power cable
• Ethernet cable
• Installation kit
• Quick start guide

Specifications

• Model: Superior NVR H2DAI8PAC (8-ch) — Black
• Dimensions: 330 × 330 × 44 mm (0.330 × 0.330 × 0.044 m)
• Weight (without drives): 3.31 kg
• Operating: 0–50 °C, up to 75% RH, indoor only

Official specs: https://ajax.systems/products/specs/superior-nvr-h2dai8pac-8-ch/
