CERTECH Cat6 RJ45 UTP Keystone Jack - Blue, 180 Degree, 6 Pack

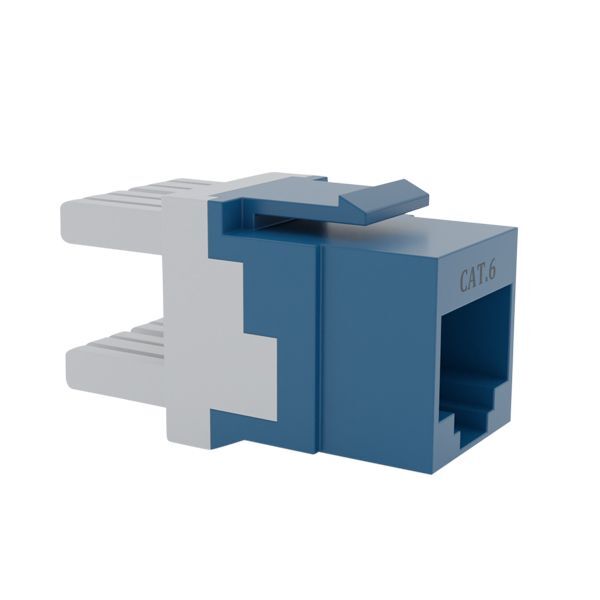

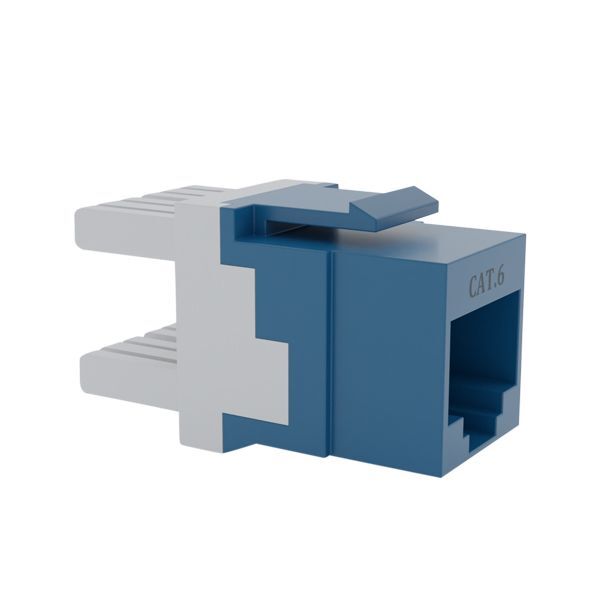

CERTECH Cat6 RJ45 UTP Keystone Jack - Blue, 180 Degree Termination (6 Pack)

Built for structured cabling installations, this CERTECH Cat6 keystone jack provides a reliable, standards-compliant termination point for unshielded twisted pair (UTP) Cat6 cabling. Supplied in a pack of six blue jacks with a 180-degree IDC termination style, it snaps straight into any standard keystone wall plate, patch panel, or surface mount box, making it a practical choice for data cabling installers, IT integrators, and network technicians working on Australian commercial or residential fit-outs. The blue housing is ideal for colour-coding data outlets in line with common cable management practices.

Key Features

• Category 6 performance conforming to ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 specifications

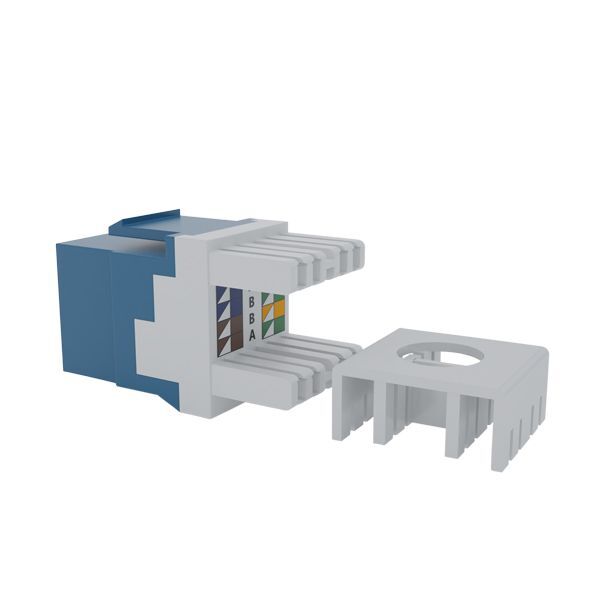

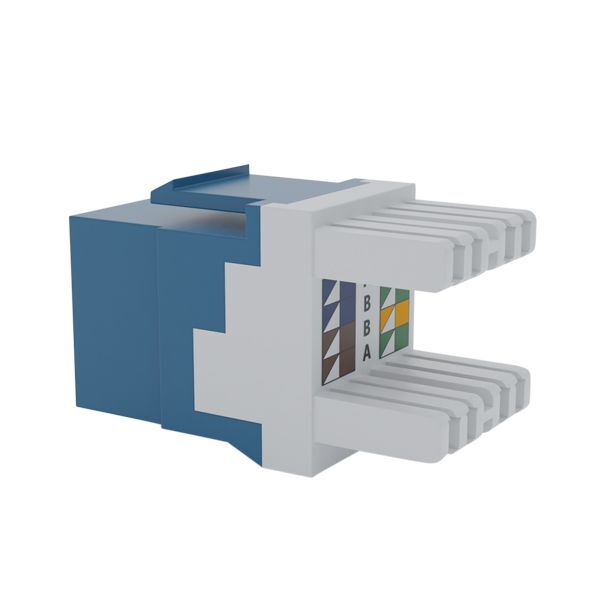

• Dual IDC connector accepts 23-26 AWG solid and stranded cable for flexible cabling compatibility
• Supports both T568A and T568B wiring schemes for standard termination flexibility
• 180-degree termination angle suited to standard wall plate and patch panel installations
• High-impact, flame-retardant UL94V-0 plastic housing for durability and safety compliance
• Nickel-plated phosphor bronze IDC contacts rated for a minimum of 250 re-terminations
• Gold-plated jack contacts rated for a minimum of 750 insertions, supporting long service life
• RoHS compliant construction for environmental compliance
• Recommended for use with standard RJ45 plugs, suitable for a wide range of Ethernet and legacy network applications

Typical Applications

This keystone jack is designed for use in structured cabling systems supporting Ethernet standards such as 10Base-T, 100Base-TX and 1000Base-TX, as well as legacy protocols including Token Ring and ATM. It is commonly installed in office fit-outs, data centres, schools, and residential network points where a dedicated Cat6 outlet is required. The blue colour option is often used to visually separate data ports from voice or other cabling types across a facility, simplifying ongoing cable management and fault-finding for installers and IT staff.

What's in the Box

• 6 x CERTECH Cat6 RJ45 UTP Keystone Jacks (Blue)

Frequently Asked Questions

Is this jack compatible with Cat5e and Cat6a cable?
It is designed and rated specifically for Cat6 UTP cable performance; while it may physically accept other cable types, full Cat6 performance is only guaranteed with compliant Cat6 cabling.

What wiring standard does it support?
The jack supports both T568A and T568B termination schemes, so it can be wired to match your existing cabling standard.

Does it require special tools to terminate?
Termination uses a standard 110-style IDC punch-down tool; no specialised proprietary tools are required.
