CERTECH Green Cat6 RJ-45 UTP Wall Plate Jack - Australian Style

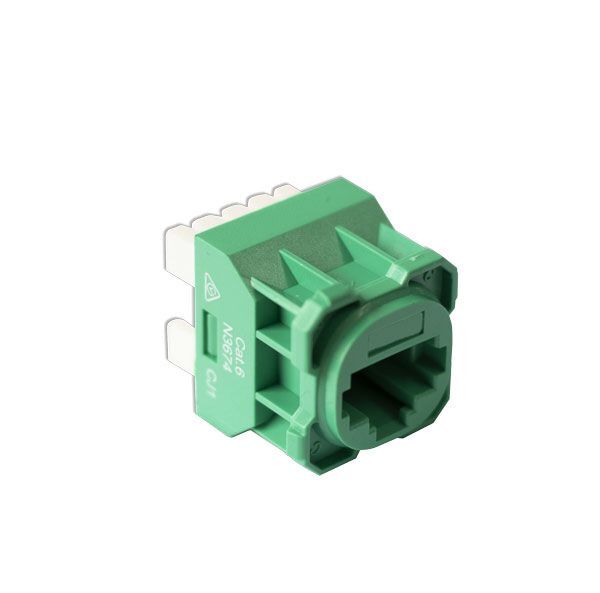

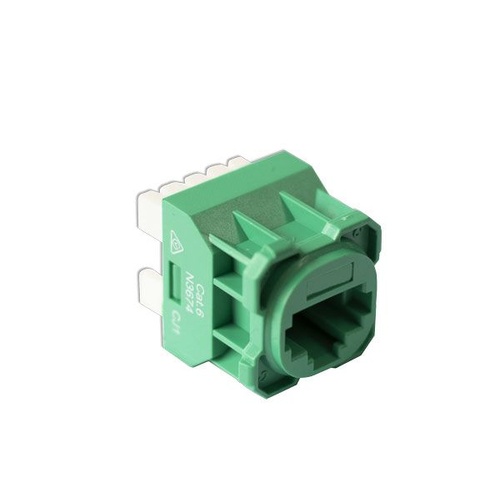

CERTECH Cat6 RJ-45 UTP Wall Plate Jack - Green

The CERTECH JWPC6GN is a Category 6 rated RJ-45 wall plate jack built for Australian-style (Clipsal-compatible) data outlet plates. Finished in green for easy circuit or zone identification, this jack snaps directly into standard AU wall plate housings and terminates twisted-pair cabling using a fast, tool-friendly IDC punch-down connector. It's designed for installers and network technicians who need reliable, standards-compliant Gigabit Ethernet performance in commercial, residential, and light industrial structured cabling installations.

Key Features

• Category 6 performance suitable for Gigabit Ethernet and other high-speed data applications
• Dual IDC termination accepts both 23-26 AWG solid and stranded conductors
• Supports both T568A and T568B wiring schemes for flexible installation
• Meets ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 performance requirements
• High-impact, flame-retardant UL94V-0 rated plastic housing for durability and safety
• Gold-plated phosphor bronze jack contacts over nickel plating resist corrosion and wear
• Nickel-plated phosphor bronze IDC contacts rated for repeated re-termination
• RoHS compliant construction for environmentally responsible installations
• Green housing colour simplifies port, floor, or department colour-coding

Reliable Data Outlets for Structured Cabling Projects

This wall plate jack is ideal wherever a clean, professional Cat6 data outlet is required - offices, homes, schools, retail fit-outs, and server rooms. Because it supports both T568A and T568B termination standards, it fits easily into existing cabling standards used by most Australian installers, and its Clipsal-style form factor allows it to drop straight into common AU wall plate systems without adapters. The IDC connector design speeds up first-fix termination while maintaining stable, low-resistance contact for consistent network performance over the life of the installation.

What's in the Box

• 1 x CERTECH Cat6 RJ-45 UTP Wall Plate Jack (Green)

Frequently Asked Questions

Is this jack compatible with standard Australian wall plates?
Yes. The JWPC6GN uses an Australian/Clipsal-style clip-in profile designed to snap into standard AU data wall plates without extra adapters.

Can I use this jack with existing Cat5e cabling?
Yes. While rated to Cat6 specifications, the jack terminates 23-26 AWG solid or stranded copper cable and is backward compatible with lower-category cabling for mixed installations.

Does it support Gigabit Ethernet?
Yes. As a Category 6 rated jack conforming to ANSI/TIA-568-C.2 and ISO/IEC 11801, it supports Gigabit Ethernet (1000Base-T) as well as older 10/100Base-T standards.
