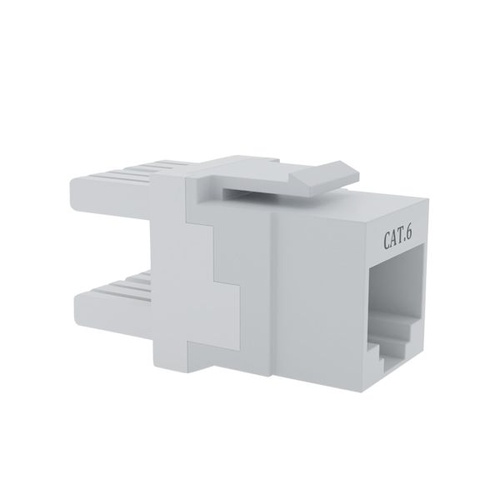

Certech Cat6 RJ45 UTP Keystone Jack White 180° - 6 Pack

Certech Cat6 RJ45 UTP Keystone Jack White 180° - 6 Pack

Terminate your structured cabling runs with confidence using this Certech Cat6 RJ-45 UTP keystone jack, supplied in a convenient six-piece pack. Finished in white with a 180-degree rear termination style, each jack is engineered to deliver reliable Category 6 performance for wall plates, patch panels and modular outlets across residential, commercial and data centre installations.

Key Features

• Category 6 performance that meets ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 requirements for dependable high-speed data transmission.
• Dual IDC termination accepts 23-26 AWG solid and stranded copper cable for flexible cabling compatibility.
• Supports T568A and T568B wiring schemes, making on-site termination straightforward regardless of house standard.

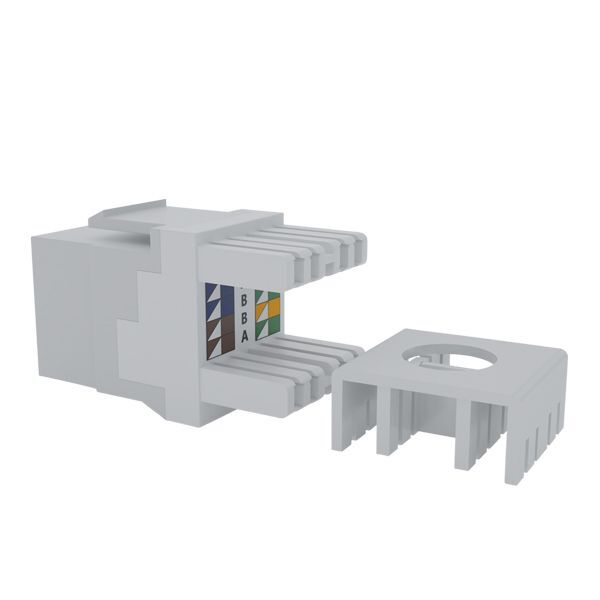

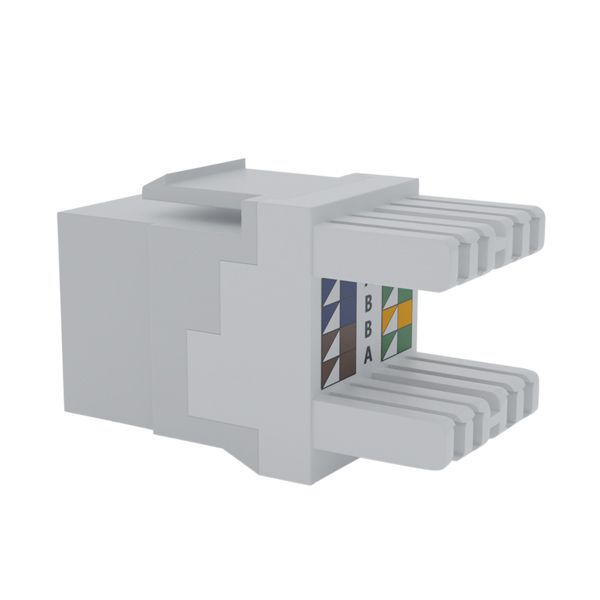

• 180-degree rear entry design simplifies cable dressing behind wall plates and patch panels.
• High-impact, flame-retardant UL 94V-0 plastic housing protects the internal contacts and supports long service life.
• Gold-plated phosphor bronze jack contacts resist corrosion and maintain a stable, low-resistance connection.
• Rated for a minimum of 750 insertion cycles and 250 IDC re-terminations, supporting durability in busy installations.
• RoHS compliant construction for environmentally responsible deployment.
• Supplied as a pack of 6 jacks in white, ideal for matching multiple outlets in a single job.

Typical Applications

This keystone jack is well suited to structured cabling projects where a clean, standards-compliant Cat6 termination is required, including office fit-outs, home networking upgrades, retail point-of-sale cabling and CCTV/IP camera network drops. It works with common Ethernet protocols such as 10Base-T/100Base-Tx, 1000Base-Tx, ATM and 100VG-AnyLAN, and integrates into standard keystone wall plates, surface mount boxes and unloaded patch panels.

What's in the Box

• 6 x Certech Cat6 RJ-45 UTP Keystone Jacks (White, 180-degree termination)

Frequently Asked Questions

Q: Is this jack compatible with both T568A and T568B wiring?
A: Yes, the jack supports both wiring standards, giving installers flexibility to match existing infrastructure.

Q: What cable gauge can I terminate into this jack?
A: The dual IDC connector accepts 23-26 AWG solid or stranded copper cable.

Q: Can this jack be used with Cat5e cabling as well?
A: While designed and rated for Cat6 performance, it is backward compatible with Cat5e cable for lower-speed applications.
