CERTECH Cat6 UTP Wall Plate Jack White - 6 Pack (JWPC6WH6)

CERTECH Cat6 RJ-45 UTP Wall Plate Jack - White, 6 Pack

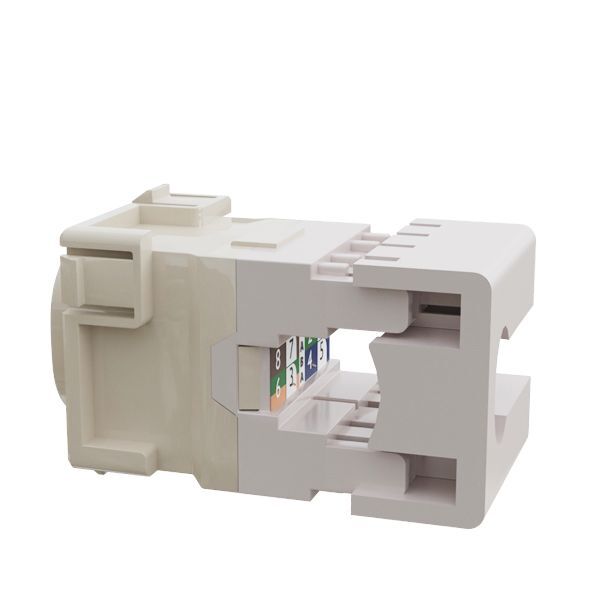

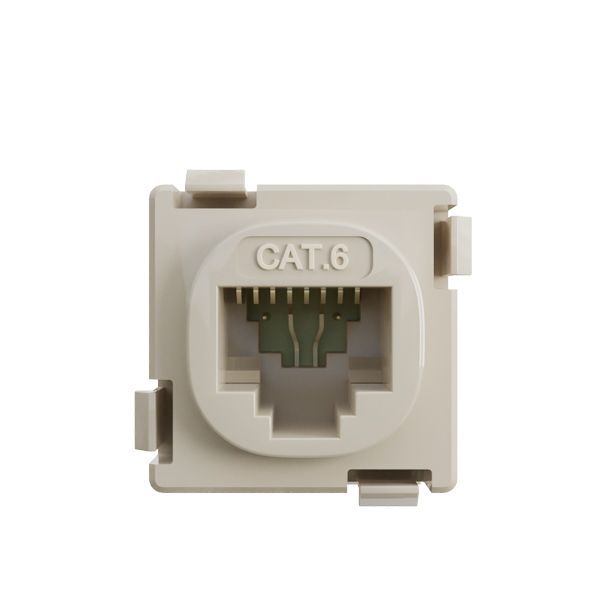

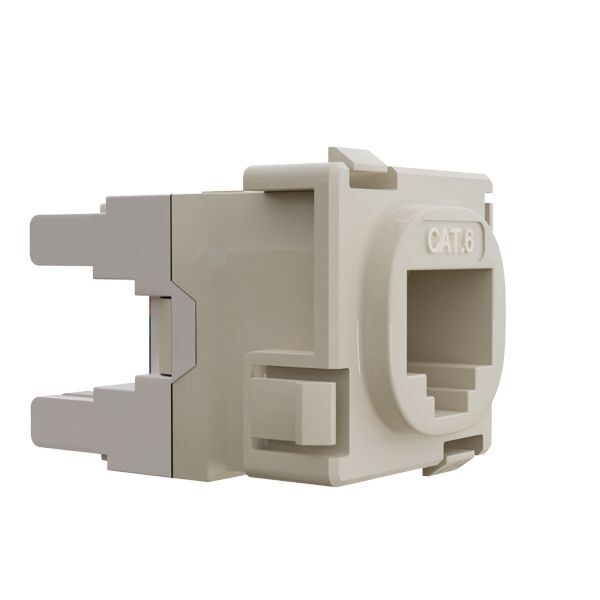

The CERTECH JWPC6WH6 is a Cat6-rated RJ-45 wall plate jack designed for terminating structured cabling directly into Australian-style wall plates. Supplied in a convenient 6-piece pack, these white jacks give installers, electricians and network technicians a reliable, standards-compliant way to create fixed data outlets for offices, homes and commercial fit-outs.

Key Features

• Category 6 performance - engineered to meet Cat6 transmission requirements for Gigabit Ethernet and beyond.
• Dual IDC termination - the insulation displacement connector accepts both solid and stranded conductors in the 23-26 AWG range.

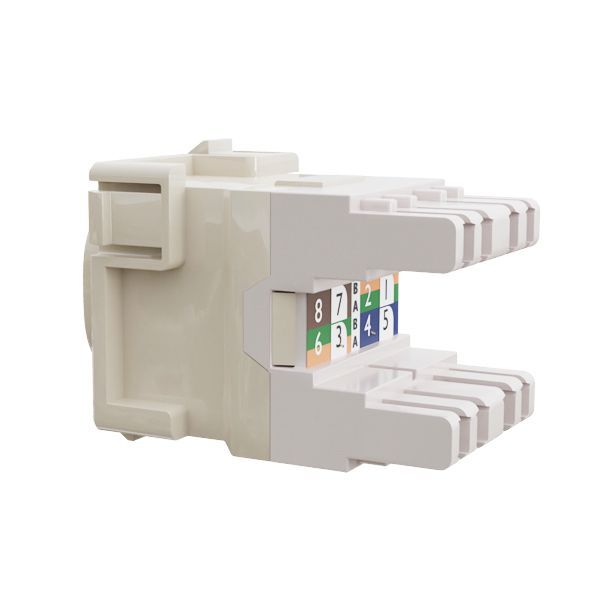

• Universal wiring support - compatible with both T568A and T568B termination standards for flexible installation.
• Standards compliant - performance aligns with ANSI/TIA-568-C.2, ISO/IEC 11801 and EN50173-1 Category 6 specifications.
• Durable housing - high-impact, flame-retardant UL94V-0 rated plastic body protects internal contacts.
• Long service life - rated for repeated re-termination and hundreds of plug insertion cycles without performance loss.
• RoHS compliant - manufactured with reduced environmental impact in mind.
• Neutral white finish - blends into most wall plate and skirting board colour schemes.
• Wall-plate compatible design - snaps into standard Australian-style faceplates for a clean, professional finish.

Typical Applications

These jacks suit any project requiring a fixed Cat6 data point, from home network upgrades and NBN-ready outlets to office fit-outs, retail point-of-sale cabling and small commercial data racks. They are commonly paired with matching wall plates, patch panels and Cat6 patch cables to complete a structured cabling run, and are equally useful for CCTV and access control installers who need a clean RJ-45 termination point at the wall.

What's in the Box

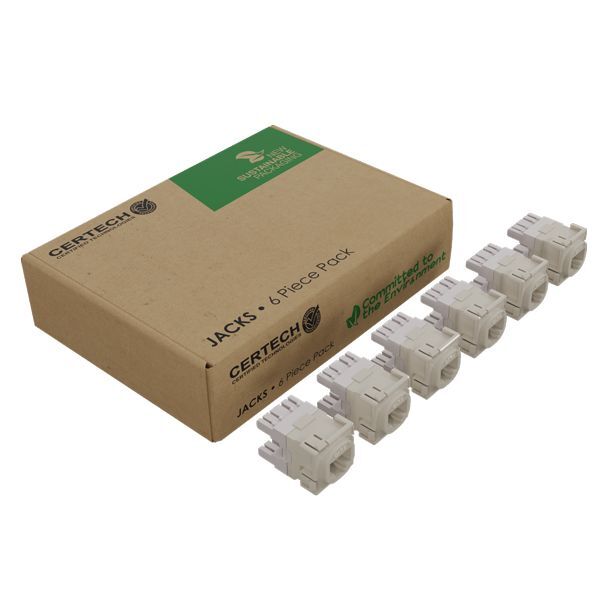

• 6 x CERTECH Cat6 RJ-45 UTP Wall Plate Jacks (White)

Frequently Asked Questions

Does this jack support both T568A and T568B wiring?
Yes, the dual IDC connector is designed to work with either wiring standard, so installers can follow whichever convention their site requires.

Is this jack suitable for Gigabit networks?
Yes, it is rated to Category 6 performance standards, supporting Gigabit Ethernet and other high-speed data applications.

Will this jack fit a standard wall plate?
Yes, it is designed to snap into standard Australian-style wall plate housings for a neat, finished data outlet.
