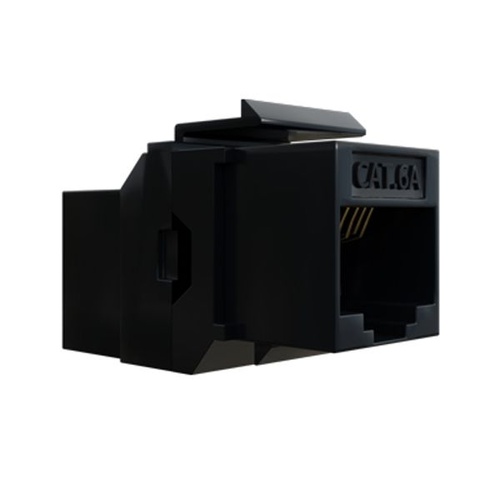

CERTECH Cat6A RJ45 UTP Straight-Through Keystone Joiner (Black)

CERTECH Cat6A RJ45 UTP Straight-Through Keystone Joiner

The CERTECH Cat6A RJ45 UTP Straight-Through Keystone Joiner is a black keystone-style coupler designed to join two Cat6A UTP cable runs using standard IDC punch-down termination. Built for structured cabling installers, it fits any standard keystone wall plate, surface mount box or patch panel opening, making it a practical solution for extending or repairing data cable runs without re-pulling cable or resorting to a full cable splice.

Key Features

• Universal keystone footprint that snaps into any standard keystone wall plate, surface box or patch panel port
• Dual T568A/B wiring support with colour-coded IDC terminals for either wiring standard
• Gold-plated contact area on the RJ45 contacts for a low-resistance, corrosion-resistant connection
• Durable polycarbonate housing on both the RJ45 and IDC sections for long-term mechanical strength
• Phosphor bronze IDC terminals compatible with 22-26 AWG stranded and solid copper cable
• Flame-retardant FR4 UL 94V-0 rated PCB for added fire safety compliance
• Rated retention strength of 7.7kg between jack and plug for a secure, long-lasting mating connection
• Wide operating temperature range of -40°C to 70°C, suitable for a variety of installation environments
• Tested durability of 750 plug-jack mating/unmating cycles and up to 200 IDC punch-downs

Typical Applications

This keystone joiner is commonly used by data cabling installers and IT technicians who need to extend an existing Cat6A UTP cable run, join two cable segments inside a wall cavity or floor box, or replace a damaged section of cable without terminating a full new keystone jack and plug assembly. It is well suited to office fit-outs, home network upgrades, and general structured cabling maintenance where a compact, in-line, tool-terminated splice is required.

What's in the Box

• 1 x CERTECH Cat6A RJ45 UTP Straight-Through Keystone Joiner (Black)

Frequently Asked Questions

Does this joiner support both T568A and T568B wiring? Yes, the IDC terminals are colour-coded to support both the T568A and T568B wiring standards.

What cable types can be terminated into this joiner? It is designed for 22-26 AWG stranded or solid copper UTP cable, making it compatible with standard Cat6A cabling.

Will this fit into my existing wall plate? Yes, it uses a standard keystone footprint so it will fit into any keystone-compatible wall plate, surface mount box or patch panel.
