Certech 305m Cat6 U/UTP Solid Cable Red LSZH - Bulk Cable Roll

Certech 305m Cat6 U/UTP Solid Cable - Red LSZH Jacket

This Certech 305 metre Cat6 U/UTP solid cable is a full-length bulk roll designed for structured cabling installers, integrators and IT professionals who need reliable, code-compliant network cabling. Supplied on a reel-in-box for easy in-wall or in-ceiling pulling, this red-jacketed cable is ideal for colour-coding separate network segments, security or CCTV runs, and general LAN infrastructure in commercial and residential buildings across Australia.

Key Features

• Cat6 performance: Supports data transmission up to 250MHz, suitable for Gigabit Ethernet and beyond.
• 100% bare copper conductors: Four twisted pairs of solid bare copper for optimal signal integrity and low resistance.
• 23AWG conductor gauge for strong, stable transmission over long cable runs.
• LSZH (Low Smoke Zero Halogen) jacket: Produces minimal smoke and no halogen gases if exposed to fire, improving safety in enclosed spaces.
• AS/CA S008:2010 approved, meeting Australian telecommunications cabling standards.
• 4K UHD ready for high-bandwidth video and data applications, including IP camera and AV-over-IP deployments.

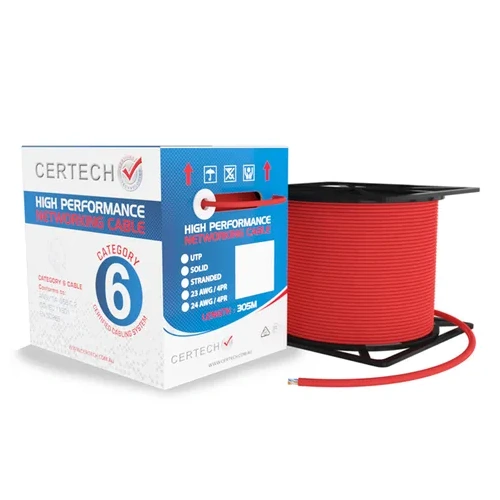

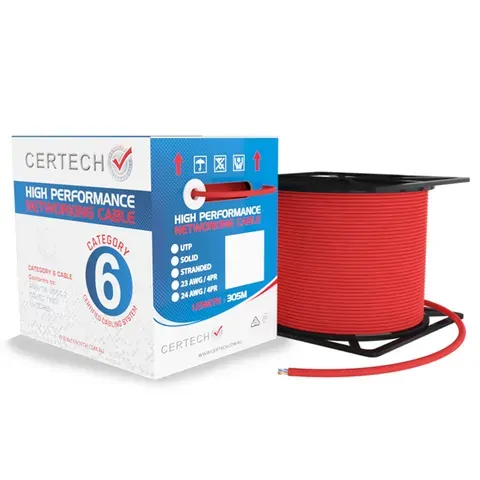

• Bulk 305m length supplied in a convenient reel-in-box for tangle-free, easy dispensing on site.
• Red jacket colour for simple identification and separation of cable runs in multi-network environments.
• Wide temperature tolerance, rated for installation and operation in demanding environments.

Typical Applications

This cable roll suits data centres, offices, retail fitouts, education facilities and residential smart-home installs where large volumes of Cat6 cabling are required. It is particularly useful for installers running dedicated CCTV, access control, or Wi-Fi access point cabling that needs to be visually distinguished from general data cabling using the red jacket colour. The LSZH construction also makes it a strong choice for risers, ceiling spaces and other areas where fire safety compliance is a priority.

What's in the Box

• 1 x 305m reel of Certech Cat6 U/UTP solid cable (Red LSZH jacket), packaged in a dispenser box

Frequently Asked Questions

Is this cable suitable for outdoor use?
No, this is an indoor-rated U/UTP cable with an LSZH jacket intended for internal structured cabling, not direct burial or outdoor exposure.

What is the maximum recommended run length?
As with all Cat6 cabling, the standard maximum permanent link length is 100 metres to maintain full performance specifications.

Does this cable support PoE devices such as IP cameras?
Yes, the solid bare copper conductors and 23AWG gauge make it suitable for Power over Ethernet applications, including IP cameras and wireless access points.
