Ajax Wall/Pole Mount Swivel Bracket for Outdoor Motion Detectors

Ajax Wall/Pole Mount Swivel Bracket (AJAX80808)

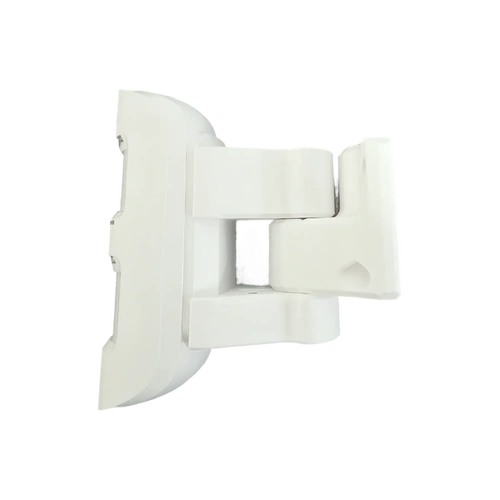

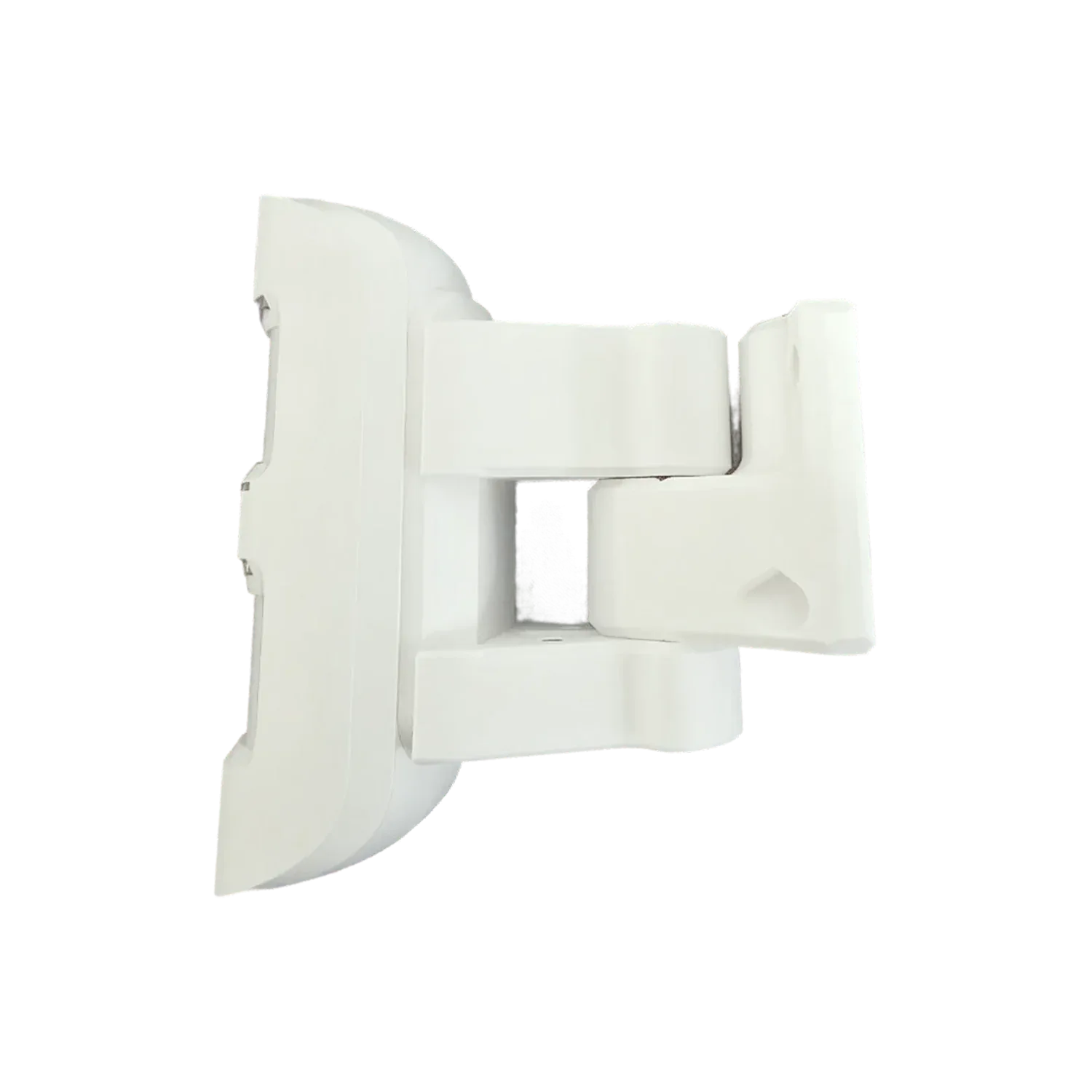

The Ajax Wall/Pole Mount Bracket is a purpose-built accessory that extends the installation flexibility of Ajax outdoor motion detectors. Designed to accept the standard Ajax SmartBracket mounting panel, it lets installers fix MotionProtect Outdoor and MotionCam Outdoor detectors to either a flat wall or a round pole, then fine-tune the aiming angle after mounting. This makes it a practical solution for perimeter protection jobs where the ideal wall surface isn't always available, such as fence lines, light poles, or carport posts.

Key Features

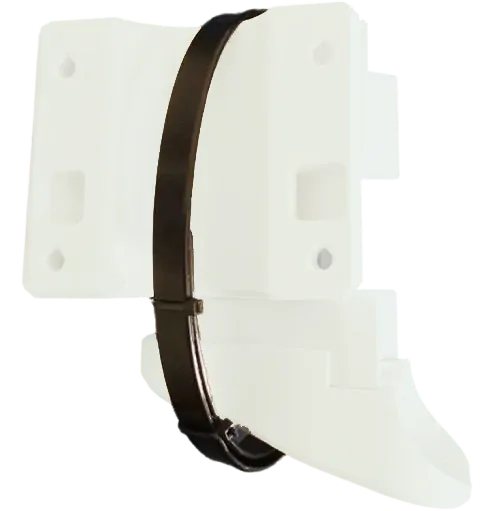

• Dual mounting modes — fixes to a flat wall using four screw points, or clamps around a pole using the supplied ultra heavy-duty cable tie.

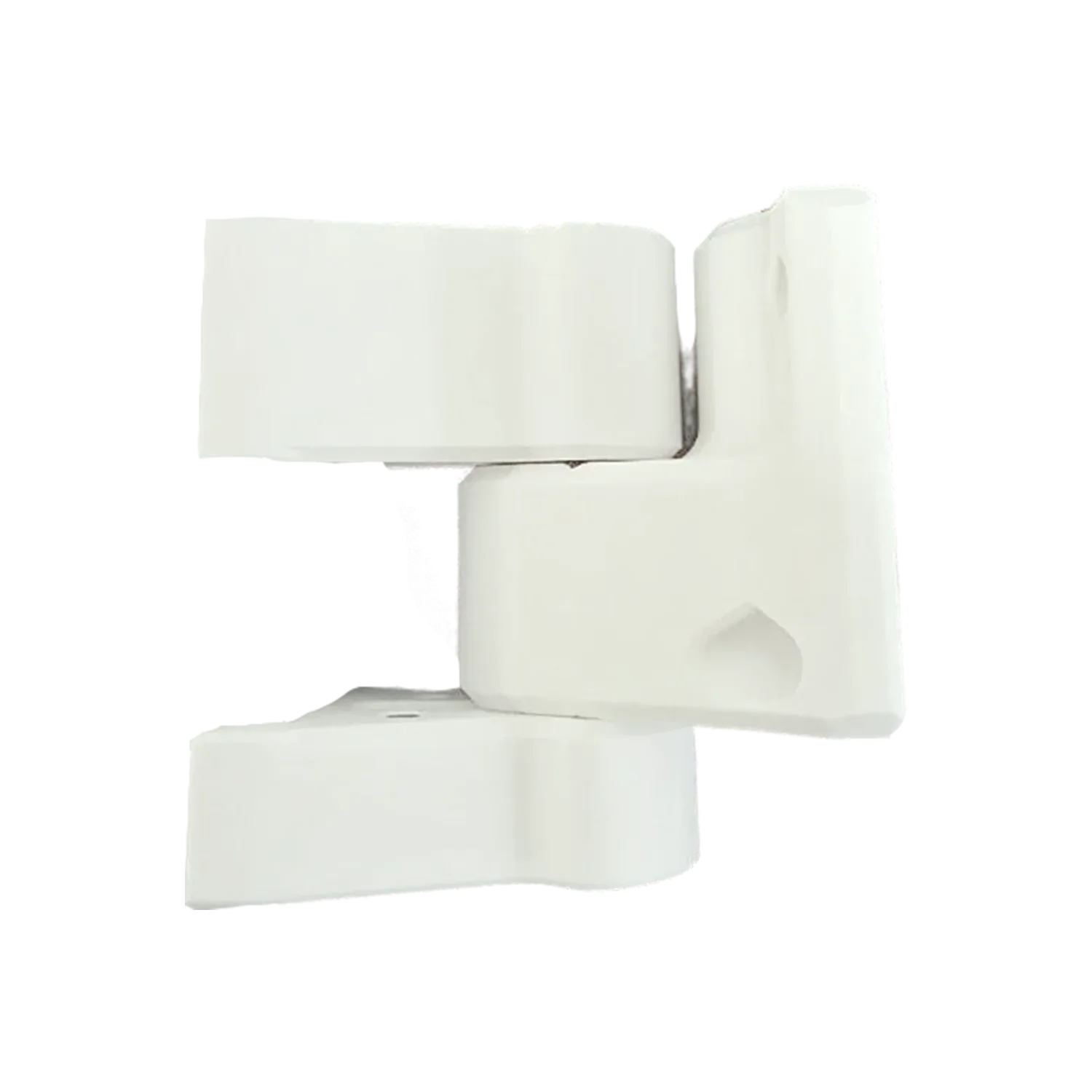

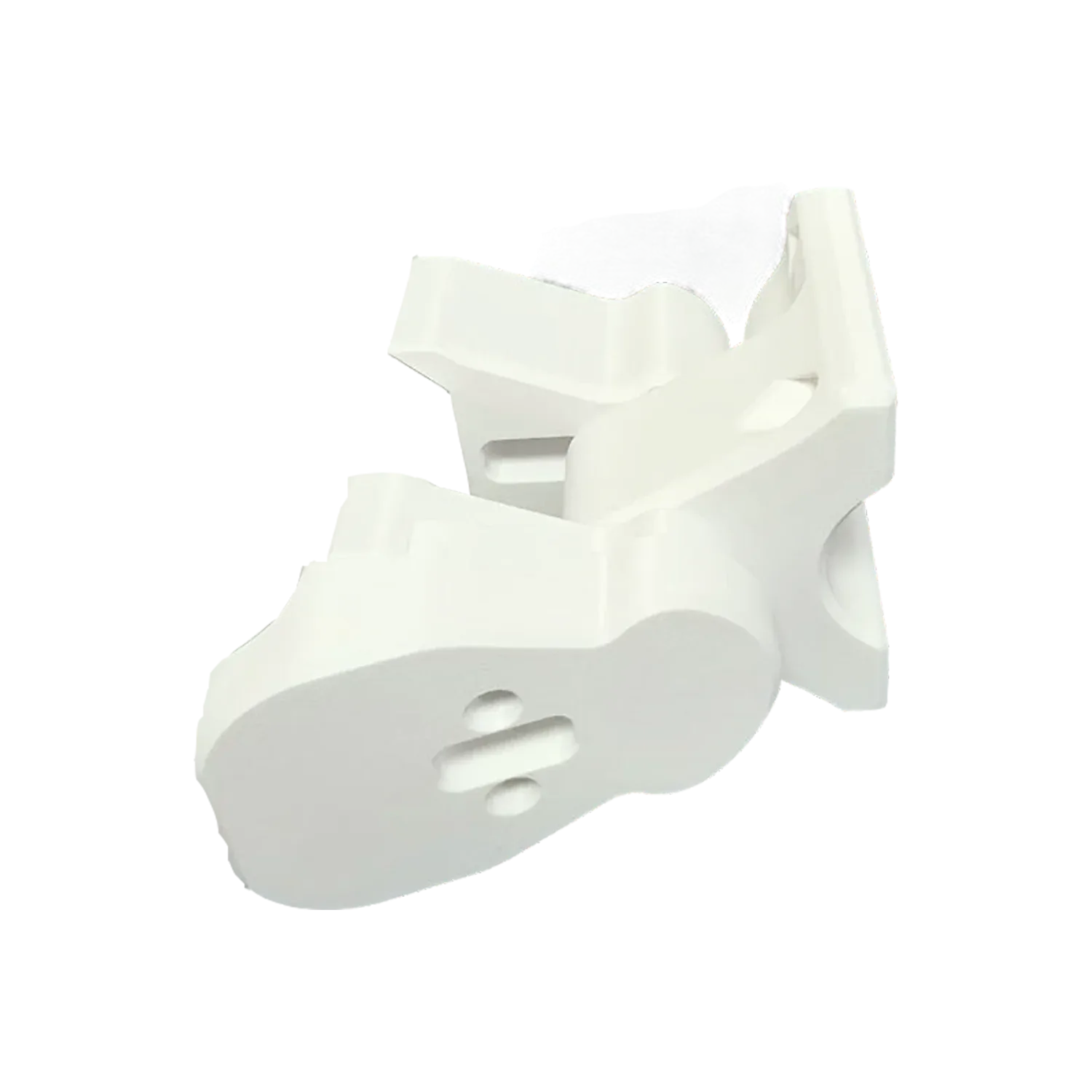

• Adjustable pivot bracket with a clevis-lug design marked in 15-degree increments for repeatable, accurate angle adjustment.

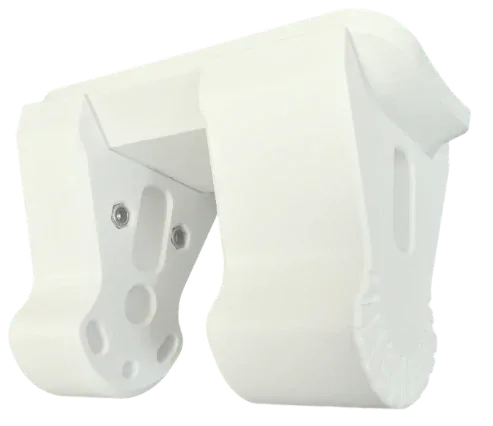

• Corrosion-resistant hardware, including stainless steel M4 Nyloc nuts and an aluminium pivot rod, suited to long-term outdoor exposure.

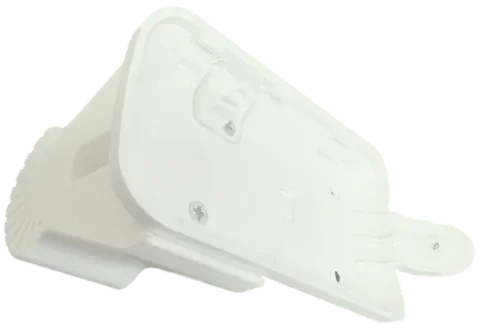

• Compatible with the Ajax SmartBracket mounting panel, so the detector clips onto the bracket the same way it would onto a standard wall fixing.
• Purpose-matched for Ajax outdoor detectors, including MotionProtect Outdoor and MotionCam Outdoor (with hood) variants.
• Slotted pole channel that allows an additional stainless hose clamp to be fitted over the cable tie for extra long-term security (clamp not included).
• Simple tool-based installation using the supplied screws and fasteners, without needing to disassemble the detector enclosure.
• Helps reduce false alarms by allowing the detector's field of view to be angled away from moving vegetation, traffic, or other nuisance triggers.

Typical Applications

This bracket is best suited to installers protecting boundary lines, driveways, and open yards where a suitable vertical wall isn't within reach of the ideal detection zone. Mounting an Ajax outdoor detector on a metal or timber pole using this bracket, then pivoting it to the correct angle, helps achieve a clean, unobstructed detection zone while keeping the sensor at the recommended installation height above ground level.

What's in the Box

• Pivot/swivel mounting bracket with clevis lugs
• Aluminium pivot rod
• Stainless steel M4 Nyloc nuts
• Ultra heavy-duty cable tie for pole mounting
• Mounting screws for attaching the bracket to the Ajax SmartBracket panel
• Installation instructions

Frequently Asked Questions

Does this bracket work with both wall and pole installations?
Yes, it is designed to be fixed to a flat wall with four screw points, or to a round pole using the included cable tie, with an optional hose clamp for extra security.

Which Ajax detectors is this bracket compatible with?
It is designed for use with Ajax outdoor detectors that use the SmartBracket mounting panel, including MotionProtect Outdoor and MotionCam Outdoor models.

Can I adjust the angle of the detector after mounting?
Yes, the pivot bracket features marked increments that allow the installer to tilt the detector to the desired angle for optimal coverage.
