LTS Solar-Xpand Multi-Module Solar Kit - 100W Panel, 460Wh Battery & Bracket

LTS Solar-Xpand Multi-Module Solar Power Kit (LT-MSP-369X)

The LTS Solar-Xpand Multi-Module Kit is a modular, off-grid power solution purpose-built for remote CCTV and 4G-connected camera installations across Australia. Combining a 100W monocrystalline solar panel, a 460Wh lithium battery with an integrated heating element, and a mounting bracket, this kit is designed to keep compatible LTS cameras and accessories running independently of mains power, even in remote or difficult-to-wire locations. The Xpand architecture allows the system to be expanded with additional panel modules as power demands grow, making it a flexible starting point for temporary or permanent solar CCTV deployments.

Key Features

• 100W monocrystalline solar panel for efficient charging in variable Australian weather conditions
• 460Wh lithium battery pack with a built-in heating element to protect performance in cold conditions

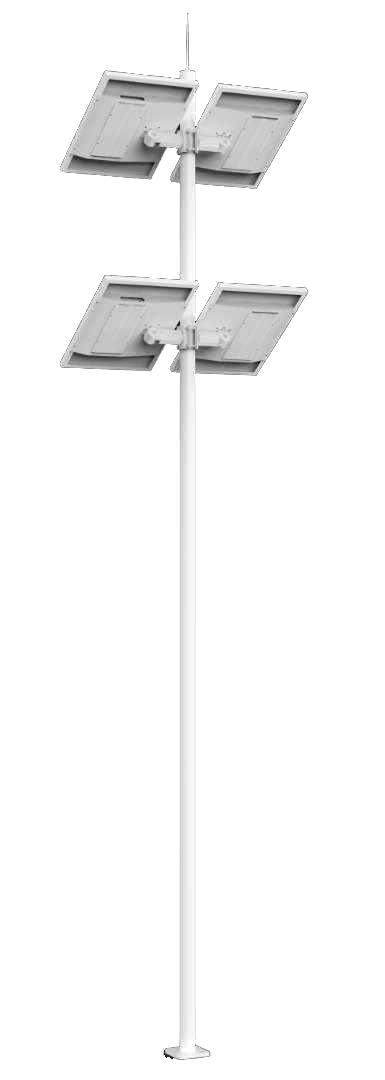

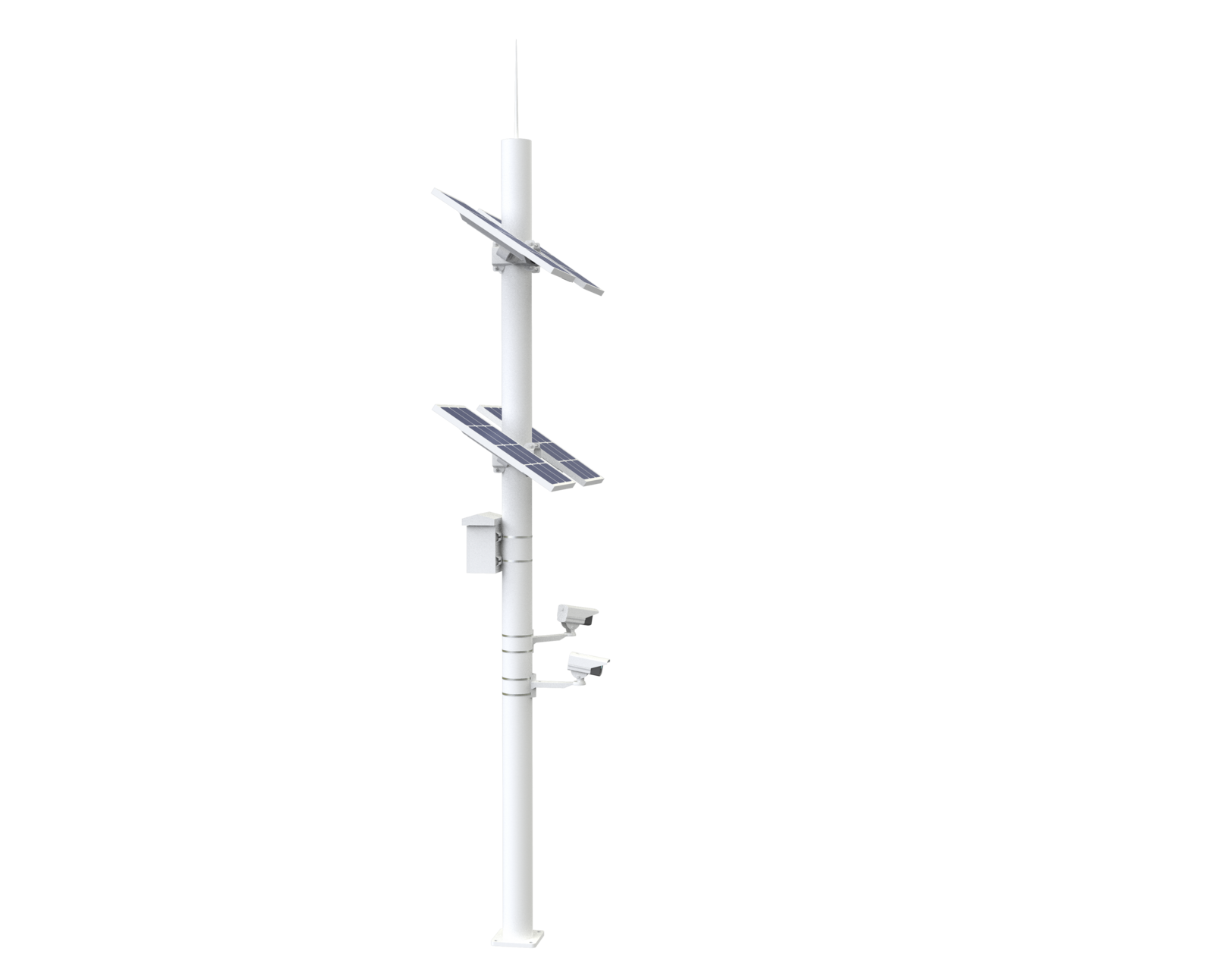

• Expandable Xpand design, allowing up to four panel modules to be linked for higher power output
• BNC T-piece connector for straightforward integration with compatible camera and accessory wiring
• DC 10~14.6V load voltage with a 40W maximum load rating suited to typical single-camera setups
• Optional 4G WiFi industrial modem or long-range point-to-point WiFi for remote connectivity
• IP66-rated enclosure for reliable outdoor performance in dust, rain and harsh site conditions
• Designed to be customised and paired with the full range of LTS security cameras
• Backed by a 3-year manufacturer warranty for long-term peace of mind

Built for Remote and Off-Grid Surveillance

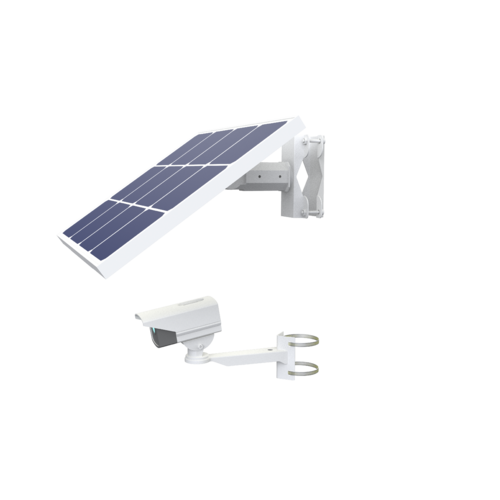

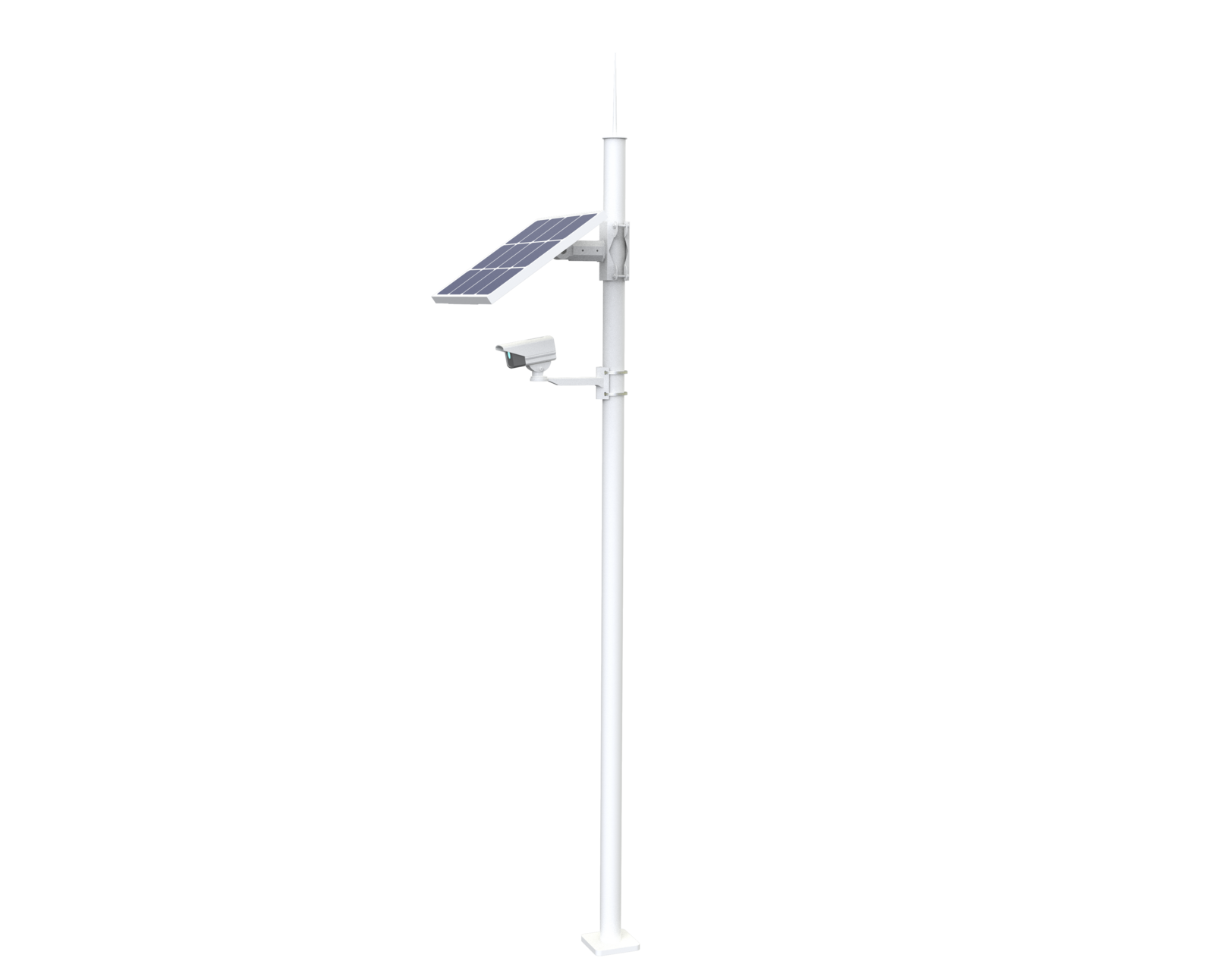

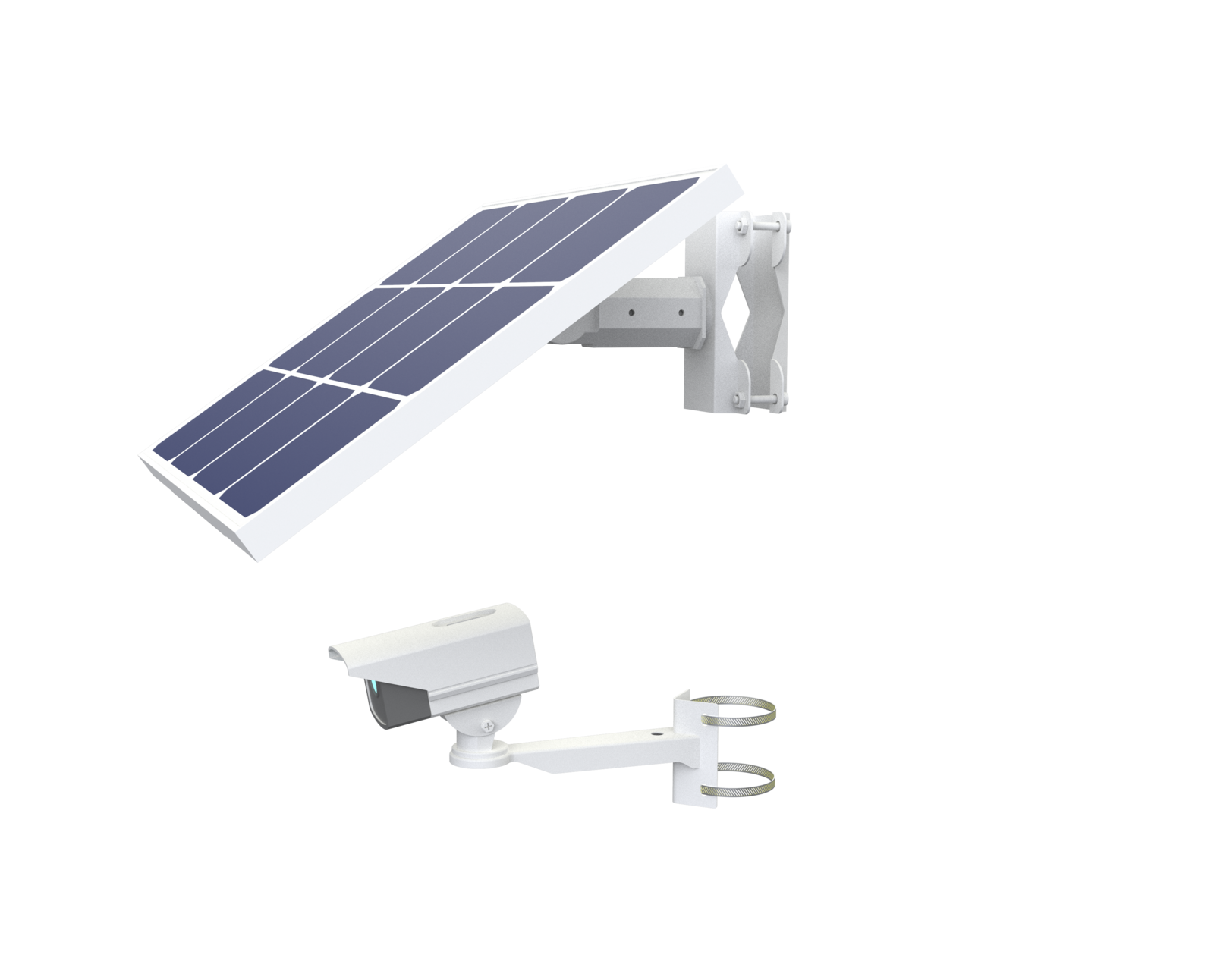

This kit suits construction sites, rural properties, mining and infrastructure projects, agricultural boundaries, and any location where running mains power or data cabling is impractical. Paired with a compatible LTS IP camera and, optionally, a 4G router, the system can operate as a self-contained remote monitoring point. The modular Xpand design means installers can start with a single panel and battery module and later add further panels as camera load or runtime requirements increase, rather than replacing the whole system.

What's in the Box

• 1 x 100W monocrystalline solar panel
• 1 x 460Wh lithium battery with heating element and mounting bracket
• 1 x BNC T-piece connector
• Mounting hardware for panel and battery bracket

Note: camera, mounting pole and 4G router are sold separately. If a 4G router is used, an additional weatherproof enclosure is required and can be mounted on the rear of the solar panel.

Frequently Asked Questions

Can this kit be expanded later?
Yes. The Xpand system supports up to four panel modules in total, so additional 100W panels can be added using the appropriate connector kit as power needs increase.

Does it work with any camera brand?
The bracket and wiring are customised to suit the LTS camera range. It is not designed as a universal fit for third-party camera brands.

Is a mounting pole included?
No, a pole is not included. Optional 4-8m plastic-coated Q235 steel poles are available separately to suit different mounting heights.

Additional Resources

• Installation guide
