LTS Xpand LT-MSP-CB Solar Controller Expander Cabinet

LTS Xpand LT-MSP-CB Solar Controller Expander Cabinet

The LTS Xpand Series Cabinet is a dedicated metal expansion enclosure engineered for the LT-MSP-369X modular solar power system. As a stand-alone solar-powered camera installation grows to include multiple panels or higher-capacity battery banks, this cabinet becomes the central hub that houses the extra charge controllers and wiring needed to keep everything running reliably. It is a required accessory whenever a solar deployment uses more than one LT-MSP-369X module, allowing installers to scale a remote camera site's power supply without redesigning the whole system.

Key Features

• Purpose-built expander module box designed specifically to pair with the LT-MSP-369X solar power system.
• Supports up to four solar panel inputs, providing a total capacity of 400W and 1840WH of lithium battery storage.
• Delivers a 12VDC output rated at 8A for powering connected cameras and accessories.
• Includes a separate 24VDC output rated at 2A for additional field devices.
• Rated to IP65 for reliable protection against dust and water ingress in outdoor environments.

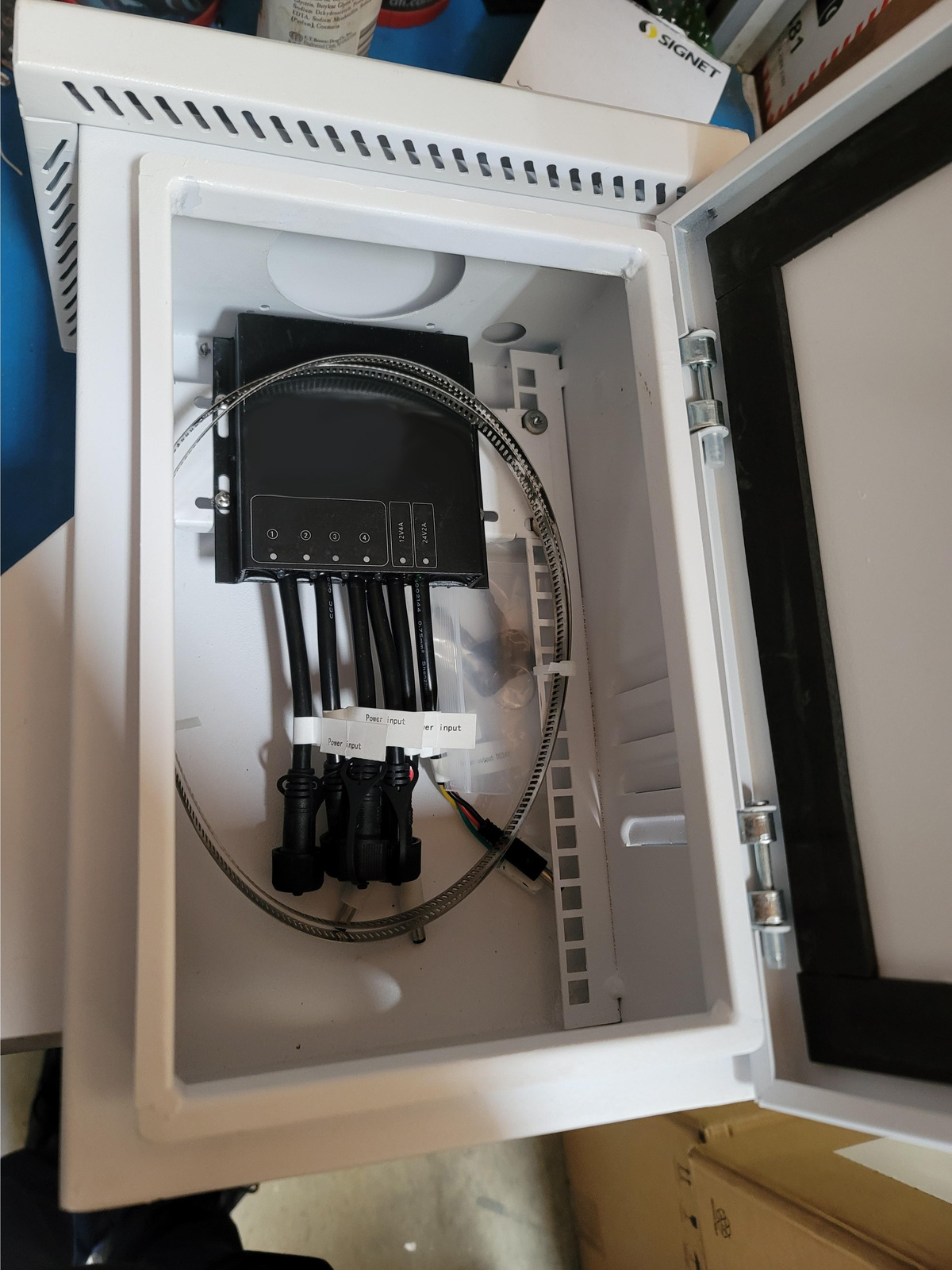

• Internal mounting rails for tidy, organised placement of controllers, fusing, and wiring inside the enclosure.

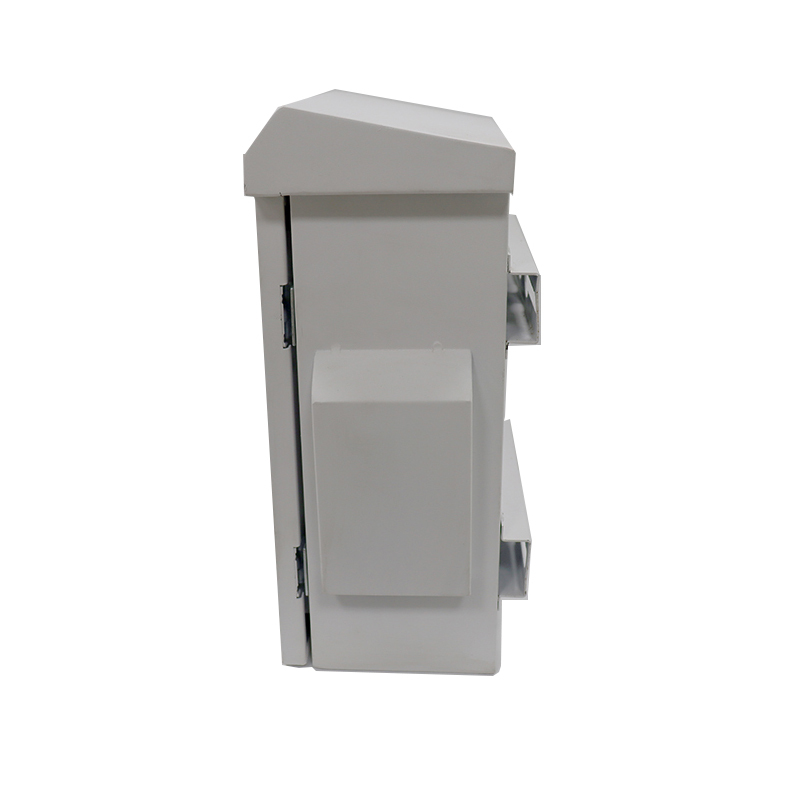

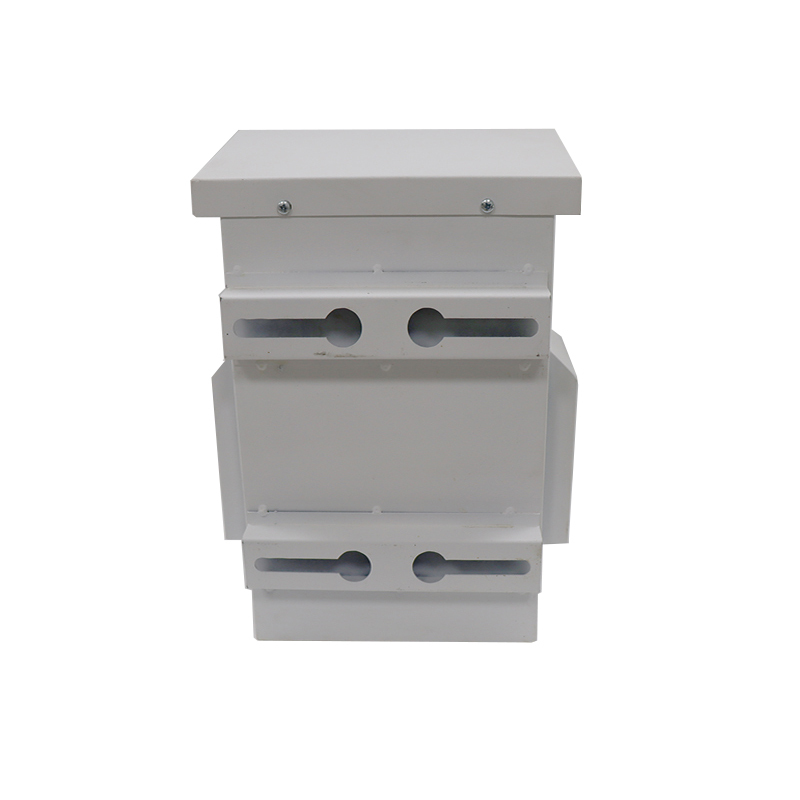

• Rugged metal housing suited to long-term outdoor deployment on poles or mounting brackets.
• Backed by a 3-year manufacturer warranty for peace of mind on remote installations.

Scaling Remote Solar CCTV Power

This expander cabinet is intended for installers building larger off-grid or hybrid solar camera sites, such as construction compounds, rural properties, mine sites, and other locations without easy access to mains power. Because the base LT-MSP-369X kit is designed around a single panel and battery pack, adding the LT-MSP-CB lets a site take on extra solar panels and battery capacity to run more demanding cameras, longer recording schedules, or multiple devices such as PTZ cameras and 4G routers from one power station, all while keeping the additional electronics neatly housed and weatherproof.

What's in the Box

• 1 x LTS Xpand Series metal expander cabinet (LT-MSP-CB)
• Internal mounting rail hardware

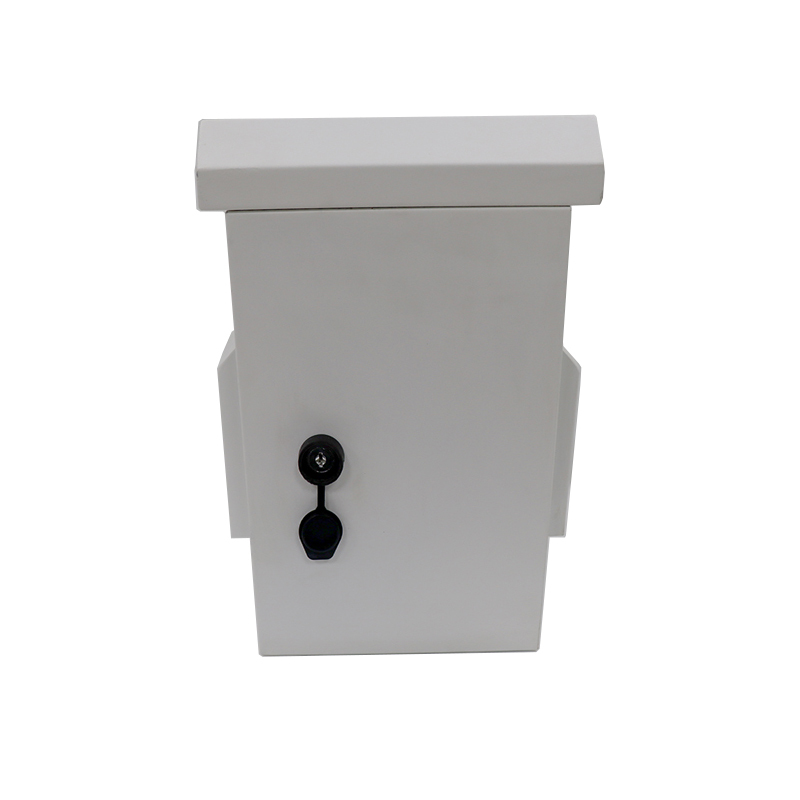

• Cabinet door lock and key
• Printed or digital installation guide

Frequently Asked Questions

Do I need the LT-MSP-CB with a single LT-MSP-369X kit?
No. The cabinet is only required once a site is expanded to use more than one LT-MSP-369X module, since a single kit already includes its own built-in enclosure.

How many panels and batteries can one cabinet support?
One LT-MSP-CB can support up to four solar panels for a combined 400W of solar input and up to 1840WH of lithium battery storage.

What can I power from the cabinet's outputs?
The cabinet provides a 12VDC output at 8A and a separate 24VDC output at 2A, suitable for cameras, PTZ units, routers, and other 12V or 24V field equipment.

Additional Resources

• Installation guide
