Akuvox A092S TCP/IP 2-Door Access Controller with Multi-Door Interlock

Akuvox A092S TCP/IP 2-Door Access Controller

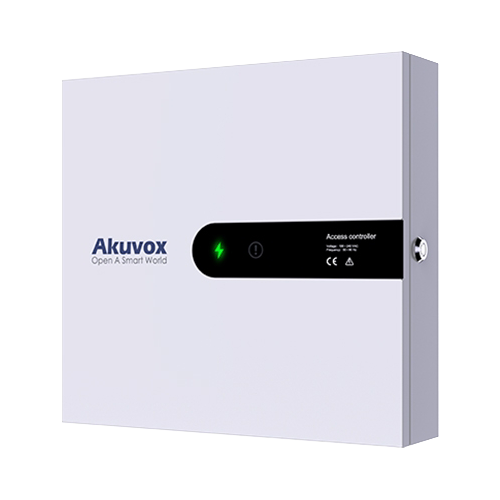

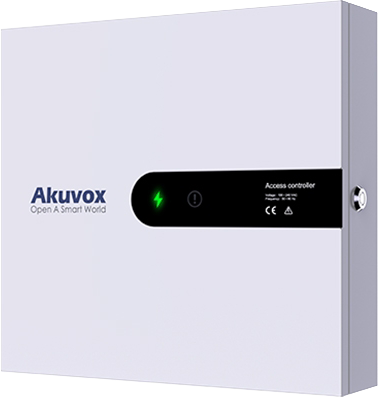

The Akuvox A092S is a network-based access control panel built to manage up to two doors from a single, centralised unit. Housed in a durable SGCC steel cabinet, it connects to third-party card readers, keypads, exit buttons and fire alarm inputs, giving installers a flexible way to bring building entry points under unified control. Whether deployed as a standalone unit or networked alongside other Akuvox controllers, the A092S suits everything from small office entries to large multi-door commercial sites.

Key Features

• Dual-door management: Controls two doors independently, or links them in a multi-door interlock ('airlock') configuration for high-security areas.
• Large capacity: Stores up to 50,000 cards and 100,000 access records for detailed reporting and audits.
• Flexible reader integration: Supports Wiegand, RS-485 and OSDP protocols, allowing connection of a wide range of third-party card readers and keypads.
• Anti-passback and interlock logic: Prevents card sharing and tailgating by enforcing sequential in/out access rules.
• Emergency door release (EDR): Integrates with fire alarm panels to automatically unlock doors during an emergency.
• Tamper-proof alarm: Triggers an alert if the enclosure is opened or interfered with.
• Backup battery support: Keeps the controller and connected locks operational during a mains power interruption.
• Web-based management: Configure schedules, users and relays through a built-in browser interface, or scale up using Akuvox's ACMS platform for multi-site deployments.
• TCP/IP networking: Connects over Ethernet for remote administration and centralised monitoring across multiple controllers.

Typical Applications

The A092S is well suited to office buildings, warehouses, healthcare facilities, retail premises and multi-tenant residential sites where two entry points need to be managed together. It's a common choice for lift lobbies, secure corridors, loading docks and any location requiring interlocked or anti-passback door logic, and pairs naturally with Akuvox's range of card readers, keypads and intercoms for a complete access control solution.

What's in the Box

• Akuvox A092S 2-Door Access Controller unit
• Mounting hardware
• Terminal connectors for relays, inputs and power
• Quick installation guide

Frequently Asked Questions

Can the A092S work without a network connection?
Yes, it can operate as a standalone controller for a single site, or be networked via TCP/IP for centralised, multi-door management.

Does it support third-party card readers?
Yes, the A092S accepts Wiegand, RS-485 and OSDP readers, making it compatible with many existing card reader and keypad brands.

What happens during a power outage?
With the optional backup battery installed, the controller and connected locks continue operating until mains power is restored.

Additional Resources

• AKUVOX Smart Access-Cloud Access Control
