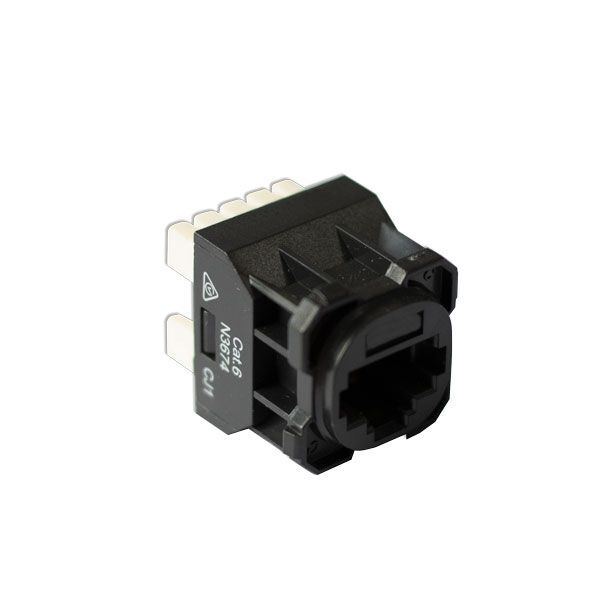

CERTECH JWPC6BK Black Cat6 RJ-45 UTP Wall Plate Jack

CERTECH JWPC6BK Black Cat6 RJ-45 UTP Wall Plate Jack

The CERTECH JWPC6BK is a high performance Cat6 UTP wall plate jack designed to the Australian mechanism standard, making it a natural fit for local Clipsal-style wall plates used throughout residential and commercial data cabling projects. Finished in black, this jack terminates twisted pair cabling to an RJ-45 outlet, giving installers a reliable, standards-compliant termination point for structured cabling runs feeding switches, routers, PCs, access points, cameras and other network devices.

Key Features

• Cat6 performance - engineered to meet Cat6 EIA/TIA 568B.1 electrical and mechanical requirements for consistent Gigabit-capable performance
• Australian mechanism style - sized and shaped to snap directly into standard Australian-pattern wall plates rather than US-style keystone plates
• Gold-plated 8P8C contacts - RJ-45 jack contacts use gold plating over the contact points to resist corrosion and maintain a low-resistance connection over time
• Fireproof ABS housing - the jack body is moulded from UL-94V0 rated fireproof ABS plastic for added safety in wall and ceiling cavities
• Flexible termination - accepts 22-26 AWG solid or stranded conductors and can be punched down using either a 110 or Krone punch down tool
• Stable electrical characteristics - rated with a minimum insulation resistance of 500m ohms, maximum contact resistance of 20m ohms and a current rating of 1.5 Amps
• Durable black colour coding - black housing helps installers colour-code data outlets against other services on the same wall plate
• Compact, low-profile design - fits neatly behind standard wall plate covers without adding bulk to the outlet

Typical Applications

This jack is commonly used by cablers, electricians and IT installers terminating structured Cat6 cabling in homes, offices, retail fitouts and light commercial buildings. It's well suited to CCTV and security installations, PoE camera drops, VoIP handsets, Wi-Fi access points and general data outlets where an Australian-style wall plate is already specified, giving a tidy, standards-compliant finish to the cabling run.

What's in the Box

• 1 x CERTECH JWPC6BK Cat6 RJ-45 UTP Wall Plate Jack (Black)

Frequently Asked Questions

Will this jack fit a standard keystone wall plate?
No. The JWPC6BK is moulded to the Australian wall plate mechanism, not the US keystone format, so it's intended for use with Australian-pattern wall plates.

What tool do I need to terminate this jack?
It can be terminated using either a 110 or a Krone punch down tool, giving installers flexibility depending on what's already in their kit.

Is this jack suitable for Gigabit networks?
Yes, it's built to meet Cat6 EIA/TIA 568B.1 performance standards, supporting Gigabit Ethernet and other high-speed data applications.
