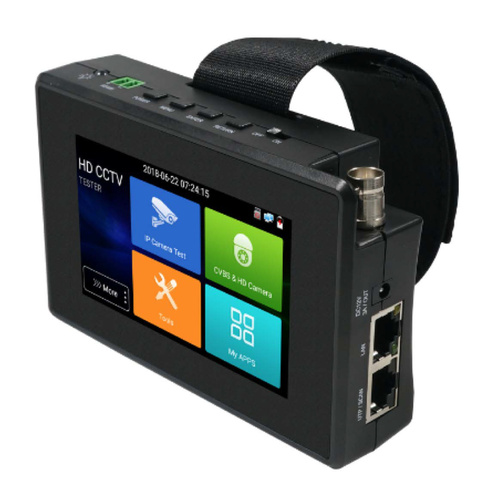

LTS 4" Touch Screen Multi-Purpose CCTV Tester (5-in-1)

LTS Multi-Purpose CCTV Tester - 4" Touch Screen (LM4-ITCAA)

The LTS LM4-ITCAA is a compact, all-in-one field tester built for technicians who need to commission, troubleshoot and validate mixed-format security camera systems on the spot. Housed in a rugged, wrist-strap-equipped body with a bright 4-inch touch screen, this 5-in-1 tester lets installers confirm image quality and connectivity across today's most common camera technologies without carrying multiple tools. It is designed to speed up installation days by combining a monitor, network tool and camera tester into a single handheld unit.

Key Features

• 5-in-1 format support: Tests 8MP IP, 8MP TVI, 2MP CVI, 2MP AHD and traditional analog (CVBS) cameras from one device.
• 4-inch touch screen display: Responsive touch interface for quick menu navigation and live video review on site.
• 4K video display via mainstream: Decodes H.265 and H.264 video streams for accurate, high-resolution image checks.
• Built-in WiFi: Enables wireless verification of network cameras and remote viewing without a hard-wired connection.
• Long-life battery: Powered by a 7.4V / 2400mAh lithium-ion battery pack for extended use away from mains power.
• Lightweight, portable design: Small enough to clip to a belt or hold with the included wrist strap during ladder or roof work.
• Multi-purpose problem solving: Reduces callbacks by confirming camera output, cabling and image quality before leaving site.

Built for Installers and Service Technicians

This tester suits CCTV installers, integrators and maintenance teams who regularly work across analog and IP camera estates, including mixed-brand or legacy systems being upgraded to HD or IP. Rather than swapping between separate monitors and network tools, technicians can use the LM4-ITCAA to quickly confirm a camera is transmitting correctly, check focus and framing, and verify network camera connectivity via WiFi - all from the same handheld unit. It is particularly useful during new installations, camera swap-outs, and fault-finding call-outs where quick, on-site confirmation avoids repeat visits.

What's in the Box

• LM4-ITCAA 4" touch screen CCTV tester unit
• Rechargeable 7.4V / 2400mAh Li-Ion battery
• Wrist strap
• Power/charging cable
• Basic test leads (as supplied by LTS)

Frequently Asked Questions

Q: Can this tester check both old analog cameras and newer IP cameras?
A: Yes. The LM4-ITCAA supports analog (CVBS), AHD, CVI, TVI and IP camera formats, making it suitable for mixed-technology sites.

Q: Does it need to be plugged into mains power to use on site?
A: No. It runs on a built-in 7.4V / 2400mAh Li-Ion battery, so it can be used cordlessly for extended periods in the field.

Q: Is WiFi testing useful for wired IP cameras too?
A: The built-in WiFi is primarily intended for wireless verification and remote viewing of compatible IP cameras during setup and troubleshooting.
