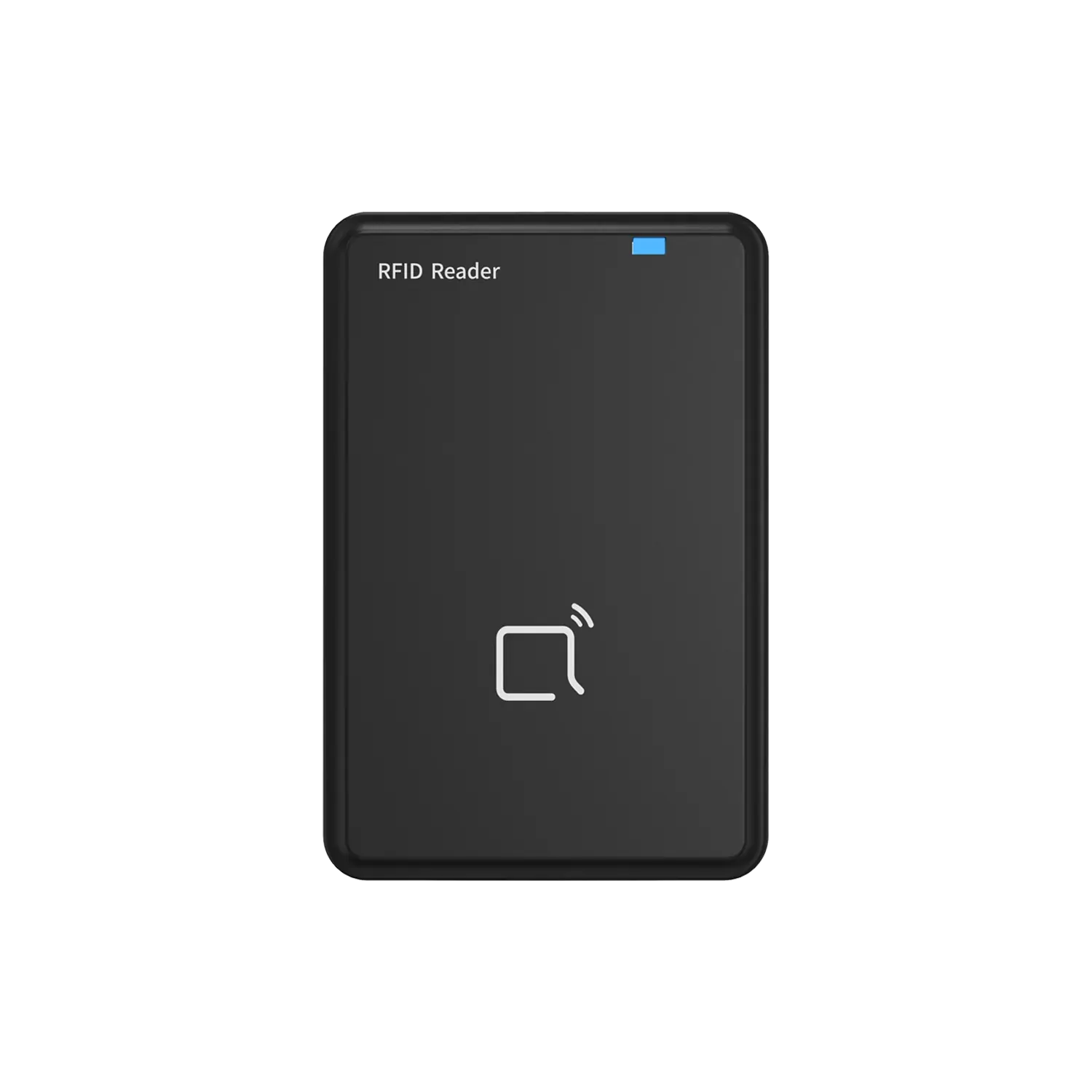

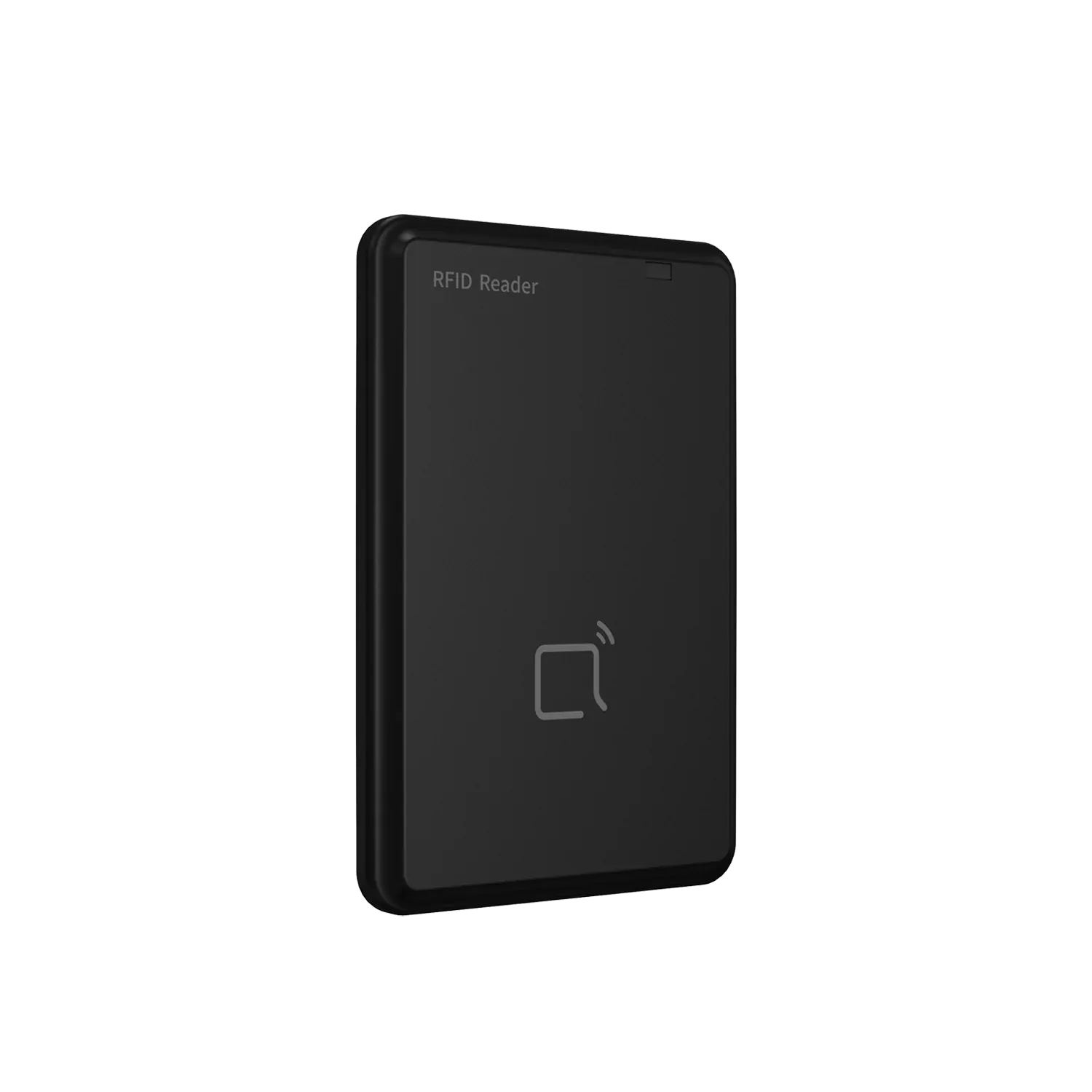

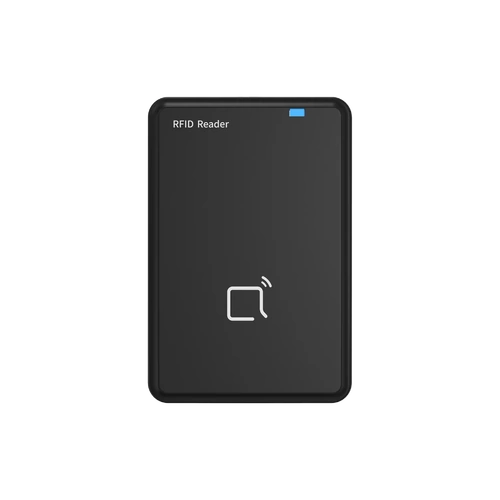

Akuvox ACR-CID01 USB Desktop Card Reader & Encoder for Access Control

Akuvox ACR-CID01 USB Desktop Card Reader & Encoder

The Akuvox ACR-CID01 is a compact desktop card reader and encoder built for installers and administrators who manage access control credentials. Connected via a simple USB cable, it lets you quickly read and program Bkey, RFID, and IC access cards directly from a PC, making credential setup for intercoms and door access systems fast and hassle-free. Its multi-frequency support and plug-and-play design make it a practical accessory for any Akuvox access control or intercom deployment.

Key Features

• Multi-frequency credential support covering 125 kHz RFID/EM cards and 13.56 MHz Mifare/IC cards, plus BLE-based Bkey credentials.
• Read and write functionality for supported card types, including Mifare Classic, Mifare Plus, and DESFire formats.
• USB plug-and-play connection that requires no additional drivers, so it is recognised by the host computer as soon as it is plugged in.
• Cross-platform compatibility with Windows and Mac/iOS operating systems for flexible deployment across different office setups.
• Built-in buzzer that provides clear audible confirmation each time a card is read or written.
• Dedicated configuration software (ACRM tool) for managing device settings, card display modes, and firmware upgrades.
• Compact desktop form factor designed to sit neatly on a reception or admin desk without taking up much space.
• Keyboard-simulation output, allowing card data to be entered directly into software fields without extra configuration.

Typical Use Cases

The ACR-CID01 is best suited to installers, property managers, and IT administrators who need to issue or manage access credentials for Akuvox intercoms and third-party access control systems. It is commonly used in apartment buildings, offices, and gated communities to quickly enrol new Bkey or RFID cards, encode Mifare-based cards for tenants or staff, and troubleshoot existing credentials without needing to access the door reader itself. Because it works straight from a desktop or laptop, it also speeds up bulk card programming during large-scale rollouts.

What's in the Box

• Akuvox ACR-CID01 desktop card reader/encoder
• USB connection cable
• Quick installation guide

Frequently Asked Questions

Does the ACR-CID01 need special software?
Yes, Akuvox provides a free ACRM configuration tool for reading, writing, and managing card settings, though basic reading can work via keyboard simulation without it.

What card types can it read and write?
It supports 125 kHz RFID/EM cards, 13.56 MHz Mifare/IC cards (including Mifare Classic, Mifare Plus, and DESFire), and BLE-based Bkey credentials.

Is a separate power supply required?
No, the reader is fully USB-powered and draws power directly from the connected computer.
