Ajax NVR HAC 16-Channel Black Network Video Recorder with HDMI

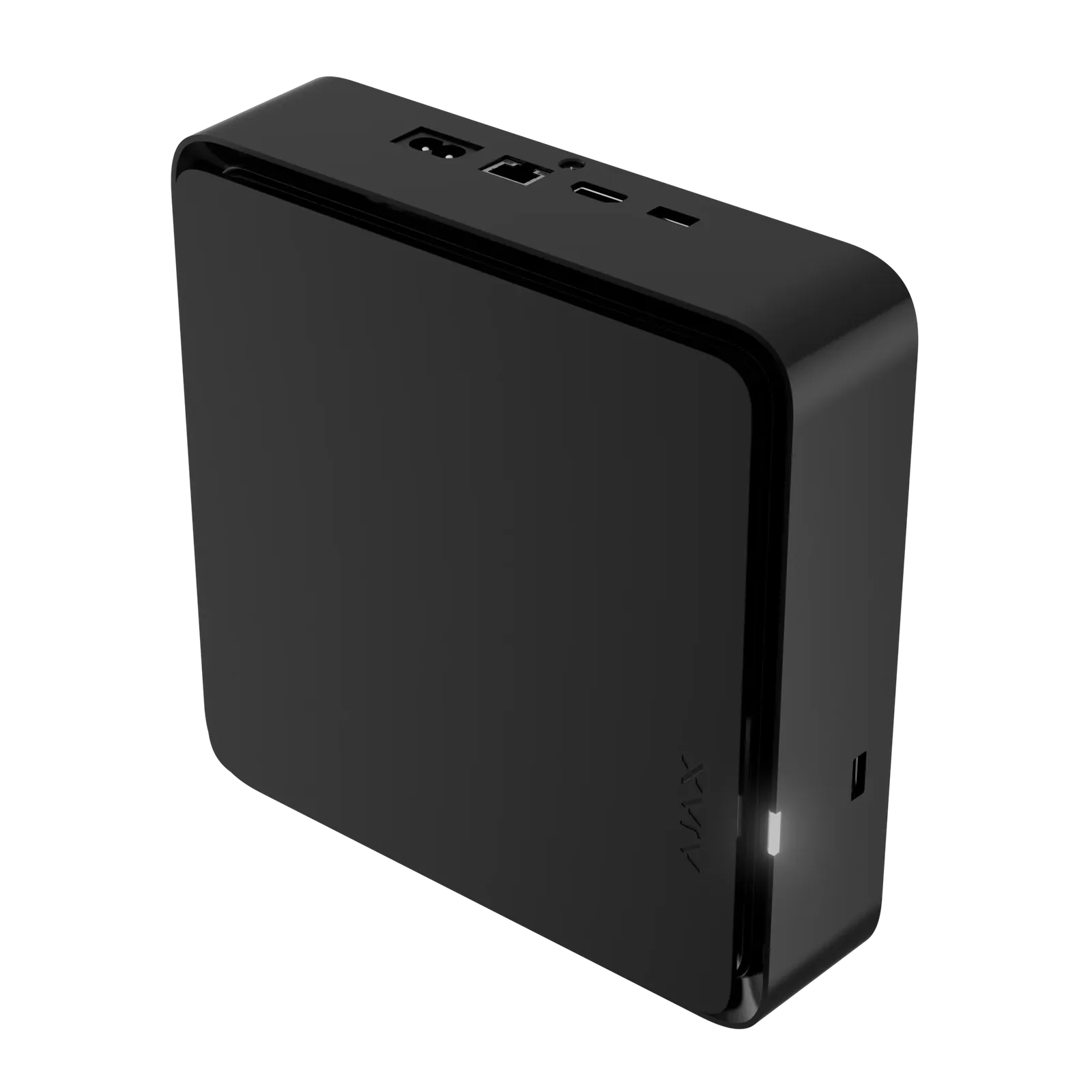

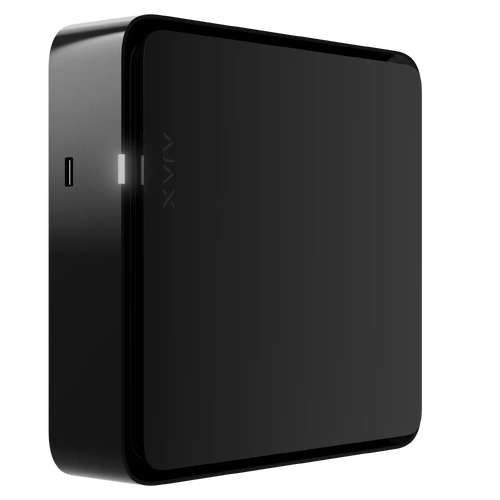

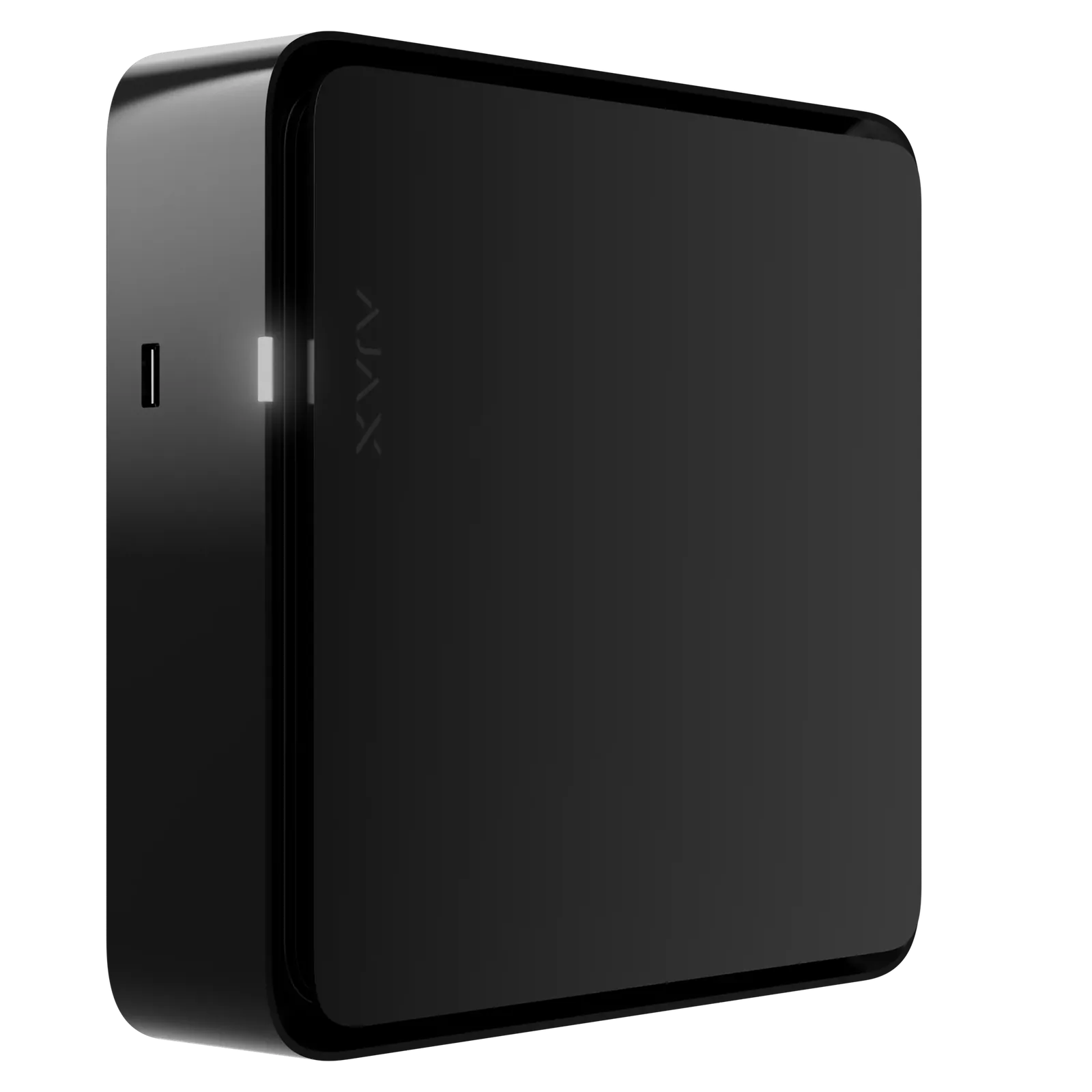

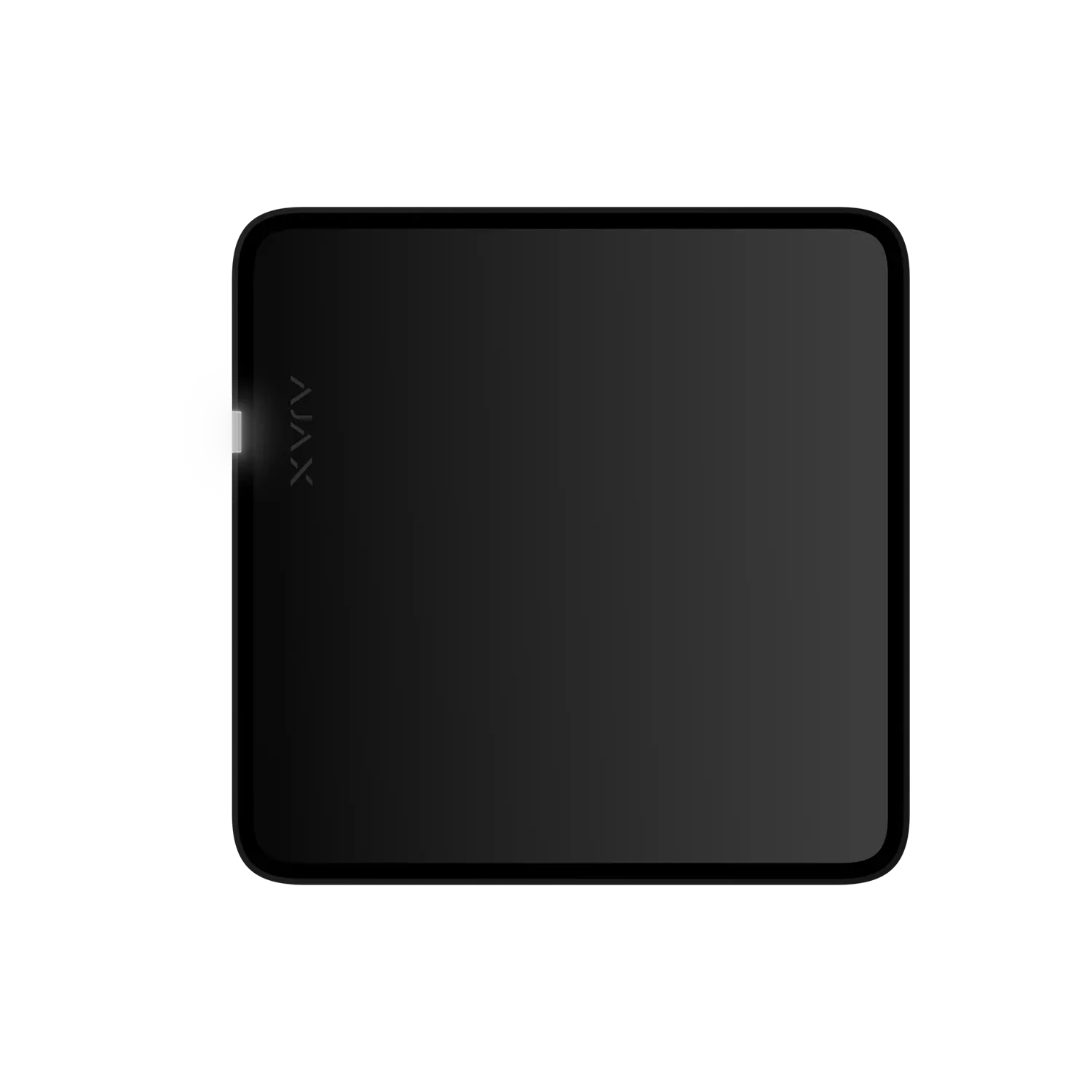

Ajax NVR HAC (16-ch) Black Network Video Recorder

The Ajax NVR HAC is a 16-channel network video recorder built for businesses, homes, and professional installations that need both cloud-connected monitoring and a direct local viewing option. Finished in black, this recorder pairs with Ajax cameras as well as third-party IP cameras that support ONVIF and RTSP, and adds a built-in HDMI output so footage can be viewed on-site through a connected monitor, with a mouse and keyboard for local navigation, even without an internet connection.

Key Features

• 16 camera channels for connecting Ajax and compatible third-party IP cameras into one system

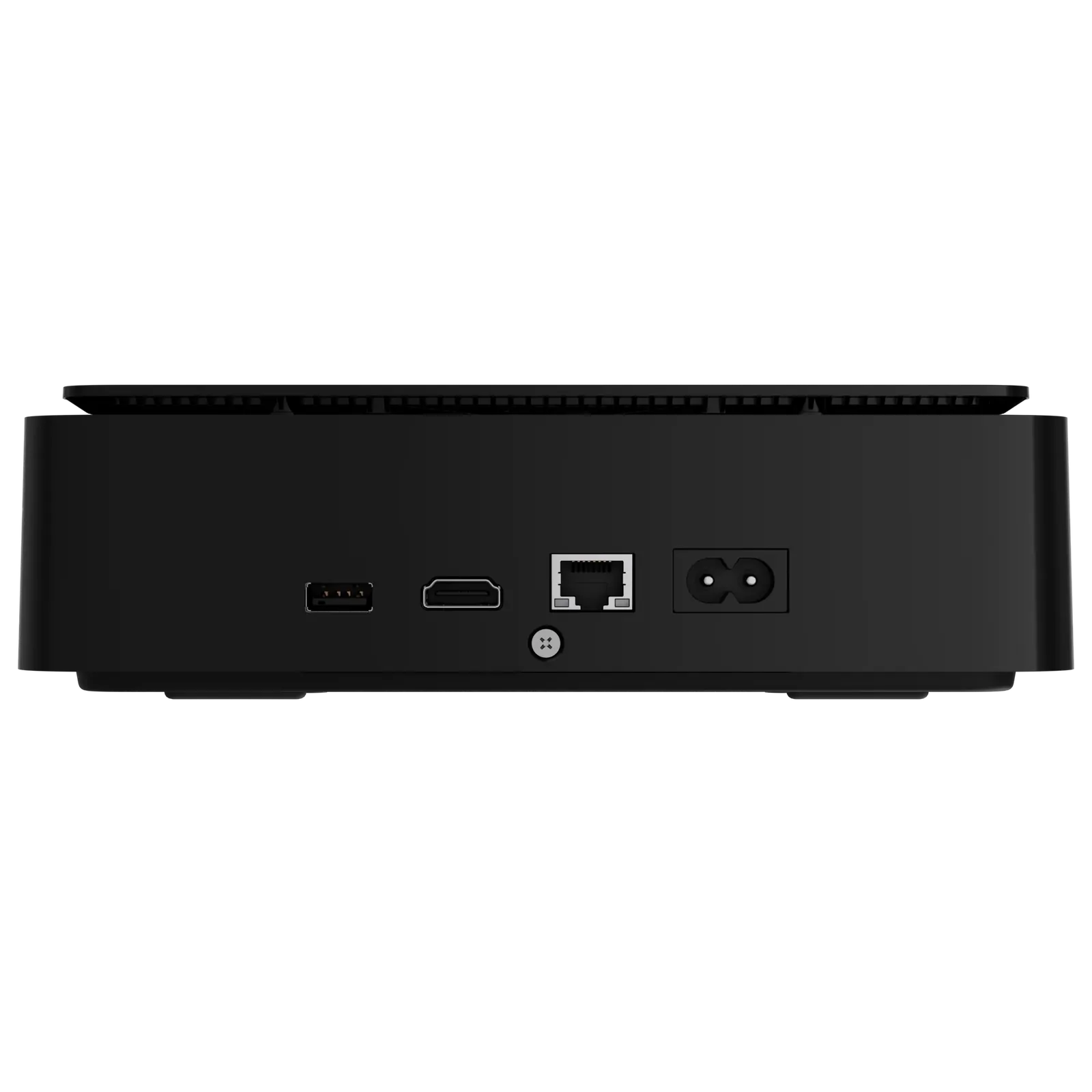

• HDMI output (1080p) for local live viewing and playback directly on a connected display
• Up to 8 channels in 4K resolution (25/30 FPS) for high-detail recording on key cameras
• ONVIF (Profile S/T) and RTSP support for broad compatibility with existing camera infrastructure

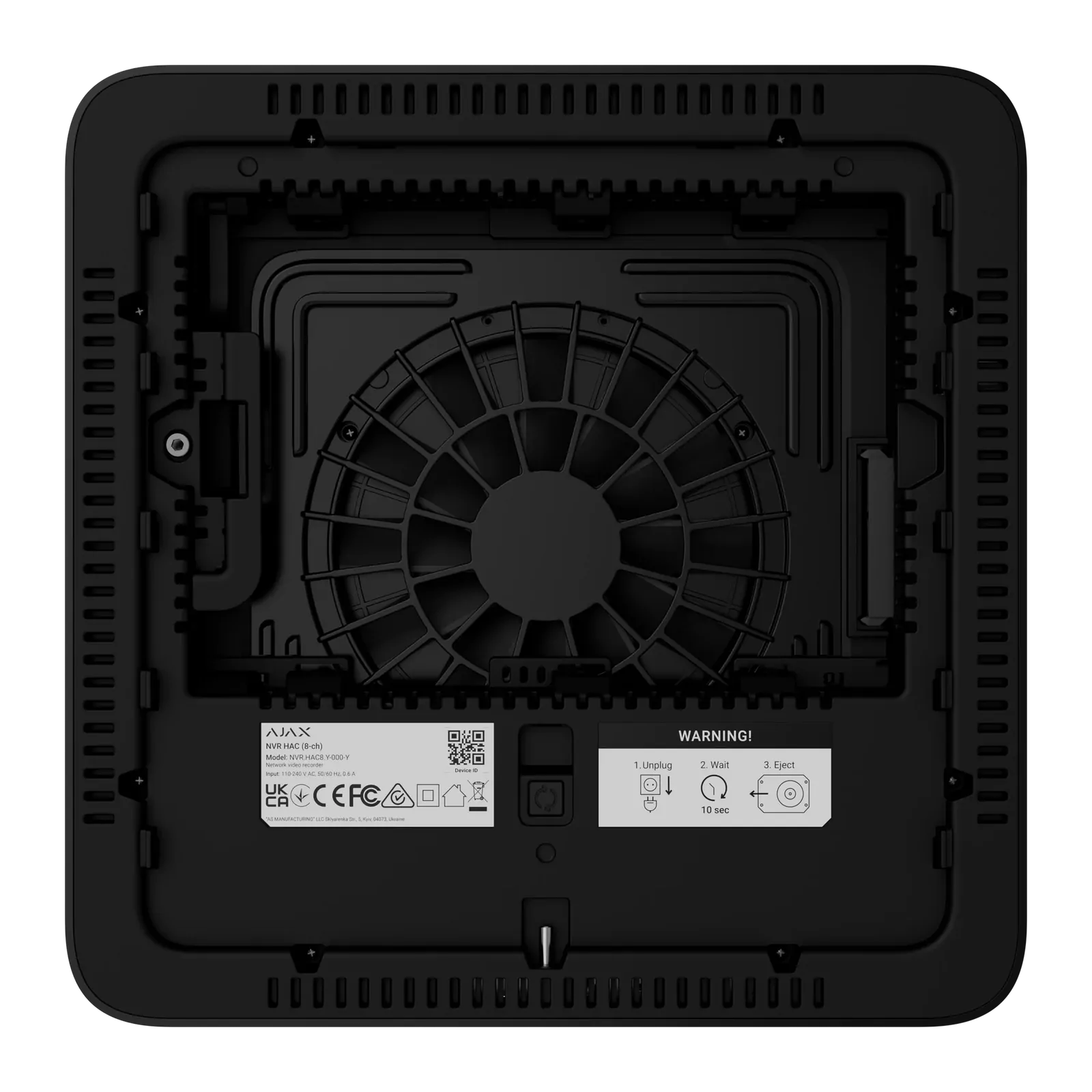

• Storage for up to 16TB using a standard 3.5-inch SATA hard drive (HDD not included)
• Bandwidth up to 100 Mbps to support multiple simultaneous high-resolution streams

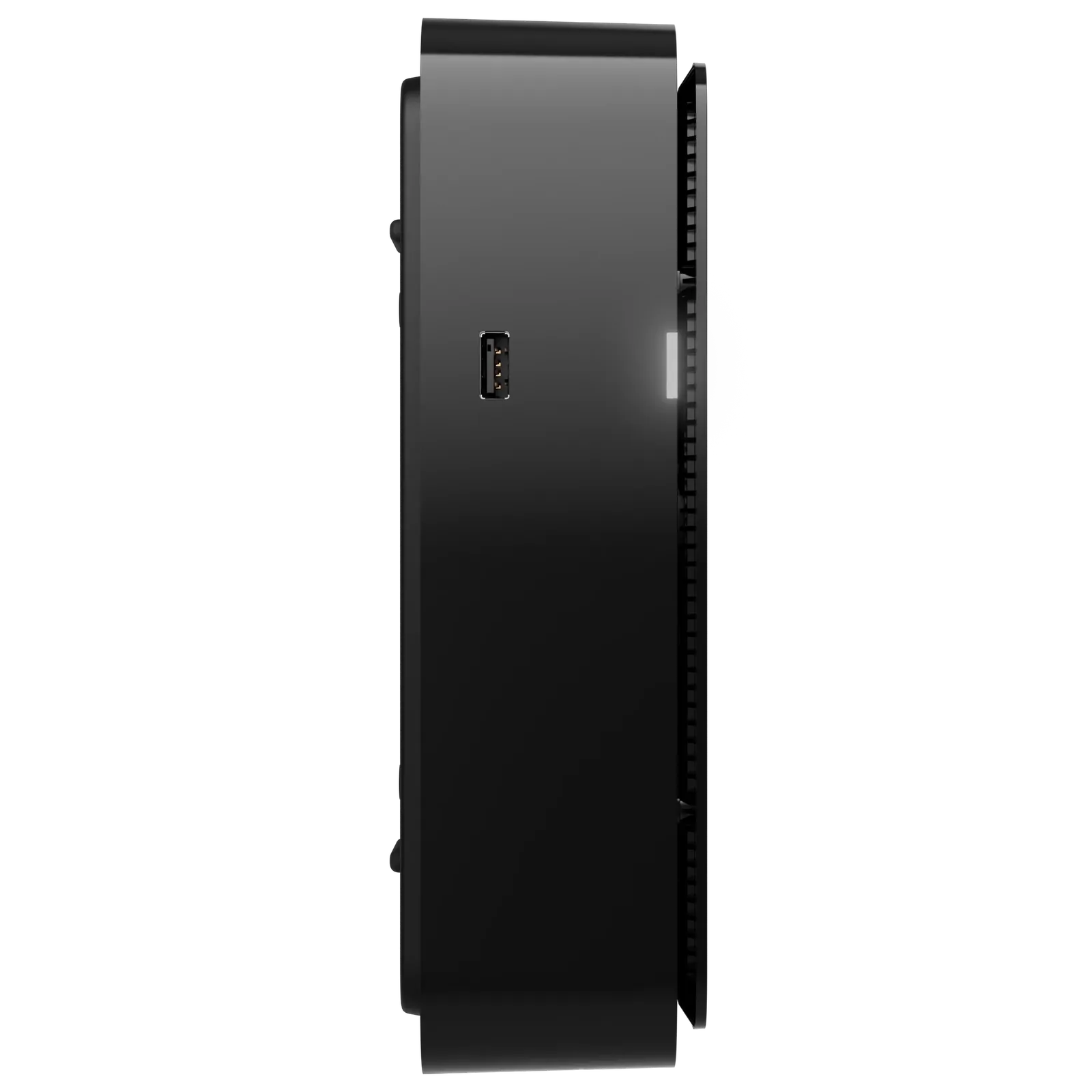

• Two USB Type-A ports for connecting a mouse, keyboard, or USB flash drive
• Built-in motion detection and video wall for at-a-glance monitoring of all connected cameras
• Alarm-linked recording that lets Ajax detectors trigger specific cameras for instant visual verification

Reliable Local and Remote Video Management

This NVR suits retail shops, offices, reception desks, and residential properties where an on-site screen is needed alongside remote access via the Ajax app. Security staff can watch live feeds and review the archive locally through the HDMI connection, while property owners or monitoring teams check in remotely from anywhere. Integration with Ajax intrusion detectors means camera feeds can automatically highlight on the video wall the moment an alarm is triggered, helping operators verify incidents faster.

What's in the Box

• Ajax NVR HAC (16-ch) Black recorder

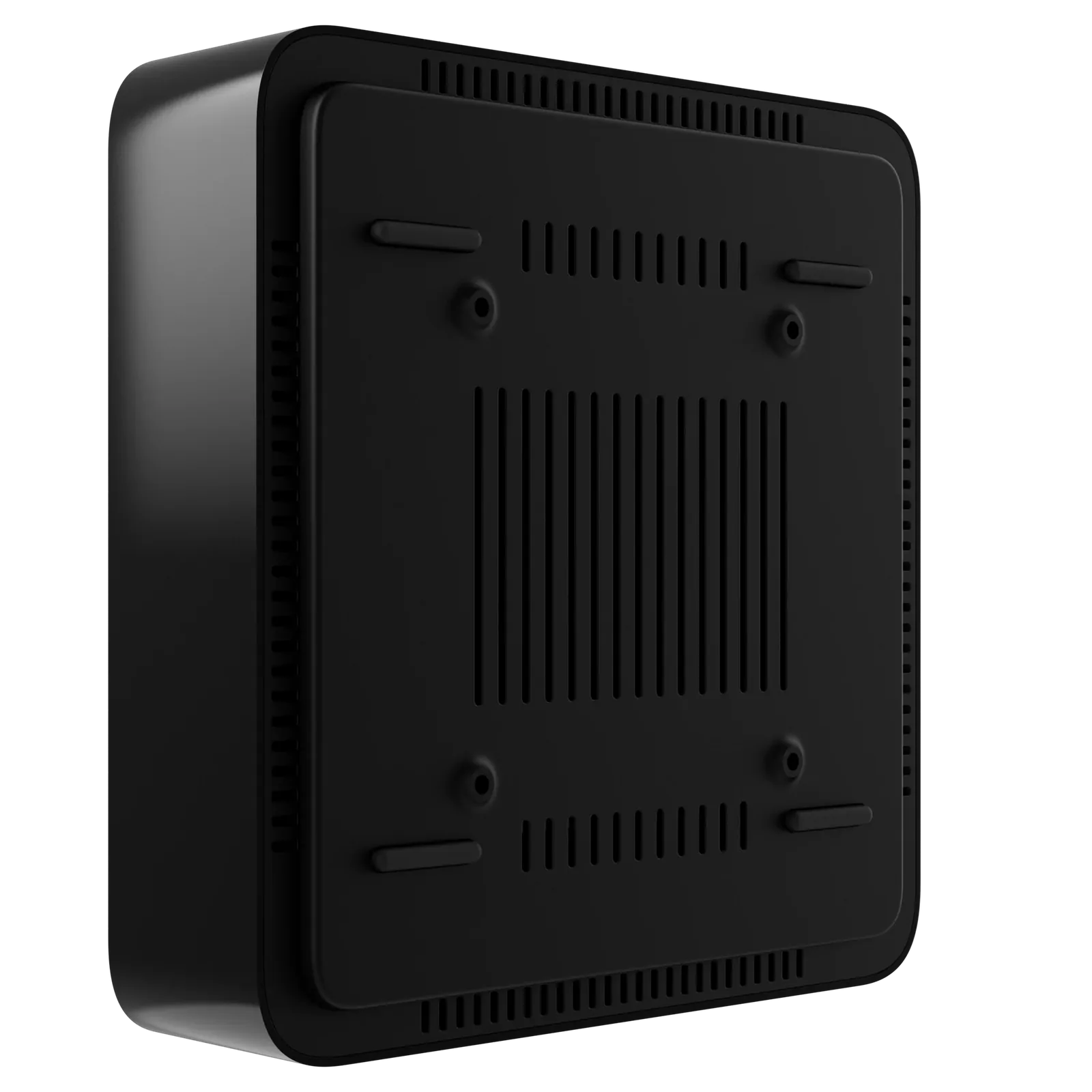

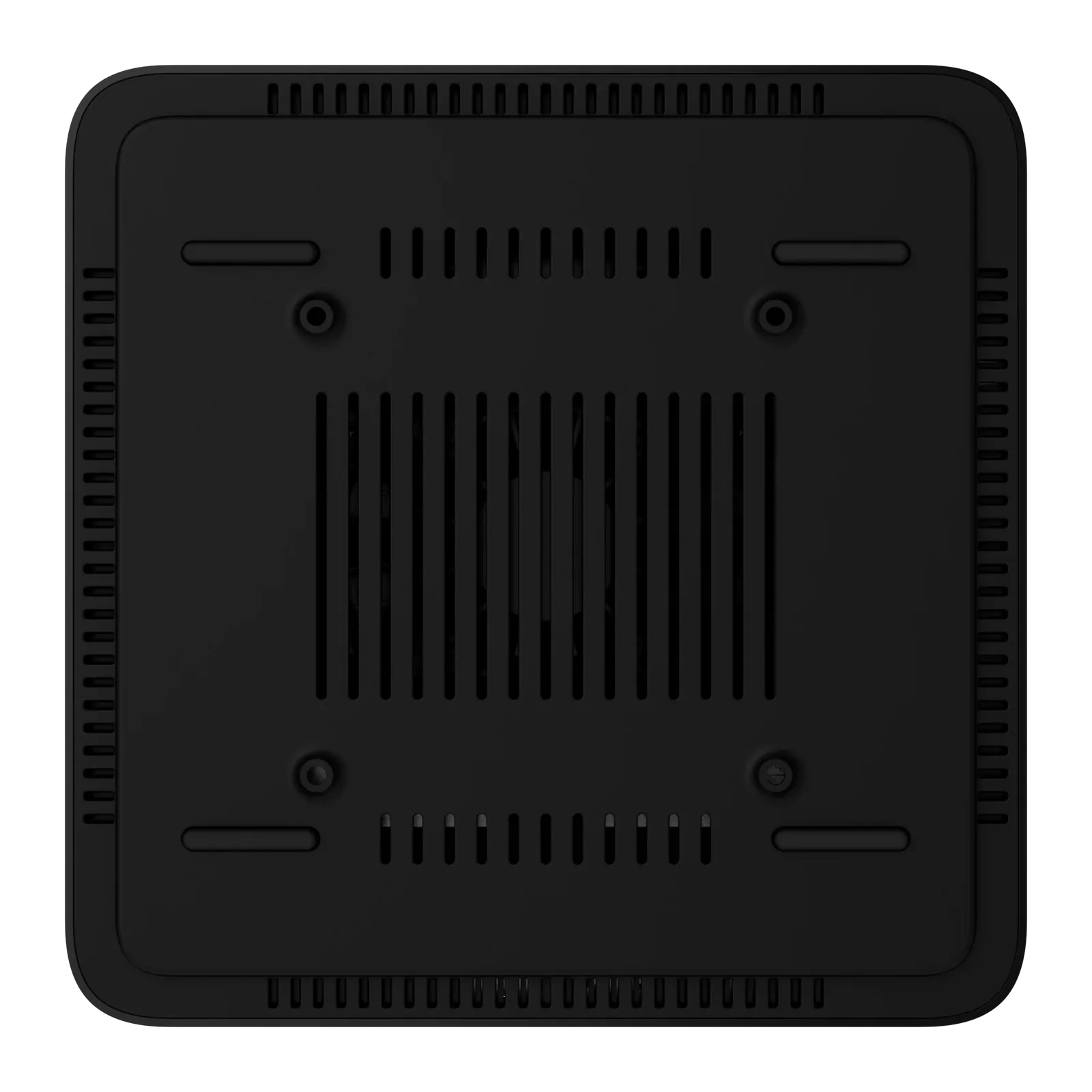

• SmartBracket mounting panel
• Power supply cable
• Ethernet cable
• Mounting screws and accessories
• Quick start guide

Frequently Asked Questions

Does the NVR HAC include a hard drive?
No. It supports a 3.5-inch SATA HDD or SSD with up to 16TB capacity, but the drive is sold separately.

Can I use non-Ajax cameras with this recorder?
Yes. In addition to Ajax cameras, the NVR HAC supports third-party IP cameras using ONVIF or RTSP protocols.

Will I lose local viewing if the internet goes down?
No. Once set up, the HDMI output allows continued local viewing and playback even without an active internet connection.
