POE over 2-Wire 500m

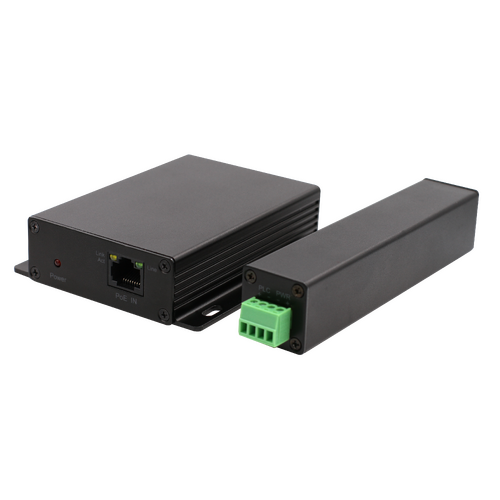

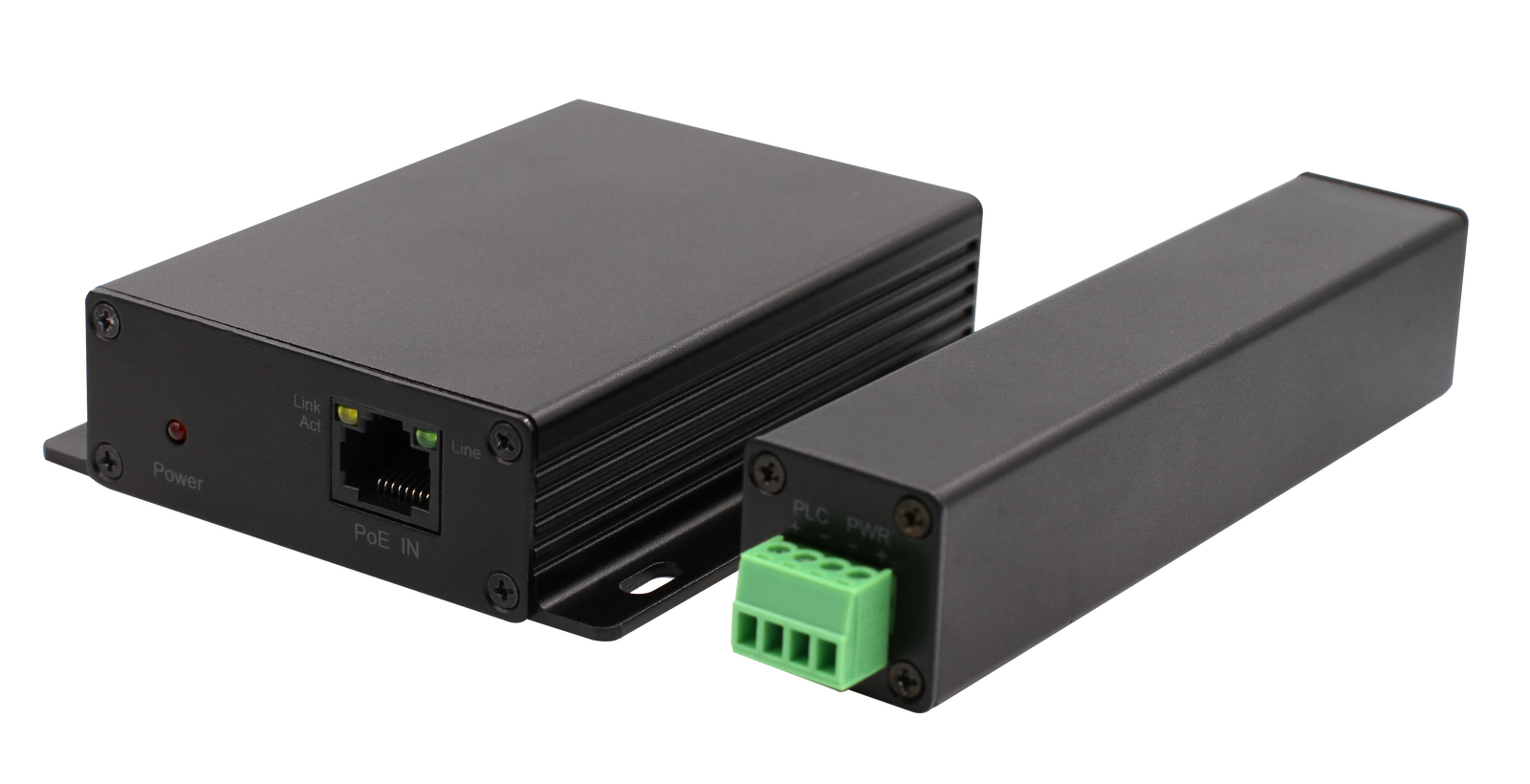

PoE and Ethernet over a single pair, up to 500m. The PoE-2Wire-PRO kit (Receiver + Transmitter) sends 100Mbps Ethernet and PoE power down existing 2-wire or coax cable. You can bring IP cameras, intercoms, access control, IP phones and speakers onto legacy cabling without running new Cat6 or adding power at the device end.

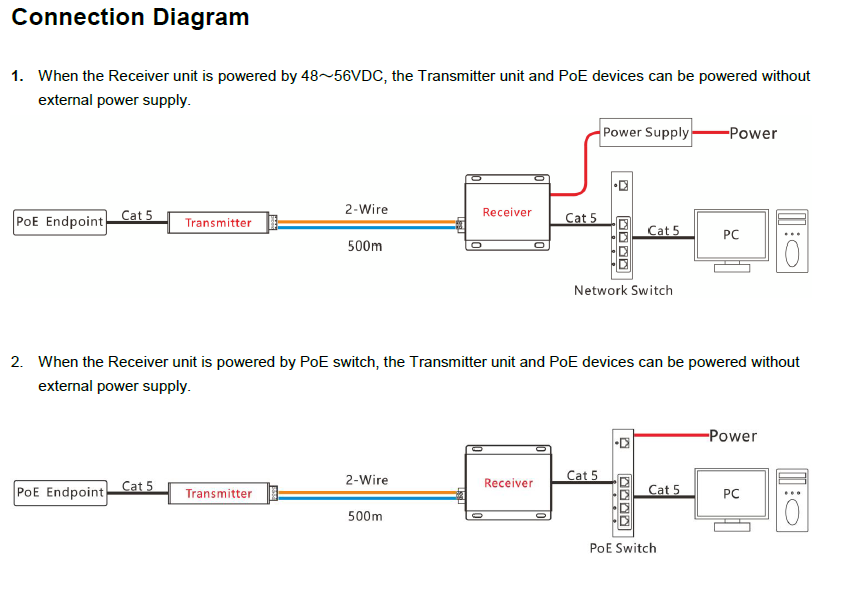

Power the Receiver from a PoE switch or a 48–56VDC supply. It then powers the Transmitter and the connected PoE device over the same two wires. No power supply is needed at the far end.

Real-World Bandwidth vs Distance

PoE Power Available at the Far End (2×0.75mm²)

Coax gives similar results. For long runs or higher-draw devices, feed the Receiver from a 90W PoE port or a 60W 48–56VDC supply. Actual speed and power vary with cable quality and the electrical environment.

Key Features

• Data and PoE over 2 wires, up to 500m on 2-wire or coax cable (PoE and PoC)
• Up to ~28W of 802.3af/at PoE delivered to the far-end device
• No power needed at the camera end: the Transmitter and PoE device are powered down the line
• Flexible head-end power: PoE switch (802.3af/at/bt) or a 48–56VDC adaptor
• Plug and play with no IP setup or software. Units ship as a paired set.
• Low consumption of ≤1.5W per unit, in rugged aluminium housings rated -20°C to 60°C
• Well suited to IP cameras, intercoms, access control, lift cars and swapping analogue CCTV or old alarm cabling to IP

Important Installation Notes

• Polarity matters. Connect the Receiver LINE +/− to the Transmitter PLC +/−. If reversed, there's no power and no data.
• Don't connect power to the Transmitter's PWR terminal. It's powered from the line.
• Power the Receiver from PoE or DC, not both at once.

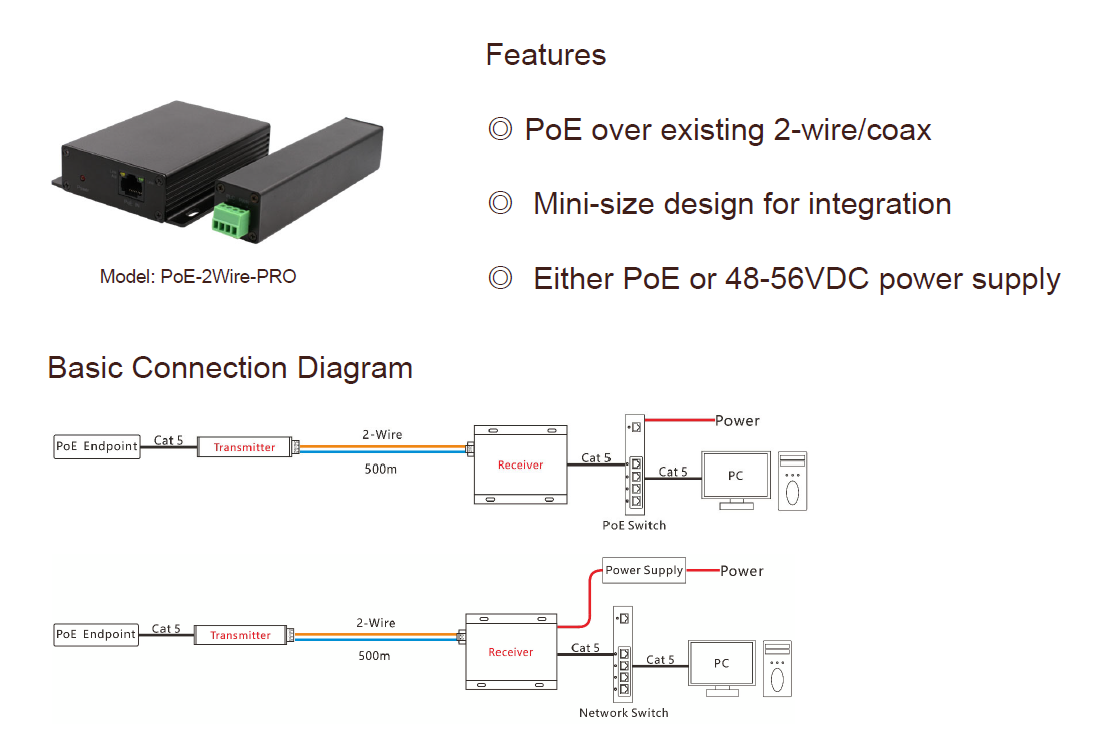

• Install the Receiver at the switch/rack end and the Transmitter at the device end
• Pairing codes on both labels must match
• Ethernet is 10/100Mbps. For more bandwidth or runs up to 1,000m without PoE, see the Data-2Wire-PRO Gigabit Extender.

Specifications
