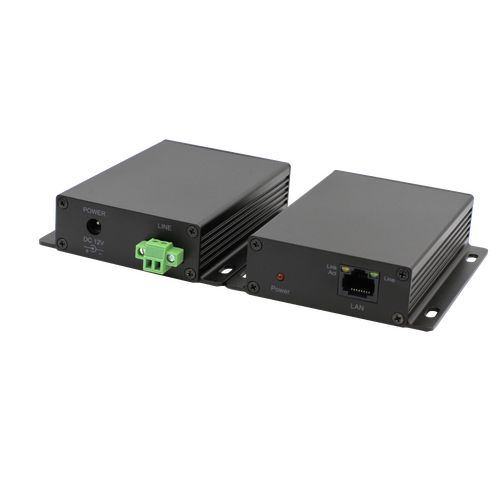

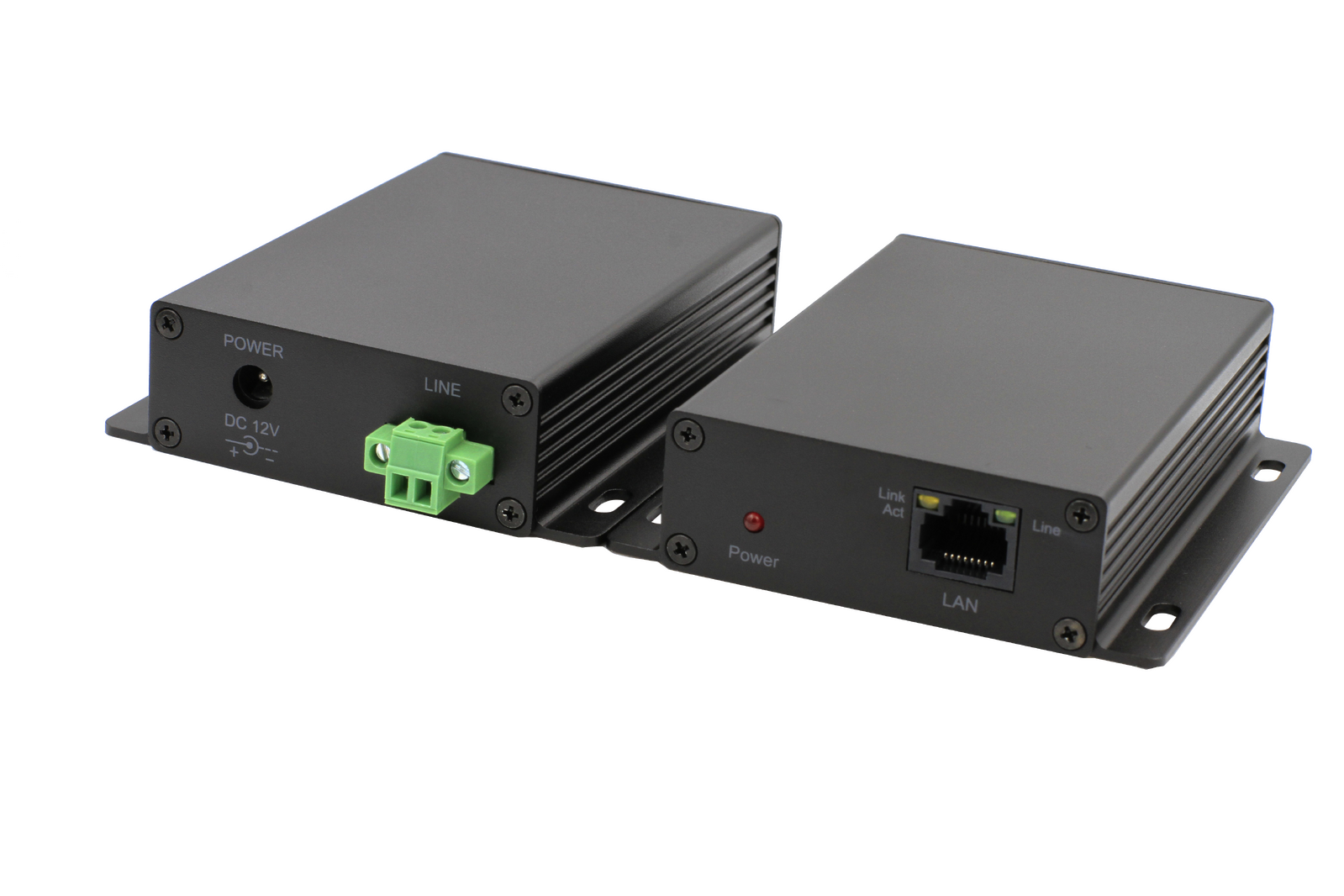

Gigabit Ethernet over any 2-wire cable, up to 1,000m. The Data-2Wire-PRO kit (Transmitter + Receiver) carries Ethernet over existing coax, Cat5, telephone cable, alarm cable or other single-pair copper. No new data cable is needed. It supports point-to-point and point-to-multipoint links.
The RJ45 ports run at 100/1000Mbps full duplex. Real throughput depends on the 2-wire run, so check the table below.
Real-World Throughput vs Distance
| Distance | RVV 2×0.75mm² | RG59 Coax |
|---|---|---|
| 100m | ~312 Mbps | ~324 Mbps |
| 200m | ~216 Mbps | ~234 Mbps |
| 300m | ~167 Mbps | ~182 Mbps |
| 500m | ~98 Mbps | ~105 Mbps |
| 700m | ~66 Mbps | ~74 Mbps |
| 800m | ~59 Mbps | ~65 Mbps |
| 1,000m | ~35 Mbps | ~41 Mbps |
Actual speed varies with cable quality and the electrical environment.
Key Features

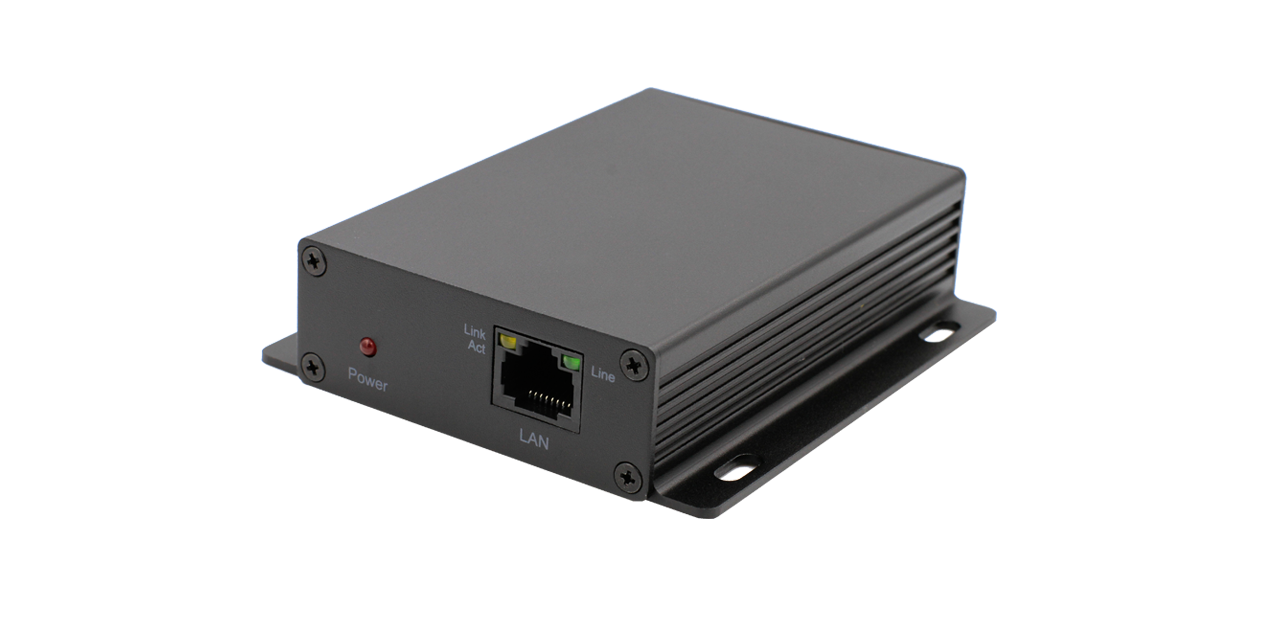

- Gigabit RJ45 ports: 100/1000Mbps full duplex to your switch and end device

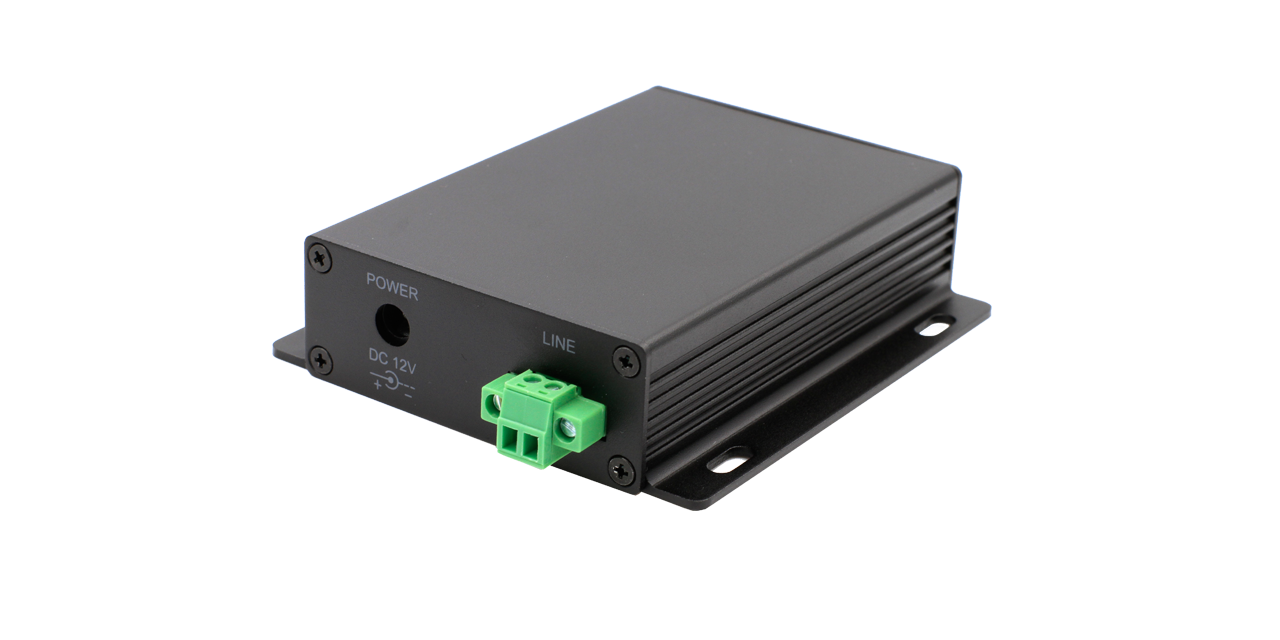

- Up to 1,000m over a single pair of almost any copper: coax, Cat5, telephone, alarm or RVV cable
- IEEE 1901 line technology with 128-bit AES encryption on the 2-wire link
- Point-to-point or point-to-multipoint for flexible network expansion
- Plug and play with no IP setup or software configuration. Units ship as a paired set.
- Low power: 12–24VDC input, ≤3W per unit
- Rugged aluminium housing, screw-mount, rated -20°C to 60°C
- Well suited to IP cameras, intercoms, access control, lift cars and long or legacy cable runs
Important Installation Notes
- Data only, no PoE. PoE cameras or devices need their own local power. For PoE over 2-wire, see the PoE-2Wire-PRO.
- Both units need power: a 12–24VDC adaptor at the Transmitter and the Receiver
- The Receiver goes at the network/switch end and the Transmitter at the IP device end
- Pairing codes on both labels must match
- Don't mix cable types on one run (e.g. 2-wire joined to coax)
- Power up the IP device before connecting it to the Transmitter
Specifications
| Standards | IEEE 1901, IEEE 802.3 |
| Ethernet Port | RJ45, 100/1000Mbps full duplex |
| Line Access | CSMA/CA |
| Encryption | 128-bit AES |
| Max Distance | 1,000m |
| Power Input | 12–24VDC (each unit) |
| Power Consumption | ≤3W per unit |
| Dimensions | 98 × 86.5 × 25mm |
| Weight | 160g per unit |
| Housing | Aluminium alloy |
| Operating Temp | -20°C to 60°C |
| Humidity | <95% non-condensing |
| Kit Contents | 1 × Transmitter, 1 × Receiver |
(Data-2Wire-PRO)
| SKU | Data-2Wire-PRO |
| Shipping Weight | 1.0000kg |
| Shipping Width | 0.200m |
| Shipping Height | 0.150m |
| Shipping Length | 0.300m |
| Shipping Cubic | 0.009000000m3 |
