WI-TEK 5km Outdoor 867Mbps Wireless Transmitter

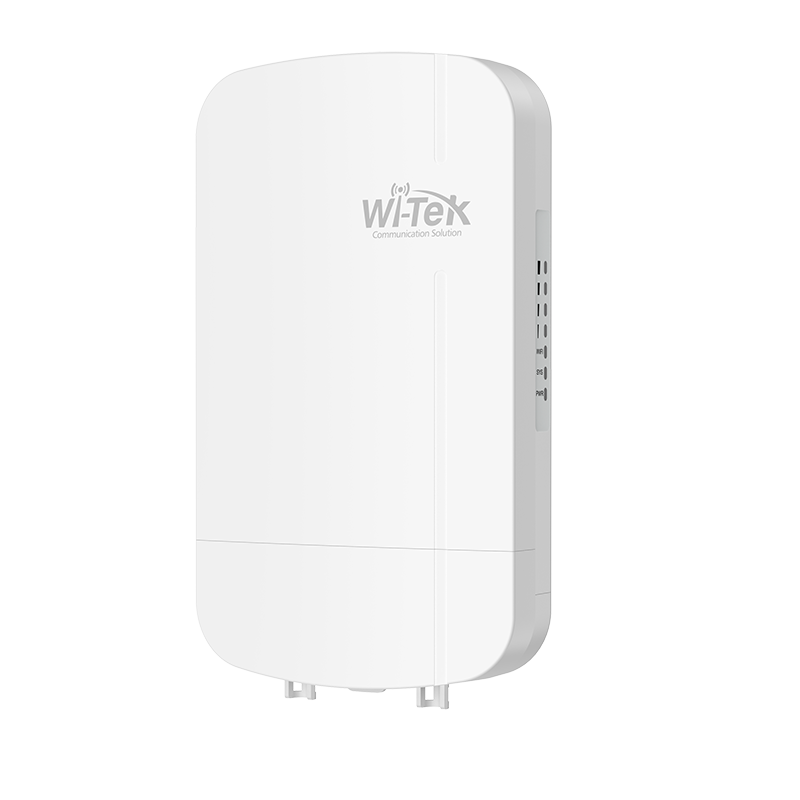

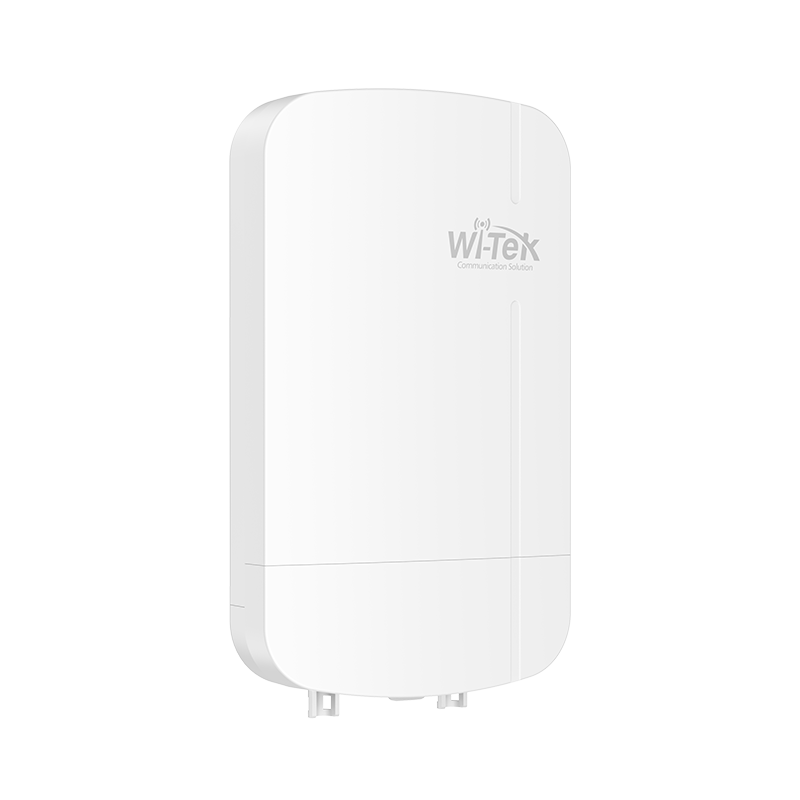

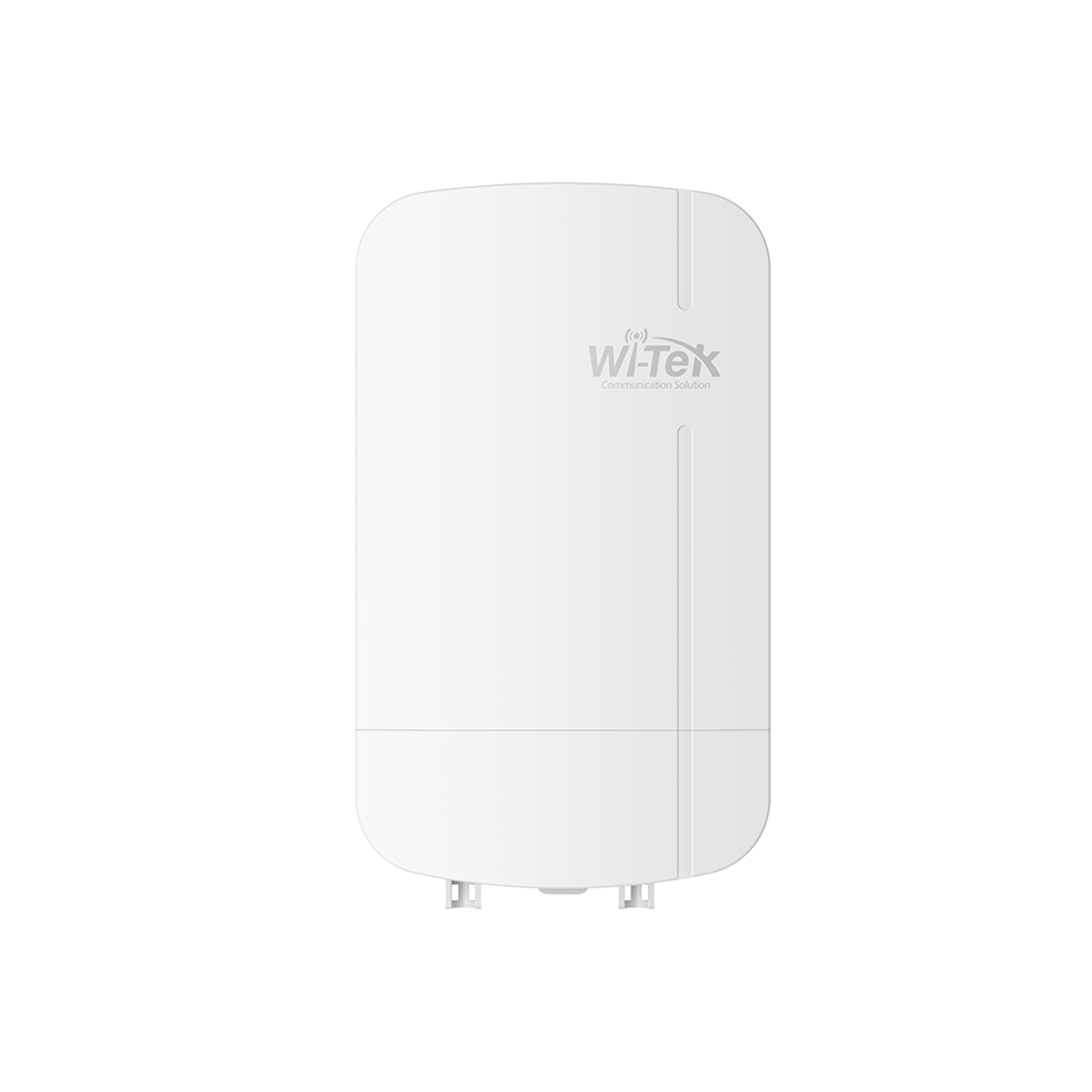

Wi-Tek 5KM Outdoor 867Mbps Wireless Transmitter

Wireless transmitters use wireless to build a communication bridge between two or more networks. With the advantages of wireless high bandwidth, long distance, flexible point-to-point, point-to-multipoint applications, and high reliability and protection design, they can be widely deployed in CCTV applications in open areas such as highways, parks, forests, building tower cranes, or elevator shafts, eliminating the trouble of wiring.

Secusafe describes it as: WI-TEK 5KM Outdoor 867Mbps Wireless Point-to-Point CPE, 1x 90W PoE Input, 3x PoE Output, 14dBi Antenna, 4x Gigabit Ports, Cloud Management

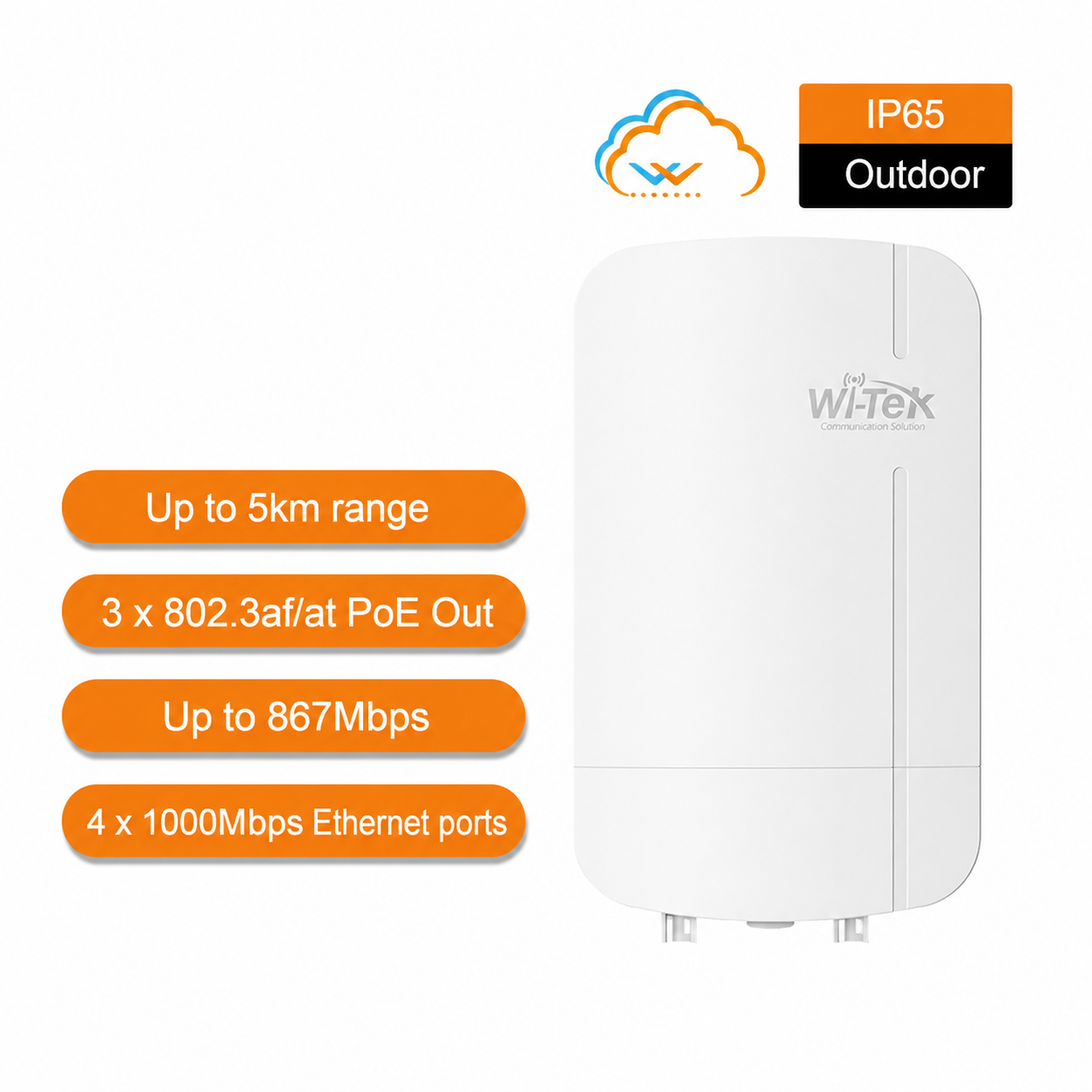

Ultra-bandwidth

Offer wireless rate up to 867Mbps by adopting 5GHz solution, and 1000Mbps RJ45 port, greatly improves the efficiency of data transmission.

Long-Distance Data Transmission up to 5km

Provide long-distance wireless network transmission up to 5km with a high-performance 14dBi Directional Antenna, making it an ideal choice for outdoor wireless network transmission.

PTP/PTMP

Support two networking modes, PTP (point to point) and PTMP (point to multi-point), which flexibly suiting for different outdoor network solutions.

IEEE 802.3bt 90W PoE Power Supply and IEEE 802.3af/at PoE Out

Support IEEE 802.3bt 90W PoE power supply and ethernet LAN1-3 can power 802.3af/at PoE Output for IP Camera, which can be flexibly installed according to the application scenarios.

One-touch Quick Pairing

No more configuration required, quick pairing with a button. This function is currently supported quick pairing with WI-CPE800-KIT (V3).

Wi-Tek Cloud Management

Wi-Tek Cloud provide reliable performance, visual management, and remote access which is easy to operate and maintain.

Specifications

Model	WI-CPE814P
Hardware Version	V1
Interface	1*10/100/1000Mbps WAN/LAN (PoE IN) RJ45 port
Frequency Range	3*10/100/1000Mbps LAN (PoE Out) RJ45 ports 5.150 ~ 5.850GHz (Channel 36~64, 100~144, 149~165) *Please follow national regulations to select the appropriate frequency.
Compliant Standards	IEEE 802.11a/n/ac
Spatial Streams	2x2, MU-MIMO
Maximum Wireless Rate	867Mbps@5GHz
Antenna Gain	Build-in 14dBi directional antenna
Half Power Beamwidth (Typ.)	Horizontal: 60°, Vertical: 30°
Transmit Power	24±2dBm max. (adjustable)
Recommended Distance	5km
LED Indicator	1*PWR indicator, 1*SYS indicator, 1*Wi-Fi indicator,4*Wi-Fi Signal indicator, 4*Ethernet ports lights (left orange: PoE, right green: Link) H: Base station mode, supports wireless point-to-point and
DIP Switch	point-to-multipoint long-distance transmission. C: CPE mode, a receiving point for connecting a wireless base station. Short press:Search for another wireless transmitter on a different
RST button	mode(H/C status)and pair each other. Long press over 5 seconds: Restore the factory default configuration.
Power Supply	IEEE 802.3bt 90W PoE IN 48V DC@2A Max
Power Consumption	<10W (Without PoE Out)
PoE Power Budget	50W(PoE budget for three ports),Max.30W for one port
Max power consumption	60W
Dimensions(L*W*H)	192*110*52mm
Weight	0.37kg
Model	WI-CPE814P
Package Dimensions	265*205*70mm
Package Weight	0.73kg

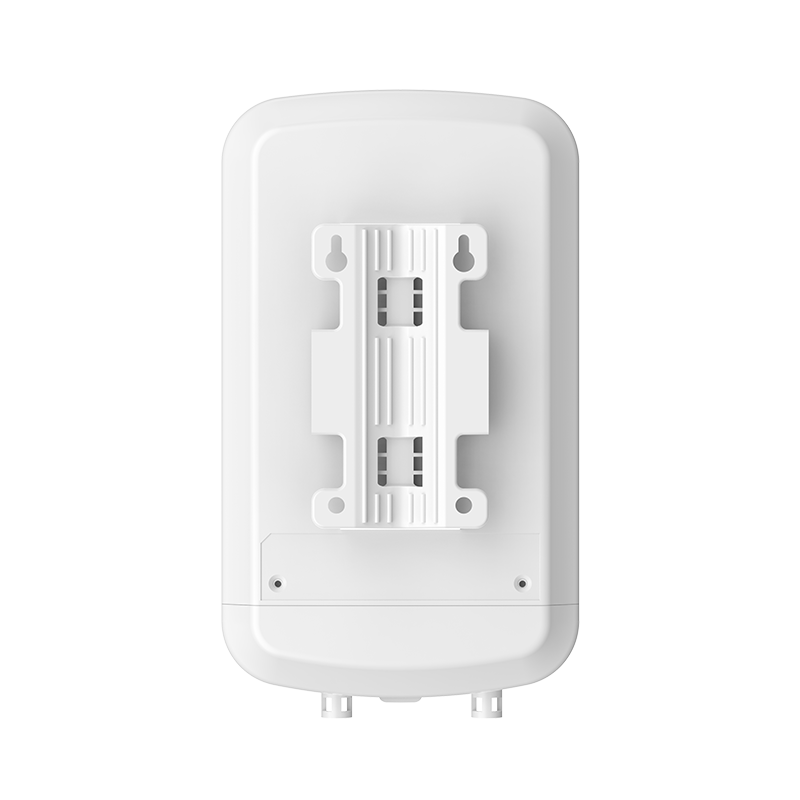

Installation	Wall/Pole mounted
Material	Outdoor UV Stabilized Plastic
ESD Protection	Air discharge: ±8kV, Contact discharge: ±6kV
Lightning Protection	2kV
Operating Environment	-30°C to 55°C, 5%~95% (non-condensation)
Storage Environment	-40°C to 70°C, 5%~95% (non-condensation)
Ingress Protection	IP65
Max transmission Distance	5km
Model	WI-CPE814P
Hardware Version	V1
System Status	System information, Wireless information, Radio status, Flow Chart,
Operating Mode	Wireless Terminal Station Base Station, CPE Repeater, WISP Mode (Switch the paring mode to control by web)
WAN Configuration	Dynamic IP, Static IP Wireless enable/disable, Hide SSID
Wireless Configuration	Wireless Security: OPEN, WPA-TKIP, WPA2-AES, WPA/WPA2-Mixed, WPA-Enterprise, WPA2-Enterprise
Radion Parameter	WMM, Weak Signal Rejection Threshold, Wireless Channel, Tx Power Control Channel Bandwidth: Auto/20/40/80MHz
System Tools	Speed Test, Ping Watchdog, Scheduled Reboot, NTP, Ping, Traceroute
Management	Local WEB management, Remote Wi-Tek Cloud management
WI-CPE814P
Dimensions (mm)	192mm WIFI SYS PWR
110mm	52mm

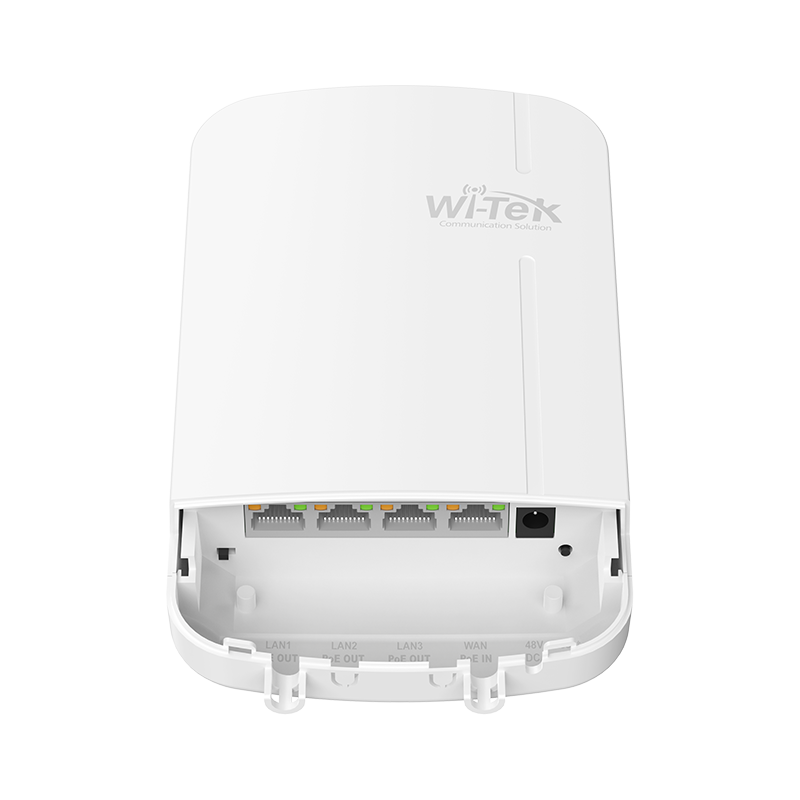

Front Panel	1 * 1000Mbps WAN (802.3bt PoE IN) RJ-45 3 * 1000Mbps LAN (802.3 af/at
PoE OUT)RJ-45	48V DC Input
DIP Switch	Reset

What's in the box

• Welcome to order our products. After purchasing, you will receive:

Install tips

• Power Supply: IEEE 802.3bt 90W PoE IN 48V DC@2A Max
• PoE Power Budget: 50W(PoE budget for three ports),Max.30W for one port
• Installation: Wall/Pole mounted
• Operating Environment: -30°C to 55°C, 5%~95% (non-condensation)
• Operating Mode: Wireless Terminal Station Base Station, CPE Repeater, WISP Mode (Switch the paring mode to control by web)
• PoE OUT)RJ-45: 48V DC Input

These points are the installation, power and operating lines from the specification table. A quick-install guide was not used, so step-by-step mounting instructions are not added.

FAQ

How is it powered?

IEEE 802.3bt 90W PoE IN 48V DC@2A Max

What ingress protection is stated?

IP65

What distance does the datasheet state?

5km

What operating environment is stated?

-30°C to 55°C, 5%~95% (non-condensation)

• Wireless-Tek datasheet: WI-CPE814P-Datasheet.pdf (https://www.wireless-tek.com/files_down.php?id=348)
