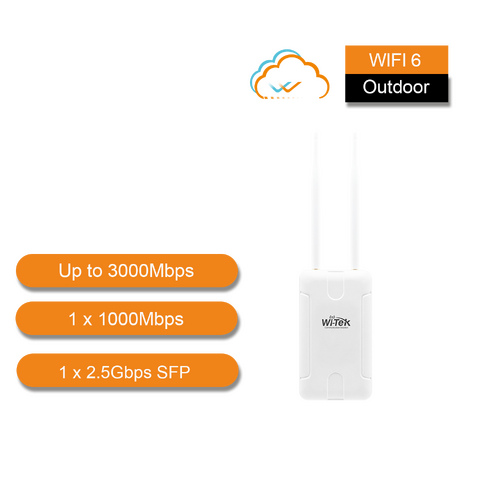

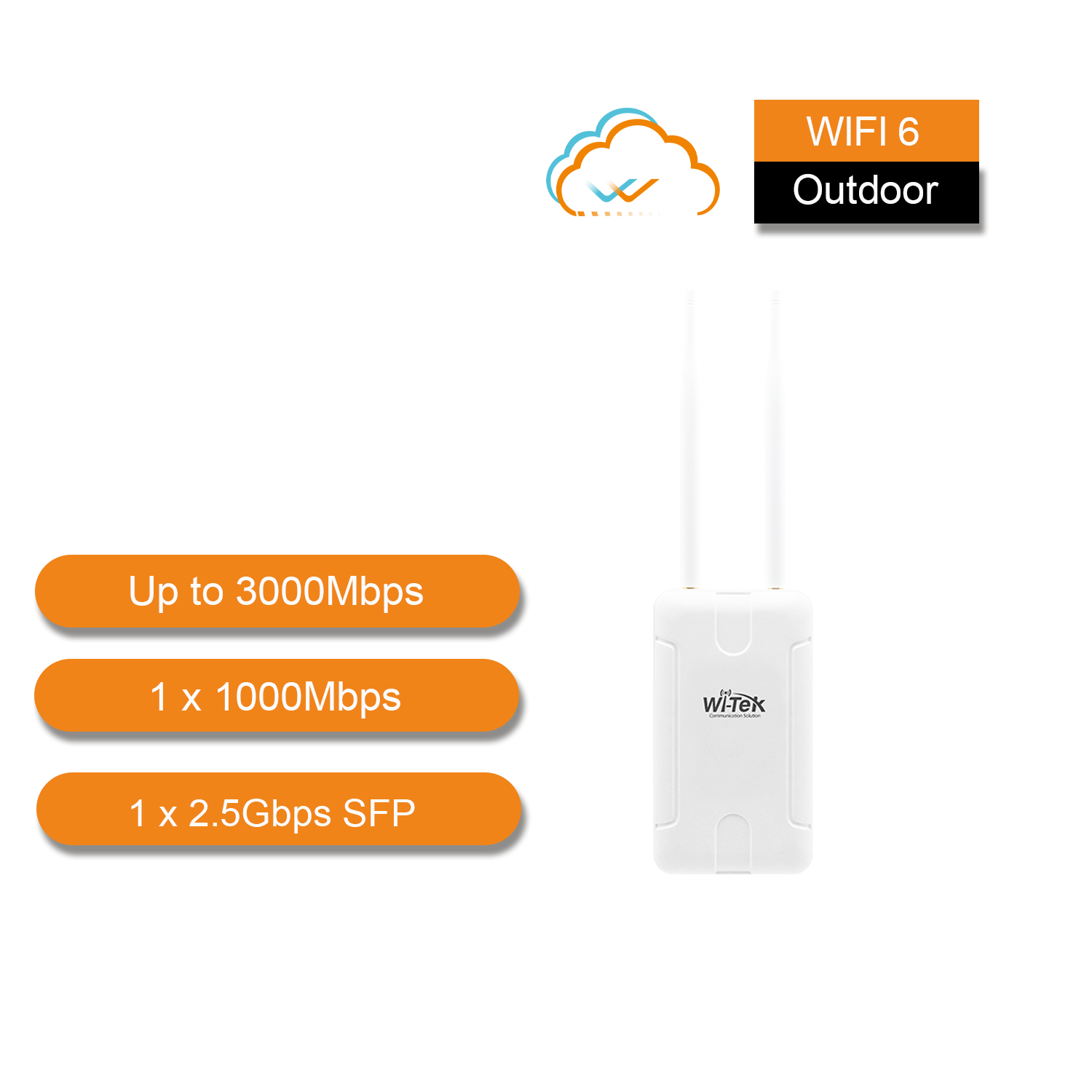

WI-TEK Wi-Fi 6 Outdoor Cloud AP

WI-TEK WI-FI 6 OUTDOOR CLOUD AP

Wi-Tek’s outdoor AP is designed for outdoor Wi-Fi coverage scenarios. Supporting 802.3af/at PoE Input, it makes deployment easy and flexible. WI-AP316AX adopts IP67 weatherproof design, which makes it easy to adapt to various harsh outdoor environments. In addition, it supports cloud management, and users can quickly configure, remotely manage and operate network-wide equipment, greatly reducing equipment investment costs.

Secusafe describes it as: Wi-Tek Wi-Fi 6 3000Mbps Outdoor Cloud Wireless AP

Ultra-Fast Speed

The AP provides combined wireless speed of up to 2976Mbps, which brings smooth internet experience to the users.

High-Performance Design

By introducing new technologies such as OFDMA, WI-AP316AX has greatly improved its performance such as providing stable connection and fast speed to multiple terminals.

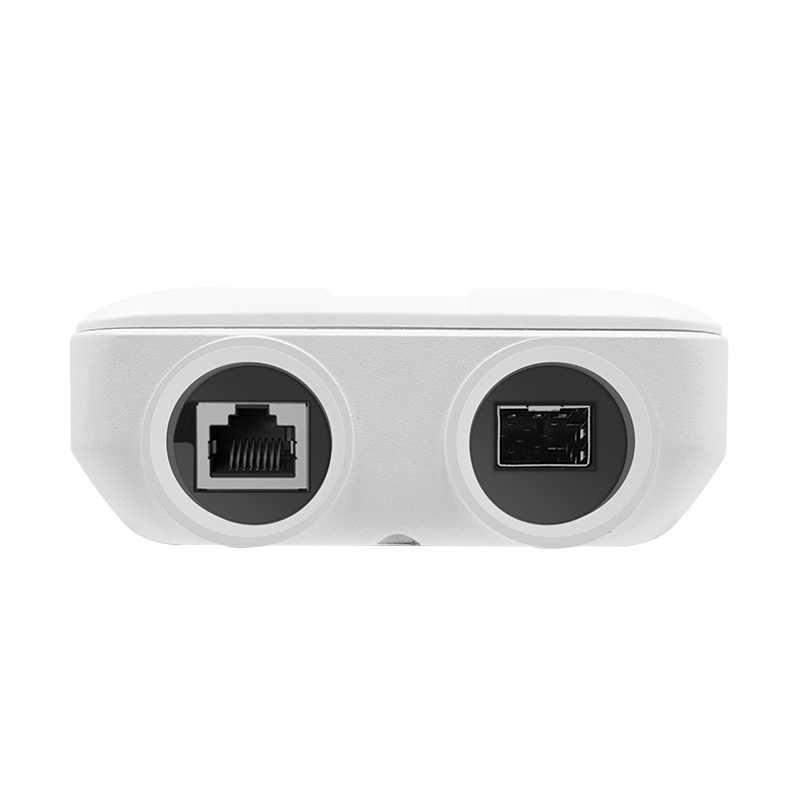

2.5G SFP Slot and External Omni Antennas

With a 2.5G SFP slot and external Omni antennas, WI-AP316AX can expand Wi-Fi coverage, provides faster wireless speed and allow more user accesses.

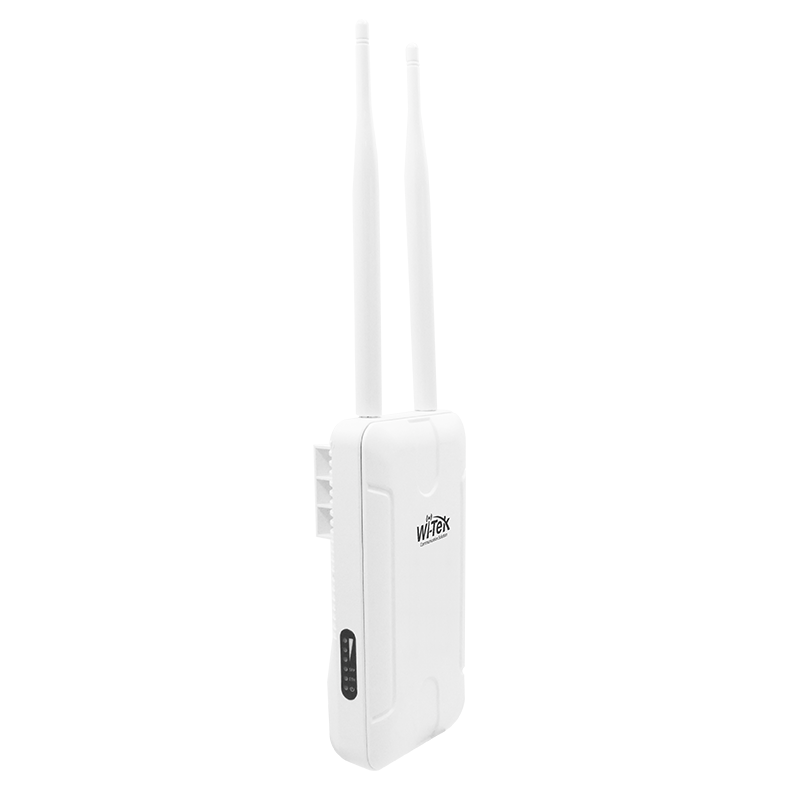

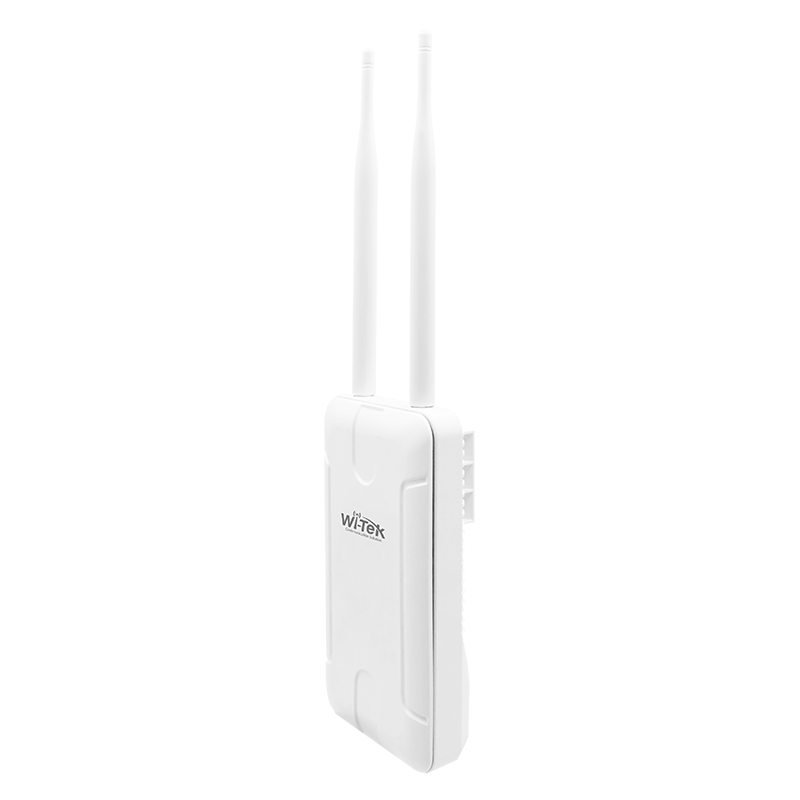

Professional Outdoor Weatherproof Design

Equipped with durable high-level weatherproof enclosure, the AP can work in various harsh outdoor environment.

Fast Roaming

This AP supports fast roaming, ensuring short switching time between APs. As users move, terminals such as phones and tablets automatically connect to the optimal AP for seamless mobility.

Cloud Management

Wi-Tek Cloud's quick configuration provide reliable performance, visual management, and real- time monitoring, enhancing the efficiency of device management.

Specifications

Model	WI-AP316AX
Hardware Version	V1
Memory	512MB RAM
Interface	128MB Flash 1*Gigabit Ethernet Port (supports IEEE 802.3at PoE Input) 1*2.5G SFP slot
Button	1*Reset Button
Power Supply	802.3at PoE Input
Power Consumption(Max)	15W
Standards	IEEE 802.11a/b/g/n/ac/ax
Max/Recommended
Clients	128/80
Data Rates	2.4GHz: up to 574Mbps
MIMO	5GHz: up to 2402Mbps 2.4GHz: 2 x 2
Antenna	5GHz: 2 x 2 2.4GHz: 5dBi 5GHz: 5dBi
Frequency	2.4GHz, 5GHz
Channel Width	2.4GHz: 20/40MHz 5GHz: 20/40/80/160MHz
Max. TX power	27dBm 2.4GHz max/ recommended: 150m/80m
Coverage Range	5GHz max/ recommended: 100m/50m Note: Data is acquired in an unobstructed ideal environment. Signal coverage radius depends on client performance and environmental interference.
Model	WI-AP316AX
Wireless Mode	Fit AP/Repeater/Wireless Router/WISP Mode
Network	(Default: Fit AP mode) LAN: Static IP, Dynamic IP WAN: Static IP, Dynamic IP, PPPoE Client Wireless Disable or Enable
Wireless	Modify SSID SSID Hiding WPA-TKIP, WPA2-AES, WPA1/WPA2-Mixed,
Wireless Security	WPA-Enterprise, WPA2-Enterprise, WPA2/WPA3-Mixed
VLAN	Supports IEEE 802.1Q VLAN Supports SSID-to-VLAN mapping
Wi-Fi Schedule	Yes Adjustable Country Auto Channel Width Selection Automatic Frequency Selection
RF Parameter	Adjustable Transmission Power
Advanced	Max Associated STA (default: 128) Weak Signal Rejection Threshold(default: -95dBm) User Isolation(default: disabled) Supports Wi-Fi Multimedia (WMM) Multiple SSID (Up to 8 per radio) Ping Watchdog Scheduled Reboot DHCP Server NTP Server Diagnosis: PING, TRACERT
Model	WI-AP316AX Base Info: LAN/WAN Info, Wireless Info,System Info Radio Status Real Time Flow Chart
Status Monitoring	Wireless Terminal Station
Management	SSID List DHCP Client ARP Table Routing Table Quickly scan devices by discovery tools Web-based management by locally
Environment	Support remote management by cloud platforms and applications Support AC management Operating Temperature: -30℃ ~ 65℃(-22℉ ~ 149℉) Storage Temperature: -40°C ~ 70°C(-40℉ ~ 158℉)
Others	Operating Humidity: 5% ~ 95% (non-condensing) Storage Humidity: 5% ~ 95% (non-condensing)
Certification	CE, FCC, RoHS, UKCA, RCM
Product Dimensions
(L x W x H)	182*103*55mm
Package Dimensions
(L x W x H)	300*233*80mm
Product Weight	0.56kg
Package Weight	0.97kg
Model	WI-AP316AX
Fast-Roaming AP Combo Recommendations
Type	Model Hardware Version
WI-AP217	V2
WI-AP218AX	V2
Celling-Mount	WI-AP219AX V2
WI-AP219AX-Lite	V1
WI-AP229BE	V1
Wall-Plate	WI-AP419P V1
WI-AP315	V1
WI-AP316AX	V1
WI-AP317	V1
Outdoor
WI-AP510	V1
WI-AP518AX	V1
WI-AP520AX-D	V1

What's in the box

• Welcome to order our products. After purchasing, you will receive:

Install tips

• Power Supply: 802.3at PoE Input
• Celling-Mount: WI-AP219AX V2

These points are the installation, power and operating lines from the specification table. A quick-install guide was not used, so step-by-step mounting instructions are not added.

FAQ

How is it powered?

802.3at PoE Input

Which ports does the datasheet list?

128MB Flash 1*Gigabit Ethernet Port (supports IEEE 802.3at PoE Input) 1*2.5G SFP slot

• Wireless-Tek datasheet: WI-AP316AX-Datasheet.pdf (https://www.wireless-tek.com/files_down.php?id=321)
