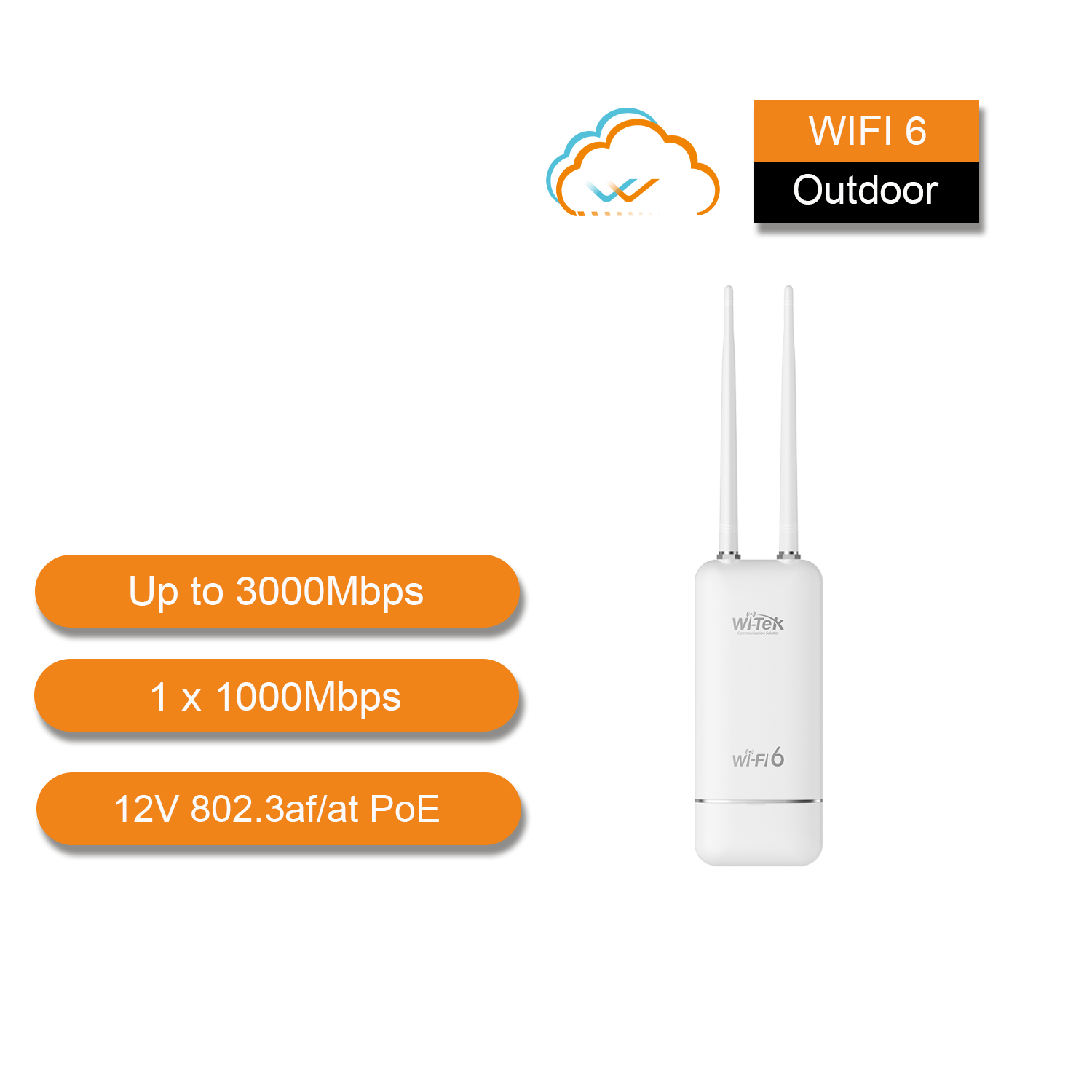

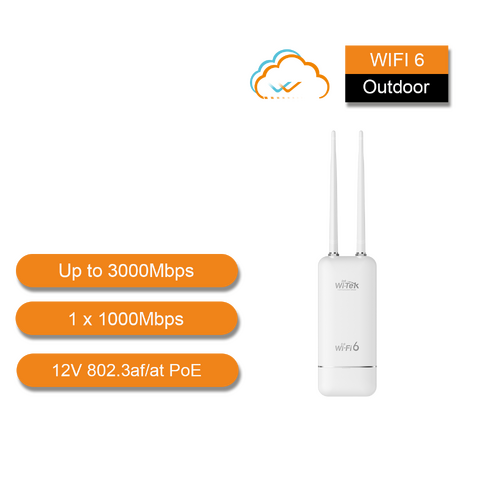

WI-TEK Wi-Fi 6 Outdoor Cloud AP Lite

WI-TEK WI-FI 6 OUTDOOR CLOUD AP

WI-Tek's outdoor AP is designed for outdoor Wi-Fi coverage scenarios. Supporting 802.af/at PoE Input, it makes deployment easy and flexible. WI-AP316AX-Lite adopts IP65 weatherproof design, which makes it easy to adapt to various harsh outdoor environments. In addition, it supports cloud management, and users can quickly configure, remotely manage and operate network-wide equipment, greatly reducing equipment investment costs.

Secusafe describes it as: Wi-Tek Wi-Fi 6 3000Mbps Outdoor Cloud Wireless AP, 2.4GHz 574Mbps + 5GHz 2402Mbps, 2 x Gigabit Ethernet ports, 802.3af/at PoE input, 2 x 2 MIMO, 5dBi antennas, IP65, cloud management.

Ultra-Fast Speed

The AP provides combined wireless speed of up to 3000Mbps, which brings smooth internet experience to the users.

High-Performance Design

By introducing new technologies such as OFDMA, WI-AP316AX-Lite has greatly improved its performance such as providing stable connection and fast speed to multiple terminals.

Professional Outdoor Weatherproof Design

The WI-AP316AX-Lite, with a durable high-grade weatherproof enclosure and IP65 rating, operates reliably in harsh outdoor environments.

Flexible power supply methods

The AP supports not only DC Input but also 802.3af/at PoE Input, offering flexible power supply options in different installation environment. Adopting 802.3af/at PoE Input can enable Ethernet port to carry data and power simultaneously via one cable, making deployment easy and flexible.

Fast Roaming

This AP supports fast roaming, ensuring short switching time between APs. As users move, terminals such as phones and tablets automatically connect to the optimal AP for seamless mobility.

Cloud Management

Wi-Tek Cloud's quick configuration provide reliable performance, visual management, and real- time monitoring, enhancing the efficiency of device management.

Specifications

Model	WI-AP316AX-Lite
Hardware Version	V1
Memory	256MB RAM
Interface	128MB Flash 2*10/100/1000Mbps Base-T Ethernet Ports (WAN port supports 802.3af PoE Input)
Button	1*Reset Button
Power Supply	802.3af PoE Input or DC 12V/1.5A
Power Consumption (Max)	10W
Standards	IEEE 802.11a/b/g/n/ac/ax
Max/ Recommended Clients	128/ 80
Data Rates	2.4GHz: up to 574Mbps
MIMO	5GHz: up to 2402Mbps 2.4GHz: 2 x 2
Antenna	5GHz: 2 x 2 2.4GHz: 5dBi 5GHz: 5dBi
Frequency	2.4GHz, 5GHz
Channel Width	2.4GHz: 20/40MHz 5GHz: 20/40/80/160MHz
Max. TX power	23dBm 2.4GHz max/ recommended: 100m/ 50m
Coverage Range	5GHz max/ recommended: 100m/ 50m Note: Data is acquired in an unobstructed ideal environment. Signal coverage radius depends on client performance and environmental interference.
Model	WI-AP316AX-Lite
Wireless Mode	Fit AP/Wireless Router
Network	LAN: Static IP, Dynamic IP WAN: Static IP, Dynamic IP, PP PoE Client Wireless Disable or Enable
Wireless	Modify SSID SSID Hiding WPA-TKIP, WPA2-AES,
Wireless Security	WPA1/WPA2-Mixed, WPA-Enterprise, WPA2-Enterprise, WPA2/WPA3-Mixed
Vlan	Supports IEEE 802.1Q VLAN Supports SSID-to-VLAN mapping
Wi-Fi Schedule	Yes Adjustable Country Auto Channel Width Selection Automatic Frequency Selection
RF Parameter	Adjustable Transmission Power
Advances	Max Associated STA (default: 128) Weak Signal Rejection Threshold(default: -95dBm) User Isolation (default: disabled) Supports Wi-Fi Mutimedia (WMM) Multiple SSID (Up to 8 per radio) Ping Watchdog Scheduled Reboot DHCP Server NTP Server Diagnosis: PING,TRACERT BaseInfo: LAN/WAN Info, Wireless Info, System Info Radio Status Real Time Flow Chart Wireless Terminal Station
Status Monitoring	SSID List DHCP Client ARP Table Routing Table
Model	WI-AP316AX-Lite Quickly scan devices by discovery tools
Management	Web-based management by locally
Environment	Support remote management by cloud platforms and applications Support AC management Operating Temperature: -30℃～55℃(-22℉～131℉) Storage Temperature: -40℃～70℃(-40℉～158℉)
Others	Operating Humidity: 5%～95%(non-condensing) Storage Humidity: 5%～95%(non-condensing)
Certification	CE, FCC, ROHS, UKCA, RCM
Product Dimensions (L×W×H)	196*86*40mm
Packet Dimensions (L×W×H)	236*92*90mm
Product Weight	0.29kg
Packet Weight	0.66kg
Model	WI-AP316AX-Lite
Fast-Roaming AP Combo Recommendations
Type	Model Hardware Version
WI-AP210-Lite	V2
WI-AP210-Lite	V1
WI-AP216	V2
Celling-Mount	WI-AP216 V1
WI-AP217-Lite	V2
WI-AP218AX-Lite	V2
WI-AP219AX-Lite	V2
WI-AP416	V1
Wall-Plate
WI-AP417P	V1
WI-AP310-Lite	V1
Outdoor	WI-AP316 V1
WI-AP316AX-Lite	V1
WI-AP316AX-Lite
Dimensions (mm)

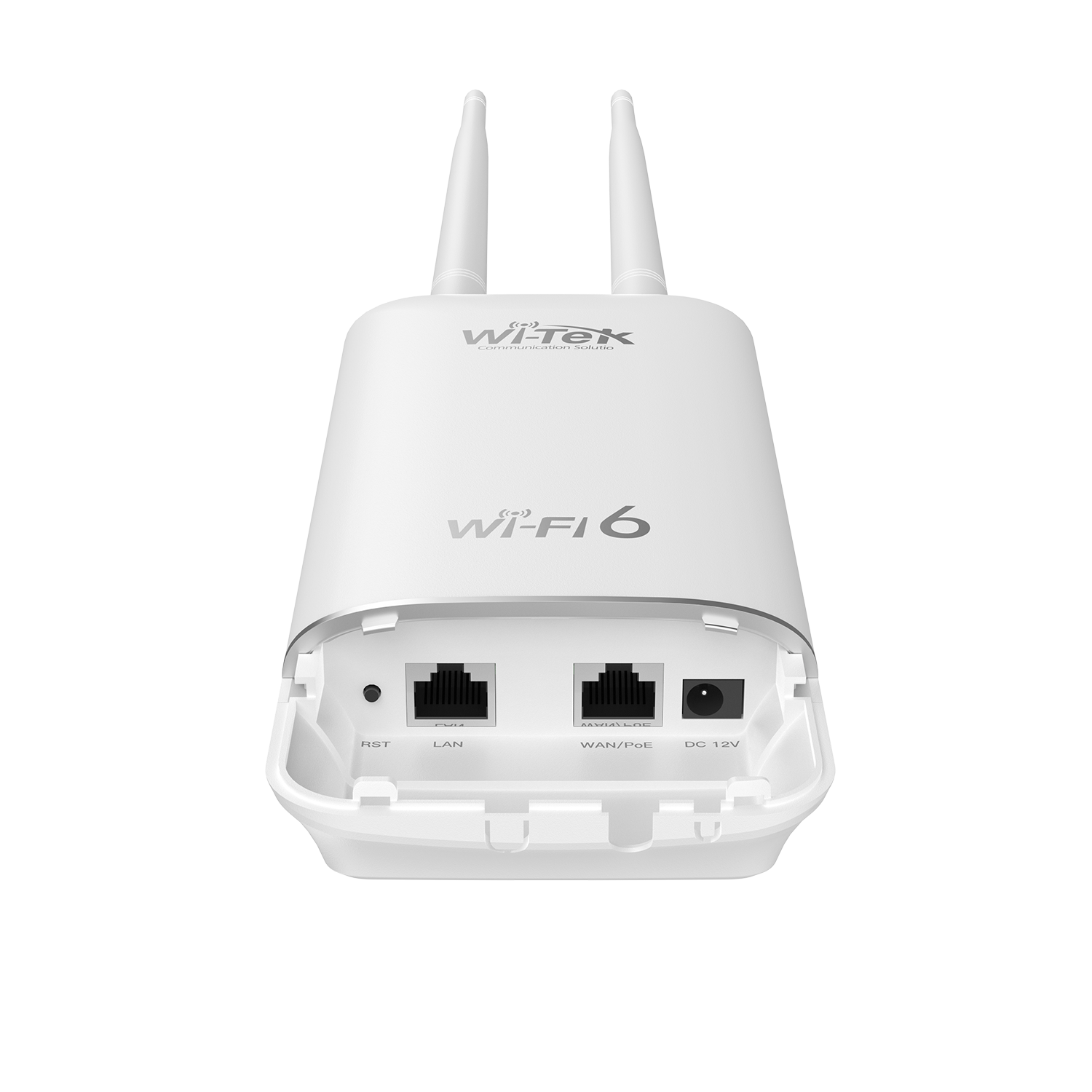

Back Panel	396mm 84mm 41mm
RST	LAN WAN/PoE DC 12V 1*Reset Button 1*12V DC Input Port 1*10/100/1000Mbps RJ45 LAN Port 1*10/100/1000Mbps RJ45 WAN/PoE IN Port

What's in the box

• Welcome to order our products. After purchasing, you will receive:

Install tips

• Power Supply: 802.3af PoE Input or DC 12V/1.5A
• Celling-Mount: WI-AP216 V1

These points are the installation, power and operating lines from the specification table. A quick-install guide was not used, so step-by-step mounting instructions are not added.

FAQ

How is it powered?

802.3af PoE Input or DC 12V/1.5A

Which ports does the datasheet list?

128MB Flash 2*10/100/1000Mbps Base-T Ethernet Ports (WAN port supports 802.3af PoE Input)

• Wireless-Tek datasheet: WI-AP316AX-Lite-Datasheet.pdf (https://www.wireless-tek.com/files_down.php?id=322)
