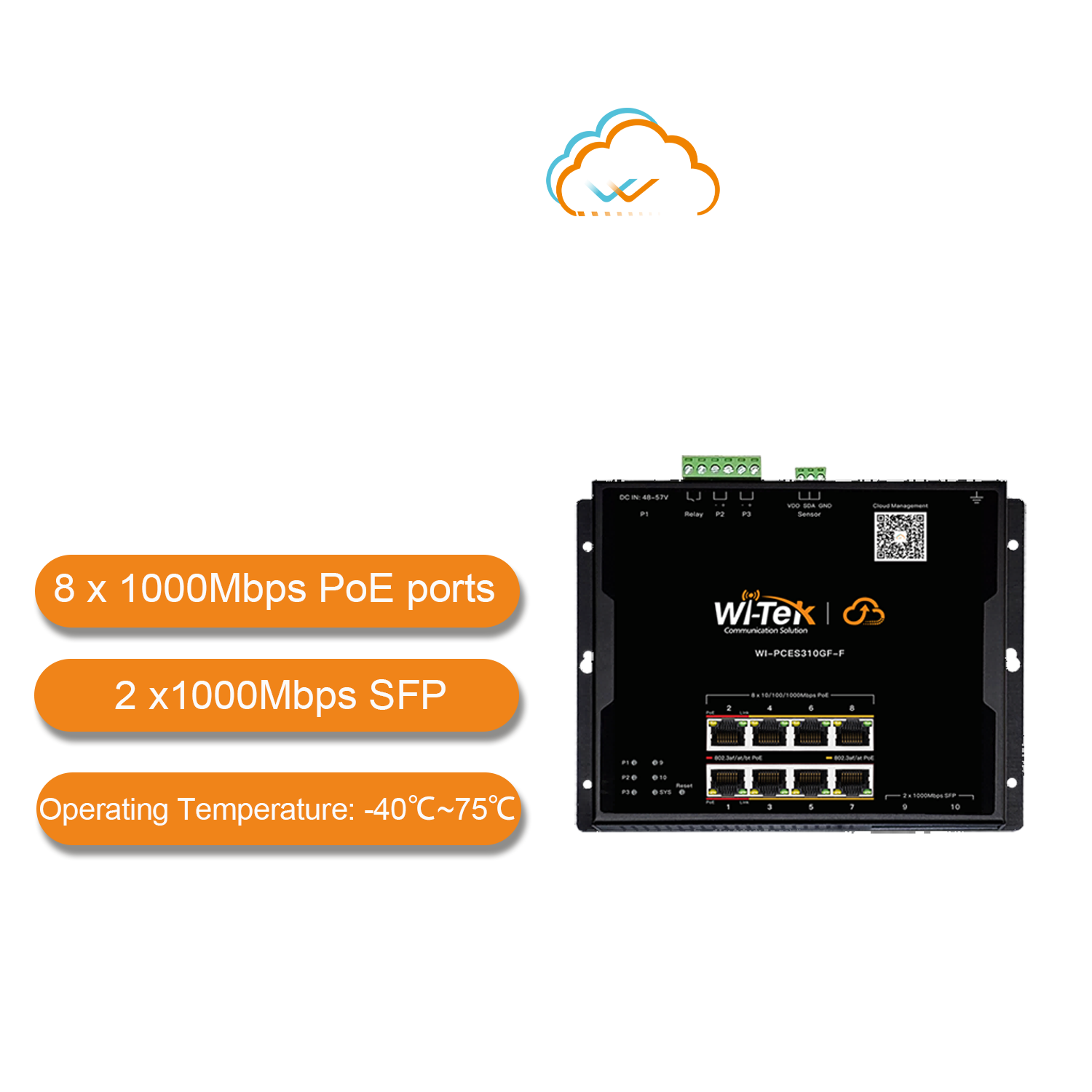

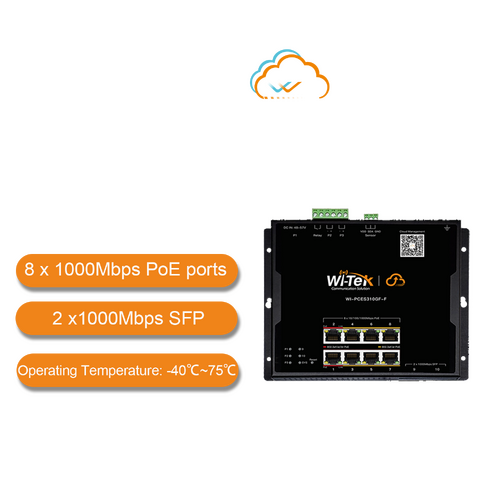

WI-TEK INDUSTRIAL CLOUD 8 PORTS FLAT-TYPE POE SWITCH
The Wi-Tek Cloud Industrial Flat Easy Smart Switch offers 8 1000Mbps PoE ports with 2 ports up to 90W of PoE power, providing flexible and high-performance full-gigabit access and uplink ports. Professional design provides a flexible, easy-to-use, and reliable industrial network solution. The switch provides simple, safe, and easy-to-use local WEB and remote management methods, supports smart deployment, abnormal alarm, ONVIF automatic identification of network cameras, etc. Wi-Tek Cloud Industrial Flat Easy Smart Switch is the best choice for industrial network solutions and projects of harsh application scenarios such as factory and park.
Support Wi-Tek cloud management
ONVIF cameras and Wi-Tek cloud management devices can be remotely managed through the Wi-Tek cloud platform/mobile APP, making CCTV network projects truly intelligent and easy to maintain. You can easily access and manage your cameras from your phone or computer anytime, anywhere. 40~75℃ Operating Temperature 40~75℃ working temperature design, makes it meet the requirement of harsh application environment.
Fusion of Temperature Sensor and Cloud
The temperature sensor can sense the temperature of the project site in real time and upload it to the cloud platform, which you can monitor remotely in real time. The remote alarm function can effectively prevent risks caused by overtemperature, such as device faults.
Intelligent Operation and Maintenance
Abnormal alarm can help you locate problems quickily,making your operation and maintenance easier.
Specifications
| Model | WI-PCES310GF-F |
|---|---|
| Hardware Specifications | |
| Downlink Ports | 8 *10/100/1000Mbps RJ45 Ports |
| Uplink Ports | 2 *1000Mbps SFP SlotS |
| PoE Port | Port 1-8 |
| PoE Standard | Port 1-2: IEEE802.3 af/at/bt Port3-8: IEEE802.3 af/at |
| PoE Power Supply Type | Mid-span and End-span |
| PoE Pin Assignment | 1/2(+), 3/6(-), 4/5(+), 7/8(-) 90W Max. for port1-2, |
| PoE Power | 30W Max. For port3-8 |
| Performance | 145W Max. for PoE power budget. |
| Flash Memory | 4 MB Flash |
| Switch Property | |
| IEEE 802.3, | IEEE 802.3u, |
| IEEE 802.3ab, | IEEE 802.3z, |
| Standards and Protocols | IEEE 802.3x, IEEE 802.1x, |
| IEEE 802.1q, | IEEE 802.1p, |
| IEEE802.3af, | IEEE802.3at. IEEE802.3bt. |
| Forwarding Mode | Store and Forward |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 2k |
| Packet Buffer Memory | 1.5 Mb |
| Jumbo Frame | 9216 Bytes |
| Model | WI-PCES310GF-F |
| Power Supply | |
| lnput Power | DC 48-57V/6A Max |
| Power Consumption | Idle: 5 W |
| Physical Characteristics | 100% Traffic Rate with PoE: 150 W SYS(Green): Blinking: The system is working normally Off: The system is being started or abnormal PoE (Orange): On: There is a POE PD connected to be port, which supply power successfully Off: No PoE powered device (PD) connected Link (Green) On: Port connected |
| LED Indicators | Off: Port disconnected Blinking: Data transmission SFP Indicator(9,10): Solid on: Port connected Blinking: Data transmission Off: Port disconnected P1/P2/P3: On: the device power on is normal Off: the device is power off or failed |
| Switch Dimension (W*D*H) | 180*140*25 mm |
| Package Dimension | 307*291*69 mm |
| Weight | Net Weight: 0.40 kg Package Weight: 0.65 kg |
| Installation | DIN-rail, wall-mount and magnetic-mount |
| Fan Quantity | Fanless |
| Button | |
| Reset | Hold for >5 sec. to restore factory default |
| Model | WI-PCES310GF-F |
| Environmental | IEC 61000-4-5 |
| Surge Immunity | Common mode 6kV |
| Reliability | Differential mode 4kV IEC 61000-4-2 |
| ESD Protection | Contact discharge 6kV Air discharge 8kV |
| Operating Temperature | -40℃ to 75℃(-40℉ to 167℉) |
| Operating Humidity | 10%~90% RH no condensation |
| Storage Temperature | -40℃ to 80℃(-40℉ to 176℉) |
| Storage Humidity | 10%~90% RH no condensation |
What's in the box
- Welcome to order our products. After purchasing, you will receive:
- Wi-Tek Industrial Flat-type Switch, Cloud Easy smart PoE Switch, 8 1000Mbps PoE ports and 2 1000Mbps SFP, Port 1-2 support 802.3bt PoE, -40~75℃ operating temperature, 6kV surge immunity and 8kV ESD protection, Support magnetic mounting, DIN-rail mounting installation, Support VLAN, Link aggregation, PoE congiguration, Loop Prevention etc, Remote management and Configuration on Cloud WEB/Mobile APP... **Power supply not included. Optional: required WI-DP480W-48V
Install tips
- PoE Port: Port 1-8
- PoE Standard: Port 1-2: IEEE802.3 af/at/bt Port3-8: IEEE802.3 af/at
- PoE Power Supply Type: Mid-span and End-span
- PoE Pin Assignment: 1/2(+), 3/6(-), 4/5(+), 7/8(-) 90W Max. for port1-2,
- PoE Power: 30W Max. For port3-8
- Installation: DIN-rail, wall-mount and magnetic-mount
- Operating Temperature: -40℃ to 75℃(-40℉ to 167℉)
- Operating Humidity: 10%~90% RH no condensation
Wi-Tek Industrial Flat-type Switch, Cloud Easy smart PoE Switch, 8 1000Mbps PoE ports and 2 1000Mbps SFP, Port 1-2 support 802.3bt PoE, -40~75℃ operating temperature, 6kV surge immunity and 8kV ESD protection, Support magnetic mounting, DIN-rail mounting installation, Support VLAN, Link aggregation, PoE congiguration, Loop Prevention etc, Remote management and Configuration on Cloud WEB/Mobile APP... **Power supply not included. Optional: required WI-DP480W-48V
(WI-PCES310GF-F)
| SKU | WI-PCES310GF-F |
| Brand | WI-TEK |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.180m |
| Shipping Height | 0.025m |
| Shipping Length | 0.140m |
| Shipping Cubic | 0.000630000m3 |
