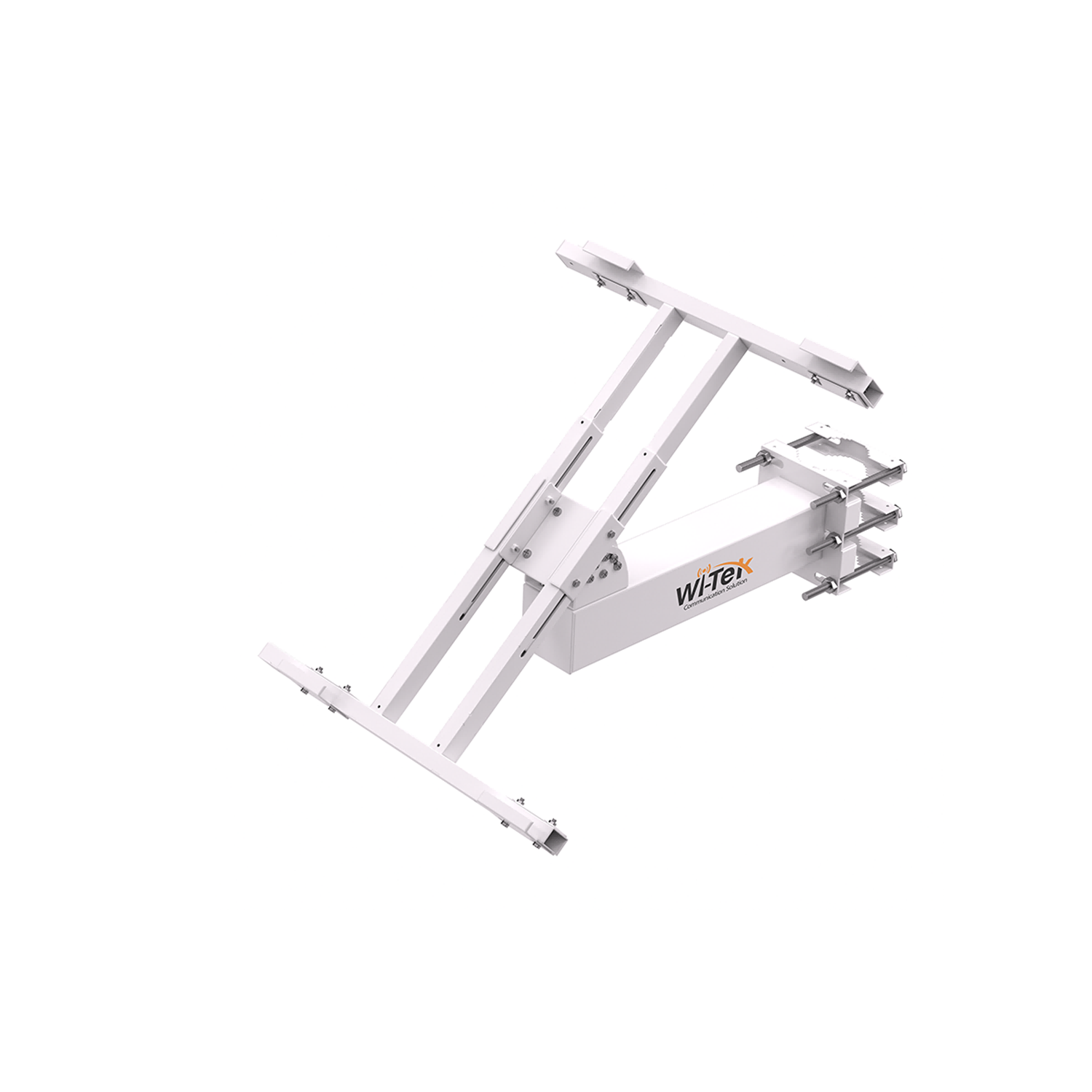

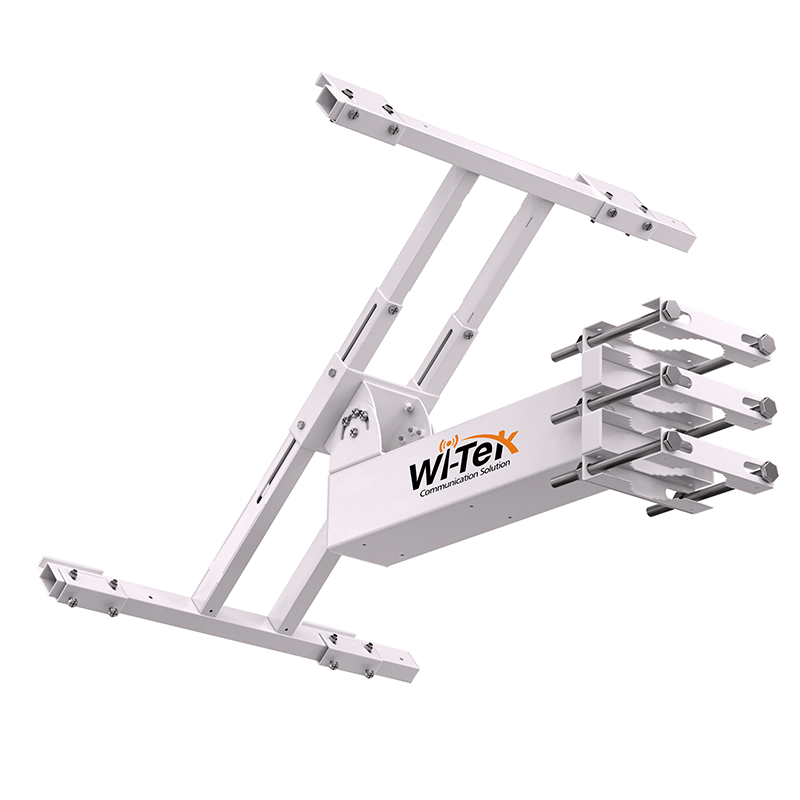

Wi-tek Solar Panel Mounting Bracket
Wi-Tek solar panel mounting bracket designed for the small-medium pole-mounted solar power application. It adopts a modular installation design, suitable for 76mm~105mm round poles, can also be compatible with square poles, can flexibly adapt to a variety of solar panels, ideal for up to 900mm wide and 25~35mm thickness, and the large Angle can be flexibly adjusted to meet the installation needs of different regions. Made with heavy galvanized steel, it is baking varnish, anti-ultraviolet, resists corrosion, and is designed for durability in harsh environments.
Rugged construction
A heavy galvanized steel body can withstand huge wind load and snow load.
Advanced Outdoor Protection
Galvanized steel with baking varnish surface treatment can be anti-aging, gas corrosion resistant, UV damage resistant, acid and alkali corrosion resistant, and salt spray moisture resistant.
Flexible Modular Installation
Modular structure design, expandable width frame, and adjustable thickness splint can support a variety of sizes of solar panels, and adjustable large Angles to support the installation needs of different regions.
Specifications
| Products | WI-BRKP133 |
|---|---|
| Solar Panel Installation | |
| Adjustable Angle | Recommend: 0°~50°; Maximum: 0~75° |
| Recommend Solar Panel Width | 540mm~900mm |
| Adjustable Solar Panel Thickness | 25mm~35mm |
| Recommend Solar Panel Weight | <30kg |
| Installation Pole* | 76mm~105mm round pole mounted, |
| Mechanical Property | 50mm~80mm square pole mounted |
| Material | SGCC |
| Thickness | 2mm |
| Color | White Square arm: 100*100*500mm |
| Dimensions | Angle adjustment part: 100*100*78mm Solar panel Installation Kit: 930*580*74mm (Max. size), 540*580*74mm (Min. size) Pole installation kit: 170*180*170mm@105mm pole, 170*180*90mm@76mm pole |
| Weight | 13.7kg |
| Package Dimensions | 620*600*200mm |
| Package Weight | 14.8kg |
| * The pole size which is needed to be supported can be customized. | |
| Appearances and Dimensions | |
| WI-BRKP133 | |
| Appearances | |
| Side Dimensions(mm) | Rear Dimensions(mm) |
| Top Dimensions(mm) | |
Install tips
- Installation Pole*: 76mm~105mm round pole mounted,
(WI-BRKP133)
| SKU | WI-BRKP133 |
| Brand | WI-TEK |
| Shipping Weight | 13.7000kg |
