WI-TEK WI-FI 7 CEILING MOUNT ACCESS POINT

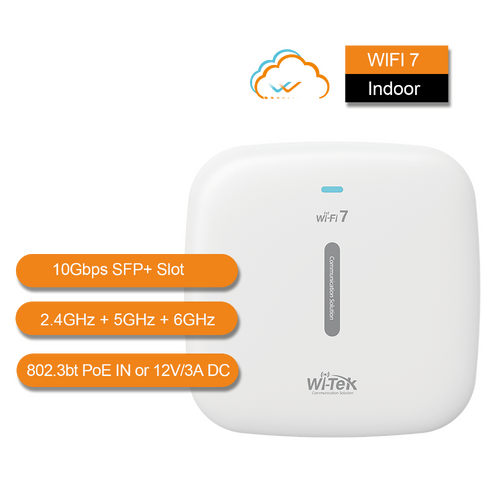

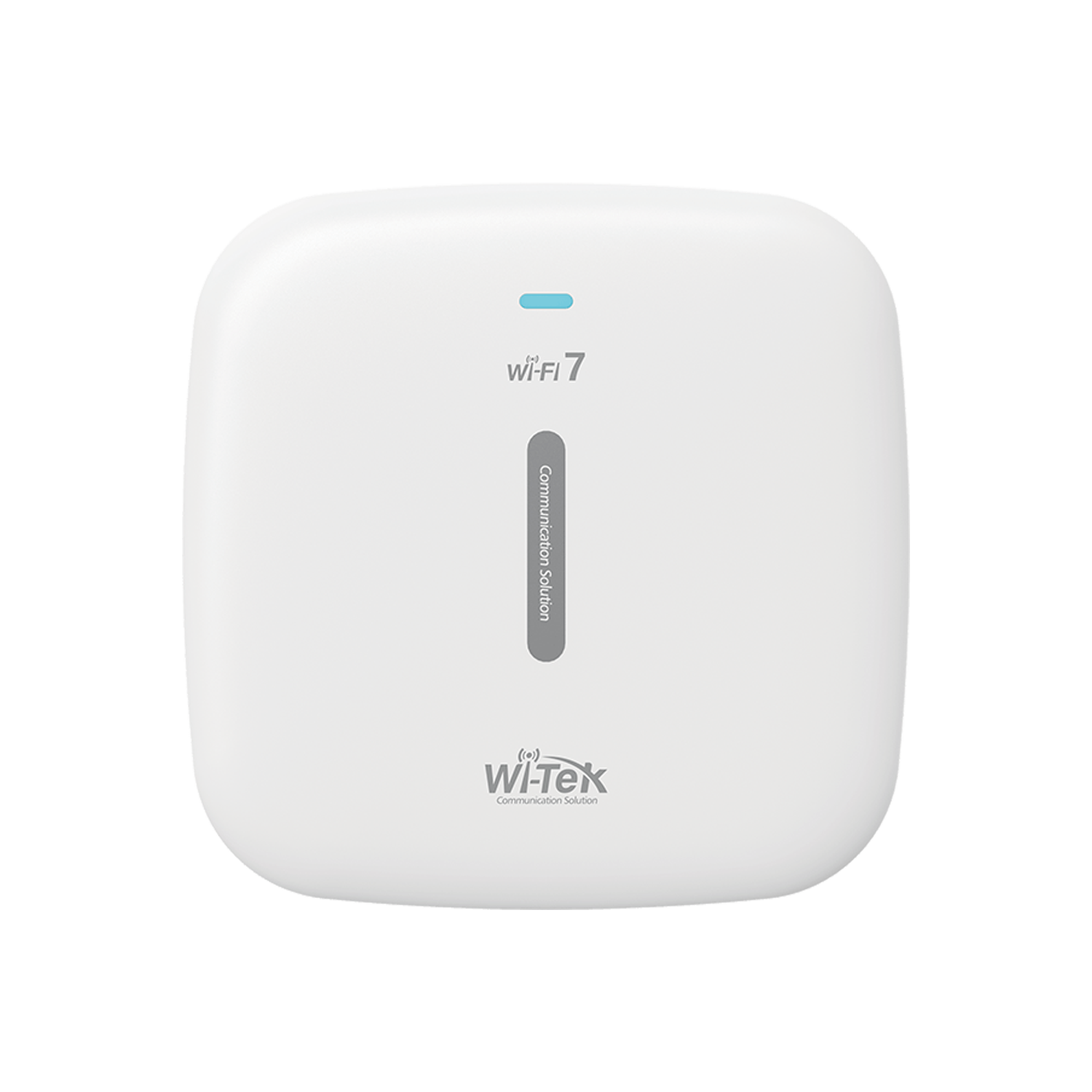

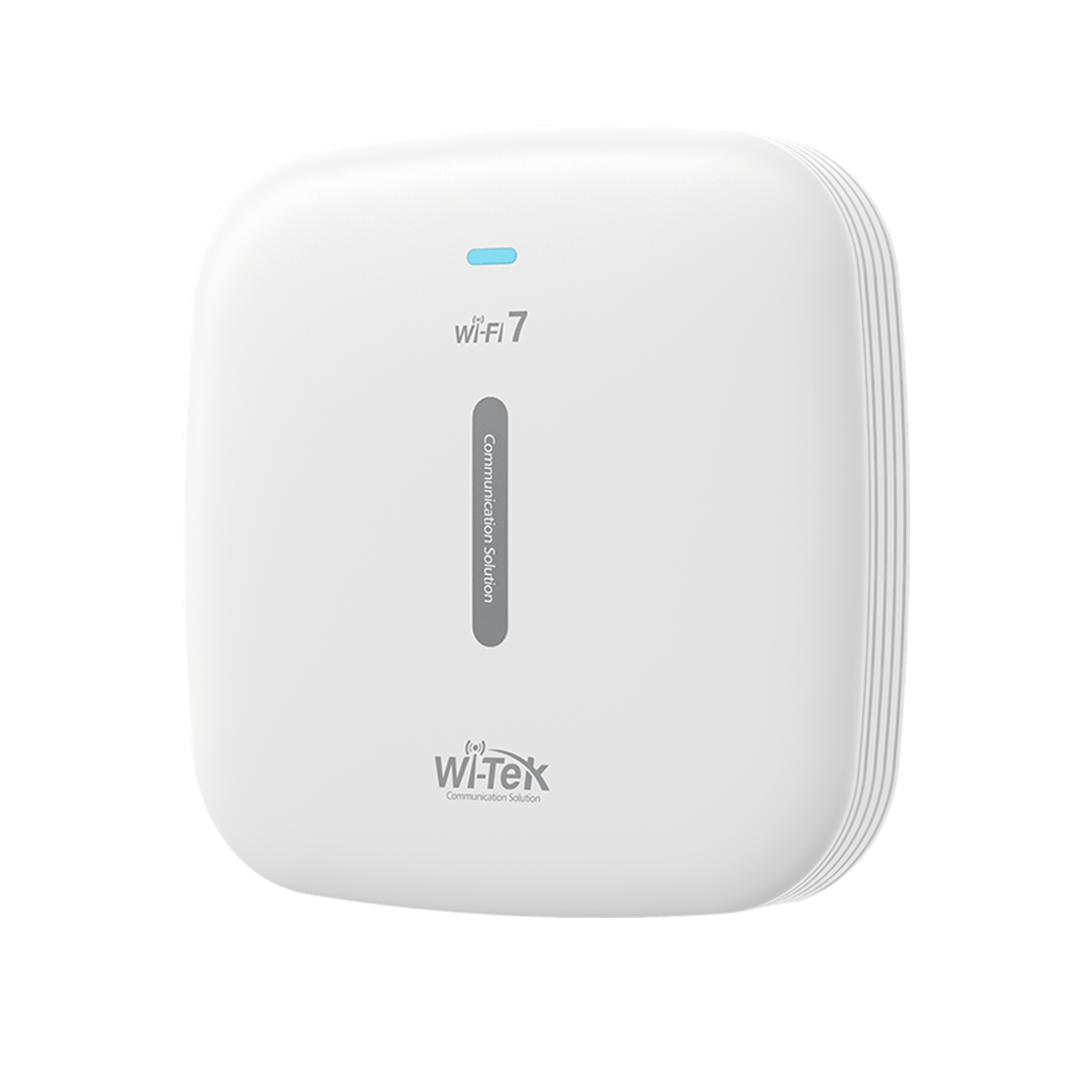

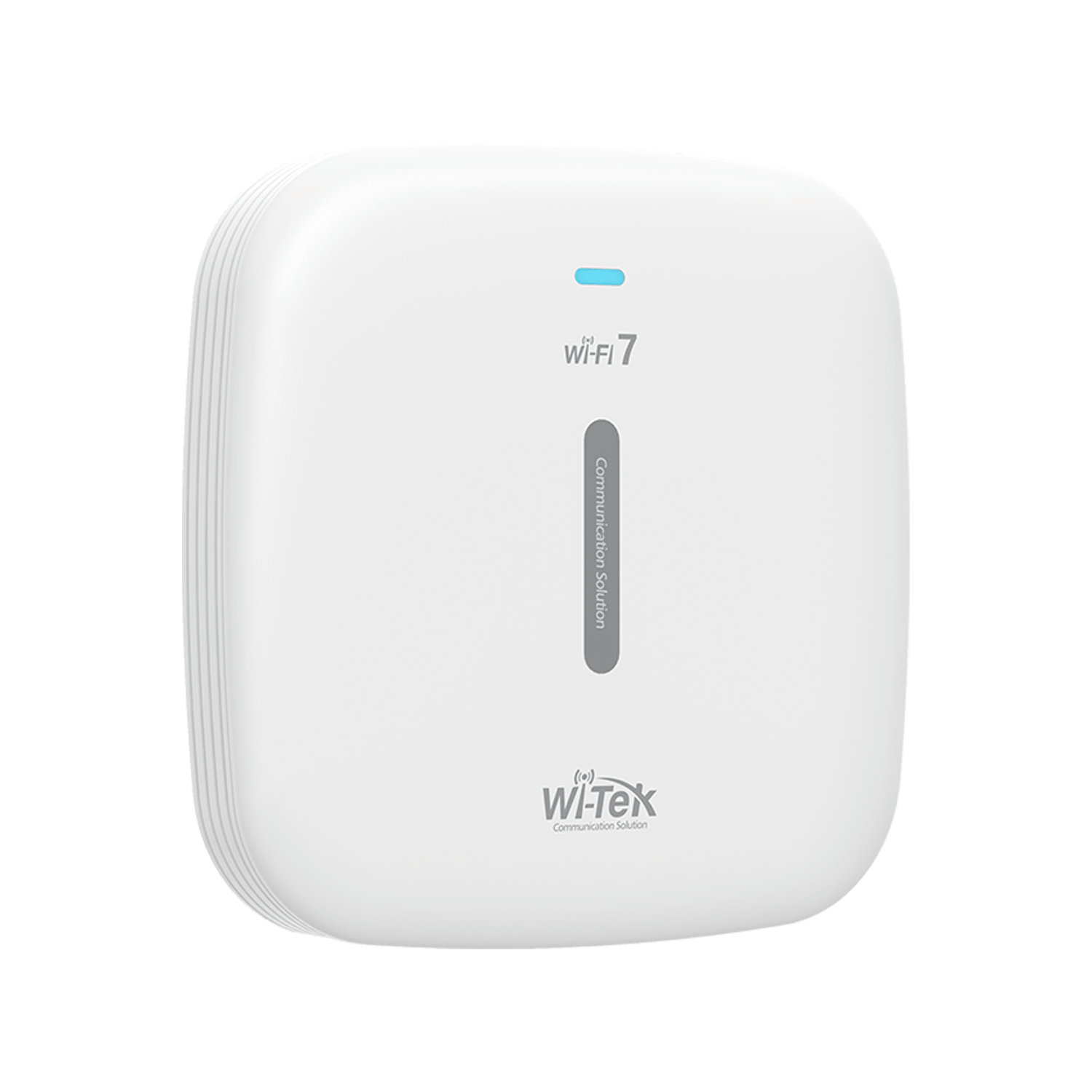

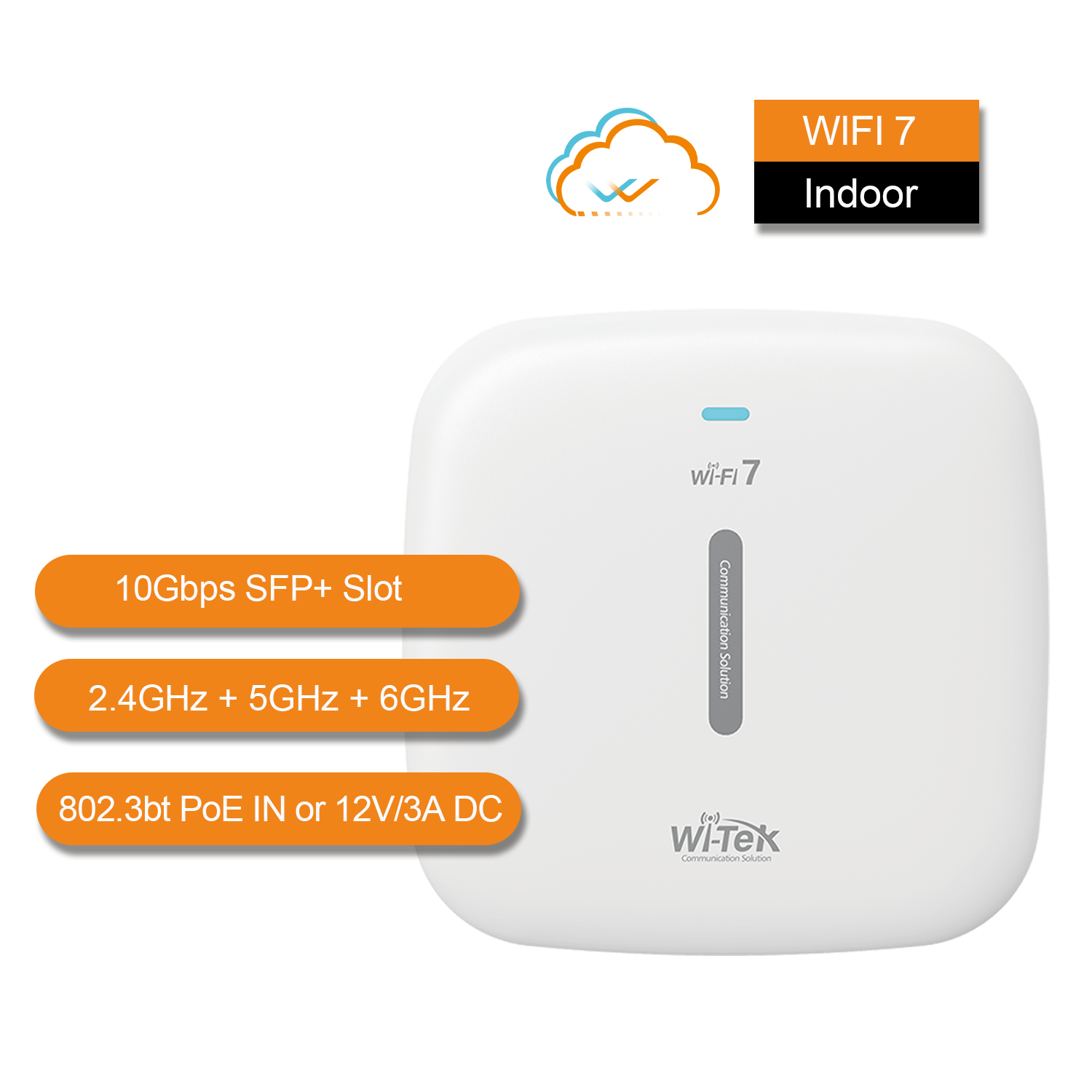

WI-AP229BE is a high-performance indoor Wi-Fi7 tri-band ceiling-mounted access point. Complying with 802.11be Wi-Fi 7 standards, it provides concurrent tri-band with access rate up to 9.3Gbps. Supporting Multi-link Operation(MLO), Multi-RUs, MU-MIMO, OFDMA, 4K-QAM and 320MHz, WI-AP229BE can ensure multiple clients access to the Internet at the same time and enables improved data transmission efficiency with reduced latency, which makes it capable of providing remarkable performance in high-density environments such as hotel, office, stadiums and etc,. Besides, it supports 802.3bt PoE input, which makes it easy to make the device deployment. In addition, it supports cloud management, and users can quickly configure, remotely manage and operate network-wide equipment, greatly reducing equipment investment costs.

Secusafe describes it as: WI-AP229BE is a high-performance Wi-Fi 7 indoor access point, delivering 688 Mbps at 2.4 GHz, 2882 Mbps at 5 GHz, and 5764 Mbps at 6 GHz, while featuring 1 × 10Gb SFP port and 2 × 2.5GbE ports, supporting 802.3bt PoE, AP controller and cloud management.

Unleashed Tri-band Wi-Fi Speed up to 9300Mbps

Supporting the 4K-QAM and 6GHz band up to 320MHz, WI-AP229BE provides unprecedented Wi- Fi speed up to 9300Mbps, which enables faster, smoother network experience and reduced latency. 9300Mbps, which enables faster,smoother network experience and reduced latency.

MLO and Multi-RUs for Boosted Network Performance

With Multi-Link Operation (MLO), WI-AP229BE allows network devices to communicate across multiple bands and channels simultaneously. Introducing Multi Resource Units (Multi-RUs) and puncturing, it enables increased data rate and significantly reduced latency by Utilizing more idle frequency bands.

Lightning-fast Wired Performance with 10G SFP+ Port

With one 10G SFP Port, provides amazing multi-gigabit performance for higher bandwidth and supports transmission distance up to 20km. Besides, WI-AP229BE provides one 2.5G RJ45 LAN port for blazing- fast wired connections.

2.5G 802.3bt PoE-IN Port for Flexible Deployment

Adopting 802.bt PoE Input can enable Ethernet port to carry data and power simultaneously via one cable, making deployment easy and flexible.

Automatic Channel and Power Adjustment

Through channel adjustment, the optimal channel is allocated to each AP to minimize or avoid the interference of adjacent channels and the same channel, which ensures the reliable data transmission in the network.

Powerful Cloud Management APP by Wi-Tek

Set up, manage, view your network anywhere in the Wi-Tek Cloud Management APP.

Specifications

Model	WI-AP229BE
Hardware Version	V1
Memory	1024MB RAM 128MB Flash 1 x 10Gbps SFP+ Slot
Interface	1 x 2.5G RJ45 WAN Port with 802.3bt PoE IN 1 x 2.5G RJ45 LAN Port
Button	1*Reset Button
LEDs	(long press for 8 seconds to restore the factory default configuration) 1 x System LED 1 x WAN LED 1 x LAN LED 1 x SFP LED
Power Supply	802.3bt PoE IN or 12V/3A DC
Max. Power Consumption	<36W (Full Load)
Standards	IEEE 802.11a/b/g/n/ac/ax/be
Max/Recommended Users	500/300 2.4GHz: 688Mbps
Data Rates	5GHz: 2882Mbps 6GHz: 5764Mbps 2.4GHz: 2x2 MU-MIMO
MIMO	5GHz: 2x2 MU-MIMO 6GHz: 2x2 MU-MIMO 2.4GHz: 1.7dBi
Antenna	5GHz: 4dBi 6GHz: 4dBi 2.4GHz: 2.4GHz-2.484GHz
Frequency	5GHz: 5.150GHz-5.850GHz 6GHz: 5.925GHz-7.125GHz *Please follow national regulations to select the appropriate frequency.
Model	WI-AP229BE 2.4GHz: 20/40MHz
Channel Width	5GHz: 20/40/80/160MHz 6GHz: 20/40/80/160/320MHz ≤24 dBm(2.4GHz)
Max. TX power	≤23 dBm(5GHz) ≤22 dBm(6GHz)
Coverage Range	200m²
Software Features	Note: Data is acquired in an unobstructed ideal environment. Signal coverage radius depends on client performance and environmental interference.
Wireless Mode	Fit AP/Repeater/Wireless Router/WISP Mode
Network	(Default: Fit AP mode) LAN: Static IP, Dynamic IP WAN: Static IP, Dynamic IP, PPPoE Client Wireless Disable or Enable
Wireless	Modify default SSID SSID Hiding
Wireless Security	WPA-TKIP , WPA2-AES, WPA1/WPA2-Mixed, WPA2/WPA3-Mixed,
VLAN	WPA/WPA2-Enterprise Supports IEEE 802.1Q VLAN Supports SSID-to-VLAN mapping
Wi-Fi Schedule	Yes Adjustable Country Auto Channel Width Selection Automatic Frequency Selection
RF Parameter	Adjustable Transmission Power Max Associated STA Weak Signal Rejection Threshold(default: -95dBm) User Isolation(default: disabled) Supports Wi-Fi Multimedia (WMM)
Model	WI-AP229BE Multi-Link Operation (MLO) 320 MHz Channel 4K-QAM Multi-RUs
Advanced	Multiple SSID (Up to 8 per radio)
Status Monitoring	Ping Watchdog Scheduled Reboot DHCP Server NTP Server Diagnosis: PING, TRACERT Base Info: LAN/WAN Info, Wireless Info, System Info Radio Status Real Time Flow Chart Wireless Terminal Station
Management	SSID List DHCP Client ARP Table Routing Table Quickly scan devices by discovery tools Web-based management by locally
Environment	Support remote management by cloud platforms and app applications Support AC management Operating Temperature: -10℃-55℃ (14°F-131°F) Storage Temperature: -40°C-70°C(-40℉-158℉)
Others	Operating Humidity: 10%~95% (non-condensing) Storage Humidity: 5%~95% (non-condensing)
Certification	CE, FCC, ROHS, UKCA, RCM
Product Dimensions
(excluding mounting kits)	206*206*41mm
Weight
(excluding mounting kits)	0.92kg
Model	WI-AP229BE
Fast-Roaming AP Combo Recommendations
Type	Model Hardware Version
WI-AP217	V2
WI-AP218AX	V2
Celling-Mount	WI-AP219AX V2
WI-AP219AX-Lite	V1
WI-AP229BE	V1
Wall-Plate	WI-AP419P V1
WI-AP315	V1
WI-AP316AX	V1
WI-AP317	V1
Outdoor
WI-AP510	V1
WI-AP518AX	V1
WI-AP520AX-D	V1
WI-AP229BE
Dimensions (mm)

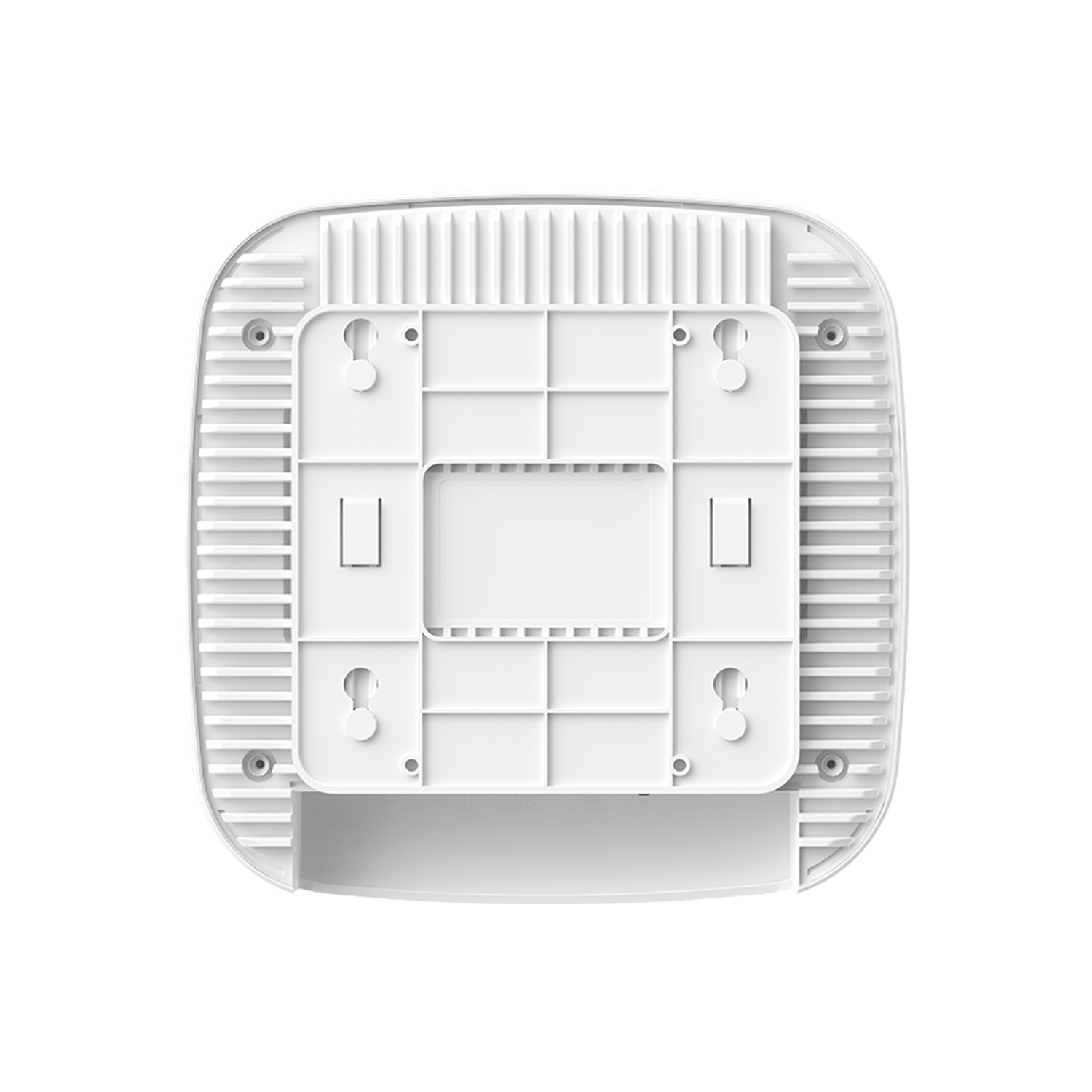

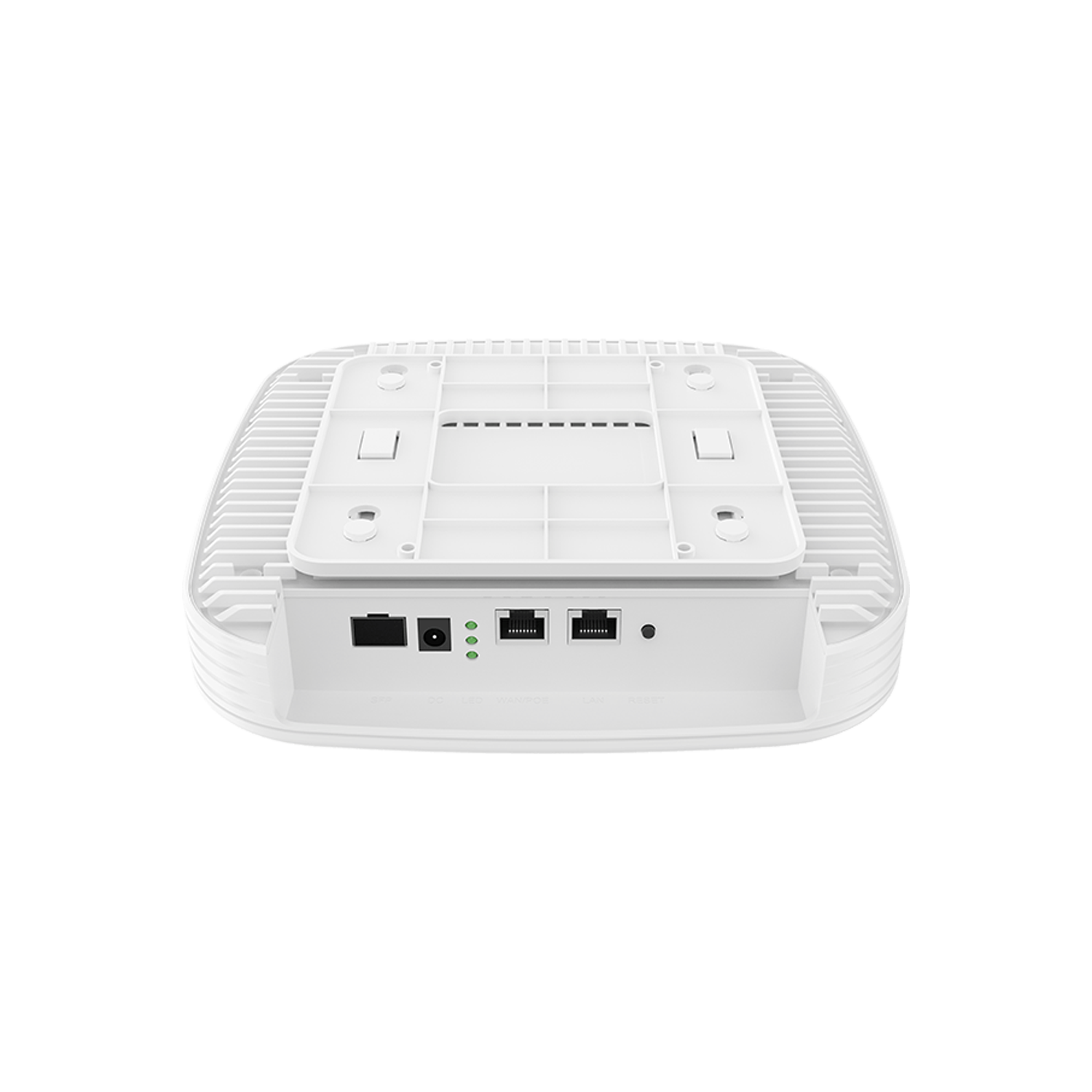

Back Panel	206mm 206mm 41mm WAN/PoE Indicator 1*10Gbps SFP+ Slot
12V DC Input Port	Reset Button LAN Indicator 10G SFP+ Indicator 1*2.5G RJ45 WAN Port with 802.3bt PoE IN 1*2.5G RJ45 LAN Port
