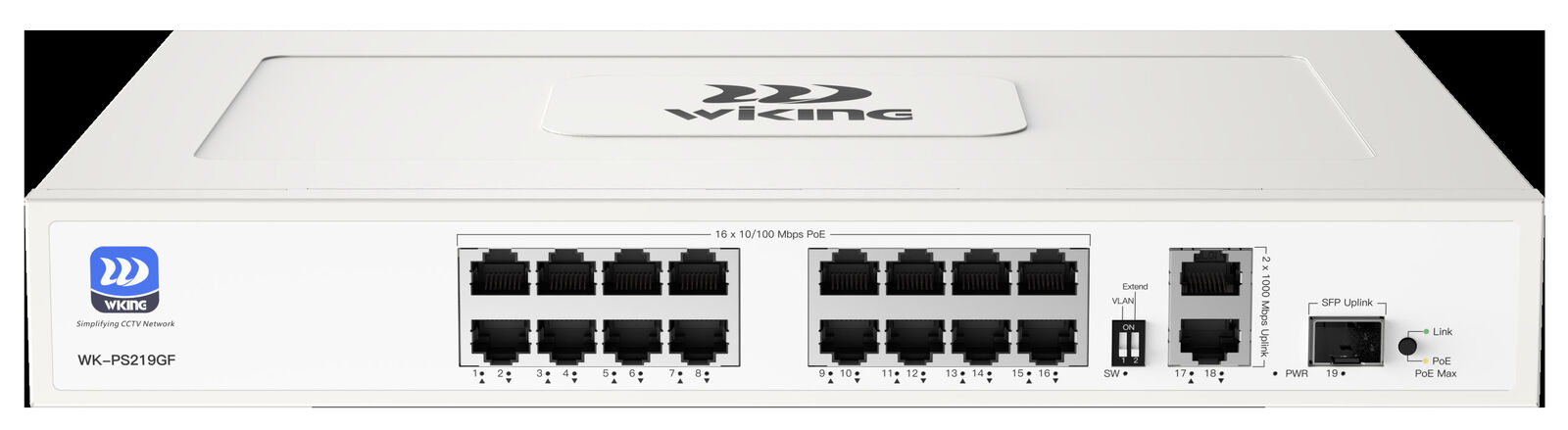

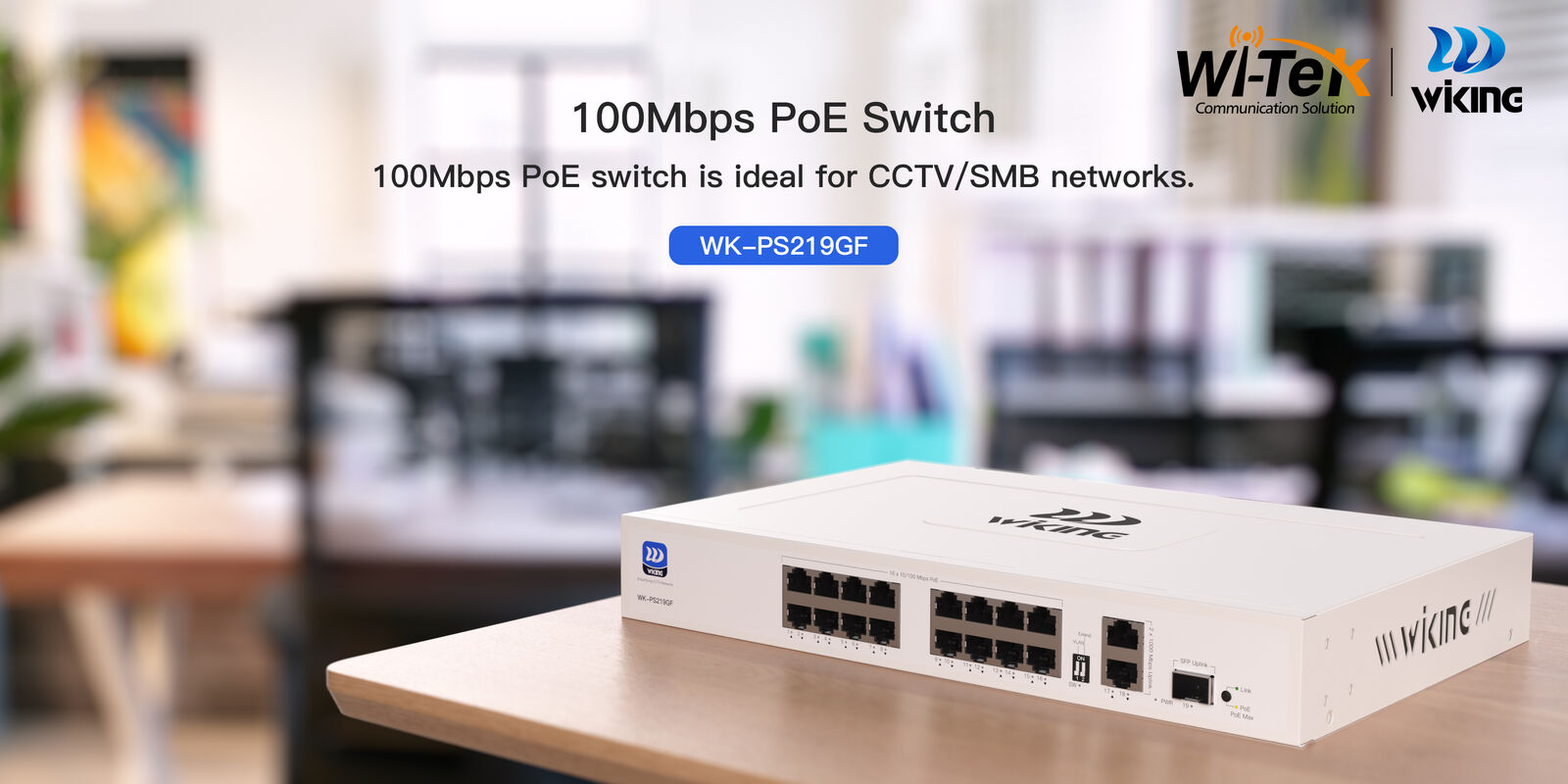

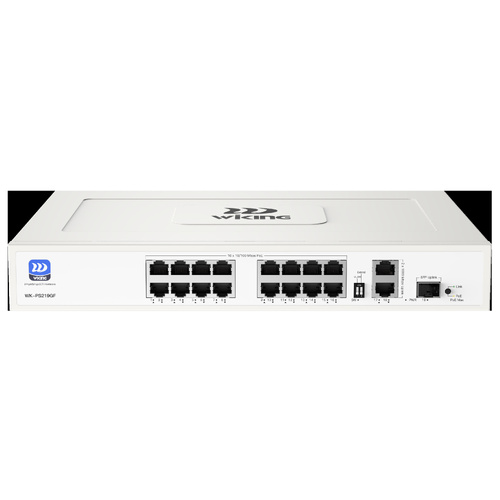

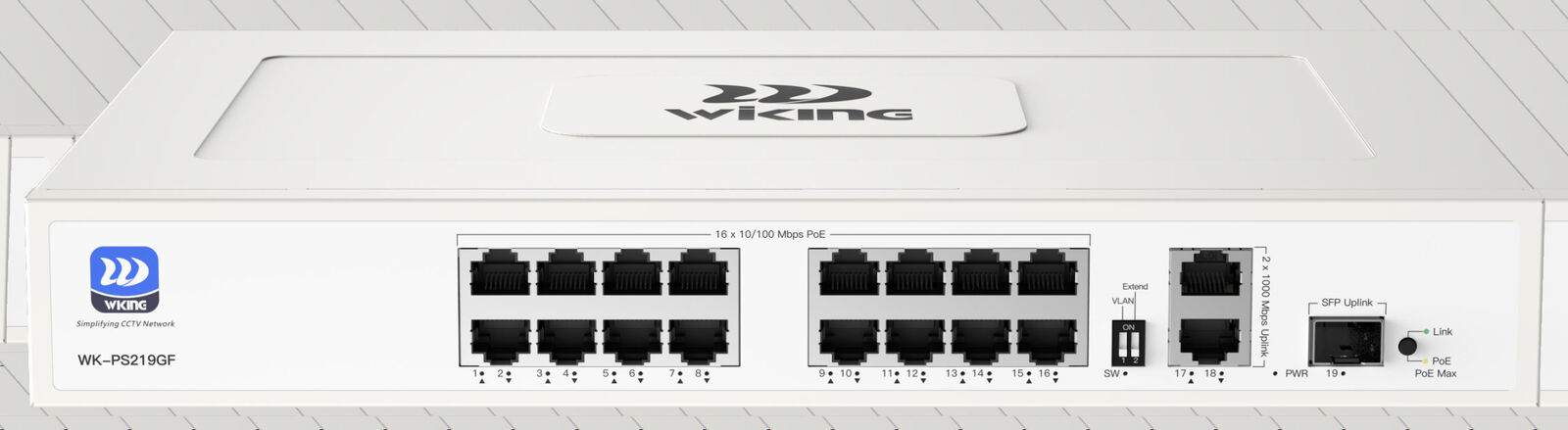

WI-TEK WK-PS219GF 16-Port PoE Switch

WI-TEK WK-PS219GF 16-Port PoE Switch

The WI-TEK WK-PS219GF is a 16-port 10/100 PoE switch built for CCTV and access networks. Port 1 supplies Hi-PoE up to 60W for a PTZ or similar high-draw device, ports 2 to 16 are IEEE 802.3af/at, and the whole switch has a 180W PoE budget. Two gigabit RJ45 uplinks plus a gigabit SFP slot give you a clean path back to the NVR or core. DIP switches cover VLAN isolation, 250m extend mode, and PD Alive reboot without a management GUI.

Key Features

• 16 x 10/100Mbps PoE ports for cameras, door stations and access points

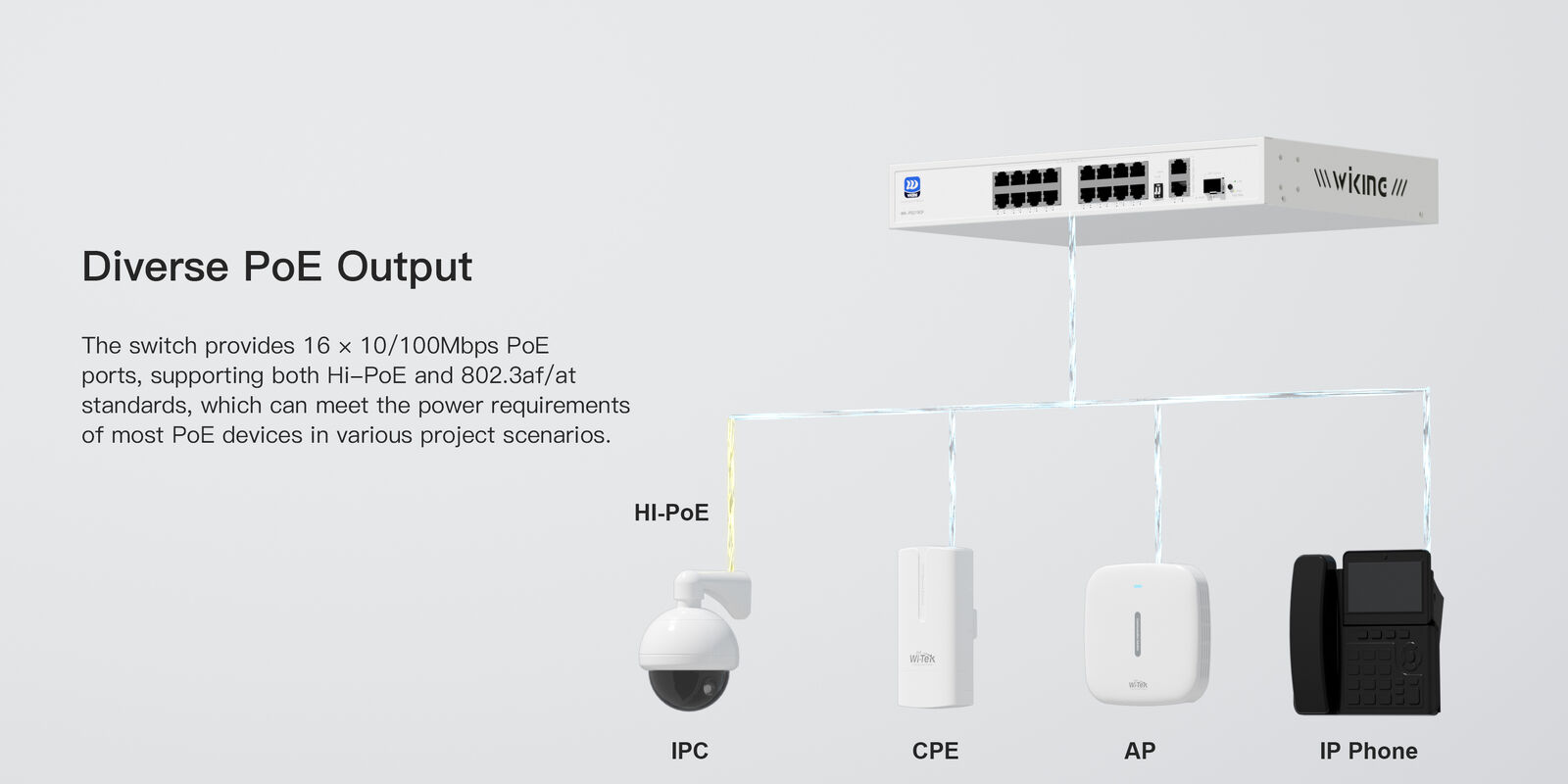

• Port 1 Hi-PoE 60W, ports 2-16 IEEE 802.3af/at
• 180W total PoE budget for a typical 16-camera run

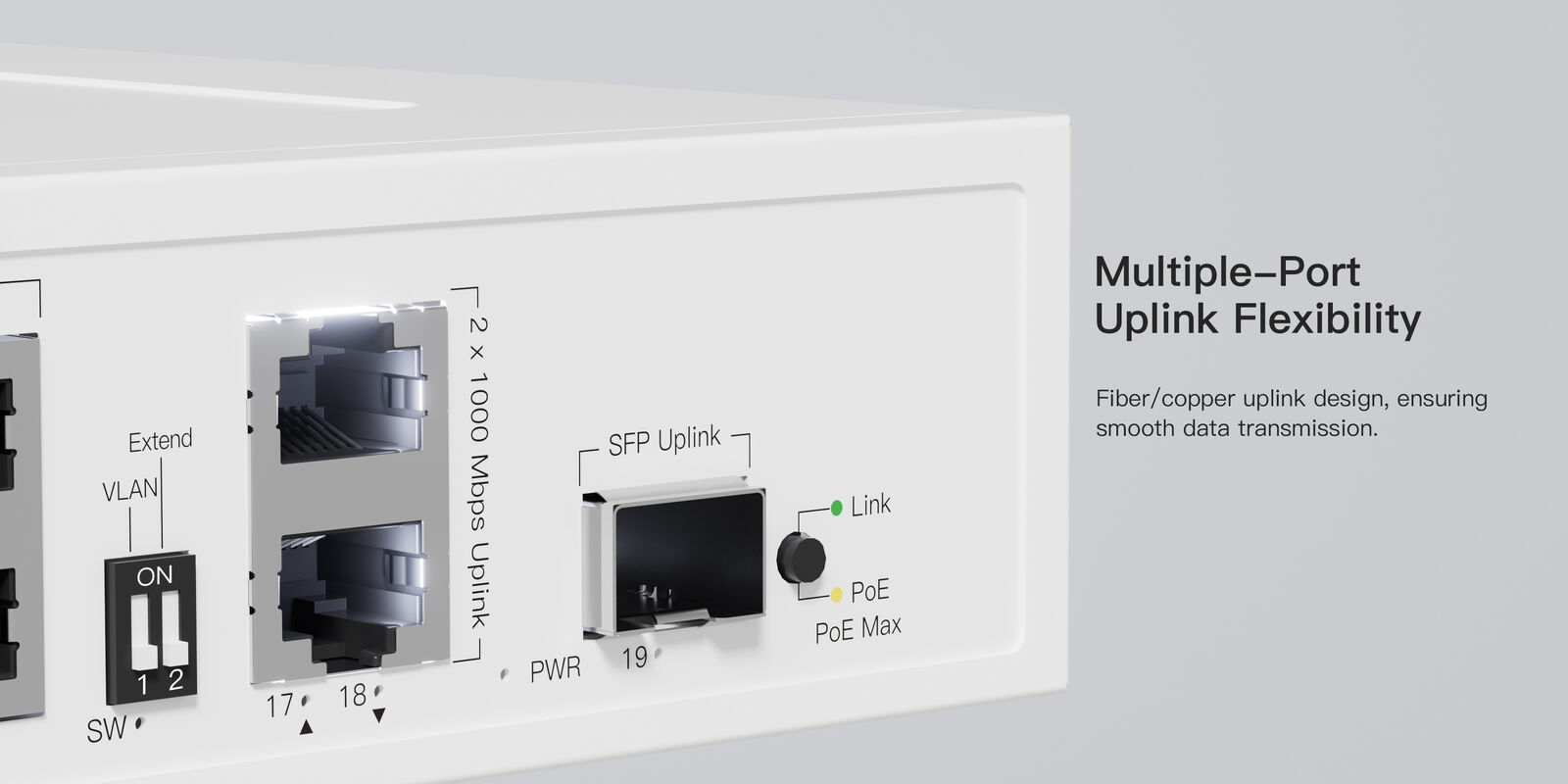

• 2 x gigabit RJ45 uplinks and 1 x 1000Mbps SFP

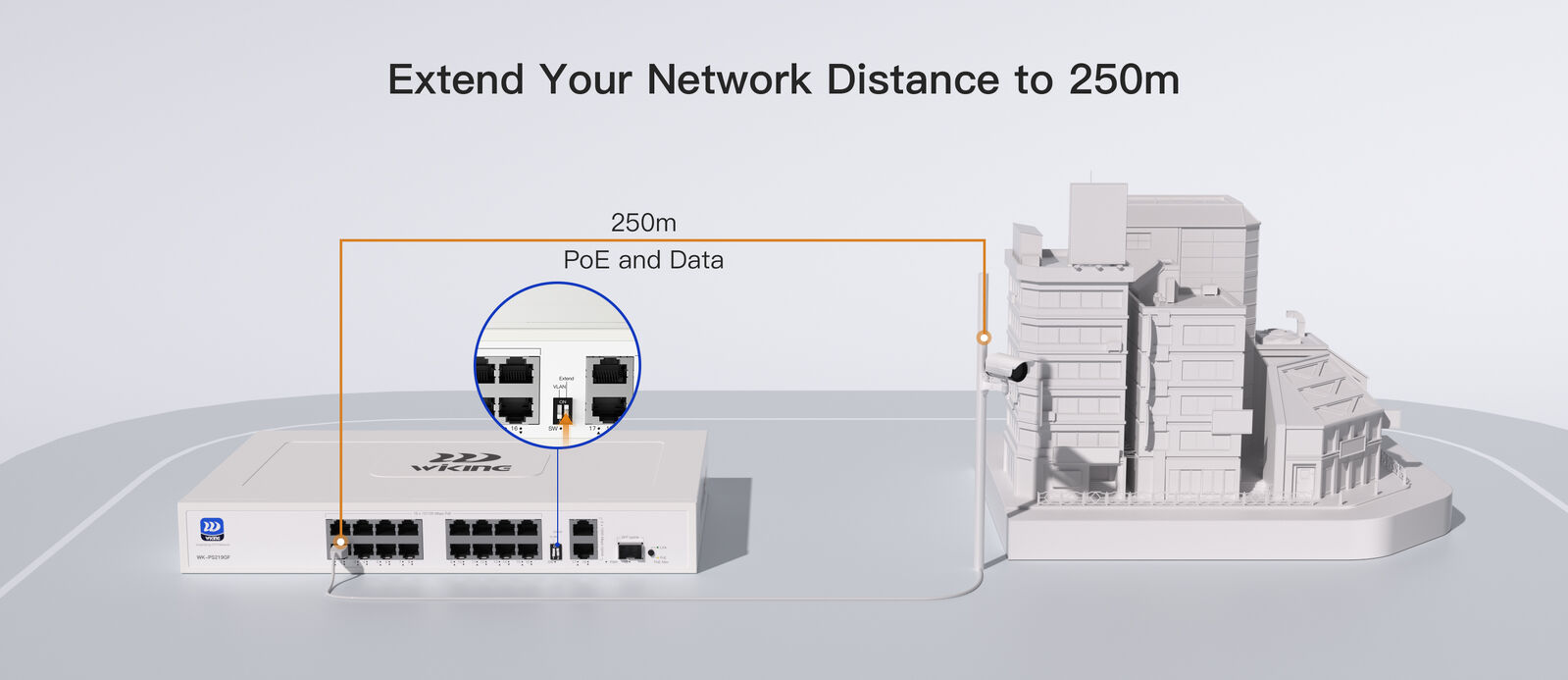

• 250m Extend mode on the DIP switch (10Mbps on extended ports)

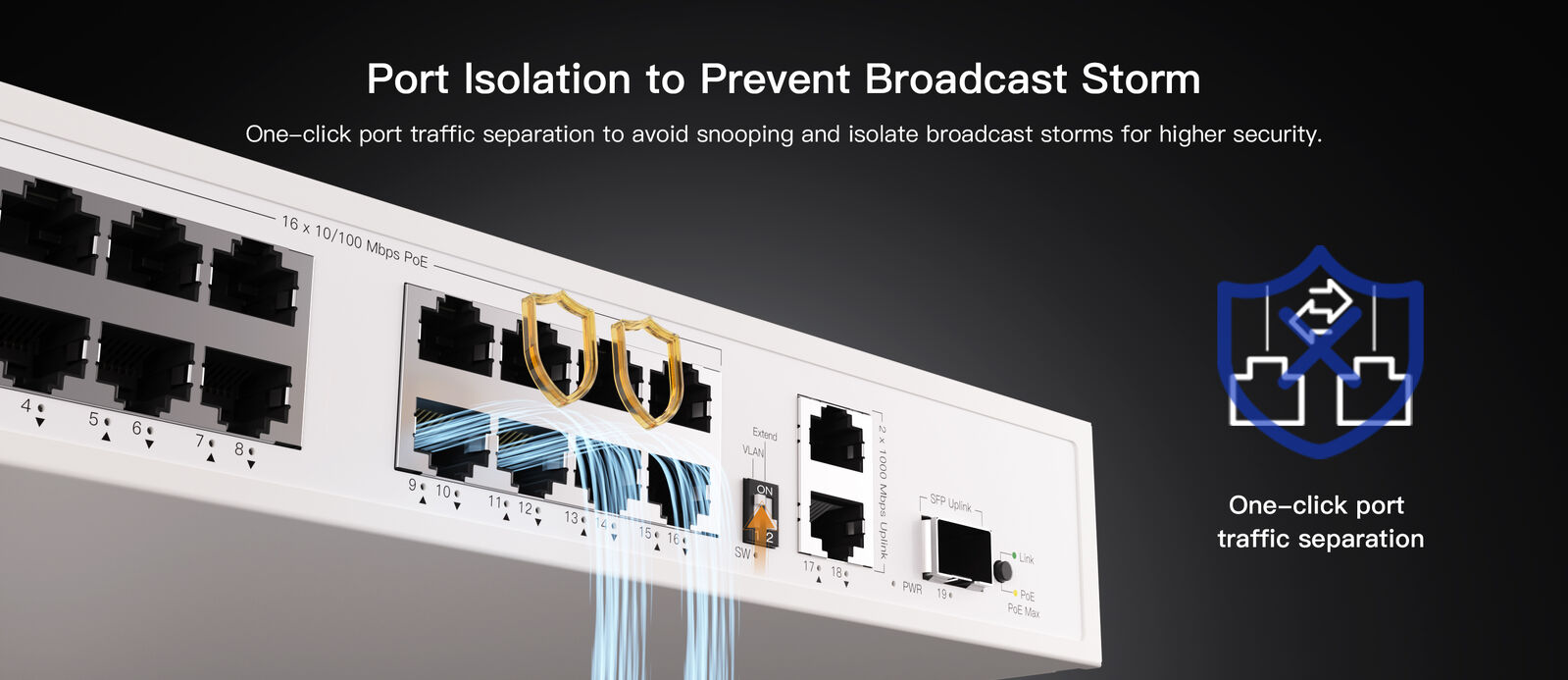

• VLAN / port isolation so downlink ports talk only to the uplinks
• PD Alive watchdog reboots a frozen PoE camera or AP
• Fanless iron chassis, desktop or rack mount, silent in a plant room or office
• CE, FCC, RoHS, UKCA and RCM certified

Where it fits

Use it on a small-to-medium IP camera job where you want PoE, a 60W Hi-PoE port, and gigabit backhaul without standing up a managed switch. Extend mode covers cameras past 100m. VLAN mode cuts camera-to-camera chatter and broadcast storms. Plug and play: no software, no VLAN config beyond the DIP switch.

What's in the Box

• WK-PS219GF switch
• AC power cord
• Quick installation guide
• Rack/desktop mounting hooks (x2) and screws (x8)

Frequently Asked Questions

Does port 1 really do 60W? Yes. Port 1 is Hi-PoE up to 60W. Ports 2-16 are standard 802.3af/at.

How far can I run a camera? Default is 100m. Flip Extend on the DIP switch and ports 1-16 can carry power and data to 250m at 10Mbps.

Is it managed? No. It is unmanaged and fanless. Isolation, extend and PD Alive are hardware DIP switches, not a web GUI.
