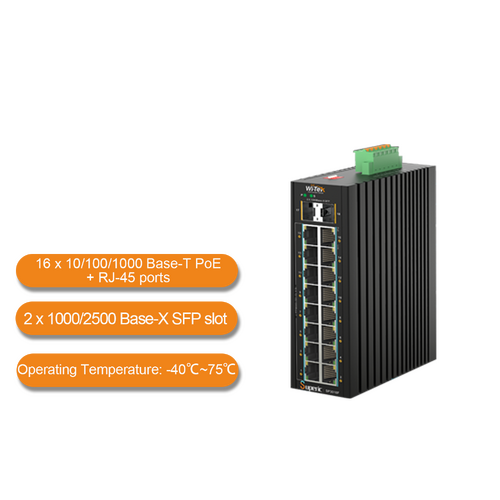

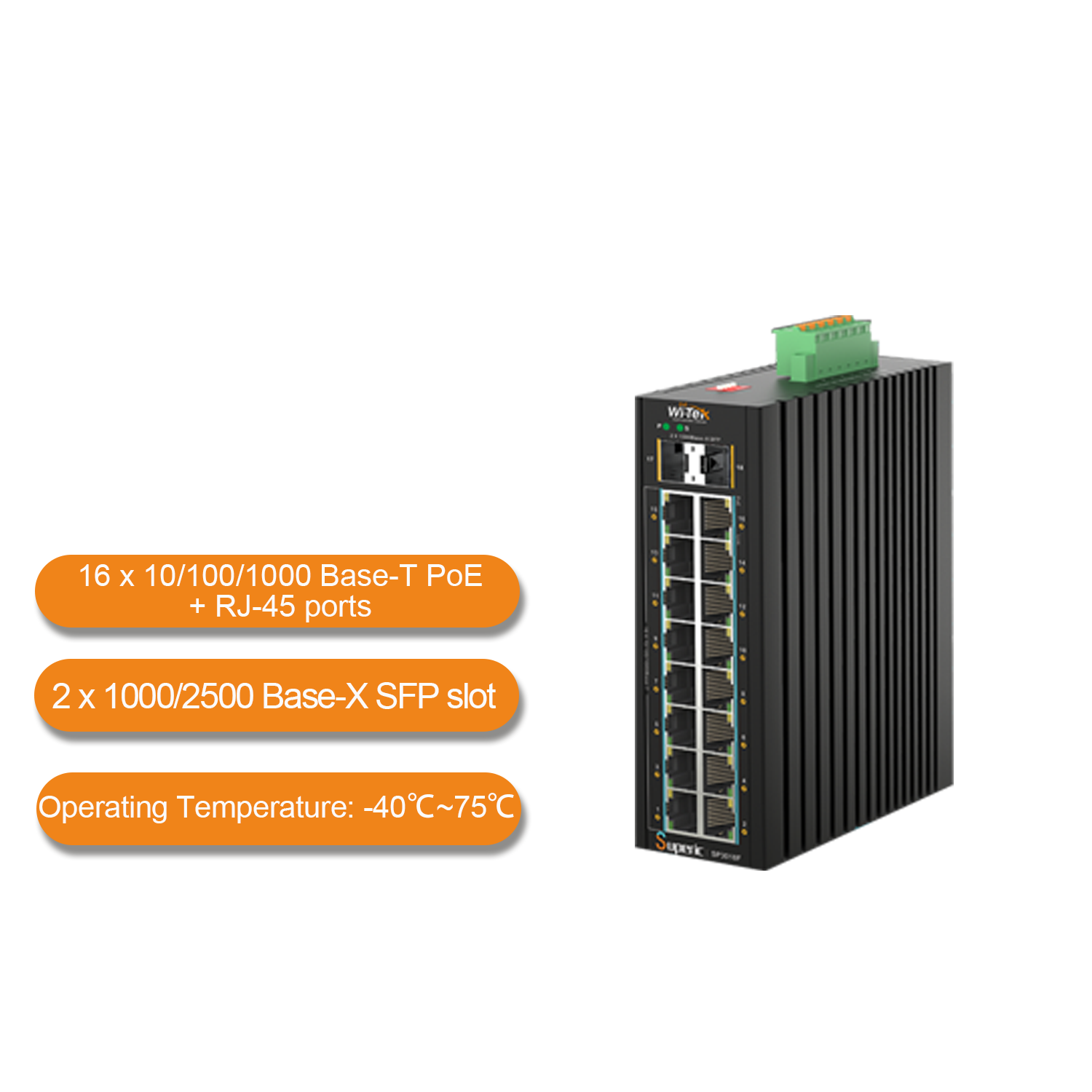

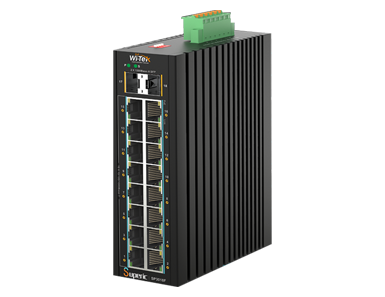

WI-TEK INDUSTRIAL MANAGED 16 PORTS POE SWITCH
Wi-Tek Superic industrial L2 managed PoE switch provide 16 Gigabit Ethernet RJ-45 ports and 2 2.5 Gigabit SFP uplink ports. All RJ-45 ports comply with 802.3af/at PoE (PoE+) standard and output up to 30W PoE power per port. This series switch support Layer 2 management functions, such as VLAN, VLAN classification, QinQ, port mirroring, STP, RSTP, MSTP, IGMP, QoS, DHCP, multicast, ACL, dying gasp, LLDP, 802.1X, fiber transceiver DDM, PoE management, G.8032 ERPS protocol, IPV6 management, Web, SNMP, Telnet, TFTP, etc. Professional design providing a flexible, easy to use and reliable industrial network solution. Redundant power design with polarity reverse/over-voltage/over-current protection, guarantee the safe power supply. Solid shell, wide operation temperature from -40 ° C to 75 ° C and high-level EMI/EMC capability design, ensure its stale and reliable operation even in harsh environment. It is the best choice for outdoor CCTV project, wireless coverage project and the project of industrial application scenarios such as factory and transportation.
16×10/100/1000 Base-T PoE+ ports and 2×1000/ 2500 Base-X SFP ports
40~75℃ Operating Temperature 40~75℃ working temperature design, makes it meet the requirement of harsh application environment.
High Level Protection Design
6kV surge immunity for Ethernet ports, 15kV air discharge and 8kV contact discharge ESD protection, makes it an ideal choice for outdoor application scenario.
Robust L2 Managed Functions
Support robust Layer 2 management functions, such as VLAN, VLAN classification, QinQ, port mirroring, STP, RSTP, MSTP, IGMP, QoS, DHCP, multicast, ACL, dying gasp, LLDP, 802.1X, fiber transceiver DDM, PoE management, G.8032 ERPS protocol, IPV6 management can meet the requirement of simple industrial project.
Redundant DC Power Input Design
Support redundant 44-57V DC power input, provide reliable alternative power access solutions.
Specifications
| Model | SP3018FM-L2 |
|---|---|
| Downlink Ports | 16*10/100/1000 Base-T PoE+ RJ-45 (Auto-MDI/MDI-X) |
| Uplink Ports | 2* 1000/ 2500 Base-X SFP |
| Management port | 1* RJ45 Console |
| PoE Standard | IEEE 802 .3af/at (PSE) |
| PoE Power Supply Type | End-span |
| PoE Pin Assignment | 1/2 ( + ) ， 3/6 (- ) |
| PoE Power | 30W max for each port, 240W Max |
| Switch Property | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Ethernet IEEE 802.3ab 1000Base-T Ethernet IEEE 802.3z 1000Base-X Ethernet IEEE802.3x Flow Control and Back Pressure |
| Standards | IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1Q VLAN ITU-T G.8032 ERPS IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3ad LACP IEEE802.3af PoE IEEE802.3at PoE plus |
| Forwarding Modes | Store and Forward |
| Packet Buff er | 12Mbit |
| MAC Table | 16k |
| Switching Capacity | 42Gbps |
| Packet Forwarding Rate | 31.2Mpps |
| Jumbo Frame | 10kB |
| Power Supply | |
| Input Voltage | Power 1 (Main) : 44-57V DC , Power 2 (Backup) : 44-57V DC |
| Power Consumption | Full loading without PoE ≤ 15W PoE power budget ≤ 240W |
| Connector | Removable 4-pin terminal block |
| Reverse polarity protection Support | |
| Over-voltage protection | Support |
| Over-current protection | Support |
| Environmental Reliability | |
| Surge protection of power: IEC 61000-4-5 | 6KV/4KV（ 8/20us） |
| Surge protection of Ethernet ports: IEC 61000-4-5 | 6KV/2KV 10/700us RS: IEC 61000-4-3 80 MHz- 1 Ghz: 10 V/ m |
| EFT: IEC 61000-4-4 | 4K/2K CS: IEC 61000-4-6 10V |
| ESD: IEC 61000-4-2 | Contact: 8K; Air: 15K |
| Industrial Standard | EMI: FCC Part 15B Class A Shock: IEC 60068-2-27 Free Fall: IEC 60068-2-32 Vibration: IEC 60068-2-6 |
| Operating Temperature | -40℃ ~75℃ |
| Storage Temperature | -40℃ ~85℃ |
| Operating Humidity | 5 %~95% ( Non-condensation) |
| LED Indicators | |
| P ( Power indicator) | Off : the device is power off or failed |
| S (System status indicator) | Green On: the device power on is normal Blinking: device initialization On: device on and normal operation 1-16 Green indicators Off : ports link down On: ports link up |
| Copper ports | Blinking: data on TX/ RX 1-16 Yellow indicators Off : PoE is not working On: PoE is working 17-18 Fiber ports indicators |
| Fiber ports | Off : ports link down Green On: ports link up Green Blinking: data on TX/ RX |
| Dimensions (W* D* H ) | 54* 115* 158mm |
| Net Weight | 1.43kg |
| Installation | Desktop/ DIN-rail |
| Certifi cations | |
| Certifi cations | CE, FCC, RoHS |
| Software Specifi cation | Support 1GE port aggregation |
| Port aggregation | Support 2 .5GE aggregation Support static aggregation Support dynamic aggregation Support IEEE802 .3x fl ow control |
| Port features | Support port traffi c statistics Support port isolation Support network storm suppression based on port bandwidth percentage |
| VLAN | Support access mode |
| VLAN Classifi cation | Support trunk mode Support hybrid mode Mac Based VLAN |
| QinQ | IP Based VLAN Protocol Based VLAN Port-based QinQ VLAN-based QinQ Flow-based QinQ |
| Port mirroring | Many to one port mirroring |
| Ring network protocol | Support STP, RSTP, MSTP |
| DHCP | Support G.8032 ERPS protocol, single ring, sub Ring and associated sub ring Recovery time ≤ 20ms Support DHCP Client |
| Multicast | Support DHCP Snooping IGMP V1, V2, V3 |
| ACL | IGMP snooping IP Standard ACL MAC extend ACL IP extend ACL Support QoS Class, Remarking |
| QoS | Support SP, WRR queue scheduling Ingress Port-based Rate-limit Egress Port-based Rate-limit Support Policy-based QoS Support Dot1x, port authentication, MAC authentication, RADIUS service |
| Security | Support port-security Support IP Source Guard, IP/ Port/ MAC binding Support ARP-check and ARP packet fi ltering for illegal users Support port isolation Support LLDP Support user management and login authentication Support SNMPV1/V2C/V3 Support web management , HTTP1 . 1 , HTTPS Support Syslog and alarm grading Support RMON( Remote Monitoring) alarm Support NTP Support temperature monitoring Support Ping , TRACERT Support optical transceiver DDM function Support TFTP Client |
| Management and | Support Telnet Server |
| maintenance | Support SSH Server |
| Package Contents | Support IPv6 Management Support PoE management Support TFTP, web upgrading |
| Welcome to order our products . After purchasing, you will receive | |
| Items | Quantity |
| Industrial Switch | 1 pcs |
| Quick Installation Guide | 1 pcs |
What's in the box
- Welcome to order our products . After purchasing, you will receive:
- Wi-Tek Superic Industrial Switch, 16*10/100/1000 Base-T PoE+ RJ-45 ports and 2*1000/2500 Base-X SFP slot... **Power supply not included. Optional: required WI-DP480W-48V
Install tips
- PoE Standard: IEEE 802 .3af/at (PSE)
- PoE Power Supply Type: End-span
- PoE Pin Assignment: 1/2 ( + ) ， 3/6 (- )
- PoE Power: 30W max for each port, 240W Max
- Operating Temperature: -40℃ ~75℃
- Operating Humidity: 5 %~95% ( Non-condensation)
- Installation: Desktop/ DIN-rail
- Quick Installation Guide: 1 pcs
Wi-Tek Superic Industrial Switch, 16*10/100/1000 Base-T PoE+ RJ-45 ports and 2*1000/2500 Base-X SFP slot... **Power supply not included. Optional: required WI-DP480W-48V
(SP3018FM-L2)
| SKU | SP3018FM-L2 |
| Brand | WI-TEK |
| Shipping Weight | 1.4300kg |
| Shipping Width | 0.054m |
| Shipping Height | 0.158m |
| Shipping Length | 0.115m |
| Shipping Cubic | 0.000981180m3 |
