Akuvox R20K Keypad Door Station & S562 7" Monitor IP Intercom Kit - Grey

Akuvox R20K & S562 7" Grey IP Video Intercom Kit

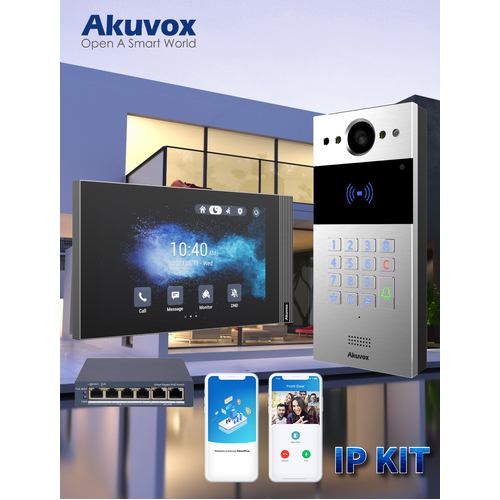

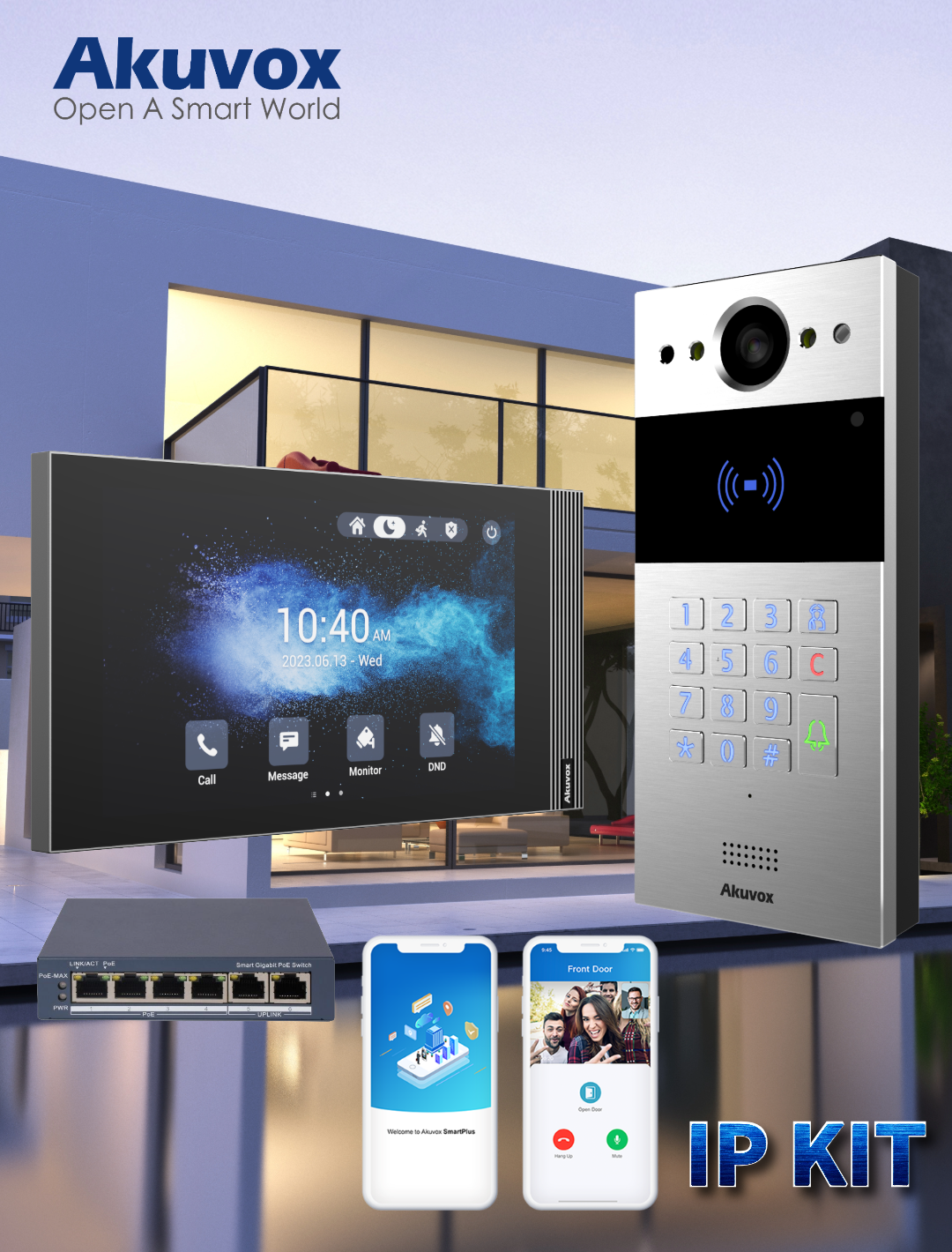

This Akuvox intercom bundle pairs the vandal-resistant R20K keypad door station with the 7-inch S562 touchscreen indoor monitor in a grey finish, plus a 4-port PoE switch to power both units from a single network cable run. Designed for villas, townhouses, small offices and multi-tenant entries, the kit gives residents flexible ways to grant access - via RFID card, PIN code, mobile app or a live video call - while keeping installation simple thanks to standard SIP and PoE networking.

Key Features

• Vandal-resistant outdoor station: Aluminium alloy R20K door panel rated IP65 for outdoor weather exposure.
• Built-in keypad & card reader: Numeric keypad plus 13.56MHz/125kHz RFID and NFC credential support for tap or code entry.
• Wide-angle camera: 2-megapixel sensor with automatic lighting and a wide field of view for clear visitor identification, day or night.
• 7-inch touchscreen monitor: The S562 indoor unit runs on Linux with a 1024x600 capacitive display for smooth, responsive control.
• Two-way audio and video calling: SIP-based communication with echo cancellation between the door station and monitor.
• Third-party camera integration: The S562 can also display feeds from compatible IP security cameras on-site.
• Flexible power and wiring: Both devices run on Power-over-Ethernet, and the included 4-port PoE switch powers the whole kit from one location.
• Relay and access control ports: Wiegand, RS485 and multiple relay/input terminals allow integration with electric locks and third-party access hardware.
• Grey finish: Matches the S562 monitor housing for a coordinated, modern look indoors.

Ideal Use Cases

This kit suits homeowners and installers upgrading a single entry point with a networked video intercom, such as a house gate, apartment front door or small business reception. Because the R20K supports card and keypad access alongside video calling, it's well suited to properties that want both convenience for regular occupants and the ability to screen visitors before granting entry. The bundled PoE switch means the whole system can be wired and powered without needing separate power adapters at each device.

What's in the Box

• 1 x Akuvox R20K Keypad Door Station
• 1 x Akuvox S562 7" Indoor Monitor (Grey)
• 1 x 4-Port PoE Switch

Frequently Asked Questions

Can the R20K door station be powered without a PoE switch?
Yes, it supports standard 802.3af PoE from any compatible switch or injector, but the included 4-port switch is sized to power both the door station and monitor in this kit.

Does the S562 monitor need Wi-Fi to work?
No, the S562 connects over standard Ethernet cabling and communicates with the door station using the SIP protocol, so a wireless connection is not required for core intercom functions.

Can I add more monitors or door stations later?
Additional Akuvox monitors or door stations can typically be added to the same network and configured to work alongside this kit, subject to the overall system design.
