WI-TEK Industrial Managed UPS PoE Switch

WI-TEK INDUSTRIAL MANAGED UPS POE SWITCH

Wi-Tek Solar Powered PoE Switch Serial is designed for CCTV surveillance and wireless network. Based on its green energy, it can be charged by the inexhaustible and natural source of energy - solar power. It can conserve green energy economically and power the remote IP cameras and wireless AP, especially used for expansive applications such as dams, forests, deserts, national parks, and highways.

Built-in MPPT (Maximum Power Point Tracking) Controller

The MPPT (Maximum Power Point Tracker) controller can detect the voltage of the solar panel in real time, track the highest power, and convert the high voltage DC output of the solar panel to the low voltage required for effective charging, so that the system can charge the battery at the maximum power. It is the brain of the photovoltaic system which coordinates with solar panels, batteries and loads in the solar photovoltaic system.

Zero-Carbon, Green and Stable Power Supply

During the day, solar energy can power the communication system and charge the battery, and at night, the battery uses the excess electricity generated by solar energy during the day to power the communication system, which builds a zero- carbon, green and stable communication system without any external energy.

Easy and Intelligent Photovoltaic Power and Battery Status Monitoring

The dashboard in local WEB management makes it easy to monitor real-time solar power and battery status, receive battery capacity and charge status alarm, track power generation, power consumption, and battery data.

Layer 2 Managed Powerful Functions

Abundant Layer 2 functions can help you manage your Powered Devices easily, such as low voltage cut-off protection, intelligent powered device alive check, schedule power recycling, and PoE schedule for energy savings.

Specifications

What's in the box

• Welcome to order our products. After purchasing, you will receive:
• Item Quantity
• Switch (with DIN-rail bracket, Wall mounting bracket) 1 pcs
• Temperature Sensor 1 pcs
• Mounting Accessories (Screwdriver) 1 pcs
• Quick Installation Guide 1 pcs

Install tips

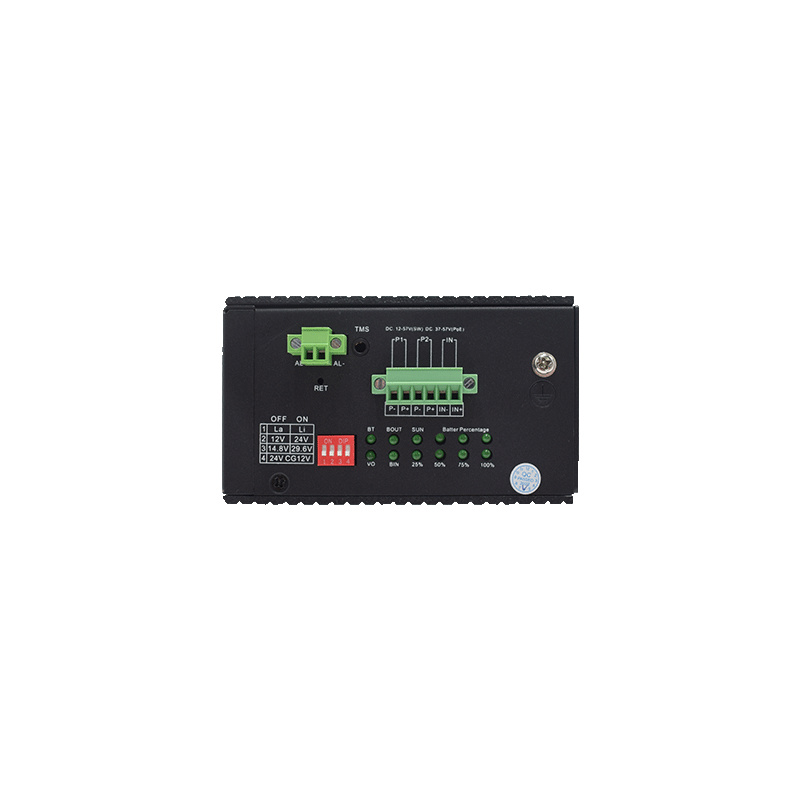

• Power Supply: V1&V2: 37~57V DC (Enable PoE out, cannot charge the battery), 12~37V DC (Disable PoE out, cannot charge the battery)

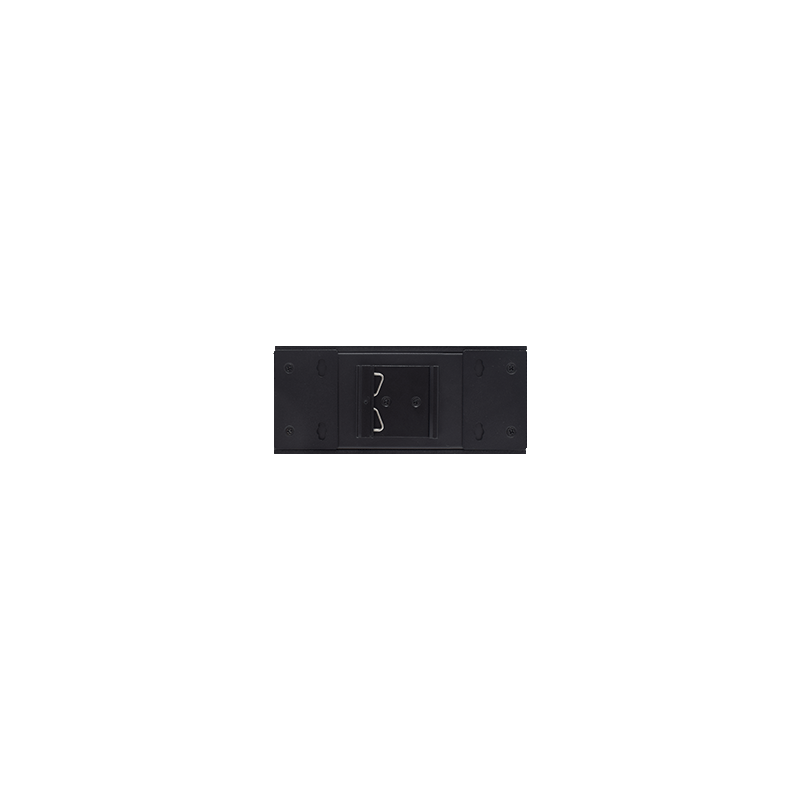

• Installation: DIN-rail/Desktop/Wall mounted

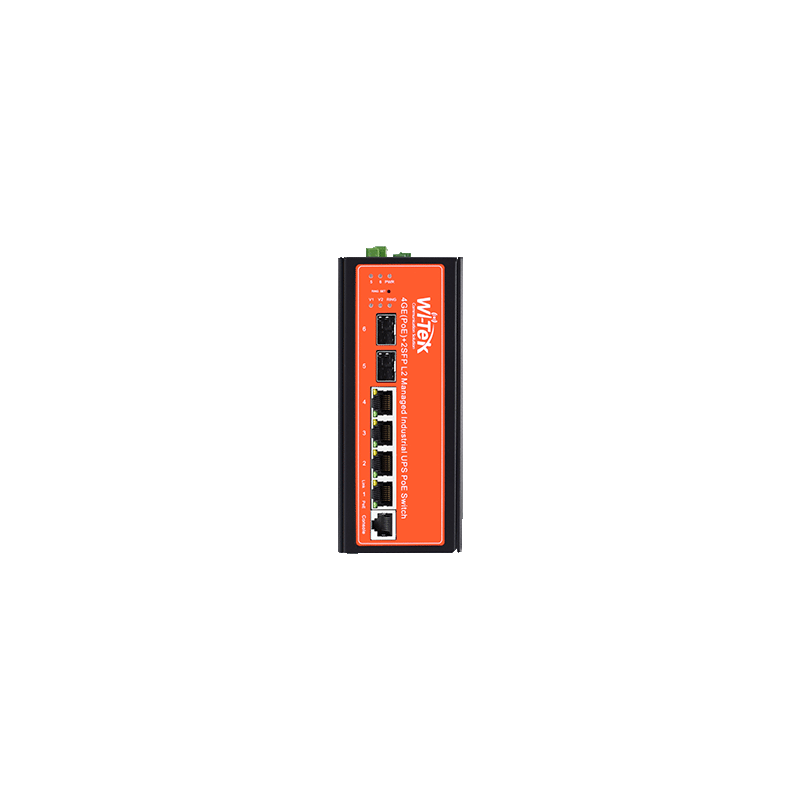

• PoE Port: Port 1-4
• PoE Standard: Port 1-2: IEEE 802.3af/at or 24V passive PoE (Auto detective)
• PoE Pin Assignment: Port 3-4: IEEE 802.3bt (Type 4) Port 1-2: 1/2(+), 3/6(-) @IEEE 802.3af/at PoE or 4/5(+), 7/8(-) @24V passive PoE Port 3-4: 1/2/4/5 (+), 3/6/7/8 (-)
• PoE Port Power: 30W max@ IEEE 802.3af/at or 24W max @24V passive PoE for port 1-2, 90W max for port 3-4
• PoE Power Budget: 120W max for whole switch PoE power budget
• Operating Environment: -40°C to 75°C, 10%~90% (non-condensation)

FAQ

How is it powered?

V1&V2: 37~57V DC (Enable PoE out, cannot charge the battery), 12~37V DC (Disable PoE out, cannot charge the battery)

What operating environment is stated?

-40°C to 75°C, 10%~90% (non-condensation)

Which ports does the datasheet list?

2*10/100/1000Mbps PoE++ (Type 4) RJ45 ports 2*1000Mbps SFP ports
