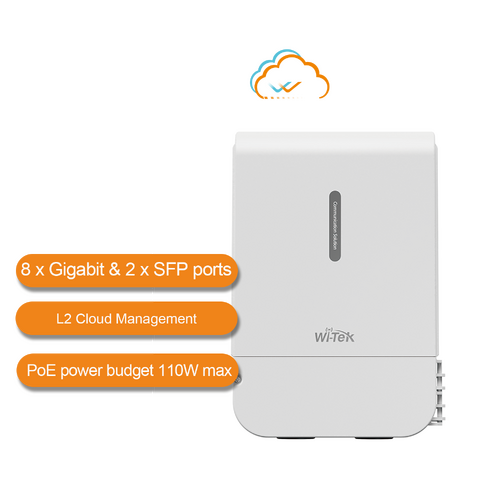

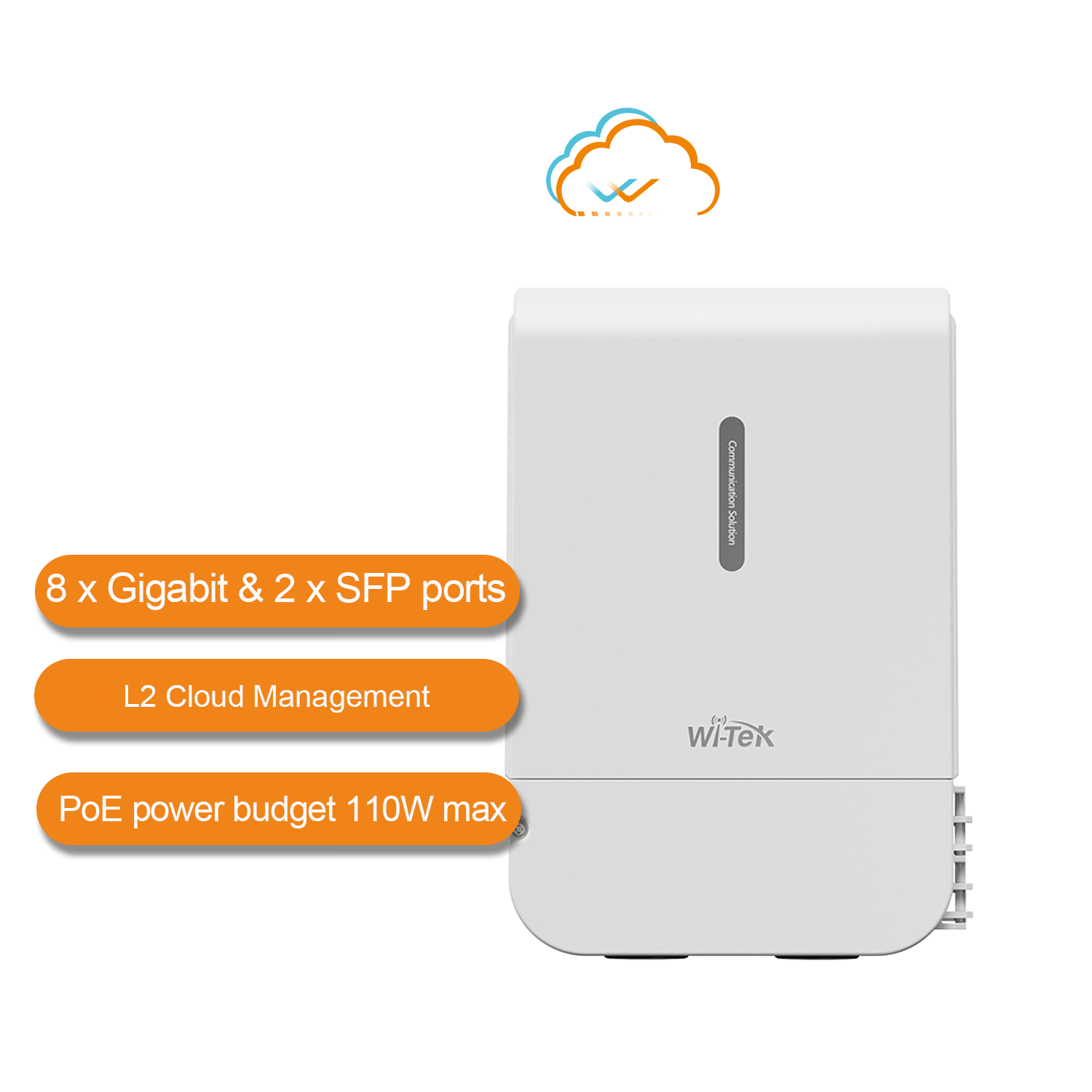

WI-TEK Outdoor Gigabit 8 Port Cloud PoE Switch

WI-TEK OUTDOOR GIGABIT 8 PORTS CLOUD POE SWITCH

Wi-Tek Cloud L2+ Managed Outdoor Gigabit PoE Switches are designed to address the unique challenges of variable weather environments, providing high-performance, robust L2 and L2+ features such as static routing, ERPS, DHCP server, enterprise-grade QoS, and advanced security policy capabilities. IP-MAC-Port Binding (IMPB) and Access Control List (ACL) features protect against broadcast storms, ARP and Denial of Service (DoS) attacks, and more. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to make data transfer smoother and faster. Wi-Tek Cloud management provides a more efficient, simple, secure, and easy-to-use remote management method. It supports intelligent deployment, automatic networking, abnormal alarm, and other functions, making it easy to manage and maintain. Cloud L2+ Managed Outdoor Gigabit PoE Switch is a high performance, reliable network solution with rich management features, making it the perfect choice for outdoor CCTV/WLAN solutions.

Abundant L2 and L2+ features

Cloud L2+ Managed Outdoor Gigabit PoE Switch support a complete lineup of L2 features, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, ERPS, DHCP server, Link Aggregation Control Protocol, and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance, such as Loopback Detection, Cable Diagnostics, and IGMP Snooping. Moreover, L2+ managed switches support L2+ feature-static routing, which is a simple way to provide segmentation of the network with internal routing through the switch and helps network traffic for more efficient use.

Cloud Platform Remote Management

Not only supports web interface and CLI management but also supports Wi-Tek Cloud platform remote management. Users can view the network status, modify the configuration, and troubleshoot at home.

Networking Security

The Cloud L2+ Managed PoE switches provide IP-MAC-Port Binding, Port Security, Storm control and DHCP Snooping which protect against broadcast storms, DOS attacks，etc. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID. Moreover, the switch supports 802.1X authentication, which is used in conjunction with a RADIUS/TACACS+ server to require some authentication information before access to the network is allowed.

IP65 Waterproof and Dustproof Enclosure Design

It adopts a high-weather-resistant shell and provides dustproof and waterproof capabilities. It can work normally in extreme environments as low as -30°C and as high as 60°C, without fear of wind, sun, rain, and snow.

Specifications

Install tips

• PoE Port: Port 1-8
• PoE Standard: Port 1-2: 802.3af/at/bt Port 3-8: 802.3af/at
• PoE Pin Assignment: 1/2(-), 3/6(+) and 4/5(+), 7/8(-) 90W max for port 1-2,
• PoE Power: 30W max for port 3-8;
• Installation: Wall-mounted, Pole-mounted
• Operating Environment: -30℃-60℃ (-22℉-122℉); 10-90% RH non-condensing

FAQ

What operating environment is stated?

-30℃-60℃ (-22℉-122℉); 10-90% RH non-condensing
