LTS IP Video Intercom Kit with 7" White Touchscreen Monitor (Flush-Mount)

LTS IP Video Intercom Kit with 7" White Touchscreen Monitor (Flush-Mount)

This complete LTS Platinum-series IP intercom kit pairs a PoE-powered flush-mount door station with a 7-inch touchscreen indoor monitor in a white finish, giving homes and small offices a modern, network-based video entry system. The kit is built around modular components, meaning the door station, indoor monitor and mounting frame can each be swapped or extended later without replacing the whole system.

Key Features

• 2.0MP fisheye door camera - the LTH-M201-C door station module records at 2.0MP - 1920x1080 @30fps with a Fisheye Lens offering a 180-degree horizontal field of view, giving a wide view of visitors at the door.
• Auto day/night imaging with built-in IR, plus BLC / DNR & WDR processing for clearer footage in mixed lighting.
• Two-way audio via an omnidirectional microphone and loudspeaker with echo cancellation built into the door station.
• Tamper protection - the module includes a tamper alarm to flag interference with the unit.
• Weatherproof housing rated IP65 for outdoor durability, with an operating range suited to Australian climate extremes.
• 7-inch touchscreen indoor monitor featuring a 7-inch colorful touch screen with resolution 1024 x 600 and a refreshed, user-friendly interface.
• Flexible connectivity - the monitor supports 24vDC power along with standard PoE at the door station, plus built-in Wi-Fi for network installs where running Ethernet is impractical.
• Local recording - the indoor station stores messages and captures images locally on the TF card, useful for reviewing missed visitors.
• Remote access and unlocking - residents can remotely unlock via the client software or mobile client and view live video from the door station and any linked cameras.

Built for Easy Residential and Small Commercial Installs

This kit suits homeowners, property managers and small offices wanting a single-door video intercom solution that integrates with an existing LTS NVR or standalone network. Because the door station module is designed to support multiple sub-modules and additional indoor stations, the system can grow with future access control, keypad or card reader add-ons without a full system replacement. The included 4-port PoE switch simplifies setup by powering the door station and monitor from a single network run, reducing cabling and installation time.

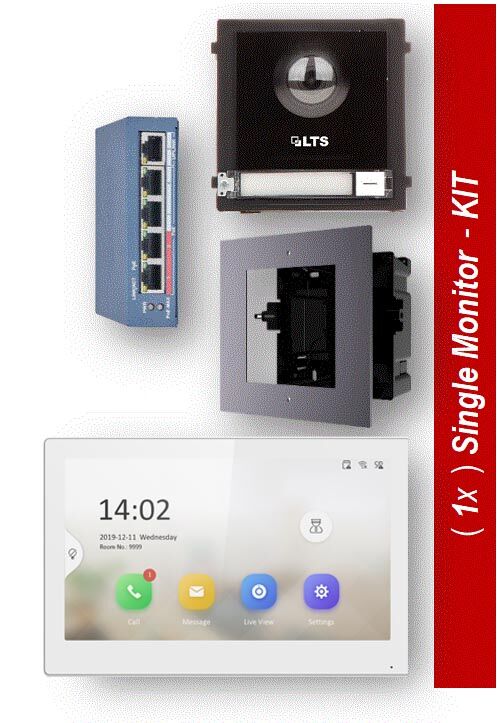

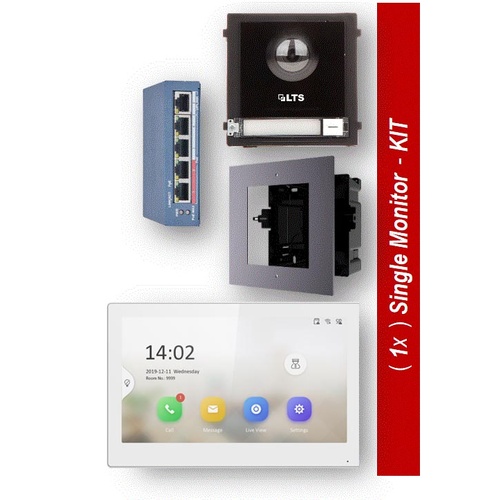

What's in the Box

• 1 x LTH-M201-C IP PoE Door Station Camera Module
• 1 x LTH-M201-1F Single-Module Flush-Mount Frame with fixing hardware
• 1 x LTH-D311GY-WIFI-W 7" White IP Touchscreen Indoor Monitor
• 1 x 4-Port PoE Switch

Frequently Asked Questions

Is this kit suitable for a flush (in-wall) installation?
Yes, the included LTH-M201-1F frame is a single-module flush-mount design made from aviation-grade aluminium, made specifically for recessing the door station into a wall or pillar.

Does the monitor need a wired network connection?
No, the LTH-D311GY-WIFI-W indoor monitor supports both PoE/Ethernet and built-in Wi-Fi, so it can be installed without running a network cable to the mounting location.

Can I add more indoor monitors or door stations later?
Yes, the door station module is designed to connect additional sub-modules and indoor stations, allowing the system to be expanded beyond the single monitor included in this kit.
