LTS IP Video Door Intercom Kit with 2 Touchscreen Monitors (Flush-Mount)

LTS IP Video Door Intercom Kit with 2 Touchscreen Monitors – Flush-Mount

This LTS IP Intercom Kit (LTH-KIT-122IP-F) is a complete, PoE-powered video door entry solution designed for homes or small multi-tenant properties that need one door station paired with two separate indoor monitors. The kit bundles a flush-mount outdoor camera module, its matching aluminium frame, two 7-inch touchscreen indoor stations, and a dedicated 4-port PoE switch, giving installers everything required for a straightforward single-door, dual-monitor deployment.

Key Features

• 2.0MP fisheye camera module capturing 1920×1080 video at up to 30fps with a wide 180° horizontal field of view for full coverage of visitors at the door.
• Auto day/night switching with IR-assisted low-light imaging so callers remain visible around the clock.
• Built-in omnidirectional microphone and loudspeaker on the door station for clear two-way audio with echo cancellation.
• Weatherproof IP65-rated housing suited to outdoor entryways, with a tamper alarm for added security.
• Aviation-grade aluminium flush-mount frame included for a clean, recessed installation with all fixing hardware supplied.
• Two 7-inch touchscreen indoor monitors (Black/Silver trim) offering handsfree calling via a built-in microphone and speaker.
• Flexible connectivity on each monitor via 12V DC, PoE, or built-in Wi-Fi 802.11b/g/n, plus a microSD slot (up to 32GB) for local storage of snapshots.
• Dedicated 4-port PoE switch included, simplifying power and network cabling for the door station and both monitors from a single point.
• Compatible with LTS NVR systems for centralised recording and monitoring alongside existing camera infrastructure.

Ideal for Dual-Access Households and Small Sites

Because it ships with two indoor monitors, this kit suits properties where residents need to answer the door from more than one room, such as a living area and a main bedroom, or a small office with both a reception desk and a manager's office. The flush-mount frame keeps the outdoor unit tidy against brick, render, or cladding, while the included PoE switch means the whole system can be run over standard network cabling without needing extra power adaptors at every point.

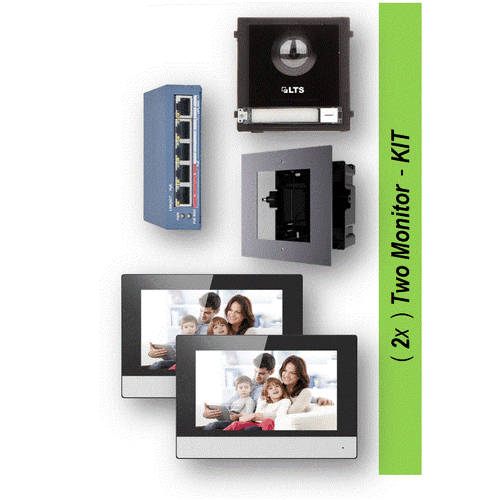

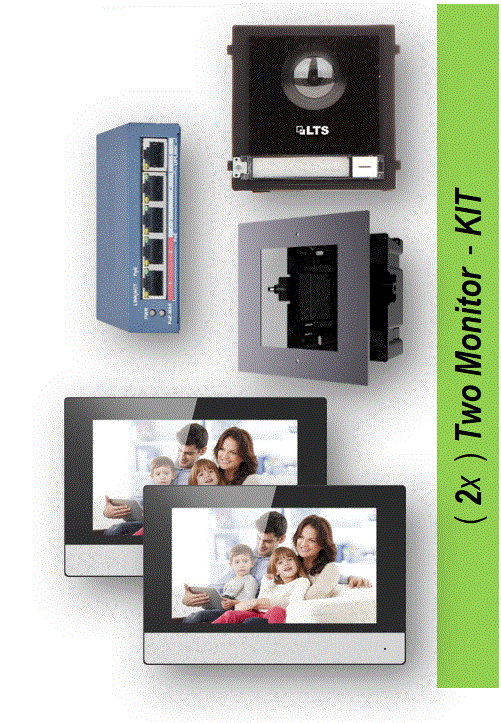

What's in the Box

• 1x LTH-M201-C IP PoE Door Station Camera Module
• 1x LTH-M201-1F Single-Module Flush-Mount Frame with fixing hardware
• 2x LTH-D301GY-WIFI 7-inch Touchscreen Indoor Monitors
• 1x 4-Port PoE Switch

Frequently Asked Questions

Can I add more monitors later?
Additional compatible LTS indoor monitors can typically be added to the same door station module, subject to the system's supported device limit, though this kit is pre-configured for two.

Does the kit need a separate power supply?
No – the included 4-port PoE switch powers the door station and both indoor monitors over standard network cabling, simplifying installation.

Is this kit suitable for outdoor installation?
Yes, the door station module carries an IP65 weatherproof rating and is designed to be flush-mounted into an external wall or door frame using the supplied aluminium frame.
