Akuvox R20K & S562 7" IP Video Intercom Kit with PoE Switch - White

Akuvox R20K & S562 7" IP Video Intercom Kit (White)

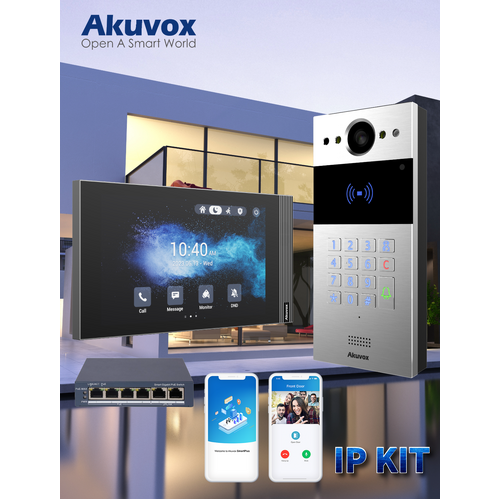

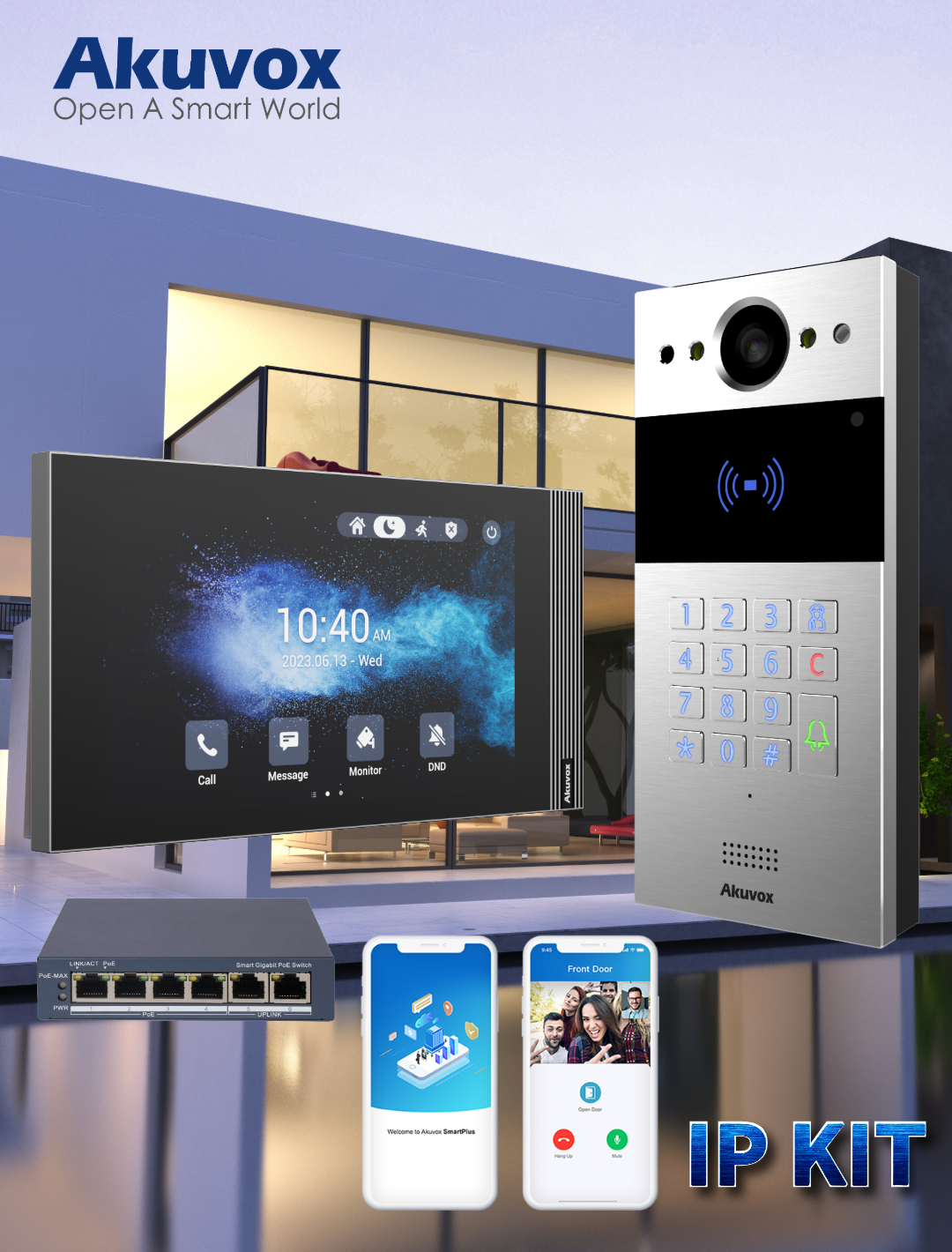

This Akuvox IP Kit pairs the compact, vandal-resistant R20K keypad door station with the 7" S562 touchscreen indoor monitor, giving apartments, townhouses and small offices a complete SIP-based video intercom solution straight out of the box. A 4-channel PoE switch is included so both the outdoor panel and indoor monitor can be powered and networked over a single Cat5e/6 cable run, simplifying installation for integrators and DIY installers alike.

Key Features

• Compact, tough door station: The R20K features an aluminium alloy, vandal-resistant enclosure with a built-in numeric keypad for PIN-code entry.
• Card and mobile access: Integrated RFID reader supports both 13.56MHz (Mifare/NFC) and 125kHz (EM) credentials for flexible access control.
• Clear video calling: A 2-megapixel wide-angle camera with automatic IR lighting delivers sharp video day and night, streaming at up to 1080p resolution using H.264 encoding.
• 7" touchscreen monitor: The S562 indoor unit runs a Linux-based interface on a responsive capacitive touchscreen for answering calls, viewing the camera feed and releasing the door.
• Two-way audio with echo cancellation: Built-in Echo Cancellation and Voice Activation Detection keep conversations clear at both ends.
• PoE simplicity: Both the R20K and S562 are Power-over-Ethernet capable, and the included 4-channel PoE switch powers and networks the whole kit from one location.
• Weatherproof outdoor rating: The R20K carries an IP65 rating, protecting it from rain, dust and extreme temperatures ranging from -30°C to +60°C.
• SIP and ONVIF standards-based: Full compliance with SIP v1/v2 and ONVIF allows the kit to integrate with third-party PBX systems and network video recorders.
• Door relay control: Multiple relay outputs and a Wiegand interface allow the door station to trigger electric locks or connect to external access control hardware.

Typical Applications

This kit is well suited to single-entry residential properties, townhouse developments, small offices and shared workspaces where a straightforward, self-contained video intercom is needed. Because the door station and monitor communicate over standard SIP and can be networked via PoE, the system is easy for security installers to deploy without complex wiring, while still offering card, keypad and video-verified entry for everyday use.

What's in the Box

• 1 x Akuvox R20K IP Door Station (White/Silver aluminium finish)
• 1 x Akuvox S562 7" White Indoor Monitor
• 1 x 4-Channel PoE Switch

Frequently Asked Questions

Does this kit require a separate power supply?
No. The included 4-channel PoE switch powers both the R20K door station and the S562 monitor over standard network cabling, so no additional power adapters are needed at each device.

Can the door station be opened with a card as well as a PIN code?
Yes. The R20K includes a built-in RFID reader supporting both 125kHz and 13.56MHz cards alongside its numeric keypad, giving residents multiple ways to gain entry.

Is the outdoor unit suitable for exposed, outdoor installation?
Yes. The R20K carries an IP65 weatherproof rating and is designed to operate reliably across a wide temperature range, making it suitable for uncovered entry points.
