Akuvox E12S & C313W Video Intercom Kit with 7" Wi-Fi Touchscreen Monitor

Akuvox E12S & C313W Video Intercom Kit

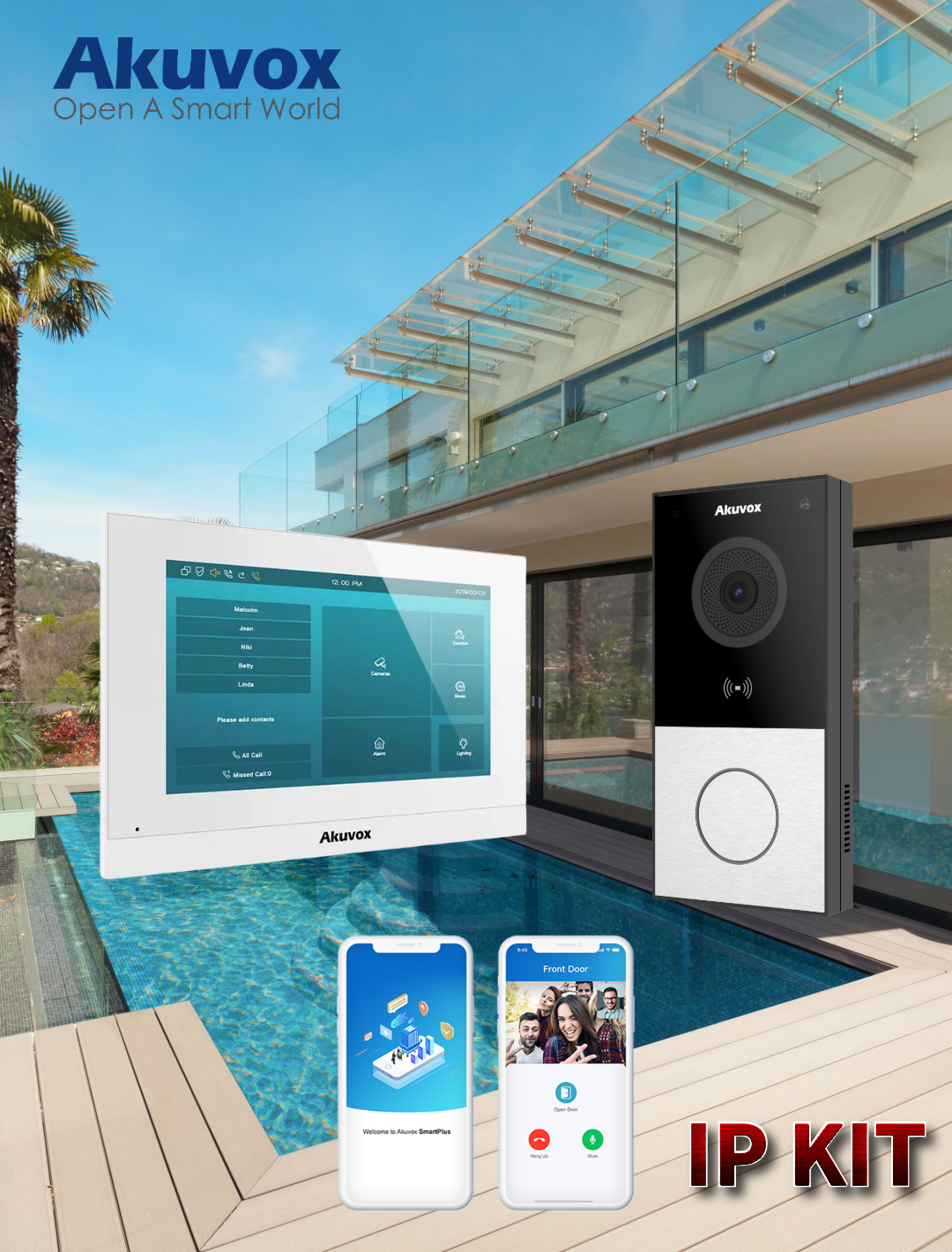

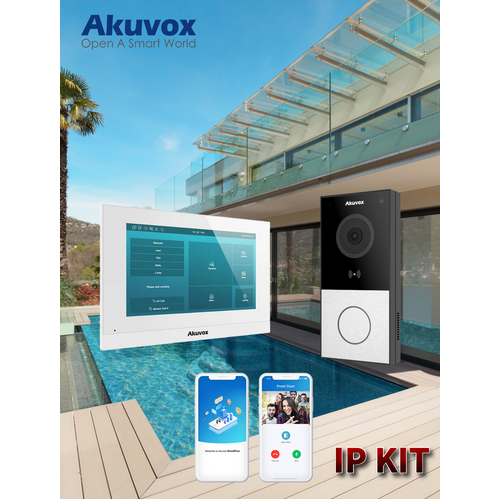

This Akuvox intercom kit pairs the compact E12S SIP video door station with the C313W indoor touchscreen monitor, giving homes, townhouses and small businesses a complete two-way video entry solution straight out of the box. The outdoor unit lets visitors call in with a single button press, while the 7-inch indoor display shows live video, handles hands-free calls and can trigger a remote door release when paired with compatible access hardware.

Key Features

• 2MP wide-angle camera on the E12S door station with a 123° horizontal field of view for clear visitor identification
• IP65 weatherproof outdoor housing suited to exposed entries, gates and side doors
• RFID, NFC and Bluetooth credential support on the door station for flexible, keyless entry options
• SIP v2 protocol with PoE or 12V DC power input for straightforward integration with existing intercom infrastructure
• 7" capacitive touchscreen (800 x 480) on the C313W indoor monitor for a responsive, easy-to-navigate interface
• Built-in Wi-Fi (802.11b/g/n) on the indoor monitor, allowing installation away from a network point where running cable is impractical
• Hands-free two-way audio between the door station and indoor monitor with built-in microphone and speaker
• H.264 video support for smooth, efficient live video streaming between units

Typical Applications

This kit suits single-entry residential properties, townhouses, granny flats and small office or retail entrances where a straightforward one-door, one-monitor video intercom is required. The E12S mounts at the entry point while the C313W can be wall-mounted indoors in a hallway, kitchen or reception area; because the monitor supports Wi-Fi as well as wired Ethernet, installers have flexibility in choosing a convenient indoor location. Where remote smartphone access is needed, the system can be configured to work with the Akuvox SmartPlus app, letting residents view and answer visitor calls from their mobile device.

What's in the Box

• 1 x Akuvox E12S IP video door station
• 1 x Akuvox C313W indoor touchscreen monitor (white)
• Standard mounting accessories and quick-start documentation

Note: A PoE switch is required to power the units over Ethernet and is sold separately.

Frequently Asked Questions

Does this kit include a PoE switch?
No. A compatible PoE switch is needed to power the door station and monitor over Ethernet and must be purchased separately.

Can the C313W monitor connect without running network cable?
Yes, the C313W has built-in Wi-Fi, so it can be mounted indoors and connected wirelessly instead of running an Ethernet cable back to the door station or switch.

Is mobile access to the door station available?
When configured with the appropriate Akuvox cloud or SIP service, the system can support remote visitor calls and notifications through the SmartPlus app.
