LTS Platinum LTK3411MF Face Recognition Access Control Terminal

LTS Platinum LTK3411MF Face Recognition Access Control Terminal

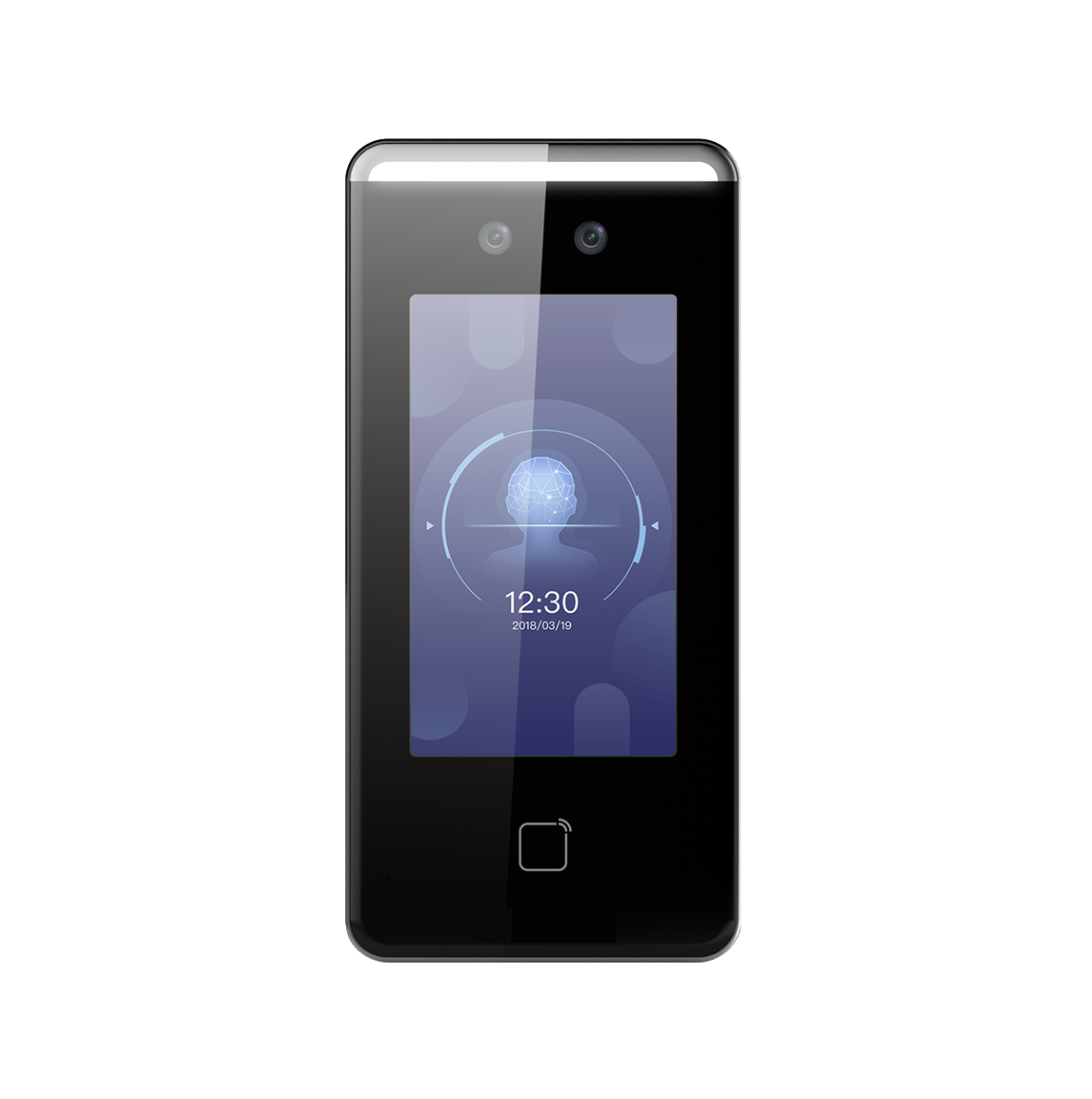

The LTS Platinum LTK3411MF is a single-door biometric access terminal built for businesses that need fast, reliable identity verification without the complexity of a full access control panel. Featuring a bright 4.3-inch touchscreen, a dual-lens 2 MP camera, and a built-in MIFARE card reader, this terminal lets staff and visitors gain entry using a face scan, a proximity card, or both. Its rugged IP65-rated housing and 12V DC power input make it equally suited to sheltered outdoor entries and indoor doorways in offices, warehouses, retail stores, and multi-tenant buildings.

Key Features

• Dual-lens 2 MP camera with wide-angle coverage and a deep-learning recognition engine for accurate, real-world performance in varying light.
• Sub-second recognition speed, matching a face in under 0.2 seconds per user with a claimed accuracy rate above 99%.
• Effective read range of roughly 0.3–1.5 metres (1–5 ft), allowing hands-free entry as users approach the door.
• Built-in anti-spoofing detection to help guard against photo or video-based spoofing attempts, with the option to add a second authentication factor for higher-security doors.
• Large capacity storage supporting up to 3,000 enrolled faces, 3,000 MIFARE card profiles, and 150,000 stored access events.
• Built-in MIFARE card reader for dual-credential setups, ideal for staff who want a card-plus-face workflow or a fallback method.
• TCP/IP networking and RS-485 connectivity, letting the terminal talk to management software and to a secure door control unit that keeps the lock protected even if the terminal itself is tampered with.
• USB import/export of user photos and event logs for quick bulk enrolment or offline auditing.
• Remote management via LTS-Connect and ISAPI support, enabling remote live view and remote door release from a connected client.

Reliable Entry Control for Everyday Business Doors

The LTK3411MF is designed to replace a basic card reader or PIN keypad at a single entry point where speed and hygiene matter. It suits front doors of offices and clinics, staff entrances at retail or hospitality venues, warehouse loading doors, and gated common areas in strata or commercial buildings. Because it stores events locally and can sync with LTS access control or NVR software, it also gives administrators an audit trail of who entered and when, without needing a dedicated access control server for smaller sites.

What's in the Box

• LTK3411MF Face Recognition Terminal
• Mounting bracket and installation hardware
• Wiring terminal block
• Quick start guide
• Power supply included (external 12V DC unit, sold with the unit per LTS packaging)

Frequently Asked Questions

Can the LTK3411MF be used outdoors?
Yes. Its IP65 rating means it can be mounted at sheltered outdoor entries as well as indoors, though direct exposure to driving rain or extreme sun glare should still be avoided for best recognition accuracy.

Does it work as a standalone terminal or does it need software?
It can operate standalone for basic single-door control, but pairing it with LTS management software or an NVR platform unlocks remote enrolment, live view, and centralised event reporting.

Can I combine face recognition with a card credential?
Yes. The built-in MIFARE reader supports dual-factor setups, so a door can be configured to require both a recognised face and a valid card for extra security.
