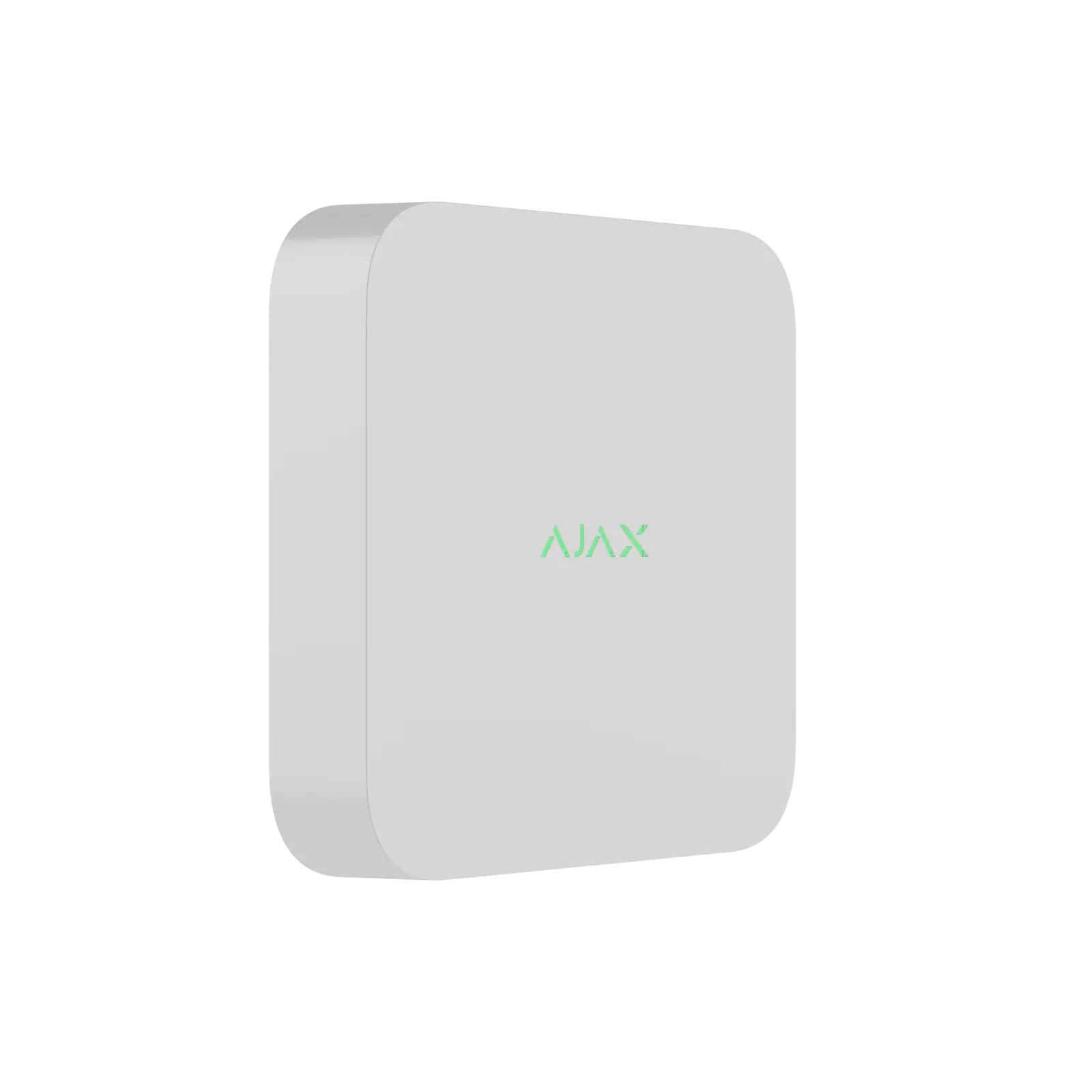

Ajax NVR 16-Channel White Network Video Recorder (No HDD)

Ajax NVR 16-Channel White Network Video Recorder

The Ajax NVR (16-ch) is a professional network video recorder built to bring IP camera surveillance directly into the Ajax security ecosystem. Designed for homes, offices, retail spaces, and light commercial sites, it manages up to 16 IP camera channels in stunning 4K resolution while linking video evidence to intrusion alarms for faster, smarter verification. Supplied in a white finish without a hard drive, it gives installers the flexibility to fit the storage capacity that suits the job.

Key Features

• 16-channel recording supporting resolutions up to 4K at 25/30 FPS for crisp, detailed footage
• ONVIF (Profile S/T) and RTSP compatibility, allowing integration with a wide range of third-party IP cameras
• Large storage support for a single 3.5-inch SATA HDD up to 16TB capacity (drive not included)
• Bandwidth handling up to 100Mbps for smooth multi-camera streaming and playback
• Smart alarm-linked recording that lets Ajax detectors trigger specific cameras to start capturing footage automatically
• Built-in motion detection engine with the option to switch between NVR-based or camera-based image analysis
• Integrated video wall that combines feeds from all connected cameras into a single monitoring view
• Event filters and a smooth-scrolling timeline for quickly locating and reviewing specific recorded moments
• Configurable access rights for mobile app users and monitoring operators via Ajax PRO Desktop

Ideal for Integrated Security and Video Verification

This NVR suits installers upgrading an existing Ajax alarm system with visual verification, or building a new combined intrusion-and-CCTV solution. Because it accepts ONVIF and RTSP cameras from many manufacturers, it works well for retrofitting older IP camera installations while still gaining Ajax's alarm-linked recording, video wall, and remote app access. It is designed strictly for indoor mounting and connects to the network via Ethernet, drawing power from the mains supply.

What's in the Box

• Ajax NVR (16-ch) unit - White
• Power supply cable
• Mounting hardware
• Quick start guide

Frequently Asked Questions

Does this NVR come with a hard drive?
No. The unit ships without an HDD, so a compatible 3.5-inch SATA drive (up to 16TB) must be purchased and fitted separately.

Can I use cameras from other brands with this NVR?
Yes. As long as the camera supports ONVIF (Profile S/T) or RTSP, it can be connected and managed alongside Ajax devices.

Does the NVR work with the Ajax alarm system?
Yes. It can be configured so that Ajax detectors automatically trigger relevant cameras to record, linking alarm events directly to video footage.
