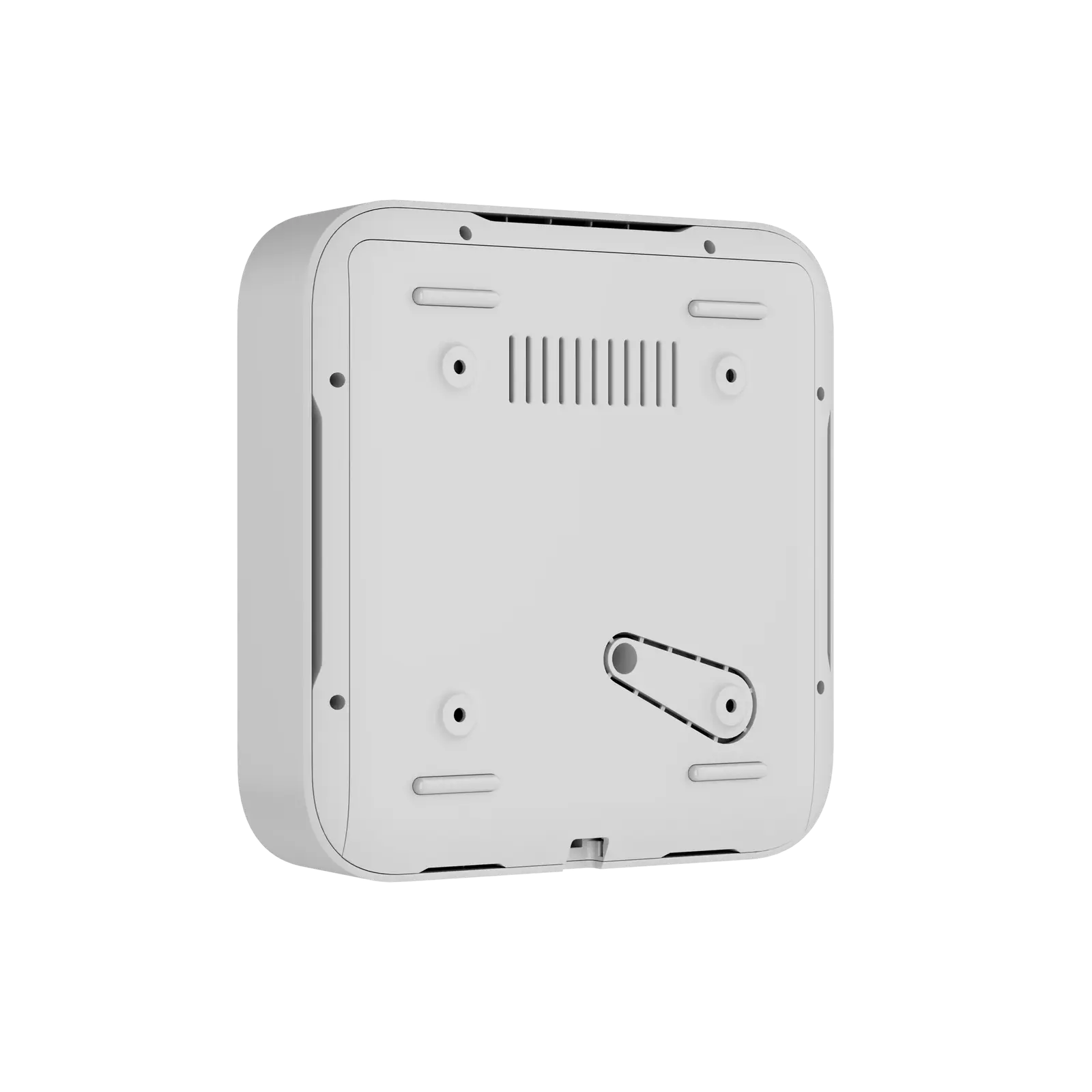

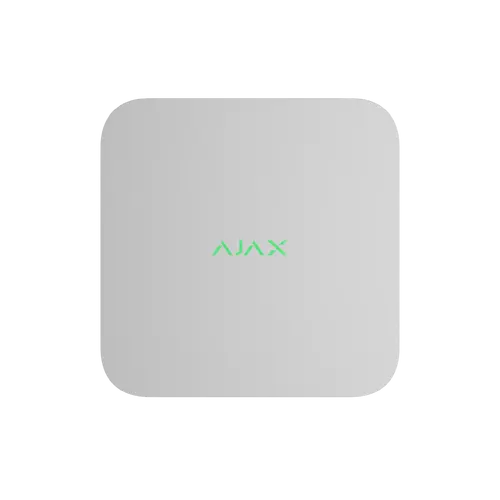

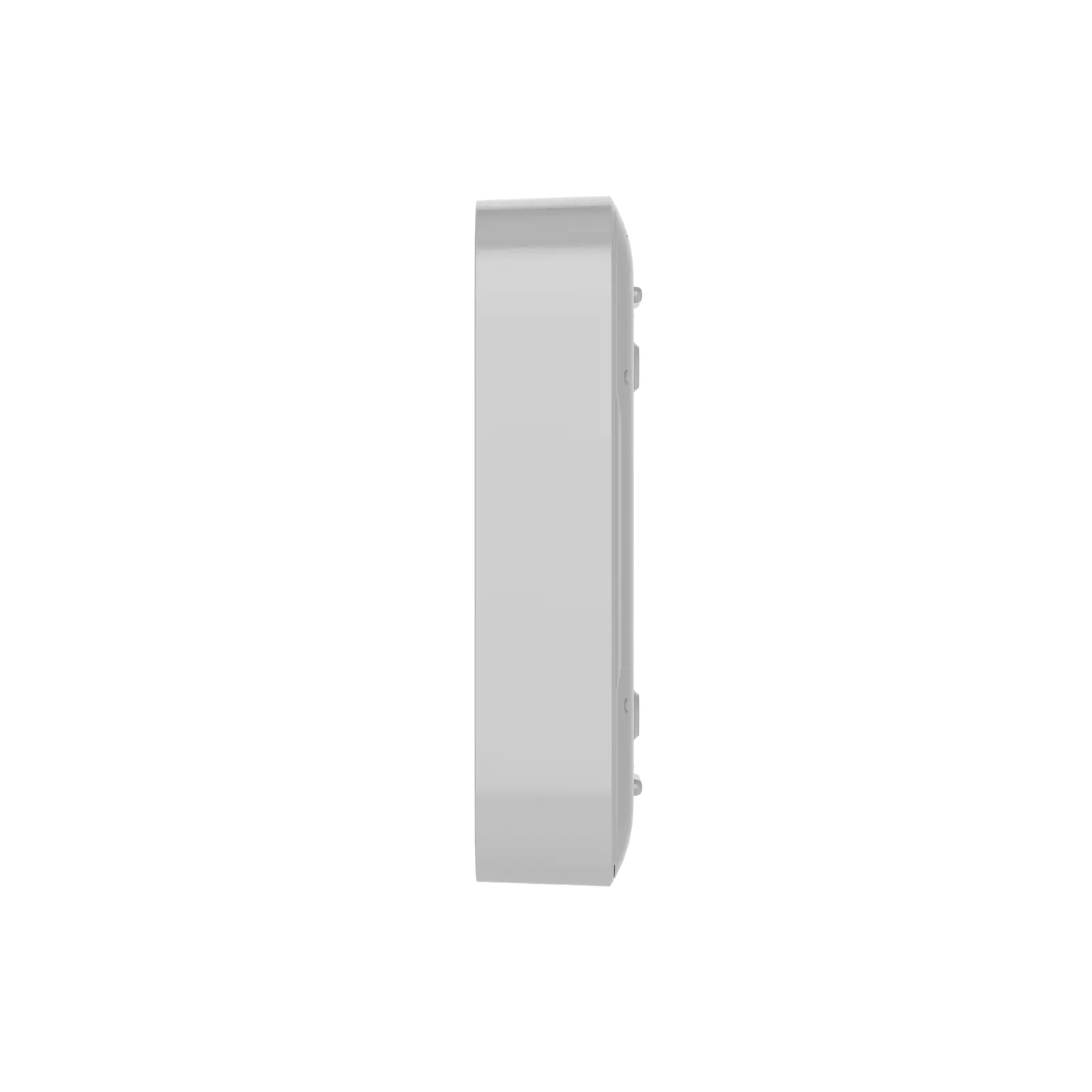

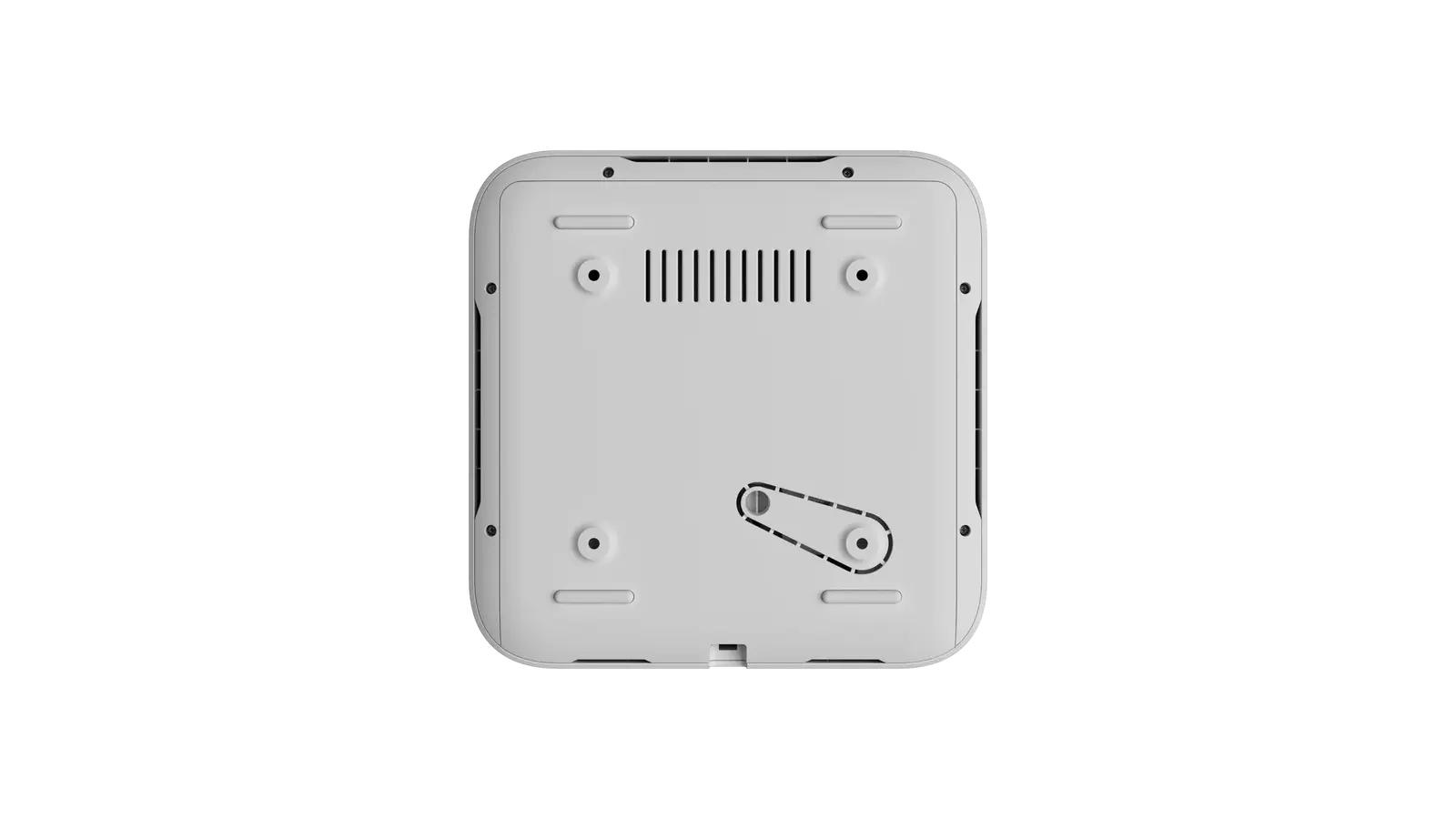

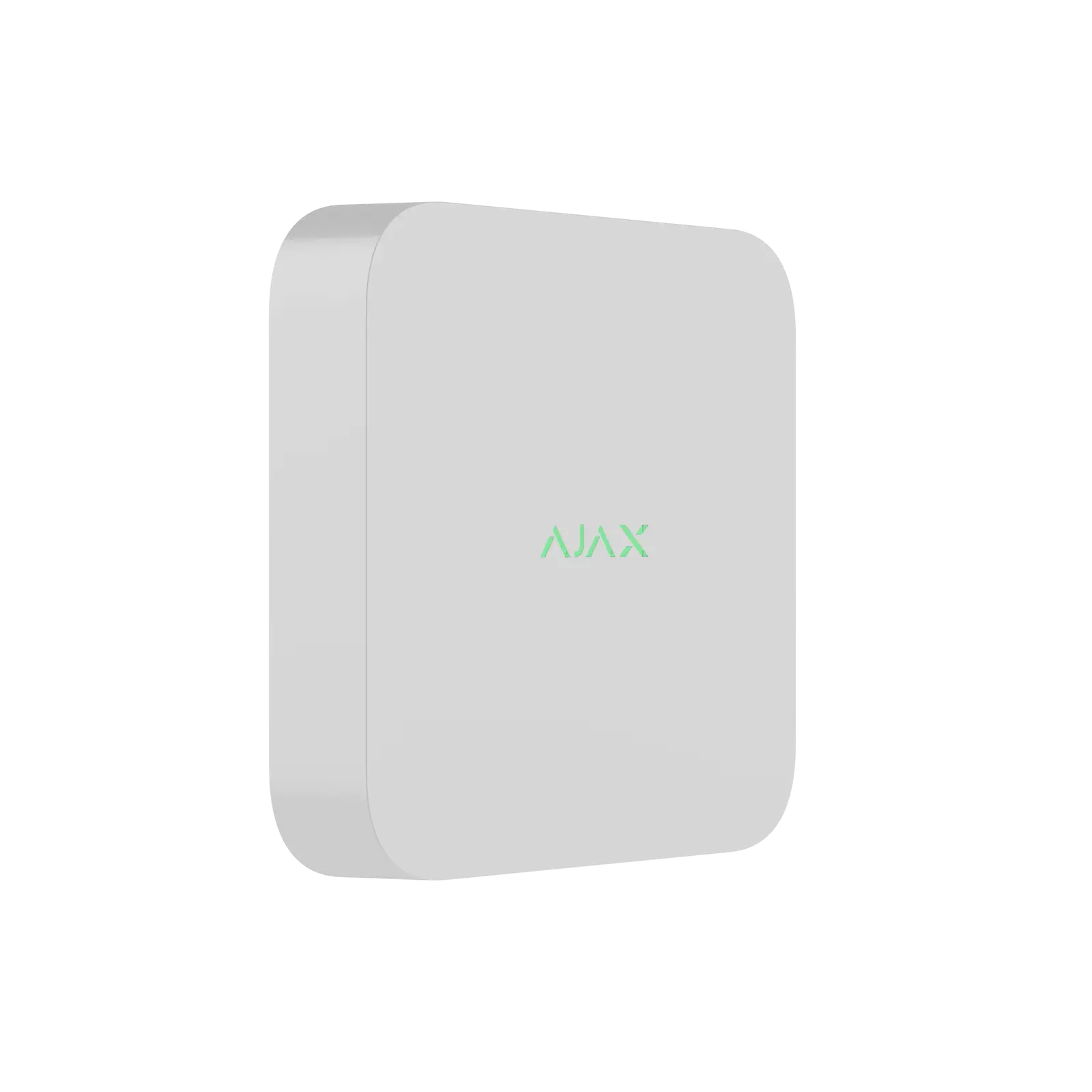

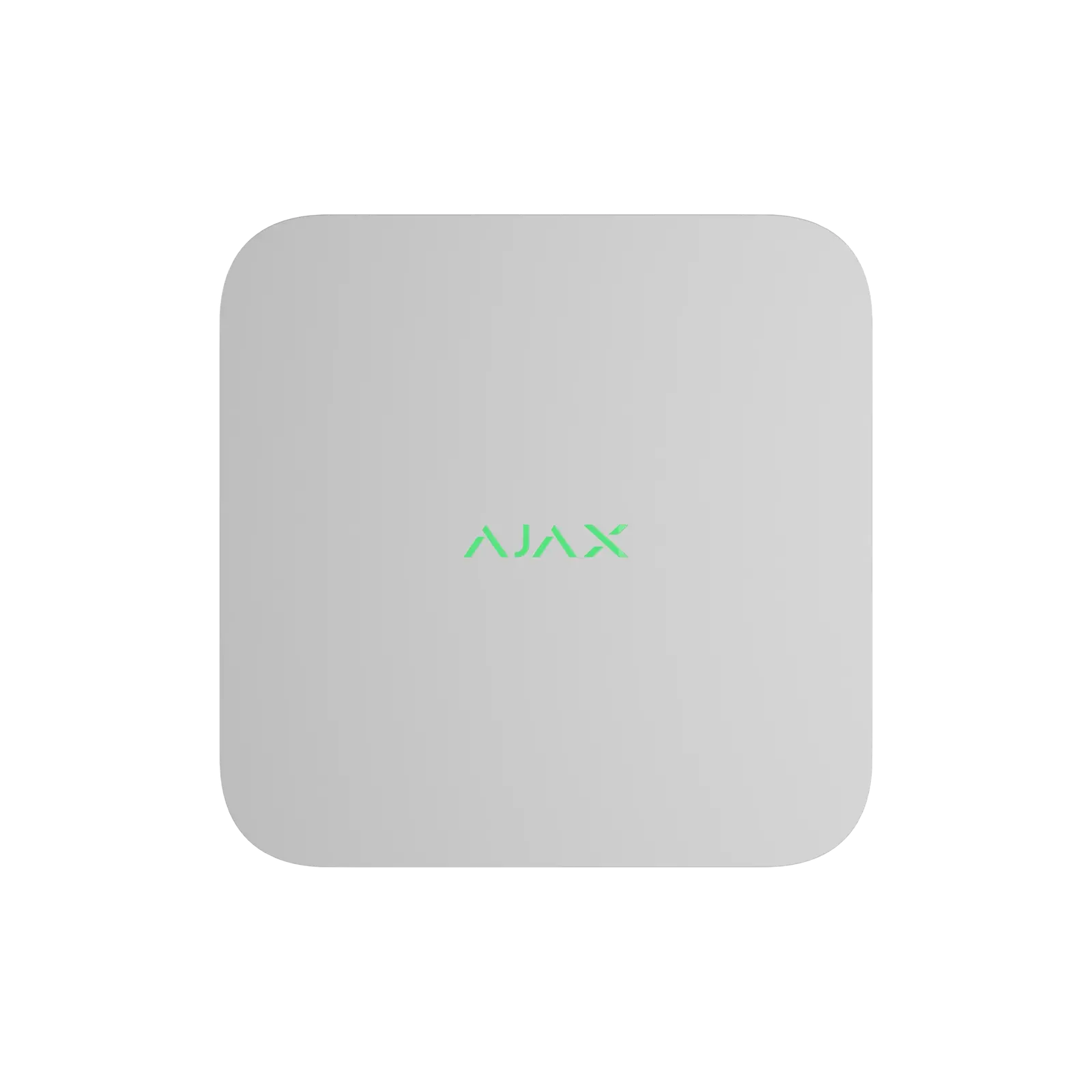

Ajax NVR 8-Channel White 4K Network Video Recorder

Ajax NVR 8-Channel White - 4K Network Video Recorder

The Ajax NVR (8-ch) is a compact network video recorder built to bring professional IP video surveillance directly into the Ajax security ecosystem. Finished in white to blend into most interiors, this fanless recorder manages up to eight IP camera channels at resolutions as high as 4K, letting installers combine alarm monitoring and video verification in a single connected system. It works alongside compatible Ajax hubs and detectors, so recorded footage and intrusion events stay linked for fast incident review.

Key Features

• 8-channel support: Connect and manage up to eight IP cameras simultaneously from one recorder.
• Up to 4K resolution: Records clear, detailed footage at 25/30 FPS using H.265/H.264 compression for efficient storage.
• ONVIF and RTSP compatible: Broad support for third-party IP cameras via ONVIF Profile S/T and RTSP streaming.
• Large storage capacity: Supports a single 3.5-inch SATA hard drive up to 16TB (HDD sold separately).
• Alarm-linked recording: Set scenarios where Ajax detectors automatically trigger specific cameras to start recording.
• Built-in motion detection: Choose between the NVR's own motion analysis or camera-based detection algorithms.
• Videowall and event timeline: View all connected camera feeds together and jump straight to relevant events with smooth timeline scrubbing.
• Remote access via app: Live view, playback, and system status available from Ajax mobile and desktop applications.
• Configurable access rights: Assign different permission levels to household users, installers, and monitoring operators.

Ideal Applications

This recorder suits homes, apartments, retail stores, offices, and small commercial sites that already use or plan to use an Ajax alarm system and want synchronized video verification. Because events from Ajax detectors can be tied directly to matching video footage, users and monitoring staff can confirm what triggered an alarm without hunting through hours of raw recordings. Its indoor-rated, fanless white housing also makes it a discreet fit for reception areas, back offices, or utility rooms where a bulky traditional DVR would stand out.

What's in the Box

• Ajax NVR (8-ch) recorder unit
• Power supply cable
• CR2032 backup battery (for system clock only)
• Mounting hardware and quick start documentation

Frequently Asked Questions

Does this NVR include a hard drive?
No. The unit supports a 3.5-inch SATA HDD of up to 16TB, but the drive must be purchased separately.

Can I use non-Ajax IP cameras with this recorder?
Yes. Thanks to ONVIF (Profile S/T) and RTSP support, most third-party IP cameras can be integrated alongside Ajax devices.

Is this NVR suitable for outdoor installation?
No, the recorder is designed for indoor use only and should be installed in a protected, climate-controlled space.
