LTS IP Video Intercom Kit - Flush-Mount Door Station & 7" Monitor (Black)

LTS IP Video Intercom Kit with Flush-Mount Door Station and 7" Touchscreen Monitor (Black)

The LTH-KIT-121IP-F is a complete IP-based video intercom solution designed for houses, units, offices and small commercial entries. This kit pairs a modular PoE door station camera with a flush-mount frame, a 7-inch touchscreen indoor monitor in a black finish, and a 4-port PoE switch, giving installers everything needed for a plug-and-play two-way video entry system. Built around LTS's modular IP intercom platform, the kit supports clear night-time imaging, hands-free audio, and simple network-based setup, making it a practical upgrade from analogue or wired 2-wire door entry systems.

Key Features

• 2.0MP door station camera module delivering 1920 x 1080 video at up to 30fps for sharp visitor identification.
• 180-degree fisheye lens with auto day/night switching for wide-angle coverage of the entry area.
• Built-in omnidirectional microphone and loudspeaker on the door module for clear two-way conversation with visitors.
• Aviation-grade aluminium flush-mount frame included with all fixing hardware for a clean, in-wall finish.
• 7-inch touchscreen indoor monitor in black trim with an intuitive on-screen interface for call answering, viewing and unlocking.
• Hands-free audio via the monitor's integrated microphone and speaker.
• Wi-Fi 802.11b/g/n connectivity plus PoE or 12V DC power options for flexible installation.
• MicroSD card support (up to 32GB) on the monitor for storing captured snapshots and call logs.
• 4-port PoE switch included, simplifying power and network cabling to both the door station and monitor.

Ideal for Homes, Units and Small Offices

This kit suits homeowners, property managers and installers who want a networked video intercom without running separate power cabling to the door station or monitor. Because the system is IP/PoE based, it can be expanded with additional monitors or door modules and, in many LTS setups, can be linked into an existing LTS NVR or monitored remotely via the LTS mobile app. The flush-mount frame gives a discreet, built-in appearance that suits modern entryways, while the modular door station design allows future add-ons such as access control or additional camera modules.

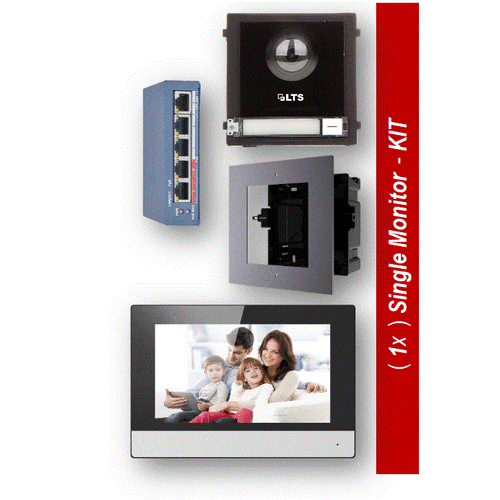

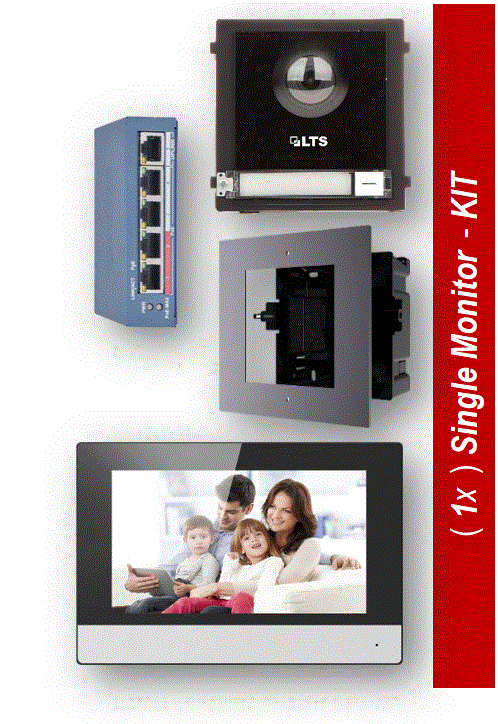

What's in the Box

• 1 x LTH-M201-C IP PoE audio/video door station camera module
• 1 x LTH-M201-1F single-module flush-mount frame with fixing hardware
• 1 x LTH-D301GY-WIFI 7-inch touchscreen IP indoor monitor (Black)
• 1 x 4-port PoE switch

Frequently Asked Questions

Does this kit require a separate power supply? No - the included 4-port PoE switch powers both the door station module and the monitor over standard network cabling, though the monitor can also run on 12V DC if preferred.

Can I add more monitors or door modules later? Yes, the modular IP intercom platform is designed to support additional sub-modules and extra monitors within the same system, subject to compatible LTS hardware.

Is this intercom kit suitable for outdoor installation? The door station module is rated for outdoor use with weather-resistant housing, while the touchscreen monitor is intended for indoor mounting only.
