LTS Universal 140mm Camera Base Mounting Plate for Dome & Turret Cameras

LTS Universal 140mm Camera Base Mounting Plate (LTB-UAP)

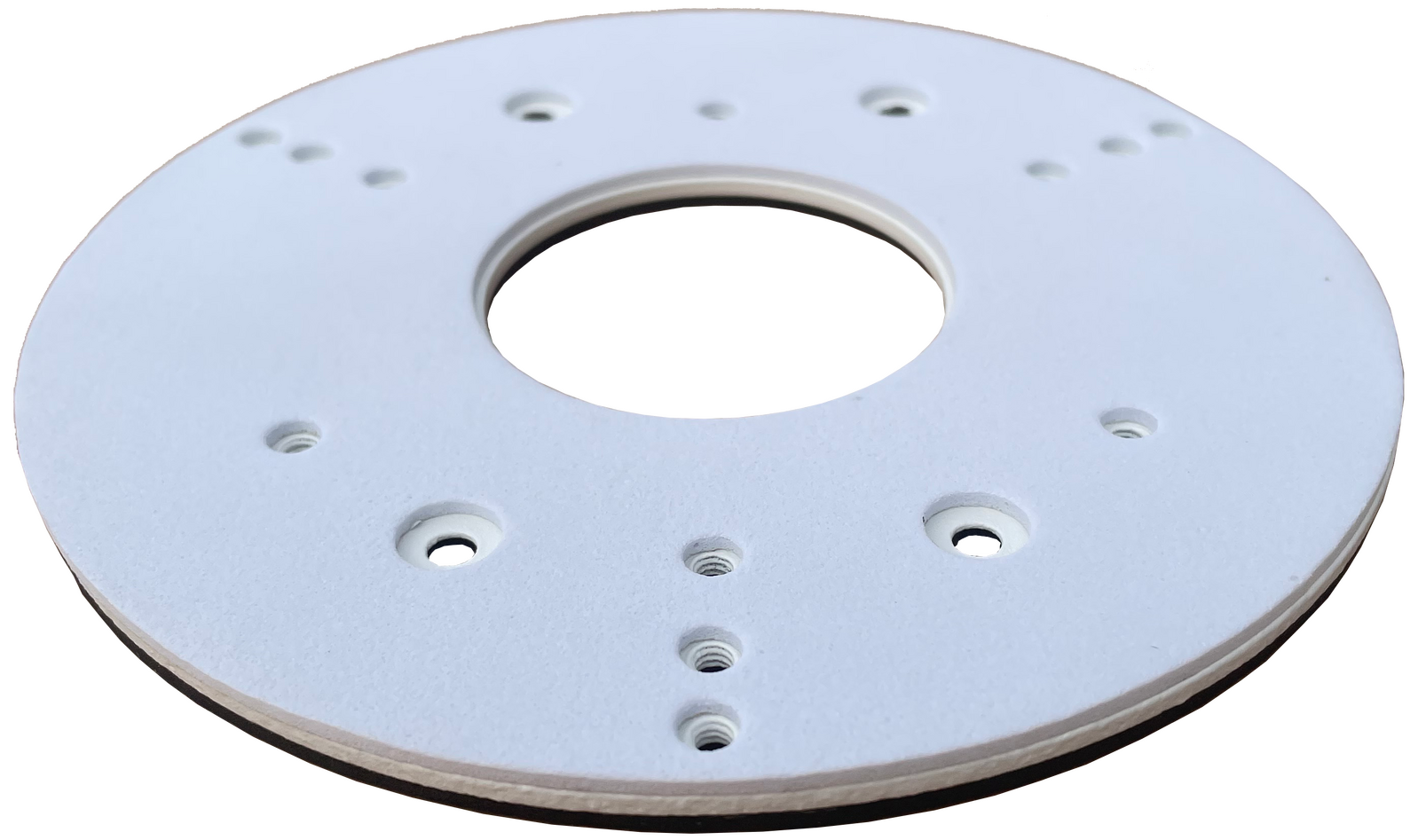

The LTS LTB-UAP is a universal 140mm base and mounting plate engineered to simplify the installation of compatible LTS Platinum dome and turret cameras. Supplied with a pair of EPDM rubber gaskets, this plate creates a weather-resistant seal between the camera housing and the mounting surface, helping keep dust and moisture out of the junction area. It is a practical accessory for installers who need a reliable, low-profile mounting solution that matches the footprint of several popular LTS camera series without requiring custom hardware.

Key Features

• Universal 140mm base diameter designed to suit a wide range of LTS turret and dome camera housings

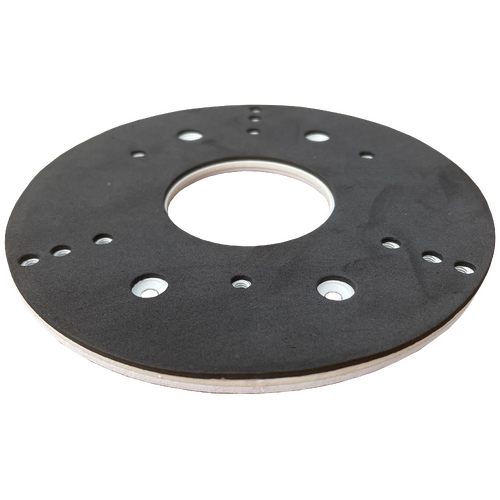

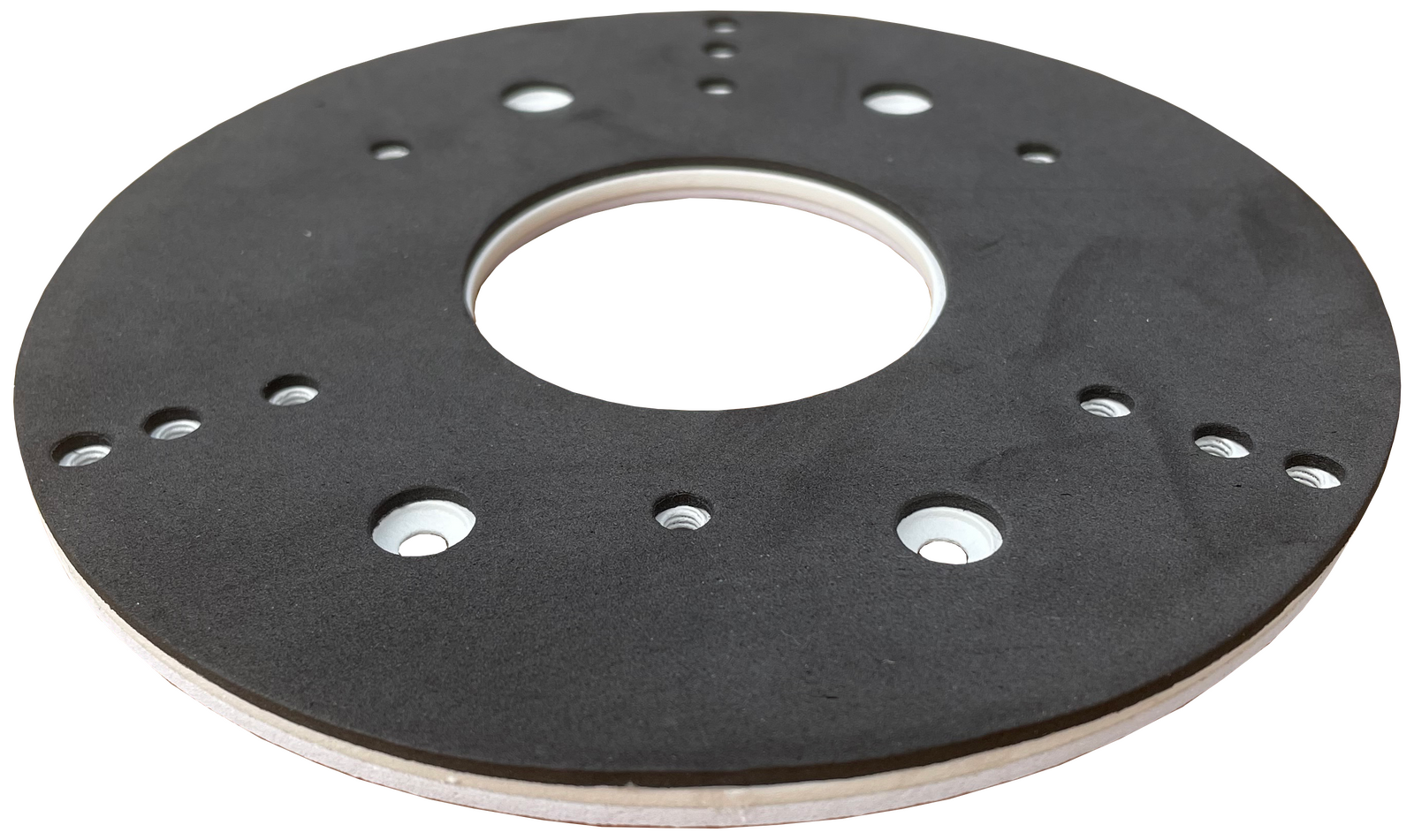

• Supplied with two EPDM sealing gaskets to improve weather resistance at the mounting point
• Compatible with LTS Platinum IP camera series including CMIP10, CMIP30, CMIP32, CMIP33, CMIP3C, CMIP3D and CMIP3T model ranges
• Also fits LTS HD-TVI turret cameras in the CMHT17, CMHT18 and CMHT19 series
• Solid base construction rated for both indoor and outdoor mounting applications
• Base dimensions of approximately 140mm diameter x 70mm height provide a stable, secure fitting surface
• Low-profile design maintains a clean, professional finish once installed
• Ideal for replacement, retrofit or upgrade projects where existing mounting holes need to be reused

Typical Applications

This mounting plate is commonly specified by CCTV installers and integrators who are deploying or servicing LTS Platinum dome and turret cameras across commercial, retail, warehouse and residential sites. Because it is designed to suit multiple camera series with the same 140mm footprint, it is a handy accessory to keep on hand for site upgrades, camera swaps, or standardising mounting hardware across a multi-camera installation, reducing the need for re-drilling or patching walls and ceilings.

What's in the Box

• 1 x Universal 140mm base mounting plate
• 2 x EPDM sealing gaskets
• Mounting hardware for surface fixing

Frequently Asked Questions

Which cameras is the LTB-UAP compatible with?
It is designed to suit LTS Platinum IP dome and turret cameras in the CMIP10, CMIP30, CMIP32, CMIP33, CMIP3C, CMIP3D and CMIP3T series, as well as HD-TVI turret cameras in the CMHT17, CMHT18 and CMHT19 series.

Does this plate provide any weatherproofing?
Yes, it includes two EPDM rubber gaskets that help seal the junction between the camera base and the mounting surface, supporting outdoor use.

Can I use this plate to replace an existing camera mount without new holes?
In most cases yes, since it uses the same universal 140mm footprint common to many LTS dome and turret models, making it a convenient option for retrofits.

Additional Resources

• LTS Camera Brackets Summary Chart
